TANDBERG Quick Set C20/C20 Plus and Profiles using C20
Contents
Contents
Introduction
Introduction

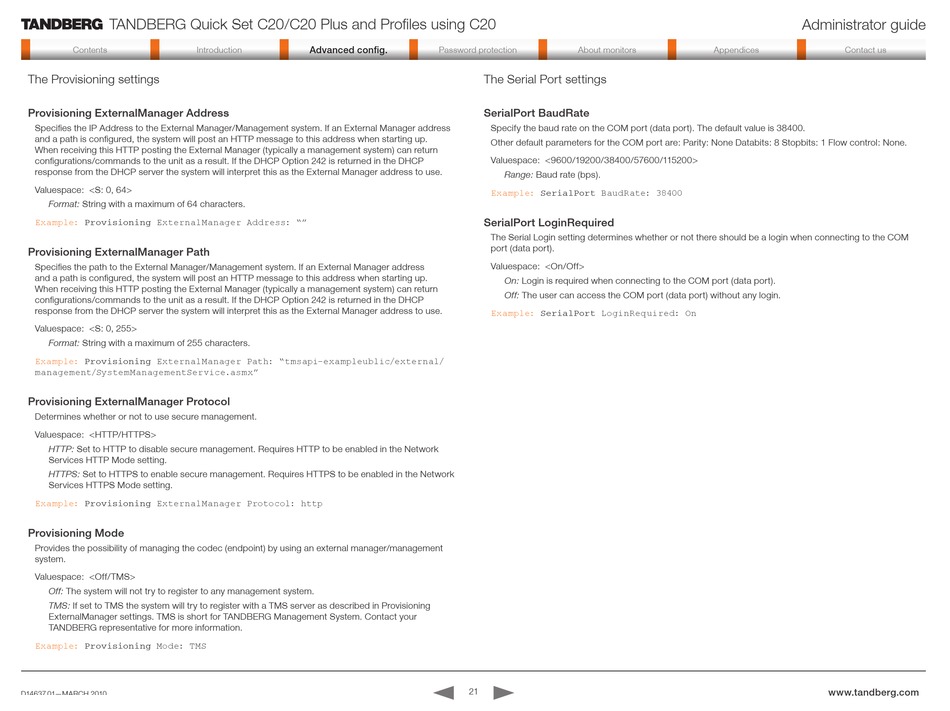

The Provisioning settings
Provisioning ExternalManager Address
Specifies the IP Address to the External Manager/Management system. If an External Manager address
and a path is configured, the system will post an HTTP message to this address when starting up.
When receiving this HTTP posting the External Manager (typically a management system) can return
configurations/commands to the unit as a result. If the DHCP Option 242 is returned in the DHCP
response from the DHCP server the system will interpret this as the External Manager address to use.
Valuespace: <S: 0, 64>
Format: String with a maximum of 64 characters.
Example:
Provisioning ExternalManager Address: ""
Provisioning ExternalManager Path
Specifies the path to the External Manager/Management system. If an External Manager address
and a path is configured, the system will post an HTTP message to this address when starting up.
When receiving this HTTP posting the External Manager (typically a management system) can return
configurations/commands to the unit as a result. If the DHCP Option 242 is returned in the DHCP
response from the DHCP server the system will interpret this as the External Manager address to use.
Valuespace: <S: 0, 255>
Format: String with a maximum of 255 characters.
Example:
Provisioning ExternalManager Path: "tmsapi-exampleublic/external/
management/SystemManagementService.asmx"
Provisioning ExternalManager Protocol
Determines whether or not to use secure management.
Valuespace: <HTTP/HTTPS>
HTTP: Set to HTTP to disable secure management. Requires HTTP to be enabled in the Network
Services HTTP Mode setting.
HTTPS: Set to HTTPS to enable secure management. Requires HTTPS to be enabled in the Network
Services HTTPS Mode setting.
Example:
Provisioning ExternalManager Protocol: http
Provisioning Mode
Provides the possibility of managing the codec (endpoint) by using an external manager/management
system.
Valuespace: <Off/TMS>
Off: The system will not try to register to any management system.
TMS: If set to TMS the system will try to register with a TMS server as described in Provisioning
ExternalManager settings. TMS is short for TANDBERG Management System. Contact your
TANDBERG representative for more information.
Example:
Provisioning Mode: TMS
D14637.01—MARCH 2010
Advanced config.
Advanced configuration
Advanced configuration
Password protection
Password protection
21
About monitors
About monitors
The Serial Port settings
SerialPort BaudRate
Specify the baud rate on the COM port (data port). The default value is 38400.
Other default parameters for the COM port are: Parity: None Databits: 8 Stopbits: 1 Flow control: None.
Valuespace: <9600/19200/38400/57600/115200>
Range: Baud rate (bps).
Example:
SerialPort BaudRate: 38400
SerialPort LoginRequired
The Serial Login setting determines whether or not there should be a login when connecting to the COM
port (data port).
Valuespace: <On/Off>
On: Login is required when connecting to the COM port (data port).
Off: The user can access the COM port (data port) without any login.
Example:
SerialPort LoginRequired: On
Administrator guide
Appendices
Appendices
Contact us
Contact us
www.tandberg.com
