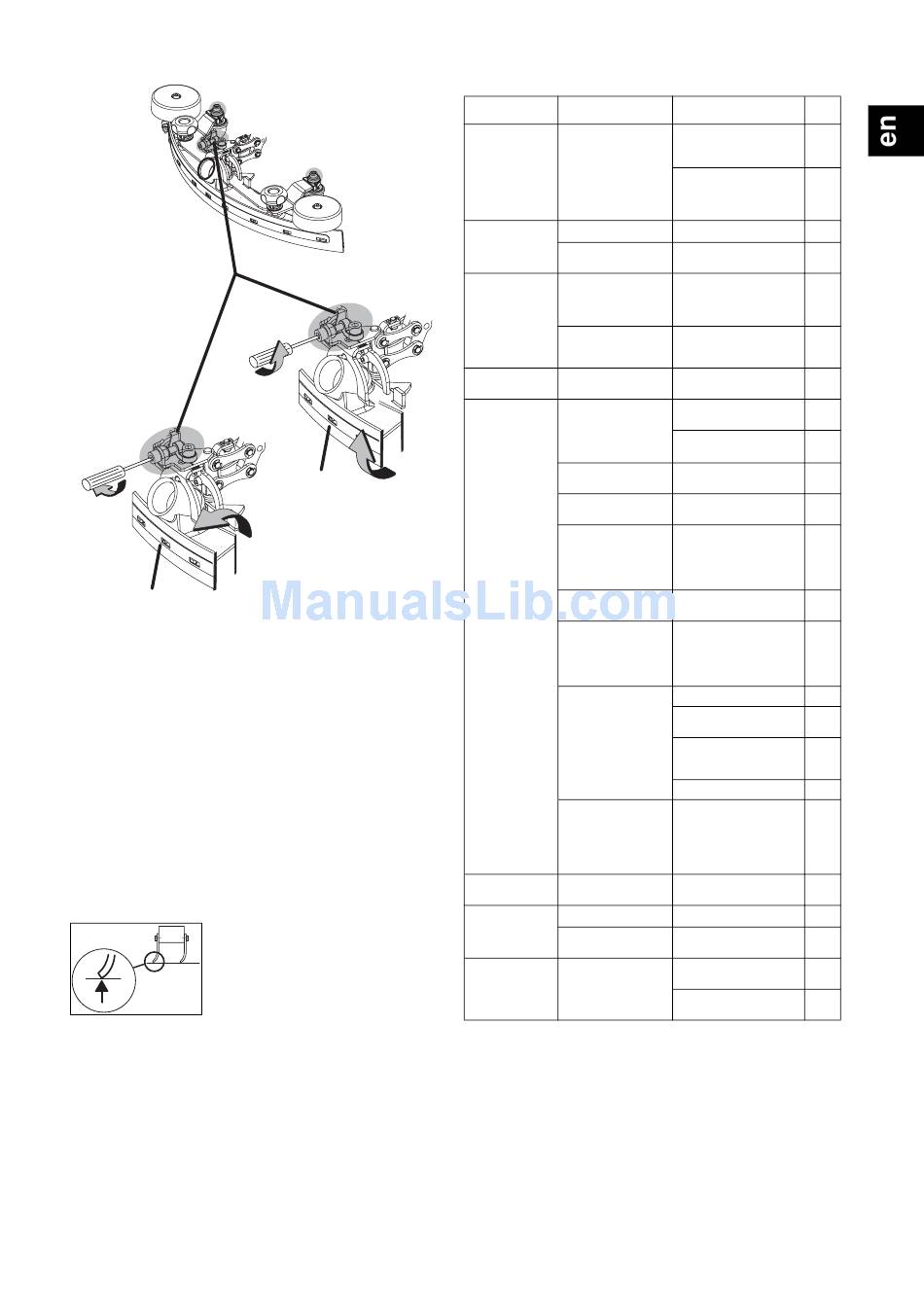

Squeegee settings

1
B
3
4
x
If you experience an uneven suction result, the settings of the suction unit
should be corrected. Proceed as follows:
Before carrying out the adjustment, check that:
• the blades are not damaged (replace).
• the suction unit is not damaged.
Height setting (Fig. A)
• First check the distance between the floor and the running or support
wheels.
The distance between running wheels number 1 and 2 and the floor must be
between 1 mm and 3 mm in each case (with the blades standing vertically).
• Switch the machine off using the keyswitch and then lower the squeegee.
• To correct, loosen the hexagonal nuts number 1 and 2, and then adjust the
height by turning the Allen screw. Then firmly re-tighten the hexagonal nuts
Number 1 and 2.
• Check the result while cleaning (see illustration below) and go to "Angle of
Inclination" (Fig. B) if the result is unsatisfactory.
Angle of inclination(Fig. B)
• Switch the machine off.
• Lower the squeegee and move the machine forward by a few centimetres
so that the blades can adopt their working position.
A correct angle has been achieved when the tip
of the rear blade (x) is distributed over the
complete width of the suction unit.
• To correct, loosen Allen screw number 3 and adjust the angle of inclination
by turning Allen screw number 4.
Note: Carry out the correction with gradual adjustments!
Firmly retighten Allen screw number 3 after the correction has been made. Then
move the machine forward by a few centimetres and check the setting of the
scraper edge that has been achieved. Repeat this procedure until the correct
inclination is obtained.
A
2
3
4
x

Malfunctions

Malfunction Possible causes
Machine does not
Maschine switched off
run
Battery/mains Discharged batteries
unit malfunction
(display on Batteries/battery
control panel) charger defective
Power cord not
plugged in or
Batteries not
defective
sufficiently
charged
Batteries or battery
charging unit
defective
Brush does not Motor runs but not
turn tool
Float closes the air
inlet at the vacuum
motor (overfill
protection recovery
tank)
Squeegee not on the
floor
Suction hose not
connected
Check the seal on the
tank lid for cracks/dirt
Poor vacuum
Vacuum air filter
performance
blocked
Floor remains
Hose or nozzle
wet
blocked (e.g. by
pieces of wood or
Soiled solution
residual material)
not picked up
The blades do not
adjust well to the floor
consistancy
Dirt sieve full (yellow)
Vacuum switched
Recovery tank full
off
Solution tank empty
Insufficient
outflow of
Solution tank filter
cleaning solution
blocked
Foam or liquid
leaking from the Float malfunction
machine

Transport

• Disconnect the battery from the machine using the battery disconnection
mechanism.
Transport the machine in an upright position and disconnect/remove the
batteries for transportation.
Make sure that the machine is securely fastened within the transportation
vehicle.
Refer to Page 30 for the dimensions and weights.
Troubleshooting page
• Switch on the
keyswitch.
23
• Connect the battery to
the machine with the
23
battery disconnection
socket.
• Recharge batteries 24
• Call for technical
assistence
• Plug in the power cord
• Call for technical
assistence
• Call for technical
assistence
• Call for technical
assistence
• Check the recovery
27
tank is not full
• Check that the float is
28
functioning correctly.
• Lower the squeegee.
26
• Connect suction hose
26
• Clean the seal, or
replace if defective
• Remove the blockage
• Remove the blockage
• Clean the squeegee
• Change/turn the
28
blades
• Check that the
squeegee suspension
is functioning correctly
• Squeegee adjustment 29
• Remove the dirt sieve
• Knock out the coarse
27
dirt from the sieve and
rinse it under running
water.
• Empty the recovery
27
tank
• Fill the solution tank
26
• Clean solution tank
27
filter
• Turn off the suction
23
aggregate
• Check that the float is
28
functioning correctly.
29
