Preparation for operation/Operation

Batteries
Safety measures when working with batteries:
• Protective goggles must be worn when working on the
batteries.
• Do not subject batteries to an open flame or heat as there is a
danger of explosion from the electolytic gas present in the
cells!
• No smoking!
• Danger of chemical burns!
Caution:
The battery must always be clean and dry. Do not place any
metallic objects on the battery.
The integrated charging unit is only suitable for maintenance-free
gel traction block batteries.

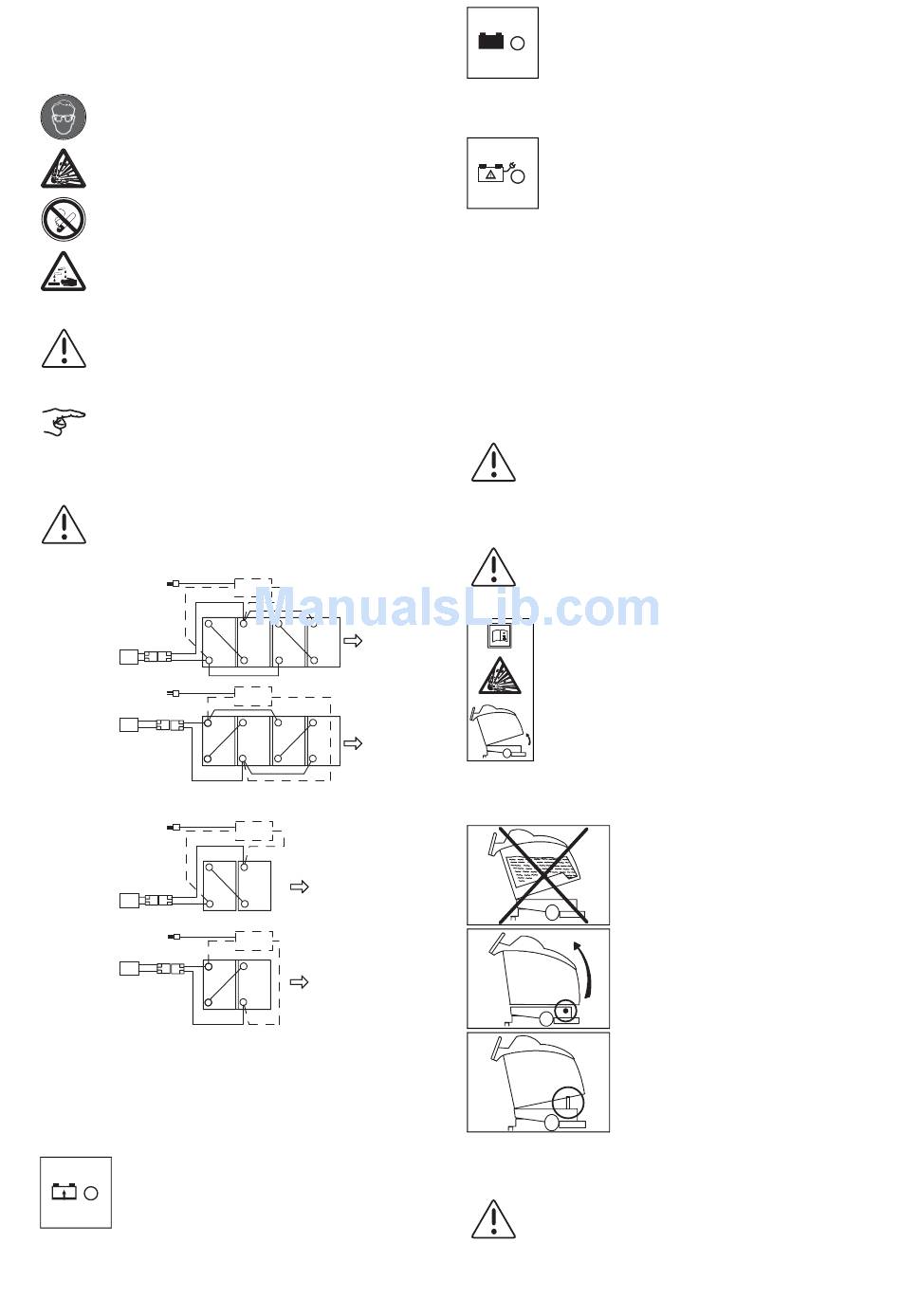

Battery connection diagram

Caution:
Batteries may only be installed or dismounted by customer
service personnel or specialists approved by JohnsonDiversey
who are aware of all the safety regulations that apply here!
SWINGO 1250B
-
-
Power
board +
+
+
+ +
Power
board
-
- -
SWINGO 750B
-
-
Power
board
+
+
+
Power + +
board
-
- -
Charging procedure (traction block batteries with integrated charging
unit)
• Check that the machine has been switched off with the keyswitch.
• Disconnect the battery from the machine using the battery disconnection
socket.
• Plug the power supply cord into the mains socket.
The yellow indicator lights up permanently until
approx. 90% of the battery capacity has been
reached. After that, the indicator blinks until the
battery is fully charged.
24
+ -
Onboard
charger
- - -
+ + +
+
-
Onboard
charger
+ + +
- - -
+
-
Onboard
charger
-
+
+
-
Onboard
charger
+
-
When the charging process is complete, the
green indicator lights up.
• Leave the power supply cord connected to the mains until you use the
machine again. The on-board charger unit automatically monitors and
charges the batteries. The energy consumption in the mode is limited to a
few milliwatts.
If a fault occurs during the charging process as
the result of a defect in the charging unit, an
interruption of a cable or a defective battery cell,
the red indicator will light up.
After completing the charging and with immediate use
• Unplug the connection to the mains socket.
• Connect the battery to the machine with the battery disconnection socket.
Charging procedure (traction block batteries with external charging unit)
• Check that the machine has been switched off with the keyswitch.
• Disconnect the battery from the machine using the battery disconnection
socket.
• Connect the battery disconnection socket to the external battery charging
unit (pay attention to the voltage from the mains supply socket).
Caution:
Follow the instructions of use for your battery charger!
Charging procedure (wet batteries with external charging unit)
Caution:
If the machine is assembled with a wet battery kit (optional) the
machine must be used with wet batteries only!
Wet batteries must not be charged with the internal charger!
Battery compartment must be open during charging.
Wet batteries must be charged in ventilated rooms only!
The gas given off could be ignited!
• Switch the machine off using the keyswitch and remove the key.
• Disconnect the battery from the machine using the battery disconnection
socket.
• Check that the tanks are empty.
• Unlock the battery compartment (with a screw
driver) and in a sufficiently large area, lift the
tank until it locates into its self support position.
Tank position for charging.
• Connect the battery disconnection socket to the external battery charging
unit (pay attention to the voltage from the mains supply socket).
Caution:
Follow the instructions of use for your battery charger!
• Turn on the battery charger.
