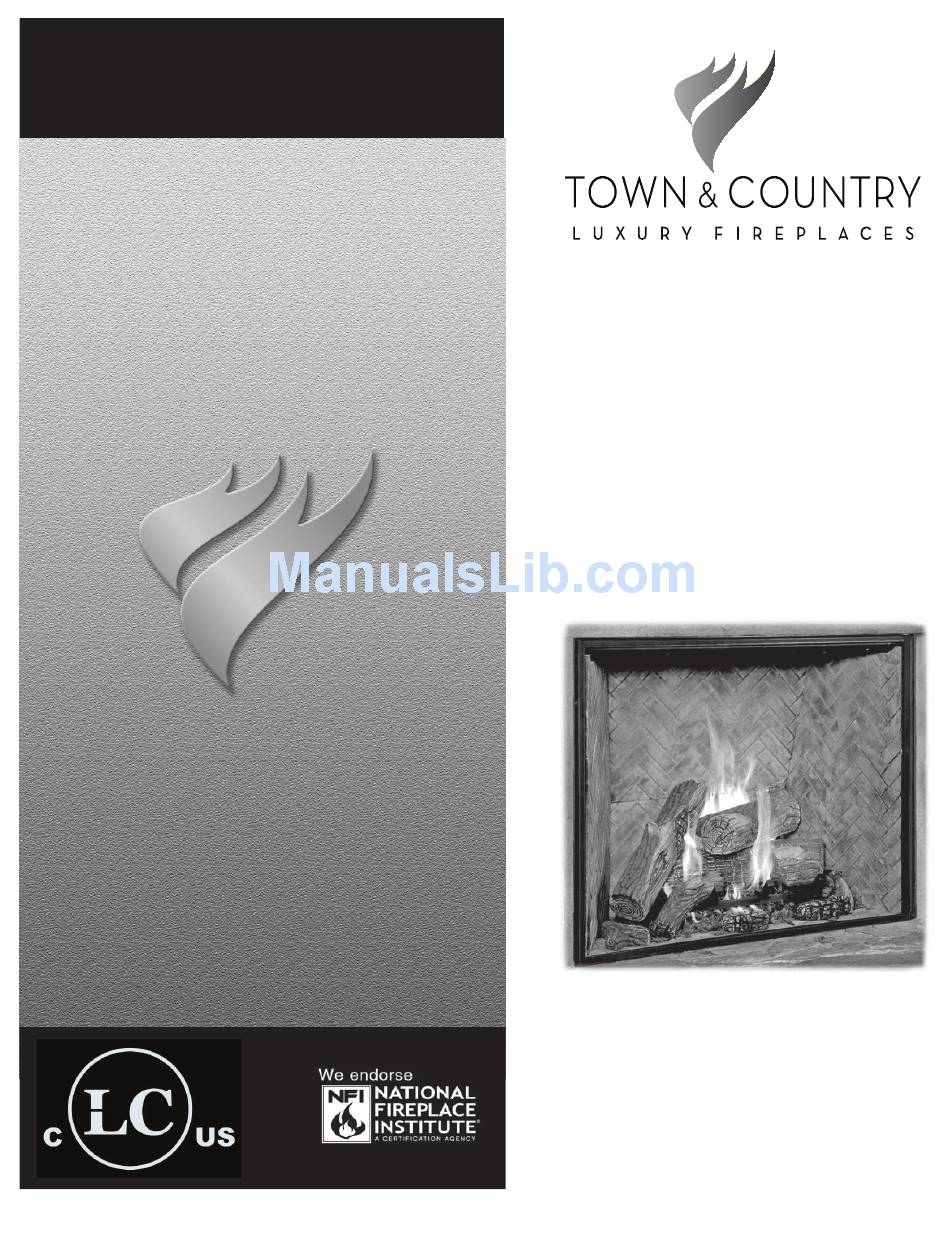

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fireplace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
060317-20
TC54
COUNTRY HOME
BURNER KIT
PART# TC54.NG02D
For TC54 Series D
Fireplaces
TC54_NG02D
5056.4256202D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC54.NG02D and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC54.NG02D

Summary of Contents for Town & Country Fireplaces TC54.NG02D

  • Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TC54 COUNTRY HOME BURNER KIT PART# TC54.NG02D For TC54 Series D Fireplaces 060317-20 TC54_NG02D 5056.4256202D...

  • Page 2: Package Contents

    Package Contents • Lower burner assembly (including pilot and manifold) • Log grate (including upper burner) • 3 way gas connector • Ember material (two bags not shown) • Country home log set (not shown) • Hardware package (not shown) Figure 1: Country home package contents.
  • Page 3 Figure 5: Lower burner keyhole slot. Figure 4: Lower burner placement. 3. Tighten screws once the lower burner has been tted onto the keyhole slots (Figure 5). 4. Replace/insert the 3 ceramic ller pieces into the center of, and to the upper left and right hand side of lower burner (Figure 6).
  • Page 4 Figure 8: Log grate with upper burner. Figure 9: Securing left side of grate to rebox oor. 6. Place the log grate with the attached upper burner onto the rebox oor (Figure 8). Locate two screw holes on the rebox oor at the front of the grate and secure (Figure 9 and Figure 10). Figure 10: Securing right side of grate to rebox oor.
  • Page 5 Upper gas connection Lower gas connection Center leg of gas connector Figure 13: Gas connector to upper and lower burners. Figure 12: Attaching gas connector to bulkhead tting. Upper burner Flame shutter adjustment sensor Ignition wire (red) Interface module Lower burner shutter adjustment Figure 14: Interface module.
  • Page 6 1/8” gap 1/8” gap Figure 16: Upper burner air shutter. Figure 17: TC54 Burner Kit lower shutter. Note: The panel set can be installed at any time before, during or after the burner kit has been installed. Caution should be taken to make sure that the log grate does not scratch the panels during installation.
  • Page 7 Country Home Log Set Installation Note: If converting this fireplace from natural gas to propane at the same time as installing this new log set, complete the propane gas conversion, See “Propane Conversion” on page 11 first to avoid possible damage to the new log set. The logs are fragile, and should be handled with care.
  • Page 8 Figure 20: Ember material on lower burner. Figure 21: First log positioning pins. 1. Place the contents of one bag of ember material onto the surface of the lower burner (Figure 20). Be sure to place enough ember material onto the front and back burner tubes so that the holes in the tubes are no longer visible.
  • Page 9 Figure 24: Second log placement. Figure 25: Third log positioning pins. 5. There are two holes on the underside of the second log. Place the second log on the lower pin rst before setting it down on top of the top pin (Figure 24). 6.
  • Page 10 Figure 29: Sixth log placement. Figure 28: Fifth log placement. Figure 31: Completed log set. Figure 30: Seventh log placement. 9. Place the fth log so that its crook rests against the log grates’ 2nd from the left support. the lower end will rest on the oor (Figure 28).

  • Page 11: Propane Conversion

    Propane Conversion If the unit is to be used with propane, convert as follows using the components supplied with this fireplace: WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 12 PROPANE ORIFICE 2.26 mm (5021.32) Figure 34: Propane ori ce. Figure 35: Applying joint compound to propane ori ce. 4. Apply a small amount of pipe joint compound to the threads of the propane burner ori ce (marked 2.26 mm - Figure 34) to ensure a good seal, before screwing it into the tting (Figure 35). 5.
  • Page 13 Pilot band in NG position Pilot band in propane gas position Figure 40: Pilot band in NG position. Figure 41: Pilot band in propane gas position. 8. Once the pilot head is loosened, slide the pilot band from the natural gas position over to the propane gas position.

  • Page 14: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or mani- fold pressure test port. There are four ports on this replace the top two are connected to the rear burner and the bottom two are to the front burner.

  • Page 15: Burner Flame Adjustment

    Burner Flame Adjustment An air shutter on each of the burner tubes controls the primary combustion air to the gas burners and are preset to 1/8” open at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired ame and to eliminate carbon deposits. Evaluate ame appearance after the re- place has reached operating temperature.

  • Page 16: Replacement Parts

    Replacement Parts ITEM DESCRIPTION ..................PART NO. LOG GRATE ASSEMBLY .................TC54.8181 LOWER BURNER ASSEMBLY ..............TC54.90859 PILOT BRACKET ........... Included with lower burner assy PLOT ASSEMBLY ................TCRP.5005025 MANIFOLD WELDED ASSEMBLY..........TC42.90881WLD FITTING, DORMONT, BURNER SUPPLY ..........5019.221 ORIFICE (NG) #29 ..................5022.135 FLEX, 1/4”...
  • Page 20 © 2017 Copyright Paci c Energy Fireplace Product LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your supplier. www.townandcountry replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
