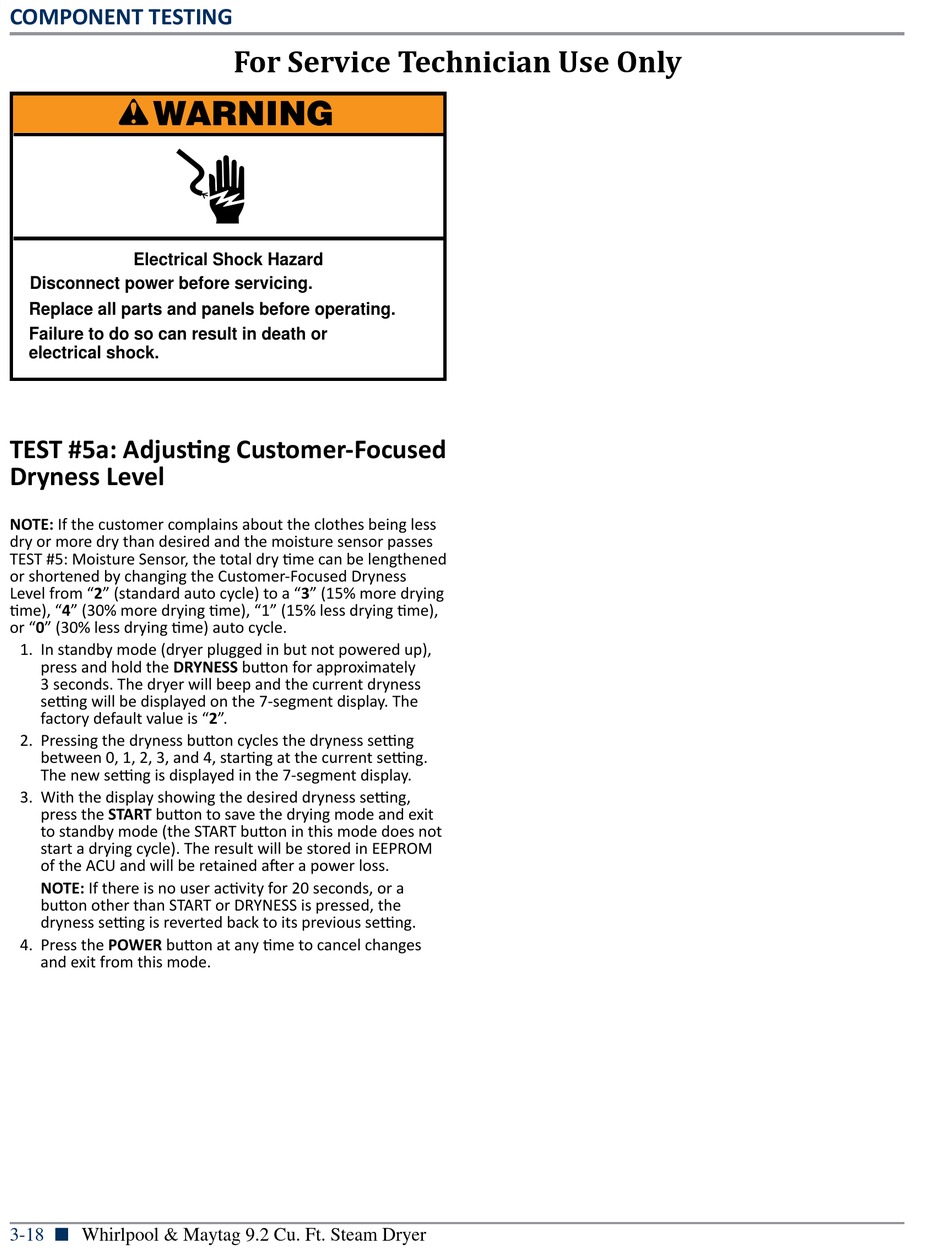

Test #5A: Adjusting Customer-Focused Dryness Level - Whirlpool WED9500E SERIES Service Manual

COMPONENT TESTING
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.
TEST #5a: Adjusting Customer-Focused
Dryness Level
NOTE: If the customer complains about the clothes being less
dry or more dry than desired and the moisture sensor passes
TEST #5: Moisture Sensor, the total dry time can be lengthened
or shortened by changing the Customer-Focused Dryness
Level from "2" (standard auto cycle) to a "3" (15% more drying
time), "4" (30% more drying time), "1" (15% less drying time),
or "0" (30% less drying time) auto cycle.
1. In standby mode (dryer plugged in but not powered up),
press and hold the DRYNESS button for approximately
3 seconds. The dryer will beep and the current dryness
setting will be displayed on the 7-segment display. The
factory default value is "2".
2. Pressing the dryness button cycles the dryness setting
between 0, 1, 2, 3, and 4, starting at the current setting.
The new setting is displayed in the 7-segment display.
3. With the display showing the desired dryness setting,
press the START button to save the drying mode and exit
to standby mode (the START button in this mode does not
start a drying cycle). The result will be stored in EEPROM
of the ACU and will be retained after a power loss.
NOTE: If there is no user activity for 20 seconds, or a
button other than START or DRYNESS is pressed, the
dryness setting is reverted back to its previous setting.
4. Press the POWER button at any time to cancel changes
and exit from this mode.
