IPC "S Series" User Manual

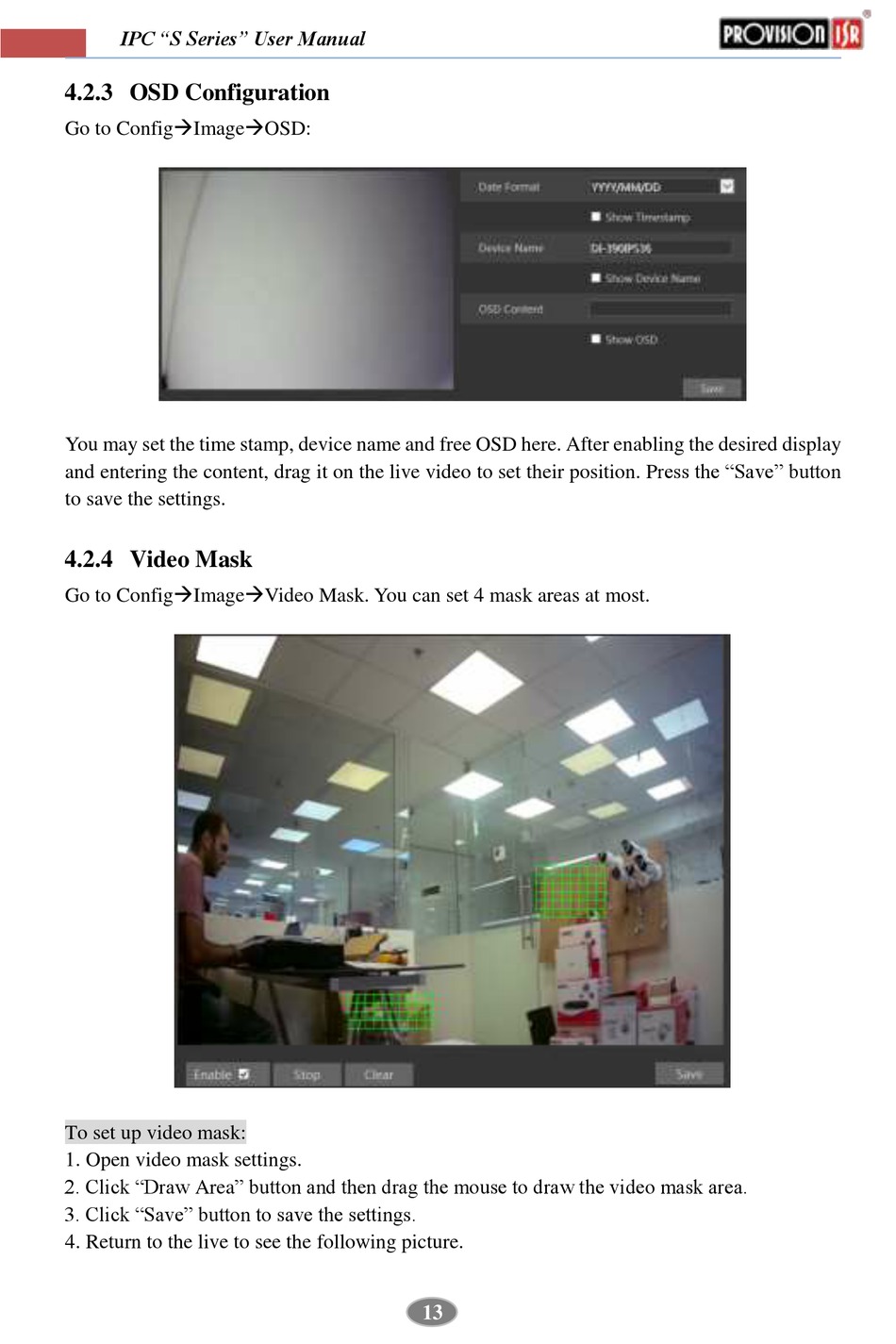

4.2.3 OSD Configuration

Go to ConfigImageOSD:
You may set the time stamp, device name and free OSD here. After enabling the desired display
and entering the content, drag it on the live video to set their position. Press the "Save" button
to save the settings.

4.2.4 Video Mask

Go to ConfigImageVideo Mask. You can set 4 mask areas at most.
To set up video mask:
1. Open video mask settings.
2. Click "Draw Area" button and then drag the mouse to draw the video mask area.
3. Click "Save" button to save the settings.
4. Return to the live to see the following picture.
13
