Sunny SF-RW5623 User Manual

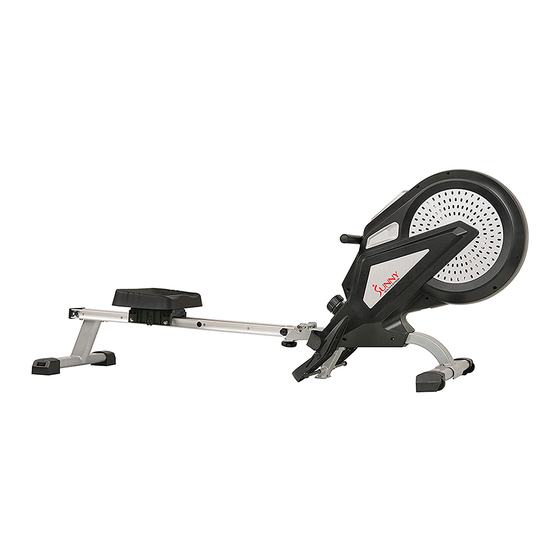

Air magnetic rower
Hide thumbs Also See for SF-RW5623:
Table of Contents

Advertisement

Quick Links

Download this manual
AIR MAGNETIC ROWER
SF-RW5623
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain owner's
manual
for
future
reference.
For
customer
service,
please
contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RW5623 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-RW5623

Summary of Contents for Sunny SF-RW5623

  • Page 1 AIR MAGNETIC ROWER SF-RW5623 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual future reference. customer service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING 37 36 9 10 73 72 #D S17-19...

  • Page 4: Parts List

    PARTS LIST Description Description Computer Screw M8*50*20*S6 grade 8.8 Main frame Nut M8*H7.5*S13 Trunk wire 1 length 800 Fan wheel 414*55 Grommet Φ16*11*Φ3 Sensor wire length 600 with spiral Velcro t0.3*40*90 Screw M6*40*Φ10*2.5 Grommet Φ12*11*Φ3 Adjusting U seat 30*10*1.5 Tension control knob Φ1.2*400*48 Nut M6*H6*S10 Bolt M12 *Φ12.5*160*23*S19 137 Front stabilizer...
  • Page 5 Mesh belt L800*1200*B18*H1. 5 Screw M5 Spring 0.8*Φ15*32*N15 Handlebar Adjusting screw M6*60*Φ12*5 Magnet seat Washer d6*Φ20*2 Shipping tube 81L/R Chain cover Nut M6*H6*S10 Cover for air outlet 193*100*30 Screw M6*20*S5 grade 8.8 Connecting piece for air outlet Nut M6*H5*S10 130*12*1.8 Air blade 84*48*7 Allen wrench S5 Screw ST4.2*16*Φ8...

  • Page 6: Hardware Package

    HARDWARE PACKAGE #48 d8*Φ20*2.0 2PCS #8 M12*Φ12.5*160*23*S19 137 4PCS #71 M6*30*S5 2PCS #72 d6*Φ12*1 2PCS #73 Φ27*Φ23*16*Φ6 2PCS #54 M8*20*S6 6PCS #49 d8*Φ16*1.5 4PCS #53 d8 6PCS #55 Φ10*105*M6*25 1PC #56 M6*16*S5 1PC #57 Φ10*110*115 1PC #59 d10*Φ40*4 1PC #60 M10*Φ30*32 1PC #74 102*45*20 ABS 1PC...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS #54 M8*20*S6 2PCS #49 d8*Φ16*1.5 2PCS STEP 1: Unscrew the Screws (No. 54) with Allen Wrench (No. 96) and remove the Washers (No. 49) and Shipping Tube (No. 91). You may discard these parts or save them in case you’d like to repackage the item in the future. [Screws (No.
  • Page 8 #54 M8*20*S6 2PCS #53 d8 2PC S #48 d8* ¦ µ 2 0* 2. 0 2PC S STEP 2: Attach the Front Stabilizer (No. 46) to the Main Frame (No. 2) using 2 Screws (No. 54), 2 Spring Washers (No. 53) and 2 Washers (No. 48). Tighten and secure with Allen Wrench (No. 96).
  • Page 9 #8 M12*Φ12.5*160*23*S19 137 4PCS STEP 3: Fix the 2 Bolts (No. 8) in position A into the bottom hole of Main Frame (No. 2) with Spanner (No.97). Attach the 2 Bolts (No. 8) into the upper hole of the Main Frame (No. 2) through the Pedals (No. 9) and tighten with Spanner (No.
  • Page 10 #71 M6*30*S5 2PCS #72 d6*Φ12*1 2PCS #73 Φ27*Φ23*16*Φ6 2PCS STEP 4: Insert the Saddle (No. 61) into the Sliding Rail (No. 63). Attach the Limit Mats (No. 73) onto the Sliding Rail (No. 63) using 2 Screws (No. 71) and 2 Washers (No.
  • Page 11 #54 M8*16*S6 4PCS #49 d8*Φ16*1.5 4PCS #53 d8 4PCS STEP 5: Attach the Sliding Rail (No. 63) onto the Rear Support (No. 47) using 4 Screws (No. 54), 4 Spring Washers (No. 53), and 4 Washers (No. 49). Tighten and secure with Allen Wrench (No.
  • Page 12 #55 Φ10*105*M6*25 1PC #56 M6*16*S5 1PC #57 Φ10*110*115 1PC #59 d10*Φ40*4 1PC #60 M10*Φ30*32 1PC STEP 6: Connect Trunk Wire 1 (No. 3) with the Sensor Wire (No. 4). Attach the Sliding Rail (No. 63) to Main Frame (No. 2) using 1 Bolt (No. 55) and 1 Screw (No. 56).

  • Page 13: Pedal Adjustment

    ADJUSTMENT GUIDE  PEDAL ADJUSTMENT The pedal strap is adjustable and can be personalized to fit the user’s foot size. To adjust the pedal strap, remove the velcro end of the strap from the mesh side by pulling it upward then to the left. Once removed, you may increase the opening of the pedal strap by pulling the mesh end up and to the right.

  • Page 14: Adjusting The Balance

    ADJUSTMENT GUIDE  ADJUSTING THE BALANCE Adjust the End Caps (No. 52) on the rear stabilizer of the machine if the machine is unbalanced during use.  ADJUSTING THE RESISTANCE Rotate the Tension Control Knob (No. 7) clockwise to increase the level of resistance. Rotate the tension control counter-clockwise to decrease the level of resistance.
  • Page 15  FOLDING THE MACHINE When not in use, you can save space by folding the Sliding Rail (No. 63). 1. Disassemble Knob Figure A (No. 60) and Washer (No. 59) and pull out the Pull Pin (No. 57). Fold the sliding rail to vertical angle (Figure A).

  • Page 16: Replace The Battery

     REPLACE THE BATTERY To replace the batteries, remove the computer from Main Frame (No. 2), and disconnect the Trunk Wire (No. 3) and the link wire of computer. Replace both batteries. Do not mix battery types and do not mix old and new batteries. After the replacement, connect Trunk Wire (No.
  • Page 17 EXERCISE METER Our computerized display console on the Sunny Air Magnetic Rower allows you to tailor a personalized workout by monitoring your progress. During a workout, the display console will alternately and repeatedly display your Time, Count, Calories Burned, Total Count, and Scan (all of the above).
