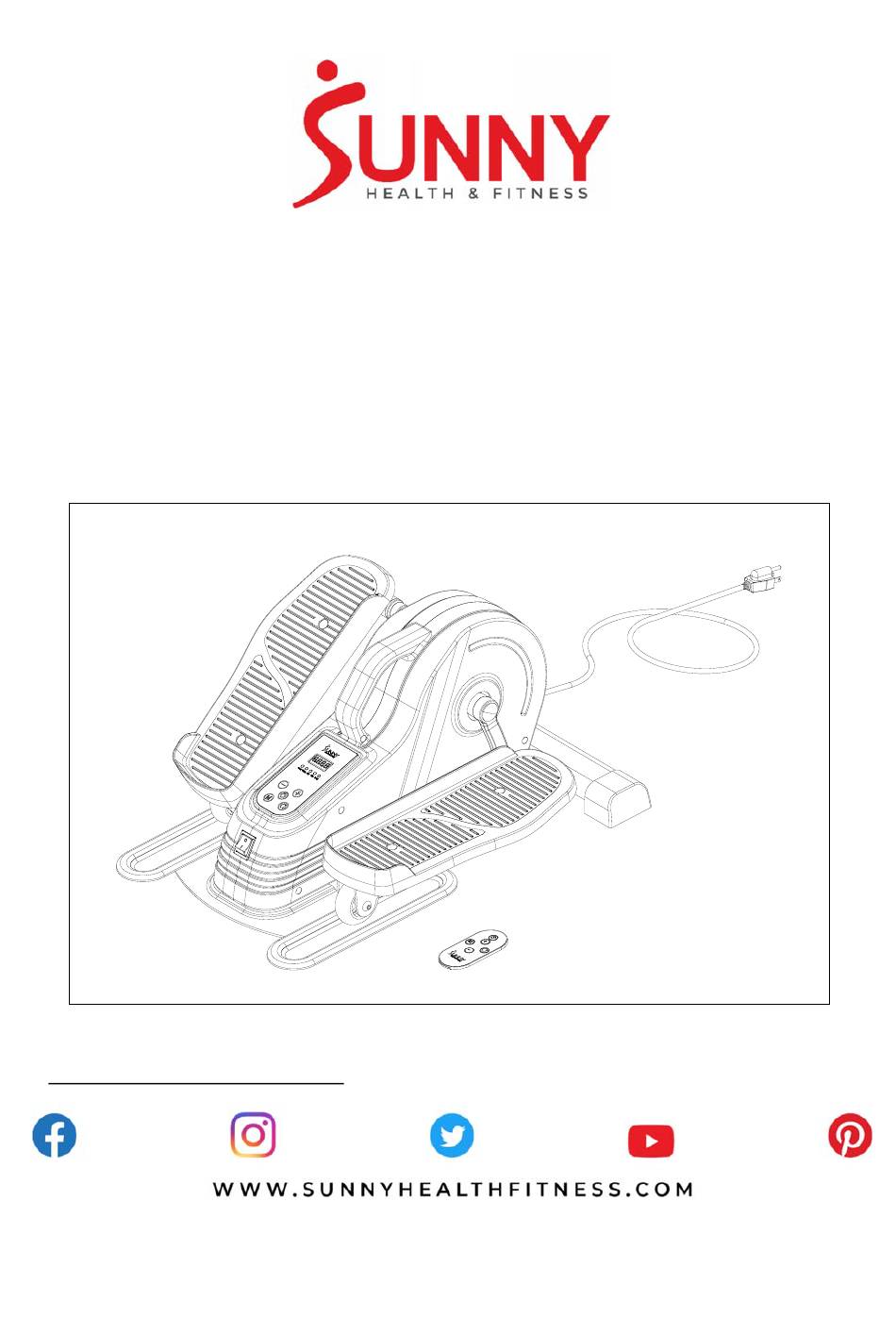

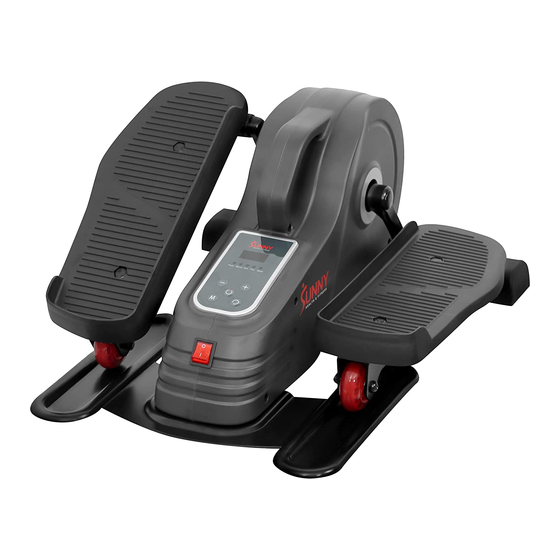

SITFIT MOTORIZED UNDER DESK
ELLIPTICAL
SF-E3959
USER MANUAL
DO NOT STAND ON THE UNIT
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny SF-E3959
Summary of Contents for Sunny SF-E3959
- Page 1 SITFIT MOTORIZED UNDER DESK ELLIPTICAL SF-E3959 USER MANUAL DO NOT STAND ON THE UNIT IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing the Sitfit Motorized Elliptical. Please read the operating instructions carefully before use, especially the safety precautions. When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER –... - Page 3 bathroom. 23. Keep the appliance away from direct sunlight. 24. Do not operate the appliance with wet hands. 25. Do not allow water and other liquids to touch control switch. 26. Do not place the power cord under the appliance or any heavy object. 27.
-
Page 4: Exploded Diagram
EXPLODED DIAGRAM 3 ... -
Page 5: Parts List
PARTS LIST Description Spec. Description Spec. Main Frame Bearing Pedal Tube (R) Nylon Nut Pedal Tube (L) Screw ST4.2*15 Crank Flange Nut Power Cord End Cap Power Switch Rubber Washer Rubber Pad 3P Data Line 7L/R Pedal Sensor 8L/R Belt Cover Screw M3x8 Motor... -
Page 6: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This elliptical requires a power source of 120V in order to properly operate. For your safety as well as the safety of others, please verify that the power source is correct before powering in the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user. -
Page 7: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT Battery Battery Seat Battery Seat Battery Battery Seat BATTERY INSTALLATION: 1. Press the arrow at point a of battery seat and buckle point b of battery seat, then pull out battery seat. Take out the 1pc CR2032 3V battery that is included inside the manual bag. 2. -
Page 8: Display Console
DISPLAY CONSOLE ELECTRICAL INFORMATION Rated Voltage: 120V FUNCTION KEYS Start and pause machine Start/Pause Mode Changes between automatic and manual Direction Changes the direction forward or backward Speed+/- Select key for increasing or decreasing speed (18 speed levels) WARNINGS AND INSTRUCTIONS ... - Page 9 OPERATING INSTRUCTIONS Power Switch 1. Plug in the power cord. Turn on the power switch. The machine will beep and LED display will show “OFF“. This is standby mode. 2. Press the Start/Pause button on the console or the remote control to start the elliptical, it will begin in manual mode.
- Page 10 7. Under the automatic mode, there are P1/P2/P3 modes included. Different modes have different speeds and working directions, see below details. P1 MODE：Based on speed Level 1, the pedals move 13 times forward, 13 times backwards, 13 times forward based, 13 times backwards and so on. P2 MODE：The pedals move forward first then the speed will be increasing from Level 1 to Level 9 gradually.
- Page 11 DISPLAY REMOTE CONTROL FUNCTION KEYS Start/Pause Start and pause machine Mode Changes between automatic and manual Direction Changes the direction forward or backward Speed+- Select key for increasing or decreasing speed (18 speed levels) REMOTE CONTROL NOTICE: If the Remote Control (No. 11) does not activate the Sitfit Motorized Elliptical, or if you have a replacement remote, the Remote Control (No.
- Page 12 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 13: User-Maintenance Instruction
USER-MAINTENANCE INSTRUCTION Caution：There are no serviceable parts in the appliance, any servicing should be performed by an authorized service person. When the appliance is not in use, disconnect the power supply, storage of the power cord and the total appliance in a dry location where children cannot touch or in play area(s). WARNING The elliptical is intended to use in a sitting position only, do not stand on... - Page 14 13 ...
