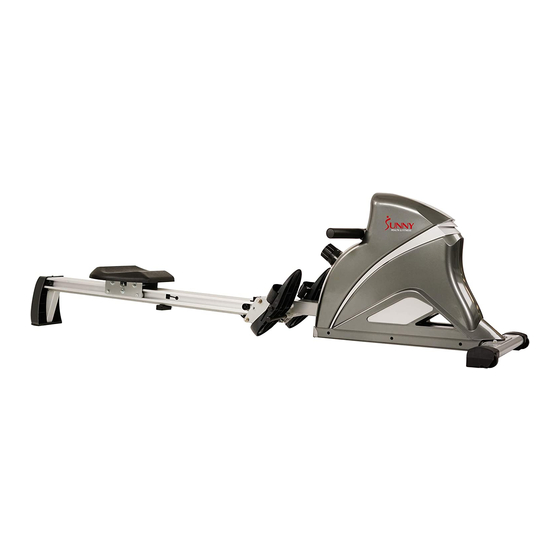

ULTRA TENSION MAGNETIC
PRO ROWER
SF-RW5508
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain
owner's manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RW5508 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-RW5508

Summary of Contents for Sunny SF-RW5508

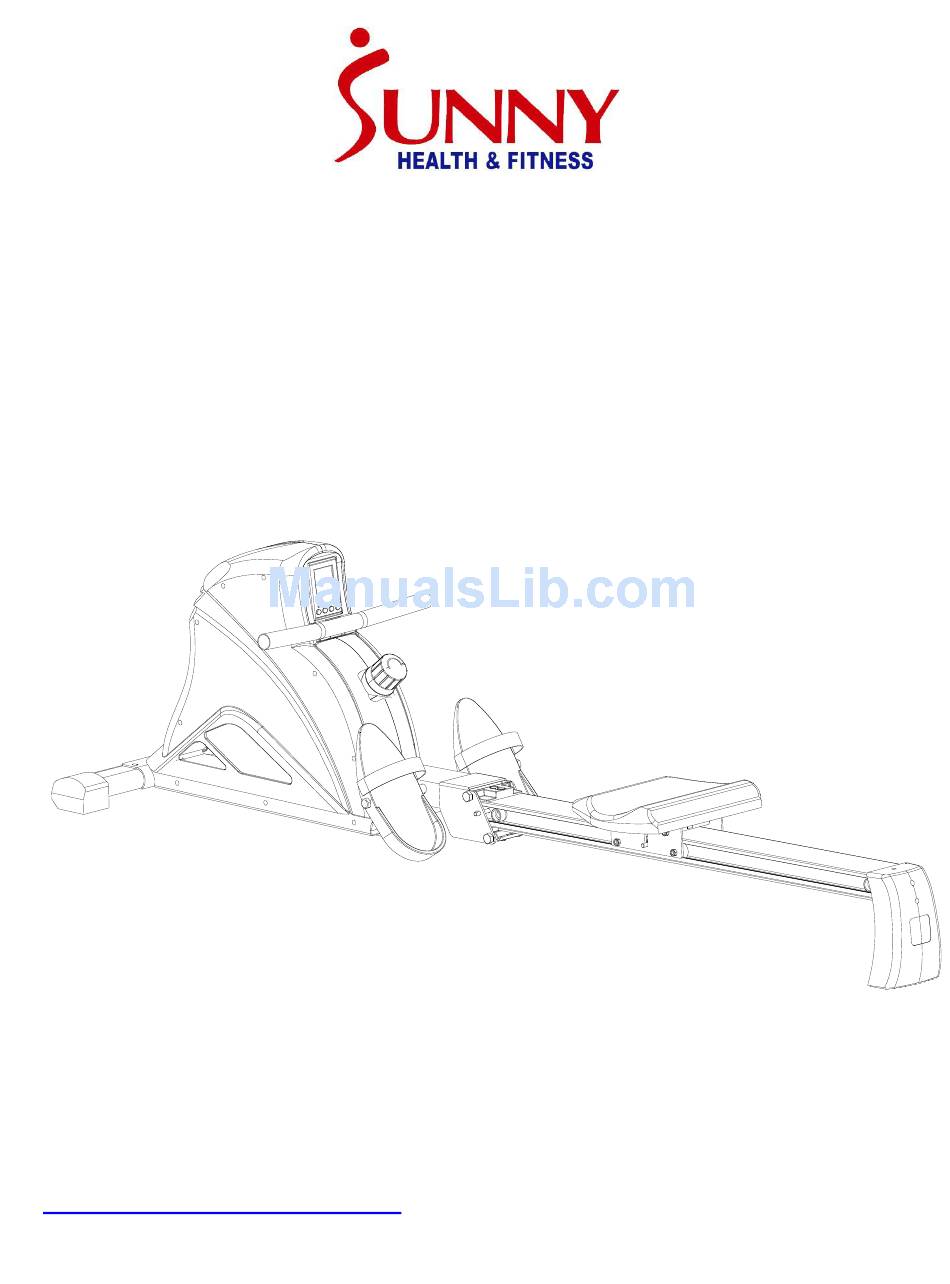

  • Page 1 ULTRA TENSION MAGNETIC PRO ROWER SF-RW5508 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING...

  • Page 4: Parts List

    PARTS LIST DESCRIPTION DESCRIPTION Computer w/ wire 1a & 1b Main frame Foam grip Φ30*3*220 Computer case End cap Φ32*17 Receiver w/link wire Screw ST4.2*16 Handlebar 5a/b Trunk wires Mesh belt T1.3*18*1950 Tension control Φ1.5*450*27 6L/R End cap L/R PT80*40*71.5 Bolt M8*50 Tension control seat Washer Φ16*Φ8*1.5...
  • Page 5 Aluminum rail 100*50*1170 Washer D10*Φ20*2.0 Axle Φ10.9*80 Wave washer D12*Φ15.5*0.3 Locating mount Φ11.4*Φ27*26 Screw ST4.2*16*Φ8 Washer Φ17*Φ6*1.5 Bottom hanger 100*38*90 Aluminum rail support frame Below fixed board 41.8*15*94 Rubber board 157*66*6 Top hanger 100*44*17 Screw M5*16*Φ8.5 End cap 56*36*100 Bolt tube Φ12*124*M10*15 Back stand 157*93*228 Adjusting U seat 30*10*1.5 Washer D10*Φ20*2...

  • Page 6: Hardware Package

    HARDWARE PACKAGE...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 1: Attach the Front Stabilizer (No. 9) to the Main Frame (No. 37) using 2 Bolts (No. 7) and 2 Washers (No. 8). Tighten and secure with Allen Wrench S6 (No. 103).
  • Page 8 STEP 2: Unscrew and remove Bolt (No. 71) and Axel (No. 74), then remove Washer (No. 76), and Locating Mounts (No. 75) from the Aluminum Rail (No. 73) using Allen Wrenches S6 and S5 (No. 103 and No. 102). Attach the Saddle (No. 65) onto the Aluminum Rail (No. 73). Next, re-install Locating Mounts (No.
  • Page 9 FIG:1 FIG:3 FIG:2 Notch STEP 3: NOTE: To avoid damage to the wires, please ensure that you connect the wires beneath the Main Frame (No. 37) and Aluminum Frame (No. 73), away from the connection point of the two sections, (see Figure 2). Connect Trunk Wire (No.
  • Page 10 STEP 4: Attach the Pedals (No. 48) to the Main Frame (No. 37) using 4 Bolts (No. 47). Tighten and secure with Spanner (No. 104). The assembly is complete!

  • Page 11: Pedal Adjustment

    ADJUSTING THE MONITOR AND RESISTANCE The angle of the Computer can be changed to obtain the best possible view. To the computer from position (A), push the top end of the monitor backwards to position (B). Push the bottom end of the monitor backwards to return the computer to position (A).

  • Page 12: Replacing The Battery

    REPLACING THE BATTERY To replace the battery, begin by removing the Computer (No. 1) from the Main Frame (No. 37). Next, disconnect the Trunk Wires (No. 5a and 5b) from the computer wires (1a and 1b) so that computer is no longer connected to the Main Frame (No. 37). Take the back cover of the Computer (No.

  • Page 13: Exercise Computer

    EXERCISE COMPUTER BUTTON FUNCTION 1. MODE: Press to enter setting value. Press to select main display function. Press and hold for 3 seconds to reset all function values. 2. SET: Press to set desired function values. Press and hold to set function values quicker. 3.
  • Page 14 NOTE: 1. Without any signal for 4 minutes the power to the monitor will turn off automatically. 2. This monitor uses 2 AA batteries. If the display appears improper or becomes difficult to read please try installing new batteries before attempting to contact. 3.
  • Page 15 START ROWING UNDER SCAN MODE: Scan sign appears (shown in the top left corner of the monitor picture below). Automatically cycles through functions in a pre-set order displaying each function for 6 seconds (then repeats). Function value counts down from target value (when target value has been preset). Function value counts up from 0 if no target is preset.
