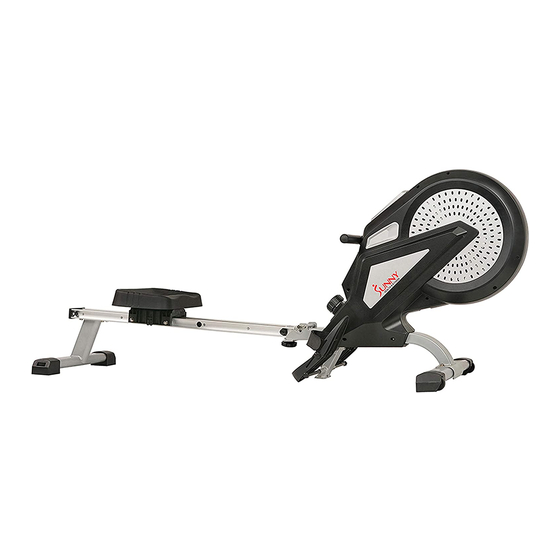

AIR MAGNETIC ROWER
SF-RW5623

USER MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain owner's
manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RW5623 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny SF-RW5623

  • Page 1: User Manual

    AIR MAGNETIC ROWER SF-RW5623 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.
  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 4: Hardware Package

    HARDWARE PACKAGE ….………………………………………………….. #59 Φ8.4*Φ13.5 4PCS …….……………………………………………….. #56 Φ8.5*Φ16.0 4PCS …………………………………………………….. #46 M8x15 4PCS ………………………………………...………….…. #44 M10 2PCS …………………………………………………. #60 Φ10.2*Φ16.6 2PCS …………………………..……………………… #57 Φ10.3*Φ20.0 2PCS …………………….……………. #38 M12x160 4PCS ………………...……………………………..#12 1PC ………………………………………..#31 1PC S5 #63 1PC #64 1PC #65 1PC...
  • Page 5: Parts List

    PARTS LIST Description Description Coil Spring 34 End Cap Fan Wheel 35 Foam Grip Magnetic Control 36 Velcro Mesh Belt Pulley 37 Bolt M6x12 Sliding Rail 38 Bolt M12x160 Seat 39 Bolt M8x55 Air Plane 40 Nut M6 Main Frame 41 Nut M6 Rear Support 42 Nut M10...
  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS .…………………#39 M8x55 2PCS STEP 1: ………………………...#43 M8 2PCS Remove the preassembled Cap Nuts (No. 43) …………………#59 Φ8.4*Φ13.5 2PCS and remove the Washers (No. 56), Spring …………………#56 Φ8.5*Φ16.0 2PCS Washers (No. 59), Bolts (No. 39) and Shipping Tube (No. 66). You may discard Shipping Tubes (No.
  • Page 7 STEP 4: ………………………………#28 2PCS ……………………#45 M6x20 2PCS Remove the 2 Screws (No. 45) and 2 Limit Mats (No. 28) pre-assembled on Sliding Rail (No. 5) with Spanner (No. 63). Then remove End Cap (No. 20) pre-assembled on Sliding Rail (No. 5). S5 #63 Insert the Seat (No.
  • Page 8: Adjustment Guide

    ADJUSTMENT GUIDE  PEDAL STRAP ADJUSTMENT The pedal strap is adjustable and can be personalized to fit the user’s foot size.  MOVING THE MACHINE To move the machine, lift up the rear stabilizer until the transportation wheels on the front stabilizer touch the ground.
  • Page 9  FOLDING THE MACHINE Figure A When not in use, you can save space by folding the Sliding Rail (No. 5). 1. Pull out the Pull Pin (No. 31). Fold the sliding rail to vertical angle (Figure A). SAFETY NOTE: the saddle will glide down when folding the sliding rail.
  • Page 10: Replace The Battery

     REPLACE THE BATTERY Two AAA batteries are included in the Meter (No. 29). To replace the batteries, remove the computer from Main Frame (No. 8), and disconnect the Trunk Wire (No. 61) and the link wire of computer. Replace both batteries. Do not mix battery types and do not mix old and new batteries.
  • Page 11: Function Key

    EXERCISE METER Our computerized display console on the Sunny Air Magnetic Rower allows you to tailor a personalized workout by monitoring your progress. During a workout, the display console will alternately and repeatedly display your Time, Count, Calories Burned, Total Count, and Scan (all of the above).
