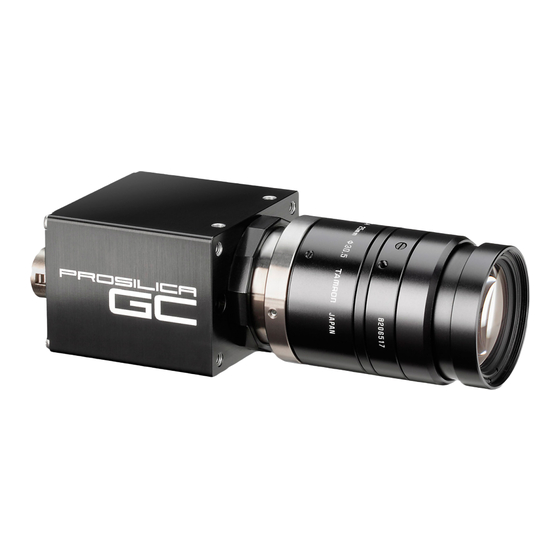

Allied Vision Prosilica gc1290c Technical Manual

Hide thumbs Also See for Prosilica gc1290c:
Table of Contents

Advertisement

Quick Links

Download this manual

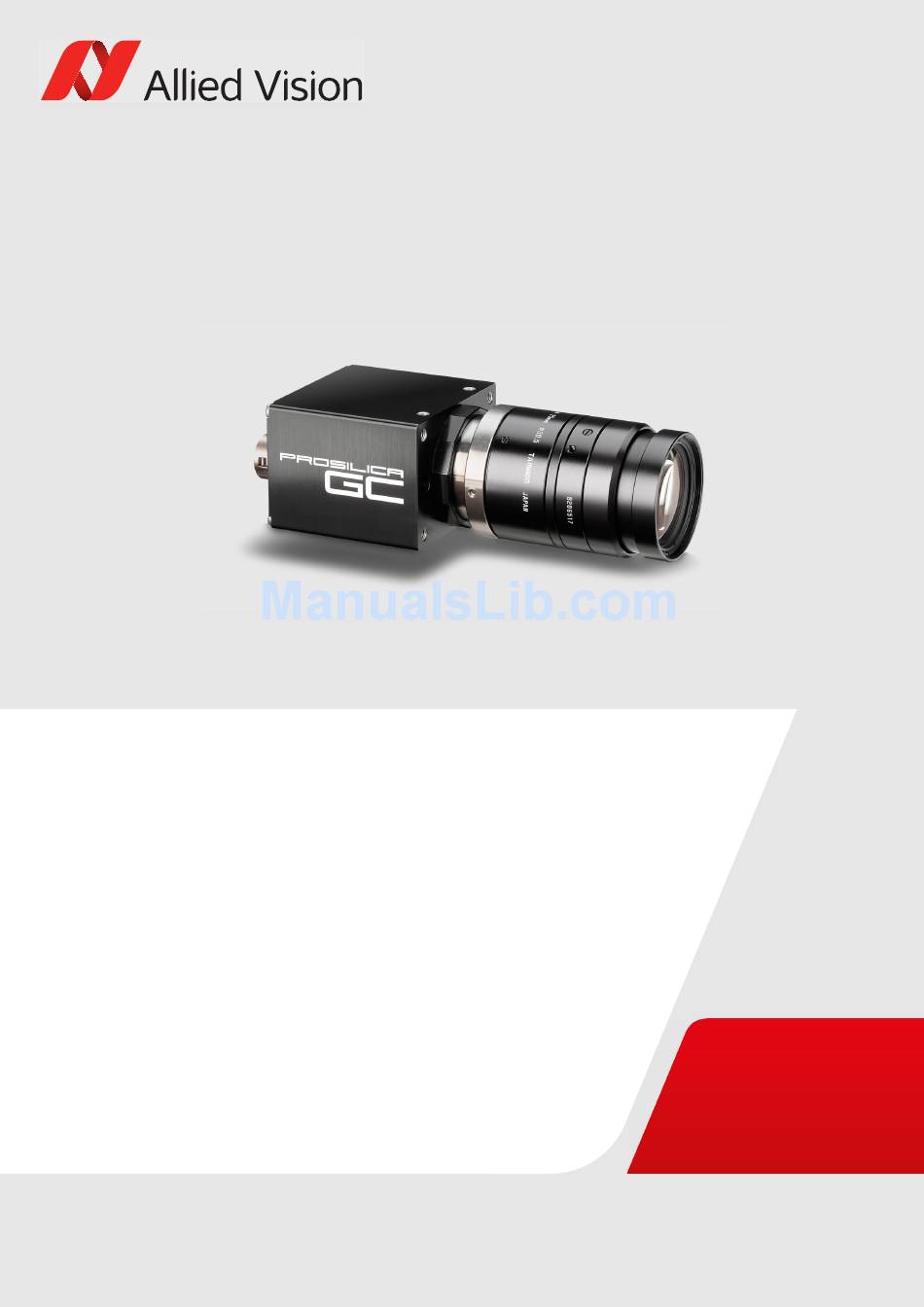

GigE V
C
ISION
AMERAS
Prosilica GC
Technical Manual
V2.2.2
Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany
2017-Apr-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prosilica gc1290c and is the answer not in the manual?

Questions and answers

Related Manuals for Allied Vision Prosilica gc1290c

Summary of Contents for Allied Vision Prosilica gc1290c

  • Page 1 GigE V ISION AMERAS Prosilica GC Technical Manual V2.2.2 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2017-Apr-07...

  • Page 2: Prosilica Gc At A Glance

    The GenICam standard consists of multiple modules that specify tasks to be solved. Allied Vision cameras and software make use of these modules, like the Standard Feature Naming Convention (SFNC) that standardizes feature names and types via an XML file or the transport layer interface (GenTL) that is used to grab images.

  • Page 3: Contact Us

    Contact us Contact us Connect with Allied Vision by function https://www.alliedvision.com/en/meta-header/contact.html Find an Allied Vision office or Allied Vision distribution partner https://www.alliedvision.com/en/about-us/where-we-are.html Email info@alliedvision.com support@alliedvision.com Sales offices Europe, Middle East, and Africa: +49 36428-677-230 UK, Ireland, Nordic countries: +44 207 1934408...

  • Page 4: Table Of Contents

    Contents Contents Prosilica GC at a glance Applied standards ............... . . 2 What else do you need? .
  • Page 5 Contents Absolute QE................29 Spectral response .
  • Page 6 Contents Video iris output ............... . . 65 Camera trigger.
  • Page 7 Contents ROI frame rate............... 114 Prosilica GC1380, GC1380C (02-2140A, 02-2141A) .

  • Page 8: Document History And Conventions

    Document history and conventions This chapter includes: • Document history • Layout styles and symbols used in this manual Prosilica GC Technical Manual V2.2.2...

  • Page 9: Document History

    Updated the exposure control values in the Specifications chapter Added Vimba SDK link in the Additional references section Updated Allied Vision recommended cabling to Category 6 or higher in the Gigabit Ethernet interface section V2.0.6 2013-Jul-05 Added contact information for Allied Vision Technologies (Shanghai) Co. Ltd.
  • Page 10 Added Cleaning optical components chapter to replace Cleaning optics section in V2.1.0 Added Contact us section to replace Contacting Allied Vision section in V2.1.0 Added D version feature changes for Prosilica GC660, GC660C, GC1290, GC1290C, GC1380H, GC1380CH, GC1600H, GC1600CH, GC2450, GC2450C...

  • Page 11: Manual Conventions

    Document history and conventions Manual conventions To give this manual an easily understood layout and to emphasize important information, the following typographical styles and symbols that are used. Styles Style Function Example Bold Program names, UI elements, highlighting bold important things Italics Publication names, chapter titles, UI non- Italics...
  • Page 12 Document history and conventions Further information available online This symbol highlights URLs for further information. The URL itself is shown in blue. Example: https://www.alliedvision.com Prosilica GC Technical Manual V2.2.2...

  • Page 13: Safety And Regulations

    Safety and regulations § This chapter includes: • General cautions and warnings for Prosilica GC cameras • Information about the legal requirements and restrictions for Prosilica GC cameras based on current and relevant regulations • Particular emphasis has been given to regulations of the European Economic Area (CE, RoHS, REACH, WEEE) as well as regulations of the United States of America (FCC) and Canada (ICES)

  • Page 14: General Cautions And Warnings

    This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor unless absolutely necessary. See instructions on optics cleaning in this document. Allied Vision can clean your camera as a service for you, if necessary. For more information, contact Allied Vision support.

  • Page 15: Regulations

    CE, following the provisions of 2004/108/EC directive • RoHS (2011/65/EU directive) REACH Allied Vision Technologies products are in compliance with the Regulation (EC) No 1907/2006 REACH. WEEE This product must be disposed of in compliance with the directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

  • Page 16: Industry Canada Equipment Standard For Digital Equipment (Ices)

    Other legal notices Trademarks Unless stated otherwise, all trademarks shown in this document of Allied Vision Technologies are brands protected by law. All other product or company names may be trademarks of their respective owners. Warranty The information provided by Allied Vision Technologies is supplied without any guarantees or warranty whatsoever, be it specific or implicit.

  • Page 17: Copyright

    It is not permitted to copy or modify them for trade use or transfer, nor may they be used on websites. For the latest version of this document, visit the Allied Vision documentation website. Copyright © 2017 Allied Vision Technologies GmbH. All rights reserved.

  • Page 18: Installation And Hardware

    Installation and hardware This chapter describes the components required for your vision system including configuring the host computer, Ethernet adapter settings, and connecting your Prosilica GC camera. Prosilica GC Technical Manual V2.2.2...

  • Page 19: Configuring The Host Computer

    Installation and hardware Configuring the host computer Allied Vision GigE Vision cameras can operate on 10/100 or Gigabit speed Ethernet adapters. In order to reach the maximum camera frame rate, a Gigabit speed Ethernet adapter with jumbo packet support is required.

  • Page 20: Ethernet Adapter Driver Settings

    Transmit Buffers 256 bytes Default packet size The default packet size of Allied Vision GigE cameras is 8228 bytes. The host network adapter needs to support a packet size of equal or larger size to stream from the camera. Ethernet adapter For desktop systems, use a PCI Express bus Ethernet adapter.

  • Page 21: Enabling Jumbo Packets

    Contact your Allied Vision Sales representative or your local Allied Vision distribution partner for information on accessories and lens recommendations: https://www.alliedvision.com/en/about-us/where-we-are.html Downloading camera drivers Allied Vision GigE cameras work with any or all of the following software options. Vimba Viewer or Vimba SDK: https://www.alliedvision.com/en/products/software Third-party software solutions: https://www.alliedvision.com/en/products/software/third-party-libraries.html...

  • Page 22: Powering Up The Camera

    Installation and hardware Powering up the camera A camera power adapter for each GigE camera is available from Allied Vision. See Specifications on page 23 for connector definition and voltage specifications. For Prosilica GC cameras • Use only DC power supplies with insulated cases.

  • Page 23: Specifications

    Specifications This chapter provides: • Technical specifications • Absolute quantum efficiency plots • Spectral response plots • ROI height vs. frame rate plots • Camera feature comparison for hardware version D models (serial number 02-21XXD-XXXXX) • Image data flow diagram Prosilica GC Technical Manual V2.2.2...

  • Page 24: Notes On Specifications

    Specifications Notes on specifications Dimensions and mass Dimensions include connectors but not the tripod and lens. Mass does not include the tripod and lens. Hardware version This chapter includes camera specifications for all Prosilica GC models (hardware revision D). For previous Prosilica GC models (hardware revision A) see Appendix on page 82.

  • Page 25: Resolution And Roi Frame Rate

    Specifications Resolution and ROI frame rate This section charts the resulting frame rate from changing sensor height from full image to a single line. Unless otherwise noted, sensors do not give an increase in readout speed with a reduction in width. Resolution and ROI measurements •...

  • Page 26: Spectral Response Plots

    Specifications Wavelength The wavelength range in the absolute QE plots is based on the information available in the sensor manufacturer data sheet at the time of publishing. Many color sensors are documented by the sensor manufacturer only for wavelengths from 400 nm to 700 nm. For additional wavelength information, contact the sensor manufacturer.

  • Page 27: Prosilica Gc660, Gc660C

    Specifications Prosilica GC660, GC660C Specification Feature Prosilica GC660 Prosilica GC660C 658 (H) x 494 (V) Resolution 0.3 MP Sensor Sony ICX618ALA with EXview HAD Sony ICX618AQ with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 1/4...
  • Page 28 Specifications Specification Feature Prosilica GC660 Prosilica GC660C Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Mass (typical) 105 g Interface IIEEE 802.3 1000BASE-T (Gigabit Ethernet) Interface standard...

  • Page 29: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX618 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 30: Roi Frame Rate

    Specifications ROI frame rate ROI height [pixels] Figure 3: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 121.18 226.23 130.23 265.35 142.31 320.82 156.86 405.61 174.32 482.06 197.16 514.37 Width=658 pixels Table 3: Frame rate as a function of ROI height Prosilica GC Technical Manual V2.2.2...

  • Page 31: Prosilica Gc1290, Gc1290C

    Specifications Prosilica GC1290, GC1290C Specification Feature Prosilica GC1290 Prosilica GC1290C Resolution 1280 (H) x 960 (V) 1.2 MP Sensor Sony ICX445ALA with EXview HAD Sony ICX445AQA with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type...
  • Page 32 Specifications Specification Feature Prosilica GC1290 Prosilica GC1290C Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Mass (typical) 106 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet)

  • Page 33: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX445 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 34: Roi Frame Rate

    Specifications ROI frame rate 1000 ROI height [pixels] Figure 6: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 33.31 87.96 35.30 117.07 39.21 174.96 44.10 232.41 50.38 289.45 58.75 315.23 70.45 339.43 Width=1280 pixels...

  • Page 35: Prosilica Gc1380H, Gc1380Ch

    Specifications Prosilica GC1380H, GC1380CH Specification Feature Prosilica GC1380H Prosilica GC1380CH Resolution 1360 (H) x 1024 (V) 1.4 MP Sensor Sony ICX285AL with EXview HAD Sony ICX285AQ with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 2/3...
  • Page 36 Specifications Specification Feature Prosilica GC1380H Prosilica GC1380CH Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Mass (typical) 111 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet) Interface standard...

  • Page 37: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX285 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 38: Roi Frame Rate

    Specifications ROI frame rate 1050 ROI height [pixels] Figure 9: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1024 30.48 76.89 1000 31.1 97.36 132.68 37.48 162.08 41.76 186.93 47.15 197.01 54.13 205.88...

  • Page 39: Prosilica Gc1600H, Gc1600Ch

    Specifications Prosilica GC1600H, GC1600CH Specification Feature Prosilica GC1600H Prosilica GC1600CH Resolution 1620 (H) x 1220 (V) 2 MP Sensor Sony ICX274AL with Super HAD Sony ICX274AQ with Wfine Super HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 40 Specifications Specification Feature Prosilica GC1600H Prosilica GC1600CH Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Mass (typical) 105 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet) Interface standard...

  • Page 41: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX274 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 42: Roi Frame Rate

    Specifications ROI frame rate 1050 1200 1350 ROI height [pixels] Figure 12: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1220 25.82 67.72 1100 28.39 84.42 1000 30.96 112.06 34.04 166.62 37.8 220.22...

  • Page 43: Prosilica Gc2450, Gc2450C

    Specifications Prosilica GC2450, GC2450C Specification Feature Prosilica GC2450 Prosilica GC2450C Resolution; 2448 (H) x 2050 (V) 5 MP Sensor Sony ICX625ALA with Super HAD Sony ICX625AQA with Super HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 2/3...
  • Page 44 Specifications Specification Feature Prosilica GC2450 Prosilica GC2450C Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Mass (typical) 106 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet) Interface standard...

  • Page 45: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX625 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 46: Roi Frame Rate

    Specifications ROI frame rate 1200 1500 1800 2100 ROI height [pixels] Figure 15: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 2050 15.11 35.84 2000 15.42 44.21 1800 16.79 57.66 1600 18.42 1400...

  • Page 47: Prosilica Gc Model Frame Rate Comparison

    Specifications Prosilica GC model frame rate comparison Prosilica GC model comparison GC2450 GC1660 GC1380 GC1290 GC660 1000 1250 1500 1750 2000 2250 Height [pixels] Figure 16: Maximum frame rate comparison for select models Prosilica GC model comparison StreamHold Model Sensor Sensor type Sensor format Resolution...

  • Page 48: Camera Feature Highlights

    Specifications Camera feature highlights Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities of the Prosilica GC camera family. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: •...

  • Page 49: Camera Feature Comparison

    Specifications Camera feature comparison Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities and compares the availability of features in Prosilica GC camera models. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: •...

  • Page 50: Image Data Flow

    Specifications Image data flow The following diagram illustrates the data flow image data. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: • Vimba and third-party users: GigE Features Reference •...

  • Page 51: Mechanical Dimensions

    Mechanical dimensions This chapter includes: • CAD drawings and dimensions of standard housing models • Sensor position accuracy • Maximum protrusion distance and filter diameter for C-Mount and CS-Mount Prosilica GC Technical Manual V2.2.2...

  • Page 52: Prosilica Gc Ccd Model Housing (C-Mount)

    Mechanical dimensions Prosilica GC cameras are available with different lens mount options. For more information, see the Modular Concept document at: https://www.alliedvision.com/en/support/technical-documentation.html Prosilica GC CCD model housing (C-Mount) Prosilica GC660, GC1290, GC1380H, C1600H, GC2450 M3x4 (4x) M3x4 (2x) M3x4 (2x) 12.9* 58.7* 42.9...

  • Page 53: Tripod Adapter

    The same tripod adapter can be used for all models within the Prosilica GC camera family. Prosilica GC tripod adapter Contact your Allied Vision Sales representative or your local Allied Vision distribution partner to purchase the Prosilica GC tripod adapter (Allied Vision order code 02-5002A).

  • Page 54: Adjustment Of C-Mount

    When the locking ring is loose, unthread the ring a few turns from the camera face. Locking wrench Contact the Allied Vision Sales team or your local Allied Vision distribution partner to purchase the hexagonal lens adjustment wrench for Prosilica GC cameras with C/CS locking ring (Allied Vision order code 02-5003A).

  • Page 55: Lens Protrusion For C-Mount Cameras

    Mechanical dimensions Lens protrusion for C-Mount cameras Lens protrusion is the distance from outer edge of C-Mount ring to contact point of first surface internal to C-Mount ring. For color models this surface is the IR-filter holder, and for monochrome models this surface is the internal camera front plate (see figure 22).

  • Page 56: Sensor Position Accuracy

    Mechanical dimensions Sensor position accuracy Camera body Camera body Pixel area Pixel area Sensor case Sensor case Figure 23: Sensor position accuracy The following table defines the manufacturing accuracy of fitting sensors into Prosilica GC cameras. Criteria Subject Properties Reference Point Sensor Center of pixel area (photo sensitive cells) Camera Center of camera front flange (outer case edges)

  • Page 57: Ir Cut Filter

    Mechanical dimensions IR cut filter All Prosilica GC color models are equipped with an infrared block filter (IR cut filter). This filter is employed to prevent infrared light from passing to the sensor. In the absence of an IR filter, images are dominated by red and incapable of being properly color balanced.

  • Page 58: Camera Interfaces

    Camera interfaces This chapter includes: • A general description of the inputs and outputs (including trigger features) • I/O connector pin assignments • I/O block diagrams • A general description of trigger rules such as timing diagram and definitions Prosilica GC Technical Manual V2.2.2...

  • Page 59: Back Panel

    This section provides information on Gigabit Ethernet interface, inputs and outputs, and trigger features. Accessories Contact your Allied Vision Sales representative or your local Allied Vision distribution partner for information on accessories, go to: https://www.alliedvision.com/en/about-us/where-we-are.html Figure 25: Prosilica GC port, interface, LEDs...

  • Page 60: Status Leds

    The GigE Installation Manual offers detailed instructions for using Prosilica GC cameras. https://www.alliedvision.com/en/support/technical-documentation/prosilica-gc- documentation.html Ethernet adapters See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended Ethernet adapters: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html A standard Ethernet adapter is available for purchase from Allied Vision:...

  • Page 61: Camera I/O Connector Pin Assignment

    Cable lengths up to 100 m are supported. The 8-pin RJ45 jack has the pin assignment according to the Ethernet standard (IEEE 802.3 1000BASE-T). Allied Vision recommends using locking-screw cables from Components Express, Inc. for a perfect fit. Visit the CEI product configurator to customize the cable according to your needs.
  • Page 62 The cable side Hirose connector is available for purchase from Allied Vision (Allied Vision order code K7600040). Cable color and pin out For cable color and pin out information, see the Allied Vision I/O cable data sheet: https://www.alliedvision.com/en/support/technical-documentation/accessories- data-sheets.html BLUE...

  • Page 63: I/O Definition

    Camera interfaces I/O definition Camera power The Prosilica GC camera family has recently been updated to offer an expanded input power voltage range. The camera serial number is used to differentiate between cameras that offer 5 to 16 VDC and those that offer 5 to 25 VDC. Input power voltage range •...

  • Page 64: Input Triggers

    Camera interfaces Input triggers Input triggers allow the camera to be synchronized to an external event. The camera can be programmed to trigger on the rising edge, falling edge, both edges, or level of the signal. The camera can also be programmed to capture an image at some programmable delay time after the trigger event.

  • Page 65: Signal Ground

    Camera interfaces Out 2 (non-isolated) Out 2 signal is not electrically isolated and can be used when environmental electrical noise is inconsequential and faster trigger response is required. Use Signal GND to complete the external circuit. The output signal is a low voltage TTL, maximum 3.3 V.
  • Page 66 Camera interfaces CABLE SIDE CAMERA GND CAMERA GND 12 V POWER CAMERA POWER HIROSE HR10A-10P-12S LENS POWER VIDEO SIGNAL LENS GROUND JEITA CONNECTOR Figure 27: Prosilica GC video iris schematic Prosilica GC Technical Manual V2.2.2...

  • Page 67: Camera Trigger

    Camera interfaces Camera trigger Camera I/O opto-isolated user circuit example CABLE SIDE CAMERA GND CAMERAGND CAMERA POWER CAMERAPOWER IN 1 OUT 1 ISOLATED IO GROUND IN 1 (DRIVER) USER POWER HIROSE HR10A-10P-12S RECOMMENDED VALUES USER OUT1 (RECEIVER) POWER 12 V 0.7 K 2.7 K 24 V...

  • Page 68: Camera I/O Non-Isolated User Circuit Example

    Camera interfaces Camera I/O non-isolated user circuit example CABLE SIDE CAMERA GND CAMERA GND 12 V POWER CAMERA POWER IN 2 IN 2 (3.3 V DRIVER) OUT 2 OUT 2 (3.3 V RECEIVER) HIROSE HR10A-10P-12S Figure 29: Prosilica GC non-isolated user circuit Input/Output Input: Incoming trigger must be able to source 10 µA, at 3.3 V.

  • Page 69: Trigger Timing Diagram

    Camera interfaces Trigger timing diagram Readout me Trigger latency Registered Exposure exposure me start delay User trigger Note: Ji er at the Logic trigger beginning of an exposure has no e ect on the Exposure length of exposure. N+ 1 Trigger ji er Readout...

  • Page 70: Notes On Triggering

    Camera interfaces Notes on triggering Term Definition User trigger Trigger signal applied by the user (hardware trigger, software trigger) Logic trigger Trigger signal seen by the camera internal logic (not visible to the user) Propagation delay (t Propagation delay between the user trigger and the logic trigger Exposure High when the camera image sensor is integrating...
  • Page 71 Camera interfaces • Exposure start delay equals the readout time minus the registered exposure time. Triggering during the idle state For applications requiring the shortest possible Trigger Latency and the smallest possible Trigger Jitter the User Trigger signal should be applied when Imaging is false and Idle is true.

  • Page 72: Cleaning Optical Components

    Cleaning optical components This chapter describes safety instructions and cautions for cleaning lenses, optical filters, protection glass, or sensors. Prosilica GC Technical Manual V2.2.2...

  • Page 73: Warranty

    Important instructions to be read first Read these instructions before you contact Allied Vision or your Allied Vision distribution partner for assistance. Contact Allied Vision or your Allied Vision distribution partner if you are not familiar with the procedures described below. Warranty...

  • Page 74: Identifying Impurities

    IR cut filter/protection glass, it is probably on the sensor. Removing IR cut filter A pin spanner wrench (Allied Vision order code: E9020001) suitable for IR filter removal is available for purchase from Allied Vision for all Prosilica GC cameras.

  • Page 75: Materials For Cleaning Optical Components

    Cleaning optical components Materials for cleaning optical components Use only these cleaning materials for optical components • Optic approved lens cotton, cloth, or tissue that is chemically pure and free from silicones and other additives. • Optic approved low residue cleaning liquid. Never use these cleaning materials for optical components •...

  • Page 76: Cleaning With Compressed Air

    Allied Vision distribution partner or Allied Vision support. Cleaning with compressed air Allied Vision does not recommend cleaning Prosilica GC cameras with compressed air. Possible material damage •...

  • Page 77: Firmware Update

    Firmware update This chapter includes instructions on updating the firmware on your Allied Vision Prosilica GC camera. Prosilica GC Technical Manual V2.2.2...
  • Page 78 Firmware update Download the latest GigE firmware loader from the Allied Vision website: https://www.alliedvision.com/en/support/firmware Saved camera user sets If new firmware contains a new feature/control, saved camera UserSets/ ConfigFiles will be invalidated and erased! Before loading new firmware, backup your current camera settings.
  • Page 79 Firmware update Click Next. The Firmware Loader displays a list of firmware included in the package. Click Next. You can select your camera model on this page. Recovery Mode Select the Use recovery mode checkbox if the connected GigE camera is not found by the firmware loader, or if the GigE camera is listed as unavailable.
  • Page 80 Firmware update Click Next. Click Upload to start the update. The existing firmware will be erased and the new firmware will be updated to the camera. Possible material damage Do not unplug the GigE cable or camera power supply during the update procedure.
  • Page 81 Firmware update The Firmware Loader will display a success status upon completion. Click Quit to exit the loader. Power cycle after upgrade or downgrade You should always power cycle the camera after a firmware upgrade or downgrade. Prosilica GC Technical Manual V2.2.2...

  • Page 82: Appendix

    Appendix The appendix includes the following information for older Prosilica GC cameras up to serial number 02- 21XXA (hardware version A): • Specification tables • Absolute quantum efficiency plots • ROI height vs. frame rate plots • Camera feature comparison of hardware version A models •...

  • Page 83: Prosilica Gc650, Gc650C (02-2110A, 02-2111A)

    Appendix Prosilica GC650, GC650C (02-2110A, 02- 2111A) Specification Feature Prosilica GC650 Prosilica GC650C Resolution 659 (H) x 493 (V) 0.3 MP Sensor Sony ICX424AL with HAD CCD™ Sony ICX424AQ with Wfine HAD technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 84 Appendix Specification Feature Prosilica GC650 Prosilica GC650C Trigger latency 1.0 µs for non-isolated I/O; 2.8 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 µs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature...

  • Page 85: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX424 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 86: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  19.94 μs Height 1224.13 μs ROI height [pixels] Figure 34: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 90.0 187.5 97.0 231.0 107.0 300.4...

  • Page 87: Prosilica Gc655, Gc655C (02-2115A, 02-2116A)

    Appendix Prosilica GC655, GC655C (02-2115A, 02- 2116A) Specification Feature Prosilica GC655 Prosilica GC655C Resolution 659 (H) x 493 (V) 0.3 MP Sensor Sony ICX414AL with HAD technology Sony ICX414AQ with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 88 Appendix Specification Feature Prosilica GC655 Prosilica GC655C Trigger latency 1.0 µs for non-isolated I/O; 2.8 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 µs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature...

  • Page 89: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX414 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 90: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  19.94 μs Height 1224.14 μs ROI height [pixels] Figure 37: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 90.0 187.5 97.0 231.0 107.2 300.4...

  • Page 91: Prosilica Gc660, Gc660C (02-2180A, 02-2181A)

    Appendix Prosilica GC660, GC660C (02-2180A, 02- 2181A) Specification Feature Prosilica GC660 Prosilica GC660C Resolution 659 (H) x 494 (V) 0.3 MP Sensor Sony ICX618ALA with EXview HAD Sony ICX618AQA with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...

  • Page 92: Absolute Qe

    Appendix Specification Feature Prosilica GC660 Prosilica GC660C Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 µs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity...

  • Page 93: Spectral Response

    Appendix Spectral response Red Response Green Response Blue Response Monochrome QE 0.4000 Sony ICX618 spectral response 0.3000 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 39: Prosilica GC660, GC660C (Sony ICX618) spectral response ROI frame rate ROI height [pixels] Figure 40: Frame rate as a function of ROI height Prosilica GC Technical Manual V2.2.2...
  • Page 94 Appendix Height in pixels Frame rate Height in pixels Frame rate 119.29 222.7 128.2 261.2 140.09 315.8 154.41 399.28 171.99 474.51 194.08 506.32 Width=659 pixels Table 24: Frame rate as a function of ROI height Prosilica GC Technical Manual V2.2.2...

  • Page 95: Prosilica Gc750, Gc750C (02-2160A, 02-2161A)

    Appendix Prosilica GC750, GC750C (02-2160A, 02- 2161A) Specification Feature Prosilica GC750 Prosilica GC750C Resolution 752 (H) x 480 (V) 0.4 MP Sensor ON Semiconductor MT9V022 Sensor type CMOS Shutter type Global Sensor size Type 1/3 5.35 mm diagonal Cell size 6 μm x 6 μm Lens mount Standard: C-Mount...
  • Page 96 Appendix Specification Feature Prosilica GC750 Prosilica GC750C Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 45 x 46 x 33 mm Mass (typical) 85 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet) Interface standard GigE Vision® Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations...

  • Page 97: Absolute Qe

    Appendix Absolute QE 1000 l ngth [nm] Figure 41: Prosilica GC750 (ON Semiconductor MT9V022) absolute QE Green Blue l ngth [nm] Figure 42: Prosilica GC750C (ON Semiconductor MT9V022) absolute QE Prosilica GC Technical Manual V2.2.2...

  • Page 98: Roi Frame Rate

    Appendix ROI frame rate ROI height [pixels] Figure 43: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 62.9 238.0 75.3 371.7 97.6 560.6 114.5 674.9 138.4 806.4 175.1 Width=752 pixels Table 26: Frame rate as a function of ROI height Prosilica GC Technical Manual V2.2.2...

  • Page 99: Prosilica Gc780, Gc780C (02-2117A, 02-2118A)

    Appendix Prosilica GC780, GC780C (02-2117A, 02- 2118A) Specification Feature Prosilica GC780 Prosilica GC780C Resolution 782 (H) x 582 (V) 0.5 MP Sensor Sony ICX415AL with HAD technology Sony ICX415AQ with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 100 Appendix Specification Feature Prosilica GC780 Prosilica GC780C Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Mass (typical) 100 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet) Interface standard...

  • Page 101: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX415 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 102: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  24.70 μs Height 1139.14 μs ROI height [pixels] Figure 46: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 63.9 201.1 73.4 268.1 89.8 402.6...

  • Page 103: Prosilica Gc1020, Gc1020C (02-2165A, 02-2165B, 02-2166A, 02-2166B)

    Appendix Prosilica GC1020, GC1020C (02-2165A, 02- 2165B, 02-2166A, 02-2166B) Specification Feature Prosilica GC1020 Prosilica GC1020C Resolution 1024 (H) x 768 (V) 0.8 MP Sensor Sony ICX204AL with HAD technology Sony ICX204AK with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 104 Appendix Specification Feature Prosilica GC1020 Prosilica GC1020C Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H)

  • Page 105: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX204 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 106: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  33.56 μs Height 3971.23 μs ROI height [pixels] Figure 49: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 33.4 92.4 36.2 134.5 41.3 173.0...

  • Page 107: Prosilica Gc1290, Gc1290C (02-2185A, 02-2186A)

    Appendix Prosilica GC1290, GC1290C (02-2185A, 02- 2186A) Specification Feature Prosilica GC1290 Prosilica GC1290C Resolution 1280 (H) x 960 (V) 1.2 MP Sensor Sony ICX445ALA with EXview HAD Sony ICX445AQA with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan...
  • Page 108 Appendix Specification Feature Prosilica GC1290 Prosilica GC1290C Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation)

  • Page 109: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX445 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 110: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  28.79 μs Height 2937.68 μs 1000 ROI height [pixels] Figure 52: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 32.79 86.59 34.75 115.24 38.6...

  • Page 111: Prosilica Gc1350, Gc1350C (02-2130A, 02-2131A)

    Appendix Prosilica GC1350, GC1350C (02-2130A, 02- 2131A) Specification Feature Prosilica GC1350 Prosilica GC1350C Resolution 1360 (H) x 1024 (V) 1.4 MP Sensor Sony ICX205AL with HAD technology Sony ICX205AK with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 112 Appendix Specification Feature Prosilica GC1350 Prosilica GC1350C Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H)

  • Page 113: Absolute Qe

    Appendix Absolute QE 1000 l ngth [nm] Figure 53: Prosilica GC1350 (Sony ICX205) absolute QE Green Blue l ngth [nm] Figure 54: Prosilica GC1350C (Sony ICX205) absolute QE Prosilica GC Technical Manual V2.2.2...

  • Page 114: Roi Frame Rate

    Appendix ROI frame rate Frame rate --------------------------------------------------------------------------- -  38.35 μs Height 10457.12 μs 1050 ROI height [pixels] Figure 55: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1024 20.0 45.3 1000 20.4...

  • Page 115: Prosilica Gc1380, Gc1380C (02-2140A, 02-2141A)

    Appendix Prosilica GC1380, GC1380C (02-2140A, 02- 2141A) Specification Feature Prosilica GC1380 Prosilica GC1380C Resolution 1360 (H) x 1024 (V) 1.4 MP Sensor Sony ICX285AL with EXview HAD Sony ICX285AQ with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 116 Appendix Specification Feature Prosilica GC1380 Prosilica GC1380C Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H)

  • Page 117: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX285 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 118: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  41.45 μs Height 7148.57 μs 1000 1100 ROI height [pixels] Figure 58: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1024 20.1 50.7 1000...

  • Page 119: Prosilica Gc1380H, Gc1380Ch (02-2142A, 02-2143A)

    Appendix Prosilica GC1380H, GC1380CH (02-2142A, 02- 2143A) Specification Feature Prosilica GC1380H Prosilica GC1380CH Resolution 1360 (H) x 1024 (V) 1.4 MP Sensor Sony ICX285AL with EXview HAD Sony ICX285AQ with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 120 Appendix Specification Feature Prosilica GC1380H Prosilica GC1380CH Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity...

  • Page 121: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX285 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 122: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  27.78 μs Height 4883.81 μs 1050 ROI height [pixels] Figure 61: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1024 30.1 75.69 1000 30.62...

  • Page 123: Prosilica Gc1600, Gc1600C (02-2150A, 02-2151A)

    Appendix Prosilica GC1600, GC1600C (02-2150A, 02- 2151A) Specification Feature Prosilica GC1600 Prosilica GC1600C Resolution 1620 (H) x 1220 (V) 2 MP Sensor Sony ICX274AL with Super HAD CCD™ Sony ICX274AQ with Wfine Super HAD technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 124 Appendix Specification Feature Prosilica GC1600 Prosilica GC1600C Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H)

  • Page 125: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX274 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 126: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  48.80 μs Height 6431.90 μs 1000 1200 1400 ROI height [pixels] Figure 64: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1220 15.0 38.3...

  • Page 127: Prosilica Gc1600H, Gc1600Ch (02-2152A, 02-2153A)

    Appendix Prosilica GC1600H, GC1600CH (02-2152A, 02- 2153A) Specification Feature Prosilica GC1600H Prosilica GC1600CH Resolution 1620 (H) x 1220 (V) 2 MP Sensor Sony ICX274AL with Super HAD CCD™ Sony ICX274AQ with Wfine Super HAD technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 128 Appendix Specification Feature Prosilica GC1600H Prosilica GC1600CH Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 20 ns for non-isolated I/O; 0.5 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity...

  • Page 129: Absolute Qe

    Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX274 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 130: Roi Frame Rate

    Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ -  29.24 μs Height 3082.14 μs 1050 1200 1350 ROI height [pixels] Figure 67: Frame rate as a function of ROI height Height in pixels Frame rate Height in pixels Frame rate 1220 25.82 67.72...

  • Page 131: Prosilica Gc2450, Gc2450C (02-2170A, 02-2171A)

    Appendix Prosilica GC2450, GC2450C (02-2170A, 02- 2171A) Specification Feature Prosilica GC2450 Prosilica GC2450C Resolution 2448 (H) x 2050 (V) 5 MP Sensor Sony ICX625ALA with Super HAD Sony ICX625AQA with Super HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...

  • Page 132: Absolute Qe

    Appendix Specification Feature Prosilica GC2450 Prosilica GC2450C Propagation delay (t 20 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 to +40 °C ambient temperature (without condensation) Storage temperature -10 to +70 °C ambient temperature (without condensation) Operating humidity 20 to 80% non-condensing Body dimensions (L x W x H)

  • Page 133: Spectral Response

    Appendix Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX625 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 69: Prosilica GC2450, GC2450C (Sony ICX625) spectral response ROI frame rate Frame rate --------------------------------------------------------------------------- -  26.63 μs Height 12079.91 μs 1200...

  • Page 134: Prosilica Gc Model Comparison

    Appendix Height in pixels Frame rate Height in pixels Frame rate 2050 15.11 35.84 2000 15.42 44.21 1800 16.79 57.66 1600 18.42 1400 20.4 74.7 1200 22.87 79.4 1000 26.01 81.1 30.14 82.51 Width=2448 pixels Table 44: Frame rate as a function of ROI height Prosilica GC model comparison 1100 1000...
  • Page 135 Appendix GC1290 GC1350 GC1380 GC1380H GC1600 GC1600H GC2450 1200 1500 1800 2100 ROI height [pixels] Figure 72: Maximum frame rate comparison for select models Prosilica GC Technical Manual V2.2.2...

  • Page 136: Camera Feature Comparison

    Appendix Camera feature comparison Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities and compares the availability of features in Prosilica GC camera models. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: •...

  • Page 137: Image Data Flow

    The following diagrams illustrate the data flow and the bit resolution of image data. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: • Vimba and third-party users: GigE Features Reference •...

  • Page 138: Prosilica Gc Color Models

    Appendix Prosilica GC color models Vertical Binning Sensor Vertical ROI Gain Offset Analog Analog Analog Analog Bayer Horizontal Horizontal ROI White balance Interpolation Binning 12 bit 12 bit 12 bit Analog GigE Interface Frame Memory Color information lost while vertical binning is active. Factory calibrated.

  • Page 139: Mechanical Dimensions

    Appendix Mechanical dimensions The Prosilica GC family offers both CCD and CMOS sensor models. CCD cameras utilize additional circuitry required for A/D conversion. As a result, CMOS models offer a shorter mechanical package than CCD models. Prosilica GC CCD model housing (C-Mount) Models: Prosilica GC650, GC655, GC660, GC780, GC1020, GC1290, GC1350, GC1380, GC1380H, GC1600, GC1600H, GC2450 M3x4 (4x)

  • Page 140: Prosilica Gc Cmos Model Housing (C-Mount)

    Appendix Prosilica GC CMOS model housing (C-Mount) Model: Prosilica GC750 M3x4 (4x) M3x4 (2x) M3x4 (2x) 13.9* 50.6* 33.9 30.8 *Nominal value. Add 0.3 mm for color cameras. 45.7 Figure 77: Prosilica GC CMOS model housing dimensions Prosilica GC Technical Manual V2.2.2...

  • Page 141: Lens Protrusion For C-Mount Cameras

    Appendix Lens protrusion for C-Mount cameras Lens protrusion is the distance from outer edge of C-Mount ring to contact point of first surface internal to C-Mount ring. For color models this surface is the IR-filter holder, and for monochrome models this surface is the internal camera front plate (see figure 78).

  • Page 142: Index
