Summary of Contents for Allied Vision Prosilica GS

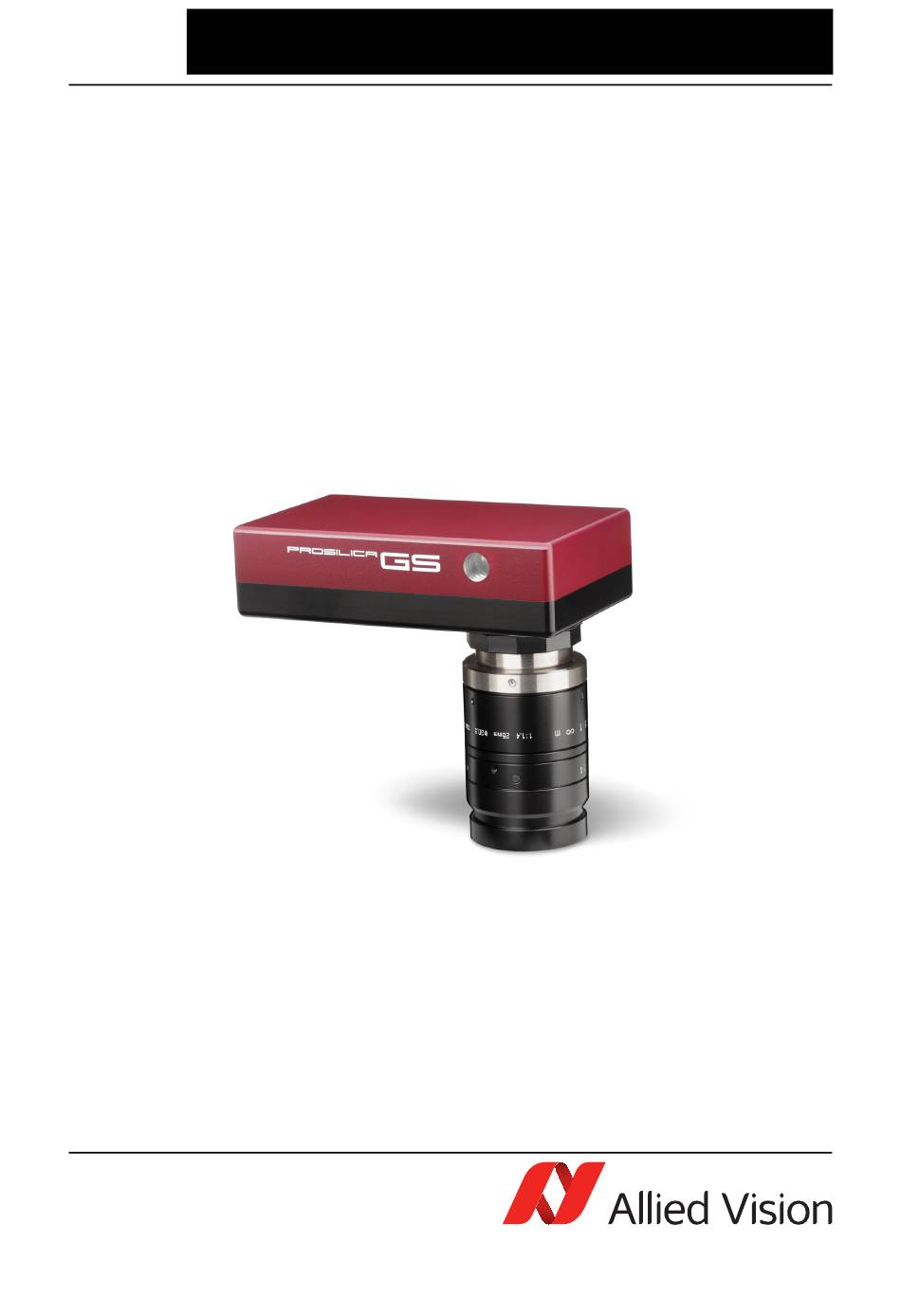

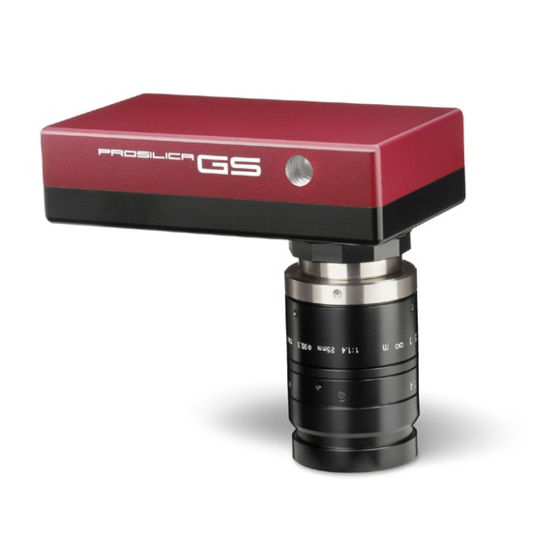

- Page 1 Allied Vision Prosilica GS Technical Manual GigE Vision Cameras V2.2.2 2018-Jun-16 Allied Vision Technologies GmbH Taschenweg 2a, 07646 Stadtroda, Germany...
- Page 2 All trademarks, logos, and brands cited in this document are property and/or copyright material of their respective owners. Use of these trademarks, logos, and brands does not imply endorsement. Copyright © 2018 Allied Vision GmbH. All rights reserved. Allied Vision Technologies GmbH 06/2018 All rights reserved.
-
Page 3: Table Of Contents
Prosilica GS1380, GS1380C ........................ 19 Absolute QE ..........................20 Spectral response ......................... 20 Prosilica GS2450, GS2450C ....................... 21 Absolute QE ..........................22 Spectral response ......................... 22 Camera attribute highlights ....................... 23 Filters ..............................24 Camera dimensions ......................... 25 Prosilica GS Technical Manual V2.2.2... - Page 4 Resolution and ROI frame rates ....................42 Prosilica GS650........................... 43 Prosilica GS660........................... 44 Prosilica GS1380..........................45 Prosilica GS2450..........................46 Prosilica GS model comparison ......................47 Description of the data path ....................... 48 Monochrome Prosilica GS cameras....................48 Color Prosilica GS cameras......................... 48 Additional references ........................
-
Page 5: Contact Us
Contact us Contact us Connect with Allied Vision by function https://www.alliedvision.com/en/meta-header/contact.html Find an Allied Vision office or Allied Vision distribution partner https://www.alliedvision.com/en/about-us/where-we-are.html Email For general inquiries, please contact info@alliedvision.com For technical support, please contact support@alliedvision.com Headquarters Allied Vision Technologies GmbH... -
Page 6: Introduction
For information on software installation read the GigE Installation Manual. For detailed information on camera features and controls specific to the Prosilica GS refer to the GigE Features Reference and GigE Camera and Driver Attributes documents. Prosilica GS documentation: https://www.alliedvision.com/en/support/technical-... - Page 7 • Updated absolute QE plots and added spectral response plots • Updated contact information and address for Allied Vision Canada • Added cable color to camera I/O connector pin assignment including pin assignment figure and cross reference to the Allied Vision I/O cable data sheet V2.2.0 2018-Jan-02 •...
-
Page 8: Manual Conventions
This symbol highlights important information. Caution This symbol highlights important instructions. You have to follow these instructions to avoid malfunctions. This symbol highlights URLs for further information. The URL itself is shown in blue. Example: https://www.alliedvision.com Prosilica GS Technical Manual V2.2.2... -
Page 9: Precautions
Cleaning optics Caution Allied Vision does not warranty against any physical damage to the sensor/filter/protection glass or lenses. Use utmost care when cleaning optical components. -
Page 10: Identifying Debris
Otherwise, the debris is on the IR filter (if used) or sensor glass. Color cameras with IR filter Prosilica GS color cameras are equipped with an IR filter. With no lens or lens cap on a camera, the IR filter is exposed and debris can accumulate on it. This is the most probable location for debris. -
Page 11: Contact Cleaning
Prolonged exposure of alcohol on the swab can cause the swab glue to loosen and transfer to the optic glass. Do not reuse the same swab. Repeat this process until the debris is removed. If this process fails to remove the debris, contact Allied Vision. Prosilica GS Technical Manual V2.2.2... -
Page 12: Compliance Notifications
Compliance notifications Compliance notifications For customers in Europe Allied Vision has demonstrated the fulfillment of the requirements relating to the Prosilica GS camera family: • Directive 2014/30/EU (Electromagnetic compatibility) • Directive 2011/65/EU, including amendment 2015/863/EU (RoHS) • Directive 2012/19/EU (WEEE) -
Page 13: Camera Applications And Intended Use
Usage of the software is solely the responsibility of the user. • The camera must not be opened. For all repair tasks, contact Allied Vision or one of Allied Vision's authorized representatives. • Observe the intended use. The camera must only be used for purposes that are in conformity with the stated intended use. -
Page 14: Specifications
20 to 80% non-condensing Dimensions 96 × 56 × 26 (including connectors) Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet), 100BASE-TX (Fast Ethernet) Interface standard GigE Vision Standard 1.2 Table 3: Specifications common to all Prosilica GS models Prosilica GS Technical Manual V2.2.2... -
Page 15: Prosilica Gs650, Gs650C
1.0 µs for non-isolated I/O, 9 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O, ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O, 1.3 µs for isolated I/O Table 4: Prosilica GS650, GS650C model specifications Prosilica GS Technical Manual V2.2.2... -
Page 16: Absolute Qe
Figure 1: Prosilica GS650, GS650C (Sony ICX424) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.2000 Sony ICX424 spectral response 0.1000 0.0000 1000 Wavelength [nm] Figure 2: Prosilica GS650, GS650C (Sony ICX424) spectral response Prosilica GS Technical Manual V2.2.2... -
Page 17: Prosilica Gs660, Gs660C
2 µs for non-isolated I/O, 10 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O, ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O, 1.3 µs for isolated I/O Table 5: Prosilica GS660, GS660C model specifications Prosilica GS Technical Manual V2.2.2... -
Page 18: Absolute Qe
Figure 3: Prosilica GS660, GS660C (Sony ICX618) absolute QE Spectral response Red Response Green Response Blue Response Monochrome QE 0.4000 Sony ICX618 spectral response 0.3000 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 4: Prosilica GS660, GS660C (Sony ICX618) spectral response Prosilica GS Technical Manual V2.2.2... -
Page 19: Prosilica Gs1380, Gs1380C
1 µs for non-isolated I/O, 9 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O, ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O, 1.3 µs for isolated I/O Table 6: Prosilica GS1380, GS1380C model specifications Prosilica GS Technical Manual V2.2.2... -
Page 20: Absolute Qe
Figure 5: Prosilica GS1380, GS1380C (Sony ICX285) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX285 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 6: Prosilica GS1380, GS1380C (Sony ICX285) spectral response Prosilica GS Technical Manual V2.2.2... -
Page 21: Prosilica Gs2450, Gs2450C
2 µs for non-isolated I/O, 10 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O, ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O, 1.3 µs for isolated I/O Table 7: Prosilica GS2450, GS2450C model specifications Prosilica GS Technical Manual V2.2.2... -
Page 22: Absolute Qe
Figure 7: Prosilica GS2450, GS2450C (Sony ICX625) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX625 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 8: Prosilica GS2450, GS2450C (Sony ICX625) spectral response Prosilica GS Technical Manual V2.2.2... -
Page 23: Camera Attribute Highlights
Camera attribute highlights Camera attribute highlights Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of interesting capabilities of the Prosilica GS camera family. A complete listing of camera controls, including control definitions can be found online: ... -
Page 24: Filters
Filters Filters All Prosilica GS color models are equipped with an infrared block filter (IR filter). This filter is employed to prevent infrared wavelength photons from passing to the sensor. In the absence of IR filter, images are dominated by red and incapable of being properly color balanced. -
Page 25: Camera Dimensions
Camera dimensions Camera dimensions The Prosilica GS camera family offers several sensor orientation options. The camera variations are described below and detailed dimension drawings are provided in Mechanical drawings in the next section. Sensor orientation Model Description Example Landscape Sensor mounted in landscape... -
Page 26: Mechanical Drawings
ITEM 1: 3M 10214-55G3PC ITEM 2: HALO HFJ11-1G16E-L12RL 25.4 ITEM 3: SONY ICX424 *Nominal for C-Mount. Reduce by 5 mm for CS-Mount. Add 0.33 mm for color option Figure 10: Prosilica GS650, GS650C mechanical drawing Prosilica GS Technical Manual V2.2.2... -
Page 27: Portrait Sensor
ITEM 1: 3M 10214-55G3PC ITEM 2: HALO HFJ11-1G16E-L12RL 25.4 ITEM 3: SONY ICX424 *Nominal for C-Mount. Reduce by 5 mm for CS-Mount. Add 0.33 mm for color option Figure 11: Prosilica GS650-P, GS650C-P mechanical drawing Prosilica GS Technical Manual V2.2.2... -
Page 28: C-Mount Flange Focal Distance
C-Mount flange focal distance Flange focal distance is the optical distance from the mounting flange to image sensor die. Prosilica GS C-Mount cameras are optically calibrated to a standard 17.526 mm optical flange focal distance, with a ±10 µm tolerance. -
Page 29: Lens Protrusion For C-Mount Cameras
Lens protrusion Front Plate holder Sec on A-A for C-Mount Sec on A-A for C-Mount monochrome cameras color cameras Figure 13: : Cross section of typical Prosilica GS assembly with C-Mount Model Sensor Lens protrusion Model Sensor Lens protrusion orientation... -
Page 30: Camera Interfaces
Camera interfaces Camera interfaces This chapter provides information on Gigabit Ethernet interface, inputs and outputs, and trigger features. Accessories: Please contact Allied Vision Sales representative or your local Allied Vision distribution partner for information on accessories: https://www.alliedvision.com/en/about-us/where-we- are.html GIGABIT ETHERNET PORT... -
Page 31: Gigabit Ethernet Interface
GigE Installation Manual offers detailed instructions for using Prosilica GS cameras. https://www.alliedvision.com/fileadmin/content/ documents/products/cameras/various/installation-manual/ GigE_Installation_Manual.pdf Note See Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended Ethernet adapters: https://www.alliedvision.com/fileadmin/content/ documents/products/cameras/various/appnote/ Hardware_Selection_for_Allied_Vision_GigE_Cameras.pdf A standard Ethernet adapter is available for purchase from... -
Page 32: Camera I/O Connector Pin Assignment
In 2 LVTTL max. 3.3 V Input 2 non- Pink isolated (SyncIn2) Out 2 LVTTL max. 3.3 V Output 2 White/Black non-isolated (SyncOut2) Table 12: Camera I/O connector pin assignment and cable color coding Prosilica GS Technical Manual V2.2.2... - Page 33 10114-3000PE or a connector with shielded housing 3M 10314-3210-00X (X indicates color preference). The cable side connector is available for purchase from Allied Note Vision. Order code: 02-7003A For cable color and pin out information, see the Allied Vision Note I/O cable data sheet: https://www.alliedvision.com/en/support/technical- documentation/accessories-data-sheets.html N.C.
-
Page 34: I/O Definition
I/O definition Camera power The Prosilica GS camera family has recently been updated to offer an expanded input power voltage range. The camera serial number is used to differentiate between cameras that offer 5 to 16 VDC and those that offer 5 to 25 VDC. -
Page 35: Output Signals
1 KΩ to the user’s 5 V logic supply. Tie Camera GND to Isolated IO GND to complete the external circuit. See Camera I/O opto-isolated user circuit example for more information. Prosilica GS Technical Manual V2.2.2... -
Page 36: Signal Ground
Camera Power Camera Power 3M 10114-3000PE User Power RECOMMENDED VALUES USER POWER 1 K Ω Out1 12 V 0.7 KΩ 2.7 KΩ 24 V 1.8 KΩ 4.7 KΩ Figure 16: Prosilica GS isolated trigger user circuit Prosilica GS Technical Manual V2.2.2... -
Page 37: Camera I/O Non-Isolated User Circuit Example
3M 10114-3000PE IN 2 (3.3 V DRIVER) OUT 2 (3.3 V RECEIVER) Figure 17: Prosilica GS non-isolated trigger user circuit Caution Input: Incoming trigger must be able to source 10 µA, at 3.3 V. Input trigger voltage greater than 5.5 V will damage the ... -
Page 38: Video Iris User Circuit Example
SN74LVC2G241 for more detailed information. Video iris user circuit example Prosilica GS series cameras provide built-in auto iris controls for controlling video-type auto-iris lenses. These lenses are available from many popular security lens companies including Pentax, Fujinon, Tamron, Schneider and others. -
Page 39: Trigger Timing Diagram
Trigger ji er Readout N+ 1 Interline me Trigger ready Imaging Idle Figure 19: Prosilica GS internal signal timing waveforms Notes on triggering Term Definition User trigger Trigger signal applied by the user (hardware trigger, software trigger) Logic trigger Trigger signal seen by the camera internal logic... - Page 40 User Trigger signal as soon as a valid Trigger Ready is detected. In this case, Trigger Latency and Trigger Jitter can be up to 1 row time since Exposure must always begin on an Interline boundary. Prosilica GS Technical Manual V2.2.2...
-
Page 41: Firmware Update
Firmware update Firmware updates are carried out via the GigE connection. Allied Vision provides an application for all Prosilica GS cameras that loads firmware to the camera using a simple interface. New feature introductions and product improvements motivate new firmware releases. All users are encouraged to use the newest firmware available and complete the firmware update if necessary. -
Page 42: Resolution And Roi Frame Rates
• The camera frame rate can also be increased by increasing the camera's BinningY attribute, resulting in a vertically scaled image (less overall height with same field of view). • There is no frame rate increase with reduced width. Prosilica GS Technical Manual V2.2.2... -
Page 43: Prosilica Gs650
Resolution and ROI frame rates Prosilica GS650 Frame rate -------------------------------------------------------------------------- 14.39 µs Height 1114.28 µs Height [pixels] Figure 20: Frame rate vs. height for Prosilica GS650 Prosilica GS Technical Manual V2.2.2... -
Page 44: Prosilica Gs660
Resolution and ROI frame rates Prosilica GS660 Frame rate -------------------------------------------------------------------------- 13.26 µs Height 1844.78 µs Height [pixels] Figure 21: Frame rate vs. height for Prosilica GS660 Prosilica GS Technical Manual V2.2.2... -
Page 45: Prosilica Gs1380
Resolution and ROI frame rates Prosilica GS1380 Frame rate -------------------------------------------------------------------------- 27.79 µs Height 4881.40 µs 1050 Height [pixels] Figure 22: Frame rate vs. height for Prosilica GS1380 Prosilica GS Technical Manual V2.2.2... -
Page 46: Prosilica Gs2450
Resolution and ROI frame rates Prosilica GS2450 Frame rate ---------------------------------------------------------------------------- - 26.63 µs Height 12079.91 µs 1200 1500 1800 2100 Height [pixels] Figure 23: Frame rate vs. height for Prosilica GS2450 Prosilica GS Technical Manual V2.2.2... -
Page 47: Prosilica Gs Model Comparison
Resolution and ROI frame rates Prosilica GS model comparison GS650 GS660 GS1380 GS2450 1000 1200 1500 1800 2100 Height [pixels] Figure 24: Maximum frame rate versus region height for all Prosilica GS cameras Prosilica GS Technical Manual V2.2.2... -
Page 48: Description Of The Data Path
Frame 12 bit 12 bit 12 bit Ethernet memory binning interface ‡ Factory calibrated. NOT a user control. Figure 25: Block diagram of Prosilica GS monochrome cameras Color Prosilica GS cameras ‡ Gain Offset Vertical Horizontal Sensor binning* / Analog... -
Page 49: Additional References
Additional references Additional references Prosilica GS webpage https://www.alliedvision.com/en/products/cameras Prosilica GS Documentation https://www.alliedvision.com/en/support/technical-documentation/prosil- ica-gs-documentation Vimba SDK https://www.alliedvision.com/en/products/software PvAPI SDK- (Under Legacy Software) https://www.alliedvision.com/en/support/software-downloads Knowledge base https://www.alliedvision.com/en/support/technical-papers-knowledge-base Case studies https://www.alliedvision.com/en/applications Firmware https://www.alliedvision.com/en/support/firmware Prosilica GS Technical Manual V2.2.2... -
Page 50: Index
Gigabit Ethernet port........ 31 GND for ext. power ........32 Block diagram Prosilica GS color cameras....48 idle (signal) ..........40 Prosilica GS monochrome cameras ..48 imaging (signal) ........40 Input triggers .......... 34 In 1 ........32 In 2 ........32 integrating light (trigger) ...... - Page 51 Prosilica GS660C color ......18 Status LEDs ..........30 Storage temperature ........ 14 StreamBytesPerSecond ......42 Styles ............8 Symbols ........... 8 time delay (trigger)........39 Tpd (definition)........39 Trigger jitter........39 Trigger latency........39 Prosilica GS Technical Manual V2.2.2...
