Summary of Contents for Allied Vision Prosilica GC660

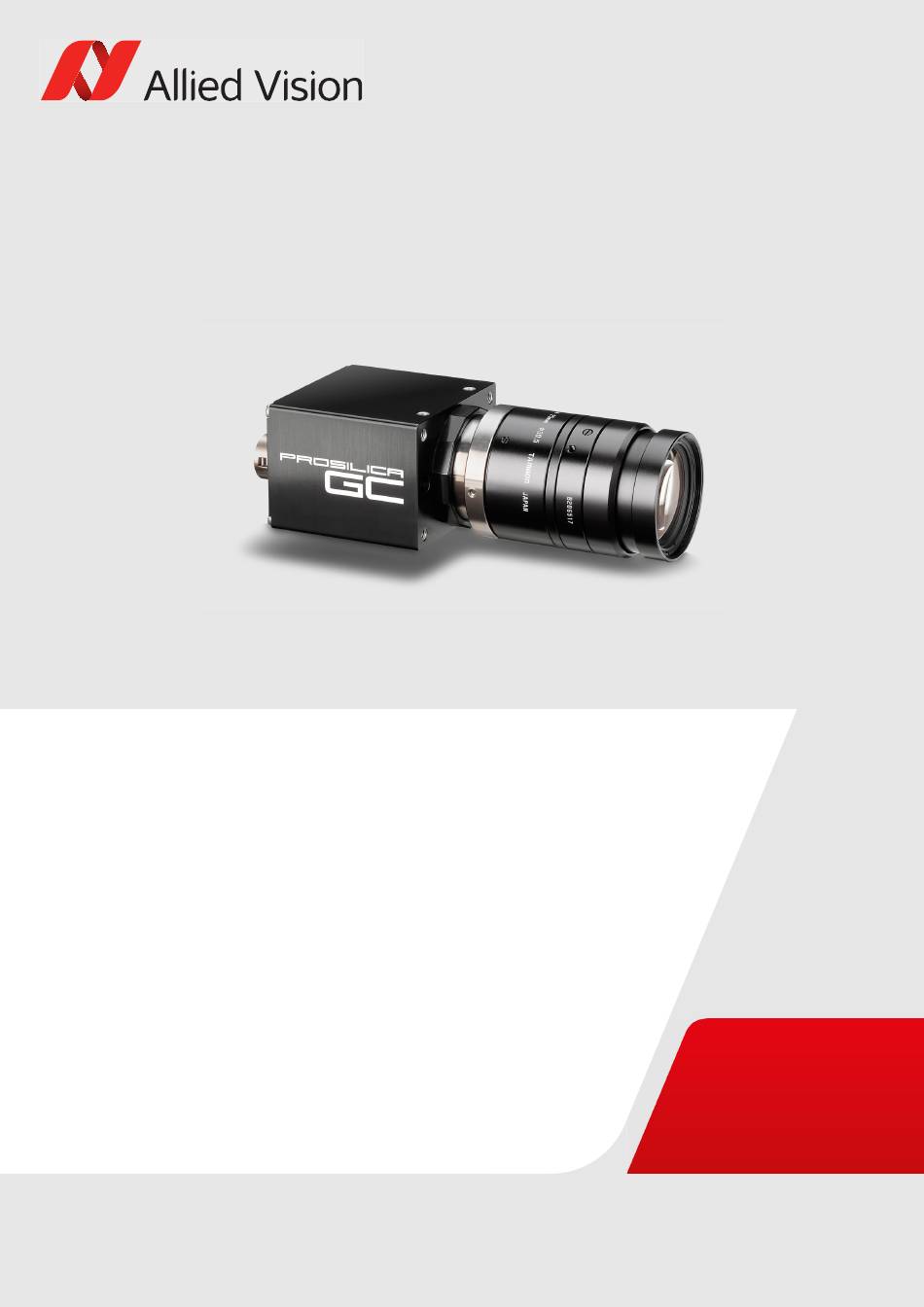

- Page 1 GigE V ISION AMERAS Prosilica GC Technical Manual V2.4.1 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2018-Jun-19...
-
Page 2: Prosilica Gc At A Glance
The GenICam standard consists of multiple modules that specify tasks to be solved. Allied Vision cameras and software make use of these modules, like the SFNC that standardizes feature names and types via an XML file or the transport layer interface (GenTL) that is used to grab images. -
Page 3: Contact Us
Contact us Contact us Connect with Allied Vision by function https://www.alliedvision.com/en/meta-header/contact.html Find an Allied Vision office or Allied Vision distribution partner https://www.alliedvision.com/en/about-us/where-we-are.html Email For general inquiries, please contact info@alliedvision.com For technical support, please contact support@alliedvision.com Headquarters Allied Vision Technologies GmbH... -
Page 4: Table Of Contents
Allied Vision software ........ - Page 5 Prosilica GC660, GC660C ........
- Page 6 Contents Isolated IO ground ..............62 RxD RS232 and TxD RS232 .
- Page 7 Contents ROI frame rate............... 101 Prosilica GC1380, GC1380C (02-2140A, 02-2141A) .
-
Page 8: Document History And Conventions
Document history and conventions This chapter includes: • Document history • Layout styles and symbols used in this manual • Product naming • Acronyms and abbreviations used in this manual Prosilica GC Technical Manual V2.4.1... -
Page 9: Document History
Updated the exposure control values in the Specifications chapter Added Vimba SDK link in the Additional references section Updated Allied Vision recommended cabling to Cat 6 or higher in the Gigabit Ethernet interface section V2.0.6 2013-Jul-05 Added contact information for Allied Vision Technologies (Shanghai) Co. Ltd. - Page 10 Updated absolute QE plots and new spectral response plots for all hardware revision D models For Prosilica GC660 and GC660C, the image width was changed from 659 to 658. It was changed to 658 so that the color version would image with Vimba when using default values.
-
Page 11: Manual Conventions
Remarks V2.3.0 2017-Oct-18 Removed references to Prosilica GC660, GC1290, GC1380H, GC1600H, GC2450 hardware revision A models in the Appendix. The last time shipment period for these models ended on June 30, 2017 as detailed in PCN AVTPR-112. These hardware revision A models were replaced by hardware revision D models. -
Page 12: Symbols
Document history and conventions Symbols NOTICE Material damage Precautions as described. NOTICE Material damage by electrostatic discharge (ESD) Precautions as described. CAUTION Personal injuries Precautions as described. Safety-related instructions to avoid malfunctions This symbol indicates important or specific instructions or procedures that are related to product safety. -
Page 13: Acronyms And Abbreviations
Document history and conventions Acronyms and abbreviations The following table provides a list of abbreviations used in this document. Acronym or Abbreviation Description °C Degrees Celsius Automated Imaging Association Computer aided design Cat 6 Category 6, Ethernet cable Charge-coupled device CMOS Complementary metal-oxide semiconductor Decibel... - Page 14 Document history and conventions Acronym or Abbreviation Description Second Software Development Kit SFNC Standard Feature Naming Convention TTL I/O Transistor-transistor logic input/output TxD and RxD Transmit and receive Volts Volts of direct current Watts WEEE Waste of Electric and Electronic Equipment Extensible Markup Language µA Microampere...
-
Page 15: Compliance And Intended Use
Compliance and intended use § This chapter includes: • Information about the legal requirements and restrictions for Prosilica GC cameras based on current and relevant regulations • Particular emphasis has been given to Europe, the U.S., and Canada • Intended use statements Prosilica GC Technical Manual V2.4.1... -
Page 16: Compliance Notifications
Compliance and intended use Compliance notifications For customers in Europe Allied Vision has demonstrated the fulfillment of the requirements relating to the Prosilica GC camera family: • Directive 2014/30/EU (Electromagnetic compatibility) • Directive 2011/65/EU, including amendment 2015/863/EU (RoHS) • Directive 2012/19/EU (WEEE) -
Page 17: Camera Applications And Intended Use
The camera-supporting software can be obtained and installed separately from the camera. Usage of the software is solely the responsibility of the user. • The camera must not be opened. For all repair tasks, contact Allied Vision or one of Allied Vision's authorized representatives. •... -
Page 18: Installation And Hardware
Installation and hardware This chapter describes the components required for your vision system including configuring the host computer, Ethernet adapter settings, and connecting your Prosilica GC camera. Prosilica GC Technical Manual V2.4.1... -
Page 19: General Cautions And Warnings
Installation and hardware General cautions and warnings Electrical connections NOTICE Material damage by electrostatic discharge (ESD) The phenomenon is commonly known: when walking on a carpet, we get charged. Touching a door handle, we get an electric shock. ESD is dangerous for electronic devices, especially when tools or hands get in contact with connectors. -
Page 20: Optical Components
Installation and hardware Operation outside the allowed temperature range can damage the camera. For best performance and to protect the camera from damage, keep the housing temperature between the specified operating temperature. Observe the following: • To avoid camera crashes, operate the camera with a lens or lens adapter attached only. - Page 21 This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor unless absolutely necessary. See instructions on optics cleaning in this document. Allied Vision can clean your camera as a service for you, if necessary. For more information, contact Allied Vision support at https://www.alliedvision.com/en/ support/contact-support-and-repair.html.
-
Page 22: Configuring The Host Computer
Installation and hardware Configuring the host computer Allied Vision GigE Vision cameras can operate on 10/100 or Gigabit speed Ethernet adapters. In order to reach the maximum camera frame rate, a Gigabit speed Ethernet adapter with jumbo packet support is required. -
Page 23: Ethernet Adapter Driver Settings
Transmit Buffers 256 bytes Default packet size The default packet size of Allied Vision GigE cameras is 8228 bytes. The host network adapter needs to support a packet size of equal or larger size to stream from the camera. Ethernet adapter For desktop systems, use a PCI Express bus Ethernet adapter. -
Page 24: Connecting Your Camera
Accessories Allied Vision offers a wide range of accessories for the use of Allied Vision GigE cameras and the easy integration in already existing applications including: • GigE accessories including standard GigE components. -
Page 25: Downloading Camera Drivers
Vimba Viewer or Vimba SDK: https://www.alliedvision.com/en/products/software Third-party software solutions: https://www.alliedvision.com/en/products/software/third-party-libraries.html Powering up the camera A camera power adapter for each GigE camera is available from Allied Vision. See Specifications on page 27 for connector definition and voltage specifications. NOTICE For Prosilica GC cameras •... -
Page 26: Allied Vision Software
Installation and hardware Allied Vision software All software packages provided by Allied Vision are free of charge and contain the following components: • Drivers • SDK for camera control and image acquisition • Examples based on the provided APIs of the SDK •... -
Page 27: Specifications
Specifications This chapter provides: • Technical specifications • Absolute QE plots • Spectral response plots • ROI height vs. frame rate plots • Camera feature comparison for hardware revision D models (serial number 02-21XXD-XXXXX) • Image data flow diagram Prosilica GC Technical Manual V2.4.1... -
Page 28: Notes On Specifications
Specifications Notes on specifications Dimensions and mass Dimensions include C-Mount and connectors but not the tripod and lens. Mass does not include the tripod and lens. Hardware revision This chapter includes camera specifications for all Prosilica GC models (hardware revision D). For previous Prosilica GC models (hardware revision A) see Appendix on page 82. -
Page 29: Resolution And Roi Frame Rate
Specifications Resolution and ROI frame rate This section charts the resulting frame rate from changing sensor height from full image to a single line. Unless otherwise noted, sensors do not give an increase in readout speed with a reduction in width. Resolution and ROI measurements •... -
Page 30: Spectral Response Plots
Specifications Wavelength The wavelength range in the absolute QE plots is based on the information available in the sensor manufacturer data sheet at the time of publishing. Many color sensors are documented by the sensor manufacturer only for wavelengths from 400 nm to 700 nm. For additional wavelength information, contact the sensor manufacturer. -
Page 31: Prosilica Gc660, Gc660C
10 ns for non-isolated I/O; 1.3 µs for isolated I/O Body dimensions (L × W × H) 58.7 × 45.7 × 33 mm 59 × 45.7 × 33 mm Mass (typical) 105 g Table 6: Prosilica GC660, GC660C model specifications Prosilica GC Technical Manual V2.4.1... -
Page 32: Absolute Qe
The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 1: Prosilica GC660, GC660C (Sony ICX618) absolute QE Spectral response Red Response Green Response Blue Response Monochrome QE 0.4000... -
Page 33: Roi Frame Rate
Specifications ROI frame rate ROI height [pixels] Figure 3: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 121.18 226.23 130.23 265.35 142.31 320.82 156.86 405.61 174.32 482.06 197.16 514.37 Width=658 pixels Table 7: Frame rate as a function of ROI height Prosilica GC Technical Manual V2.4.1... -
Page 34: Prosilica Gc1290, Gc1290C
Specifications Prosilica GC1290, GC1290C Specification Feature Prosilica GC1290 Prosilica GC1290C Resolution 1280 (H) × 960 (V) 1.2 MP Sensor Sony ICX445ALA with EXview HAD Sony ICX445AQA with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format Type 1/3... -
Page 35: Absolute Qe
Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX445 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 36: Roi Frame Rate
Specifications ROI frame rate 1000 ROI height [pixels] Figure 6: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 33.31 87.96 35.30 117.07 39.21 174.96 44.10 232.41 50.38 289.45 58.75 315.23 70.45 339.43 Width=1280 pixels... -
Page 37: Prosilica Gc1380H, Gc1380Ch
Specifications Prosilica GC1380H, GC1380CH Specification Feature Prosilica GC1380H Prosilica GC1380CH Resolution 1360 (H) × 1024 (V) 1.4 MP Sensor Sony ICX285AL with EXview HAD Sony ICX285AQ with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format Type 2/3... -
Page 38: Absolute Qe
Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX285 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 39: Roi Frame Rate
Specifications ROI frame rate 1050 ROI height [pixels] Figure 9: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 1024 30.48 76.89 1000 31.1 97.36 132.68 37.48 162.08 41.76 186.93 47.15 197.01 54.13 205.88... -
Page 40: Prosilica Gc1600H, Gc1600Ch
Specifications Prosilica GC1600H, GC1600CH Specification Feature Prosilica GC1600H Prosilica GC1600CH Resolution 1620 (H) × 1220 (V) 2 MP Sensor Sony ICX274AL with Super HAD Sony ICX274AQ with Wfine Super HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 41: Absolute Qe
Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX274 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 42: Roi Frame Rate
Specifications ROI frame rate 1050 1200 1350 ROI height [pixels] Figure 12: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 1220 25.82 67.72 1100 28.39 84.42 1000 30.96 112.06 34.04 166.62 37.8 220.22... -
Page 43: Prosilica Gc2450, Gc2450C
Specifications Prosilica GC2450, GC2450C Specification Feature Prosilica GC2450 Prosilica GC2450C Resolution; 2448 (H) × 2050 (V) 5 MP Sensor Sony ICX625ALA with Super HAD Sony ICX625AQA with Super HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format Type 2/3... -
Page 44: Absolute Qe
Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX625 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 45: Roi Frame Rate
Specifications ROI frame rate 1200 1500 1800 2100 ROI height [pixels] Figure 15: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 2050 15.11 35.84 2000 15.42 44.21 1800 16.79 57.66 1600 18.42 1400... -
Page 46: Prosilica Gc Model Frame Rate Comparison
Specifications Prosilica GC model frame rate comparison Prosilica GC model comparison GC2450 GC1660 GC1380 GC1290 GC660 1000 1250 1500 1750 2000 2250 Height [pixels] Figure 16: Maximum frame rate comparison for select models Prosilica GC model comparison StreamHold Model Sensor Sensor type Sensor format Resolution... -
Page 47: Camera Feature Highlights
Specifications Camera feature highlights Allied Vision cameras support a number of standard and extended features. The following table identifies a selection of capabilities of the Prosilica GC camera family. Camera feature reference A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation web page, go to https://www.alliedvi-... -
Page 48: Camera Feature Comparison
Specifications Camera feature comparison Allied Vision cameras support a number of standard and extended features. The following table identifies a selection of capabilities and compares the availability of features in Prosilica GC camera models. Camera feature reference A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation web page, go to https://www.alliedvi-... -
Page 49: Image Data Flow
Image data flow The following diagram illustrates the data flow image data. Camera feature reference A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation web page, go to https://www.alliedvi- sion.com/en/support/technical-documentation.html. • Vimba and third-party users: GigE Features Reference •... -
Page 50: Mechanical Dimensions
Mechanical dimensions This chapter includes: • CAD drawings and dimensions of standard housing models • Sensor position accuracy • Maximum protrusion distance and filter diameter for C-Mount and CS-Mount Prosilica GC Technical Manual V2.4.1... -
Page 51: Prosilica Gc Model Housing (C-Mount)
Mechanical dimensions Prosilica GC cameras are available with different lens mount options. For more information, see the Modular Concept document at: https://www.alliedvision.com/en/support/technical-documentation.html Prosilica GC model housing (C-Mount) Prosilica GC660, GC1290, GC1380H, C1600H, GC2450 M3x4 (4x) M3x4 (2x) M3x4 (2x) 12.9* 58.7*... -
Page 52: Tripod Adapter
The same tripod adapter can be used for all models within the Prosilica GC camera family. Prosilica GC tripod adapter Contact your Allied Vision Sales representative or your local Allied Vision distribution partner to purchase the Prosilica GC tripod adapter (Allied Vision order code 02-5002A). -
Page 53: Adjustment Of C-Mount
Lens tool - adjustment wrench Contact the Allied Vision Sales team or your local Allied Vision distribution partner to purchase the hexagonal lens adjustment wrench for Prosilica GC cameras with C or CS locking ring (Allied Vision order code 02-5003A). -
Page 54: Lens Protrusion For C-Mount Cameras
Mechanical dimensions Lens protrusion for C-Mount cameras Lens protrusion is the distance from outer edge of C-Mount ring to contact point of first surface internal to C-Mount ring. For color models this surface is the IR-filter holder, and for monochrome models this surface is the internal camera front plate (see figure 22). -
Page 55: Sensor Position Accuracy
Mechanical dimensions Sensor position accuracy Camera body Camera body Pixel area Pixel area Sensor case Sensor case Figure 23: Sensor position accuracy The following table defines the manufacturing accuracy of fitting sensors into Prosilica GC cameras. Criteria Subject Properties Reference Point Sensor Center of pixel area (photo sensitive cells) Camera Center of camera front flange (outer case edges) -
Page 56: Ir Cut Filter
Mechanical dimensions IR cut filter All Prosilica GC color models are equipped with an infrared block filter (IR cut filter). This filter is employed to prevent infrared light from passing to the sensor. In the absence of an IR filter, images are dominated by red and incapable of being properly color balanced. -
Page 57: Camera Interfaces
Camera interfaces This chapter includes: • A general description of the inputs and outputs (including trigger features) • I/O connector pin assignments • I/O block diagrams • A general description of trigger rules such as timing diagram and definitions Prosilica GC Technical Manual V2.4.1... -
Page 58: Back Panel
This section provides information on GigE interface, inputs and outputs, and trigger features. Accessories Contact your Allied Vision Sales representative or your local Allied Vision distribution partner for information on accessories, go to: https://www.alliedvision.com/en/about-us/where-we-are.html Figure 25: Prosilica GC GigE port, Hirose I/O port, and LEDs... -
Page 59: Status Leds
The GigE port conforms to the IEEE 802.3 1000BASE-T standard for GigE over copper. Allied Vision recommends using Cat 6 or higher compatible cabling and connectors for best performance. Ethernet adapters See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended Ethernet adapters: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html... -
Page 60: Camera I/O Connector Pin Assignment
Camera interfaces Camera I/O connector pin assignment 11 12 Camera side Hirose HR10A-10R-12PB connector I/O cable Signal Direction Level Description color code Camera GND Ground for external Blue camera power supply Camera Power 5 to 16* VDC Camera power supply In 1 (high) = 5 to 24 V Input 1 opto-isolated... -
Page 61: I/O Definition
The cable side Hirose connector is available for purchase from Allied Vision (Allied Vision order code K7600040). Cable color and pin out For cable color and pin out information, see the Allied Vision I/O cable data sheet: https://www.alliedvision.com/en/support/technical-documentation/accessories- data-sheets.html BLUE... -
Page 62: Isolated Io Ground
Camera interfaces 12V power adapter with Hirose connector A 12 V power adapter with Hirose connector is available for purchase from Allied Vision: • Order code 02-8003D North America Supply. • Order code 02-8004D Universal Supply. Isolated IO ground The Isolated IO GND connection provides the user ground reference and return path for In 1, and Out 1. -
Page 63: Output Signals
Camera interfaces Output signals Output signals can be assigned to a variety of internal camera signals via software. They can be configured to active high or active low. The internal camera signals are listed as follows: Exposing Corresponds to when camera is integrating light. Trigger Ready Indicates when the camera is ready to accept a trigger signal. -
Page 64: Signal Ground
Camera interfaces Remote iris lens control allows the camera to be more adaptable to changing light conditions. It allows the user to manually control the exposure and gain values and rely solely on the auto iris for adjustment to ambient lighting. NOTICE Camera power The following schematic uses CAMERA POWER to power the video iris lens, and... -
Page 65: Camera Trigger
Camera interfaces Camera trigger Camera I/O opto-isolated user circuit example CABLE SIDE CAMERA GND CAMERAGND CAMERA POWER CAMERAPOWER IN 1 OUT 1 ISOLATED IO GROUND IN 1 (DRIVER) USER POWER HIROSE HR10A-10P-12S RECOMMENDED VALUES USER OUT1 (RECEIVER) POWER 12 V 0.7 K 2.7 K 24 V... -
Page 66: Camera I/O Opto-Isolated User Circuit Example
Camera interfaces Camera I/O non-isolated user circuit example CABLE SIDE CAMERA GND CAMERA GND 12 V POWER CAMERA POWER IN 2 IN 2 (3.3 V DRIVER) OUT 2 OUT 2 (3.3 V RECEIVER) HIROSE HR10A-10P-12S Figure 29: Prosilica GC non-isolated user circuit NOTICE Input/Output Input: Incoming trigger must be able to source 10 µA, at 3.3 V. - Page 67 Camera interfaces Trigger timing diagram Readout me Trigger latency Registered Exposure exposure me start delay User trigger Note: Ji er at the beginning Logic trigger of an exposure has no e ect on the length of exposure. Exposure N+ 1 Trigger ji er Readout...
-
Page 68: Trigger Timing Diagram
Camera interfaces Notes on triggering Term Definition User trigger Trigger signal applied by the user (hardware trigger, software trigger) Logic trigger Trigger signal seen by the camera internal logic (not visible to the user) Propagation delay (t Propagation delay between the user trigger and the logic trigger Exposure High when the camera image sensor is integrating light Readout... - Page 69 Camera interfaces Triggering during the readout state For applications requiring the fastest triggering cycle time whereby the camera image sensor is exposing and reading out simultaneously, apply the User Trigger signal as soon as a valid Trigger Ready is detected. In this case, Trigger Latency and Trigger Jitter can be up to 1 row time since Exposure must always begin on an Interline boundary.
- Page 70 Camera interfaces Prosilica GC Technical Manual V2.4.1...
-
Page 71: Cleaning Optical Components
Cleaning optical components This chapter describes safety instructions and cautions for cleaning lenses, optical filters, protection glass, or sensors. Prosilica GC Technical Manual V2.4.1... -
Page 72: Warranty
Important instructions to be read first Read these instructions before you contact Allied Vision or your Allied Vision distribution partner for assistance. Contact Allied Vision or your Allied Vision distribution partner if you are not familiar with the procedures described in this chapter. Warranty... -
Page 73: Identifying Impurities
IR cut filter or protection glass, it is probably on the sensor. NOTICE Removing IR cut filter A pin spanner wrench (Allied Vision order code: E9020001) suitable for IR filter removal is available for purchase from Allied Vision for all Prosilica GC cameras. Prosilica GC Technical Manual V2.4.1... -
Page 74: Materials For Cleaning Optical Components
Cleaning optical components Materials for cleaning optical components Use only these cleaning materials for optical components • Optic approved lens cotton, cloth, or tissue that is chemically pure and free from silicones and other additives. • Optic approved low residue cleaning liquid. NOTICE Never use these cleaning materials for optical components •... - Page 75 If you notice that the camera lens or sensor is not clean after attempting to clean twice, or if you have any questions regarding cleaning your camera, contact your Allied Vision distribution partner or Allied Vision support. Prosilica GC Technical Manual V2.4.1...
-
Page 76: Cleaning With Compressed Air
Cleaning optical components Cleaning with compressed air Allied Vision does not recommend cleaning Prosilica GC cameras with compressed air. NOTICE Possible material damage • Compressed air at high pressure and/or shorter operating distances may push dust into the camera or lens and physically damage the camera, sensor, or optical components. -
Page 77: Firmware Update
Firmware update This chapter includes instructions on updating the firmware on your Allied Vision Prosilica GC camera. Prosilica GC Technical Manual V2.4.1... - Page 78 Firmware update Download the latest GigE firmware loader from the Allied Vision website: https://www.alliedvision.com/en/support/firmware Saved camera user sets If new firmware contains a new feature or control, saved camera UserSets or ConfigFiles will be invalidated and erased! Before loading new firmware, backup your current camera settings.
- Page 79 Firmware update Click Next. The Firmware Loader displays a list of firmware included in the package. Click Next. You can select your camera model on this page. Recovery Mode Select the Use recovery mode checkbox if the connected GigE camera is not found by the firmware loader, or if the GigE camera is listed as unavailable.
- Page 80 Firmware update Click Next. Click Upload to start the update. The existing firmware will be erased and the new firmware will be updated to the camera. NOTICE Possible material damage Do not unplug the GigE cable or camera power supply during the update procedure.
- Page 81 Firmware update The Firmware Loader will display a success status upon completion. Click Quit to exit the loader. Power cycle after upgrade or downgrade You must always power cycle the camera after a firmware upgrade or downgrade. Prosilica GC Technical Manual V2.4.1...
-
Page 82: Appendix
Appendix The appendix includes the following information for older Prosilica GC cameras up to serial number 02- 21XXA (hardware revision A): • Specification tables • Absolute QE plots • ROI height vs. frame rate plots • Camera feature comparison of hardware version A models •... -
Page 83: Specifications Common To All Models
Appendix Specifications common to all models Feature Specification Lens mount Default: C-Mount Optional: CS-Mount TTL (non-isolated) I/Os 1 input, 1 output Opto-isolated I/Os 1 input, 1 output RS232 Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing... -
Page 84: Prosilica Gc650, Gc650C (02-2110A, 02-2111A)
Appendix Prosilica GC650, GC650C (02-2110A, 02- 2111A) Specification Feature Prosilica GC650 Prosilica GC650C Resolution 659 (H) × 493 (V) 0.3 MP Sensor Sony ICX424AL with HAD CCD™ Sony ICX424AQ with Wfine HAD technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 85: Absolute Qe
Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX424 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 86: Roi Frame Rate
Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ - 19.94 μs Height 1224.13 μs ROI height [pixels] Figure 34: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 90.0 187.5 97.0 231.0 107.0 300.4... -
Page 87: Prosilica Gc655, Gc655C (02-2115A, 02-2116A)
Appendix Prosilica GC655, GC655C (02-2115A, 02- 2116A) Specification Feature Prosilica GC655 Prosilica GC655C Resolution 659 (H) × 493 (V) 0.3 MP Sensor Sony ICX414AL with HAD technology Sony ICX414AQ with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 88: Absolute Qe
Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX414 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 89: Roi Frame Rate
Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ - 19.94 μs Height 1224.14 μs ROI height [pixels] Figure 37: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 90.0 187.5 97.0 231.0 107.2 300.4... -
Page 90: Prosilica Gc750, Gc750C (02-2160A, 02-2161A)
Appendix Prosilica GC750, GC750C (02-2160A, 02- 2161A) Specification Feature Prosilica GC750 Prosilica GC750C Resolution 752 (H) × 480 (V) 0.4 MP Sensor ON Semi MT9V022 Sensor type CMOS Shutter type Global Sensor format Type 1/3 Sensor size 5.35 mm diagonal Pixel size 6 μm ×... -
Page 91: Absolute Qe
Appendix Absolute QE 1000 l ngth [nm] Figure 38: Prosilica GC750 (ON Semi MT9V022) absolute QE Green Blue l ngth [nm] Figure 39: Prosilica GC750C (ON Semi MT9V022) absolute QE Prosilica GC Technical Manual V2.4.1... -
Page 92: Roi Frame Rate
Appendix ROI frame rate ROI height [pixels] Figure 40: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 62.9 238.0 75.3 371.7 97.6 560.6 114.5 674.9 138.4 806.4 175.1 Width=752 pixels Table 29: Frame rate as a function of ROI height Prosilica GC Technical Manual V2.4.1... -
Page 93: Prosilica Gc780, Gc780C (02-2117A, 02-2118A)
Appendix Prosilica GC780, GC780C (02-2117A, 02- 2118A) Specification Feature Prosilica GC780 Prosilica GC780C Resolution 782 (H) × 582 (V) 0.5 MP Sensor Sony ICX415AL with HAD technology Sony ICX415AQ with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 94: Absolute Qe
Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX415 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 95: Roi Frame Rate
Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ - 24.70 μs Height 1139.14 μs ROI height [pixels] Figure 43: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 63.9 201.1 73.4 268.1 89.8 402.6... -
Page 96: Prosilica Gc1020, Gc1020C (02-2165A, 02-2165B, 02-2166A, 02-2166B)
Appendix Prosilica GC1020, GC1020C (02-2165A, 02- 2165B, 02-2166A, 02-2166B) Specification Feature Prosilica GC1020 Prosilica GC1020C Resolution 1024 (H) × 768 (V) 0.8 MP Sensor Sony ICX204AL with HAD technology Sony ICX204AK with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size... -
Page 97: Absolute Qe
Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX204 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 98: Roi Frame Rate
Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ - 33.56 μs Height 3971.23 μs ROI height [pixels] Figure 46: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 33.4 92.4 36.2 134.5 41.3 173.0... -
Page 99: Prosilica Gc1350, Gc1350C (02-2130A, 02-2131A)
Appendix Prosilica GC1350, GC1350C (02-2130A, 02- 2131A) Specification Feature Prosilica GC1350 Prosilica GC1350C Resolution 1360 (H) × 1024 (V) 1.4 MP Sensor Sony ICX205AL with HAD technology Sony ICX205AK with Wfine HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 100: Absolute Qe
Appendix Absolute QE 1000 l ngth [nm] Figure 47: Prosilica GC1350 (Sony ICX205) absolute QE Green Blue l ngth [nm] Figure 48: Prosilica GC1350C (Sony ICX205) absolute QE Prosilica GC Technical Manual V2.4.1... -
Page 101: Roi Frame Rate
Appendix ROI frame rate Frame rate --------------------------------------------------------------------------- - 38.35 μs Height 10457.12 μs 1050 ROI height [pixels] Figure 49: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 1024 20.0 45.3 1000 20.4... -
Page 102: Prosilica Gc1380, Gc1380C (02-2140A, 02-2141A)
Appendix Prosilica GC1380, GC1380C (02-2140A, 02- 2141A) Specification Feature Prosilica GC1380 Prosilica GC1380C Resolution 1360 (H) × 1024 (V) 1.4 MP Sensor Sony ICX285AL with EXview HAD Sony ICX285AQ with EXview HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 103: Absolute Qe
Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX285 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 104: Roi Frame Rate
Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ - 41.45 μs Height 7148.57 μs 1000 1100 ROI height [pixels] Figure 52: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 1024 20.1 50.7 1000... -
Page 105: Prosilica Gc1600, Gc1600C (02-2150A, 02-2151A)
Appendix Prosilica GC1600, GC1600C (02-2150A, 02- 2151A) Specification Feature Prosilica GC1600 Prosilica GC1600C Resolution 1620 (H) × 1220 (V) 2 MP Sensor Sony ICX274AL with Super HAD CCD™ Sony ICX274AQ with Wfine Super HAD technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor format... -
Page 106: Absolute Qe
Appendix Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX274 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. -
Page 107: Roi Frame Rate
Appendix ROI frame rate Frame rate ------------------------------------------------------------------------ - 48.80 μs Height 6431.90 μs 1000 1200 1400 ROI height [pixels] Figure 55: Frame rate as a function of ROI height Height (pixels) Frame rate (fps) Height (pixels) Frame rate (fps) 1220 15.0 38.3... - Page 108 Appendix Prosilica GC model comparison GC650 GC655 GC750 GC780 GC1020 Height [pixels] Figure 56: Maximum frame rate comparison for select models GC1350 GC1380 GC1600 1000 1200 1400 ROI height [pixels] Figure 57: Maximum frame rate comparison for select models Prosilica GC Technical Manual V2.4.1...
-
Page 109: Camera Feature Comparison
Appendix Camera feature comparison Allied Vision cameras support a number of standard and extended features. The following table identifies a selection of capabilities and compares the availability of features in Prosilica GC camera models. Camera feature reference A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation web page, go to https://www.alliedvi-... -
Page 110: Image Data Flow
The following diagrams illustrate the data flow and the bit resolution of image data. Camera feature reference A complete listing of camera features, including definitions can be found on the Allied Vision Technical Documentation web page, go to https://www.alliedvi- sion.com/en/support/technical-documentation.html. •... -
Page 111: Prosilica Gc Color Models
Appendix Prosilica GC color models Vertical Binning Sensor Vertical ROI Gain Offset Analog Analog Analog Analog Bayer Horizontal Horizontal ROI White balance Interpolation Binning 12 bit 12 bit 12 bit Analog GigE Interface Frame Memory Color information lost while vertical binning is active. Factory calibrated. -
Page 112: Prosilica Gc750C
Appendix Prosilica GC750C Vertical Binning Gain Offset Sensor Vertical ROI Analog Analog Analog Analog Bayer Horizontal Horizontal ROI White balance Interpolation Binning 10 bit 10 bit 10 bit 10 bit Color information lost while vertical binning is active. Factory calibrated. Not a user control. Frame Memory GigE Interface For on camera interpolated PixelFormats only (8 bit output). -
Page 113: Mechanical Dimensions
Appendix Mechanical dimensions The Prosilica GC family offers both CCD and CMOS sensor models. CCD cameras utilize additional circuitry required for A/D conversion. As a result, CMOS models offer a shorter mechanical package than CCD models. Prosilica GC CCD model housing (C-Mount) Models: Prosilica GC650, GC655, GC780, GC1020, GC1350, GC1380, GC1600 M3x4 (4x) M3x4 (2x) -
Page 114: Prosilica Gc Cmos Model Housing (C-Mount)
Appendix Prosilica GC CMOS model housing (C-Mount) Model: Prosilica GC750 M3x4 (4x) M3x4 (2x) M3x4 (2x) 13.9* 50.6* 33.9 30.8 *Nominal value. Add 0.3 mm for color cameras. 45.7 Figure 62: Prosilica GC CMOS model housing dimensions Prosilica GC Technical Manual V2.4.1... -
Page 115: Lens Protrusion For C-Mount Cameras
Appendix Lens protrusion for C-Mount cameras Lens protrusion is the distance from outer edge of C-Mount ring to contact point of first surface internal to C-Mount ring. For color models this surface is the IR-filter holder, and for monochrome models this surface is the internal camera front plate (see figure 63). -
Page 116: Index
Index Index Adjustment General safety notes .........19 C-Mount..........53 GenICam ..........2 Gigabit Ethernet interface ......2 GigE Vision ..........2 GND for ext. power ........60 Camera GND........60 Camera interfaces........57 Camera Power .........60 Category 6..........24 Idle (signal)..........69 Cleaning Image flow diagram Compressed air........76 Prosilica GC color cameras .... - Page 117 Index Power Time delay (trigger)........69 DC ............25 Tpd (definition) ........69 Propagation delay (trigger) ......69 Trigger jitter (definition)......69 Trigger latency (definition) ......69 Trigger latency time ........69 Trigger ready (signal) .........69 Trigger rules ..........69 Reading out data (trigger) ......69 Trigger timing diagram.......68 Readout (definition) ........69 Readout data (trigger) .......69 Region of interest ........47...
