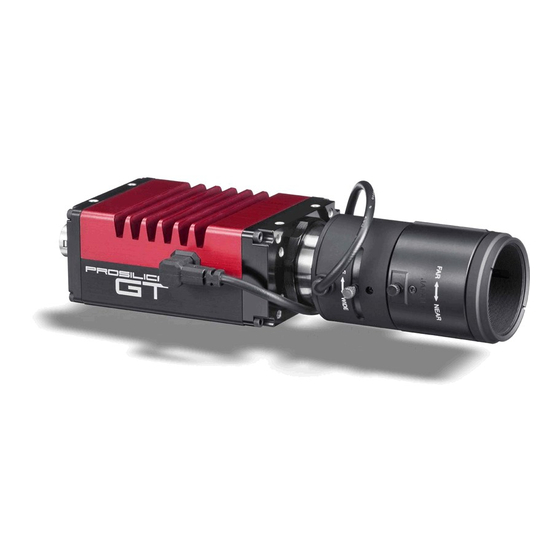

Allied Vision GT1380C Technical Manual

Gige vision cameras prosilica gt series
Hide thumbs Also See for GT1380C:
Table of Contents

Advertisement

Quick Links

Download this manual

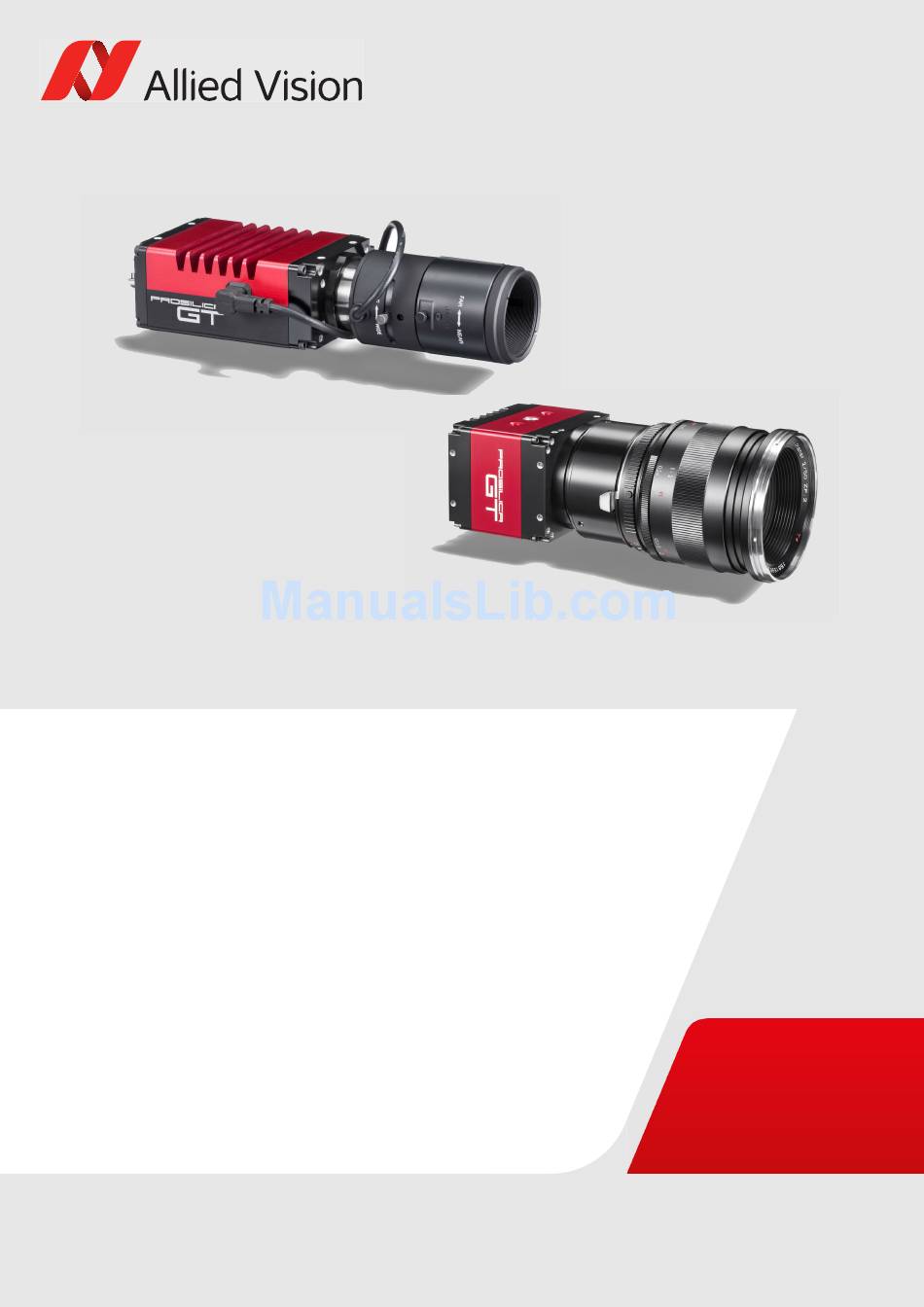

G
E V
C
IG
ISION
AMERAS
Prosilica GT
Technical Manual
V2.9.0
Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany
2017-Aug-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT1380C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allied Vision GT1380C

Summary of Contents for Allied Vision GT1380C

  • Page 1 ISION AMERAS Prosilica GT Technical Manual V2.9.0 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2017-Aug-04...

  • Page 2: Prosilica Gt At A Glance

    The GenICam standard consists of multiple modules that specify tasks to be solved. Allied Vision cameras and software make use of these modules, like the Standard Feature Naming Convention (SFNC) that standardizes feature names and types via an XML file or the transport layer interface (GenTL) that is used to grab images.

  • Page 3: Contact Us

    Contact us Contact us Connect with Allied Vision by function https://www.alliedvision.com/en/meta-header/contact.html Find an Allied Vision office or Allied Vision distribution partner https://www.alliedvision.com/en/about-us/where-we-are.html Email info@alliedvision.com support@alliedvision.com Sales offices Europe, Middle East, and Africa: +49 36428-677-230 UK, Ireland, Nordic countries: +44 207 1934408...

  • Page 4: Table Of Contents

    Contents Contents Prosilica GT at a glance Applied standards ............... . . 2 What else do you need? .
  • Page 5 Prosilica GT1380, GT1380C ........
  • Page 6 Contents Absolute QE................86 Spectral response .
  • Page 7 Contents M58-Mount ..............132 Sensor position accuracy .

  • Page 8: Document History And Conventions

    Document history and conventions This chapter includes: • Document history • Layout styles and symbols used in this manual Prosilica GT Technical Manual V2.9.0...

  • Page 9: Document History

    Added Vimba SDK link Added frame rate vs. height plots for Prosilica GT3400, GT4905, and GT4907 Updated frame rate vs. height plots in Specifications chapter Updated Allied Vision recommended cabling to Category 6 or higher in Gigabit Ethernet interface section V2.0.8...
  • Page 10 Document history and conventions Version Date Remarks V2.0.9 2013-Sep-16 Updated the Mechanical dimensions chapter Updated lens control section Updated color cameras with IR cut filter section Updated the specifications for Prosilica GT2000C and GT2050C Added a note on the locking screw cables Added optical flange focal distance and maximum lens protrusion information for C-Mount and F-Mount Added 1 inch lens format recommendation for Prosilica GT2000 cameras...
  • Page 11 Remarks V2.2.0 2015-Mar-11 Updated Allied Vision logo Changed AVT and Allied Vision Technologies references to Allied Vision Updated additional references section Added new model: Prosilica GT1930L - Prosilica GT1930L and GT1930LC specifications - Dimensions of Prosilica GT1930L with EF-Mount (Planarity adjustable)
  • Page 12 ‘Camera smart features’ and ‘Camera features’ sections Added Cleaning optical components chapter to replace Camera cleaning and updated information Added Contact us section to replace Contacting Allied Vision section Updated Prosilica GT large format lens mount drawings V2.6.0 2016-Mar-04...
  • Page 13 Document history and conventions Version Date Remarks V2.8.0 2016-July-07 Added spectral response curve for Prosilica GT1930, GT1930L, and GT3400 Updated the absolute QE curve for GT1930 and GT1930L Added spectral response curve for Prosilica GT cameras with Sony CCD sensors Updated absolute QE curve for Prosilica GT cameras with Sony CCD sensors Added REACH certification statement Updated the image flow diagrams...

  • Page 14: Manual Conventions

    Updated all ON Semi absolute QE plots to reflect the Gen 2 CFA material change Added cable color to camera I/O connector pin assignment including pin assignment figure and cross reference to the Allied Vision I/O cable data sheet Updated camera I/O connector pin assignment, input triggers, and output signals section...

  • Page 15: Symbols

    Document history and conventions Symbols Safety note Note to prevent physical injury. Possible material damage This symbol addresses important information to avoid material damage; however, is not related to physical injury. Damage to the camera by electrostatic discharge (ESD) This symbol addresses important information to avoid material damage by ESD. Safety related instructions to avoid malfunctions This symbol indicates important or specific instructions or procedures that are related to product safety.

  • Page 16: Safety And Regulations

    Safety and regulations § This chapter includes: • General safety notes for Prosilica GT cameras • Information about the legal requirements and restrictions for Prosilica GT cameras based on current and relevant regulations • Particular emphasis has been given to regulations of the European Economic Area (CE, RoHS, REACH, WEEE) as well as regulations of the United States of America (FCC), and Canada (ICES)

  • Page 17: General Safety Notes

    This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor unless absolutely necessary. See instructions on optics cleaning in this document. Allied Vision can clean your camera as a service for you, if necessary. For more information, contact Allied Vision support.

  • Page 18: Regulations

    (Prosilica GT board level cameras do not have CE) • RoHS (2011/65/EU) REACH Allied Vision Technologies products are in compliance with the Regulation (EC) No 1907/2006 REACH. WEEE This product must be disposed of in compliance with the directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

  • Page 19: Industry Canada Equipment Standard For Digital Equipment (Ices)

    Other legal notices Trademarks Unless stated otherwise, all trademarks shown in this document of Allied Vision Technologies are brands protected by law. All other product or company names may be trademarks of their respective owners. Warranty The information provided by Allied Vision Technologies is supplied without any guarantees or warranty whatsoever, be it specific or implicit.

  • Page 20: Installation And Hardware

    Installation and hardware This chapter describes the components required for your vision system including configuring the host computer, Ethernet adapter settings, and connecting your Prosilica GT camera. Prosilica GT Technical Manual V2.9.0...

  • Page 21: Configuring The Host Computer

    Installation and hardware Configuring the host computer Allied Vision GigE Vision cameras can operate on 10/100 or Gigabit speed Ethernet adapters. In order to reach the maximum camera frame rate, a Gigabit speed Ethernet adapter with jumbo packet support is required.

  • Page 22: Ethernet Adapter Driver Settings

    Transmit Buffers 256 bytes Default packet size The default packet size of Allied Vision GigE cameras is 8228 bytes. The host network adapter needs to support a packet size of equal or larger size to stream from the camera. Ethernet adapter For desktop systems, use a PCI Express bus Ethernet adapter.

  • Page 23: Enabling Jumbo Packets

    Crossover cabling is not required but does work. The camera has circuitry to determine if a crossover cable is being used. Allied Vision recommends Category 6 (Cat 6) or higher rated Ethernet cables. A different rating may not sustain peak interface bandwidth; leading to lost connectivity or image data coming from the camera.

  • Page 24: Downloading Camera Drivers

    Installation and hardware Downloading camera drivers Allied Vision GigE cameras work with any or all of the following software options. Vimba Viewer or Vimba SDK: https://www.alliedvision.com/en/products/software Third-party software solutions: https://www.alliedvision.com/en/products/software/third-party-libraries.html Powering up the camera A camera power adapter for each GigE camera is available from Allied Vision. See Specifications on page 26 for connector definition and voltage specifications.
  • Page 25 Installation and hardware Vimba Viewer documentation Vimba Viewer documentation is included with the software download. Once Vimba Viewer is installed on your host PC, documentation is located under \Program Files\Allied Vision\Vimba. Prosilica GT Technical Manual V2.9.0...

  • Page 26: Specifications

    Specifications This chapter provides: • Technical specifications • Absolute quantum efficiency plots • Spectral response plots (select models) • ROI height vs. frame rate plots • Comparison of feature availability in various Prosilica GT camera models Prosilica GT Technical Manual V2.9.0...

  • Page 27: Notes On Specifications

    Lens support for heavy lens load Many of the lens mount styles available such as M42, F, EF-Mount are not designed for high vibration environments with a heavy lens load. Allied Vision recommends supporting the lens externally in these environments.

  • Page 28: Frame Memory

    Specifications Frame memory Normally, an image is captured and transported in consecutive steps. The image is taken, read out from the sensor, digitized and sent over the GigE network. Prosilica GT cameras are equipped with an image buffer. The memory operates according to the first in, first out (FIFO) principle.

  • Page 29: Sensor Tap Mode (Ccd Models Only)

    Specifications Sensor tap mode (CCD models only) With four-tap sensor mode you can achieve a higher frame rate than with one-tap mode. With one-tap sensor mode, you can achieve an image certain to be free of any tap-boundary artifacts. You can also use one-tap mode if you experience tap imbalance issues with your camera.

  • Page 30: Spectral Response Plots

    Specifications Color Sony CCD/CMOS sensors The curves in the absolute QE plots shown in this chapter were calculated from three measured quantum efficiency values for color sensors. The shape of the curves are from the sensor data sheet but the values have been adjusted based on these measured values.

  • Page 31: Prosilica Gt1290, Gt1290C

    Specifications Prosilica GT1290, GT1290C Specification Feature Prosilica GT1290 Prosilica GT1290C Resolution 1280 (H) × 960 (V) 1.2 MP Sensor Sony ICX445ALA with EXview Sony ICX445AQA with EXview HAD CCD™ technology HAD CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 1/3...
  • Page 32 Specifications Specification Feature Prosilica GT1290 Prosilica GT1290C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 2.9 W @ 12 VDC; 3.5 W PoE Trigger latency 2 µs Trigger jitter ±20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 33: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX445 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 34: Roi Frame Rate

    Specifications ROI frame rate 1000 ROI height [pixels] Figure 3: Frame rate as a function of ROI height [width=1280 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 33.3 58.8 232.4 35.3 70.5 289.5 39.2 315.2...

  • Page 35: Prosilica Gt1380, Gt1380C

    Sensor taps Single-tap TTL (non-isolated) I/Os 1 input, 2 outputs Opto-isolated I/Os 1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Table 7: Prosilica GT1380, GT1380C model specifications Prosilica GT Technical Manual V2.9.0...
  • Page 36 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C Table 7: Prosilica GT1380, GT1380C model specifications (continued) Prosilica GT Technical Manual V2.9.0...

  • Page 37: Absolute Qe

    The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 4: Prosilica GT1380, GT1380C (Sony ICX285) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000...

  • Page 38: Roi Frame Rate

    Specifications ROI frame rate 1050 ROI height [pixels] Figure 6: Frame rate as a function of ROI height [width=1360 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1024 30.5 47.2 132.7 1000 31.1 54.1 162.1...

  • Page 39: Prosilica Gt1600, Gt1600C

    Specifications Prosilica GT1600, GT1600C Specification Feature Prosilica GT1600 Prosilica GT1600C Resolution 1620 (H) × 1220 (V) 2 MP Sensor Sony ICX274AL with Super HAD Sony ICX274AQ with Super HAD CCD™ technology Wfine CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 40 Specifications Specification Feature Prosilica GT1600 Prosilica GT1600C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 3.3 W @ 12 VDC; 4.0 W PoE Trigger latency 1.4 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 41: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX274 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 42: Roi Frame Rate

    Specifications ROI frame rate 1120 1260 ROI height [pixels] Figure 9: Frame rate as a function of ROI height [width=1620 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1220 25.8 48.5 220.2 1100 28.4 56.5...

  • Page 43: Prosilica Gt1660, Gt1660C

    Specifications Prosilica GT1660, GT1660C Specification Feature Prosilica GT1660 Prosilica GT1660C Resolution 1600 (H) × 1200 (V) 1.9 MP Sensor ON Semi KAI-02050 TRUESENSE Gen 2 Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 2/3 diagonal 11.0 mm Pixel size 5.5 μm ×...

  • Page 44: Absolute Qe

    Specifications Specification Feature Prosilica GT1660 Prosilica GT1660C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.1 W @ 12 VDC; 6.3 W PoE Trigger latency 2.1 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 45: Roi Frame Rate

    Specifications ROI frame rate 1000 1100 1200 ROI height [pixels] Figure 11: Frame rate as function of ROI height [width=1600 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1200 62.1 105.6 207.8 1000 74.3 117.2...

  • Page 46: Prosilica Gt1910, Gt1910C

    Specifications Prosilica GT1910, GT1910C Specification Feature Prosilica GT1910 Prosilica GT1910C Resolution 1920 (H) × 1080 (V) 2.1 MP Sensor ON Semi KAI-02150 TRUESENSE Gen 2 Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size diagonal Type 2/3; 12.1 mm Pixel size 5.5 μm ×...
  • Page 47 Specifications Specification Feature Prosilica GT1910 Prosilica GT1910C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.1 W @ 12 VDC; 6.3 W PoE Trigger latency 2.2 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 48: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semiconductor KAI 02150 absolute QE ON Semiconductor Gen 2 CFA material for color sensors Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 49: Roi Frame Rate

    Specifications ROI frame rate 1000 1100 ROI height [pixels] Figure 13: Frame rate as a function of ROI height [width=1920 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1080 57.5 95.3 199.9 1000 62.1 106.5...

  • Page 50: Prosilica Gt1920, Gt1920C

    Specifications Prosilica GT1920, GT1920C Specification Feature Prosilica GT1920 Prosilica GT1920 Resolution 1936 (H) × 1456 (V) 2.8 MP Sensor Sony ICX674ALG with EXview Sony ICX674AQG with EXview HAD II™ microlens technology HAD II™ microlens technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 51 Specifications Specification Feature Prosilica GT1920 Prosilica GT1920 RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 4.9 W @ 12 VDC; 6.0 W PoE Trigger latency 2 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 52: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX674 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 53: Roi Frame Rate

    Specifications ROI frame rate 1000 1125 1250 1375 1500 ROI height [pixels] Figure 16: Frame rate as function of ROI height [width=1936 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1456 40.7 69.3 132.2 1400...

  • Page 54: Prosilica Gt1930, Gt1930C

    Specifications Prosilica GT1930, GT1930C Specification Feature Prosilica GT1930 Prosilica GT1930C Resolution 1936 (H) × 1216 (V) 2.4 MP Sensor Sony IMX174LLJ Exmor with Pregius® Sony IMX174LQJ Exmor with Pregius® global shutter global shutter Sensor type CMOS Shutter type Global Sensor size Type 1/1.2 13.4 mm diagonal Pixel size...
  • Page 55 These values are calculated directly from the microcontroller source. These values are only valid for pixel formats ≤16 bit per pixel. GigE host controller card with jumbo packets is required. See Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 56: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony IMX174 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 57: Roi Frame Rate

    Specifications ROI frame rate 1500 1250 1000 1050 1225 ROI height [pixels] Figure 19: Frame rate as a function of ROI height [width=1936 pixels] There will be an increase in frame rate with reduced width if the camera is bandwidth limited. Height in pixels Frame rate Height in pixels...

  • Page 58: Prosilica Gt1930L, Gt1930Lc

    Specifications Prosilica GT1930L, GT1930LC Specification Feature Prosilica GT1930L Prosilica GT1930LC Resolution 1936 (H) × 1216 (V) 2.4 MP Sensor Sony IMX174LLJ Exmor with Pregius® Sony IMX174LQJ Exmor with Pregius® global shutter global shutter Sensor type CMOS Shutter type Global Sensor size Type 1/1.2 13.4 mm diagonal...
  • Page 59 To enable EF lens control on Prosilica GT cameras you must update firmware to version 01.54.14263 or later. GigE host controller card with jumbo packets is required. See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 60: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony IMX174 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 61: Roi Frame Rate

    Specifications ROI frame rate 1500 1250 1000 1050 1225 ROI height [pixels] Figure 22: Frame rate as a function of ROI height [width=1936 pixels] There will be an increase in frame rate with reduced width if the camera is bandwidth limited. Height in pixels Frame rate Height in pixels...

  • Page 62: Prosilica Gt2000, Gt2000Nir, Gt2000C

    Specifications Prosilica GT2000, GT2000NIR, GT2000C Specification Feature Prosilica GT2000, GT2000NIR Prosilica GT2000C Resolution 2048 (H) × 1088 (V) 2.2 MP Sensor CMOSIS/ams CMV2000 Sensor type CMOS Shutter type Global Sensor size Type 2/3 diagonal 12.7 mm Pixel size 5.5 μm × 5.5 μm Standard: C-Mount Lens mount Modular Concept...
  • Page 63 Resolution: 0.031; Accuracy: ±1 °C 1 inch format lens recommended GigE host controller card with jumbo packets is required. See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards. Camera firmware version 01.52.8151 shows minimum exposure values without frame overhead time, i.e., 1 µs. See sensor data sheet for details on frame overhead time.

  • Page 64: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE CMOSIS/ams CMV2000 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 65: Roi Frame Rate

    Specifications ROI frame rate 5000 4500 4000 3500 3000 2500 2000 1500 1000 1000 1100 ROI height [pixels] Figure 25: Frame rate as a function of ROI height [width=2048 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1088...

  • Page 66: Prosilica Gt2050, Gt2050Nir, Gt2050C

    Specifications Prosilica GT2050, GT2050NIR, GT2050C Specification Feature Prosilica GT2050, GT2050NIR Prosilica GT2050C Resolution 2048 (H) × 2048 (V) 4.2 MP Sensor CMOSIS/ams CMV4000 Sensor type CMOS Shutter type Global Sensor size Type 1 16.0 mm diagonal Pixel size 5.5 μm × 5.5 μm Lens mount Standard: C-Mount Modular Concept...
  • Page 67 Available for main board only. Resolution: 0.031; Accuracy: ±1 °C GigE host controller card with jumbo packets is required. See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards. Camera firmware version ≤ 01.52.8151 shows minimum exposure values without frame overhead time, i.e., 1 µs. See sensor data sheet for details on frame overhead time.

  • Page 68: Absolute Qe

    Specifications Absolute QE Green Blue Monochrome QE CMOSIS/ams CMV4000 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 69: Roi Frame Rate

    Specifications ROI frame rate 5000 4500 4000 3500 3000 2500 2000 1500 1000 1200 1500 1800 2100 ROI height [pixels] Figure 28: Frame rate as a function of ROI height [width=2048 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate...

  • Page 70: Prosilica Gt2300, Gt2300C

    Specifications Prosilica GT2300, GT2300C Specification Feature Prosilica GT2300 Prosilica GT2300C Resolution 2336 (H) × 1752 (V) 4.1 MP Sensor ON Semi KAI-04050 TRUESENSE Gen 2 Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 1 16.06 mm diagonal Pixel size 5.5 μm ×...

  • Page 71: Absolute Qe

    Specifications Specification Feature Prosilica GT2300 Prosilica GT2300C Power consumption 4.9 W @ 12 VDC; 6.0 W PoE Trigger latency 2.2 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O; 70 ns for isolated I/O Operating temperature -20 °C to +60 °C ambient temperature (without condensation) Storage temperature -20 °C to +70 °C ambient temperature (without condensation)

  • Page 72: Roi Frame Rate

    Specifications ROI frame rate 1050 1200 1350 1500 1650 1800 ROI height [pixels] Figure 30: Frame rate as a function of ROI height [width=2336 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 1752 29.3 54.8...

  • Page 73: Prosilica Gt2450, Gt2450C

    Specifications Prosilica GT2450, GT2450C Specification Feature Prosilica GT2450 Prosilica GT2450C Resolution 2448 (H) × 2050 (V) 5 MP Sensor Sony ICX625ALA with Super HAD Sony ICX625AQA with Super HAD CCD™ technology CCD™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 2/3...
  • Page 74 Specifications Specification Feature Prosilica GT2450 Prosilica GT2450C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 3.8 W @ 12 VDC; 4.7 W PoE Trigger latency 1.1 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 75: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX625 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 76: Roi Frame Rate

    Specifications ROI frame rate 1200 1500 1800 2100 ROI height [pixels] Figure 33: Frame rate as a function of ROI height [width=2448 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 2050 1000 25.9 74.7 2000...

  • Page 77: Prosilica Gt2750, Gt2750C

    Specifications Prosilica GT2750, GT2750C Specification Feature Prosilica GT2750 Prosilica GT2750C Resolution 2750 (H) × 2200 (V) 6.1 MP Sensor Sony ICX694ALG with EXview HAD Sony ICX694AQG with EXview HAD CCD II™ technology CCD II™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size...
  • Page 78 Specifications Specification Feature Prosilica GT2750 Prosilica GT2750C RS232 1 TxD, 1 RxD Voltage Requirements 7 to 25 VDC; PoE Power consumption 5.4 W @ 12 VDC; 6.6 W PoE Trigger latency 2.2 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 79: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX694 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 80: Roi Frame Rate

    Specifications ROI frame rate 1000 1200 1400 1600 1800 2000 2200 ROI height [pixels] Figure 36: Frame rate as a function of ROI height [width=2750 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 2200 19.8 1000...

  • Page 81: Prosilica Gt3300, Gt3300C

    Specifications Prosilica GT3300, GT3300C Specification Feature Prosilica GT3300 Prosilica GT3300C Resolution 3296 (H) × 2472 (V) 8.1 MP Sensor ON Semi KAI-08050 TRUESENSE Gen 2 Sensor Type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 4/3 22.66 mm diagonal Pixel size 5.5 μm ×...

  • Page 82: Absolute Qe

    Specifications Specification Feature Prosilica GT3300 Prosilica GT3300C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.6 W @ 12 VDC; 6.9 W PoE Trigger latency 2.2 µs Trigger jitter ± 20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 83: Roi Frame Rate

    Specifications ROI frame rate 1000 1250 1500 1750 2000 2250 2500 ROI height [pixels] Figure 38: Frame rate as a function of ROI height [width=3296 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 2472 14.8 1200...

  • Page 84: Prosilica Gt3400, Gt3400C

    Specifications Prosilica GT3400, GT3400C Specification Feature Prosilica GT3400 Prosilica GT3400C Resolution 3384 (H) × 2704 (V) 9.2 MP Sensor Sony ICX814ALG with EXview HAD Sony ICX814AQG with EXview HAD II™ technology II™ technology Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 1...
  • Page 85 Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C GigE host controller card with jumbo packets is required. See Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 86: Absolute Qe

    Specifications Absolute QE Red QE Green QE Blue QE Monochrome QE Sony ICX814 absolute QE All measurements were done without protection glass or IR cut filter. With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 87: Roi Frame Rate

    Specifications ROI frame rate 1000 1250 1500 1750 2000 2250 2500 2750 ROI height [pixels] Figure 41: Frame rate as a function of ROI height [width=3384 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 2704 13.2...

  • Page 88: Prosilica Gt4090, Gt4090Nir

    Specifications Prosilica GT4090, GT4090NIR Specification Feature Prosilica GT4090 Prosilica GT4090NIR Resolution 4096 (H) × 3072 (V) 12.5 MP Sensor ON Semi PYTHON 12K ON Semi PYTHON 12K (NOIP1SN012KA) (NOIP1FN012KA) Sensor type CMOS Shutter type Global Sensor size Type 4/3 23.04 mm diagonal Pixel size 4.5 μm ×...

  • Page 89: Absolute Qe

    Specifications Specification Feature Prosilica GT4090 Prosilica GT4090NIR Operating humidity 20 to 80% non-condensing Body dimensions (L × W × H) 96 × 66 × 53.3 mm Mass 372 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet), IEEE 802.3af (PoE) Interface standard GigE Vision®...

  • Page 90: Roi Frame Rate

    Specifications ROI frame rate 3100 2790 2480 2170 1860 1550 1240 1240 1550 1860 2170 2480 2790 3100 ROI height [pixels] Figure 43: Frame rate as a function of ROI height [width=4096 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate...

  • Page 91: Prosilica Gt4096, Gt4096Nir

    Specifications Prosilica GT4096, GT4096NIR Specification Feature Prosilica GT4096 Prosilica GT4096NIR Resolution 4096 (H) × 4096 (V) 16.7 MP Sensor ON Semi PYTHON 16K ON Semi PYTHON 16K (NOIP1SN016KA) (NOIP1FN016KA) Sensor type CMOS Shutter type Global Sensor size Type APS-H 26.067 mm diagonal Pixel size 4.5 μm ×...

  • Page 92: Absolute Qe

    Specifications Specification Feature Prosilica GT4096 Prosilica GT4096NIR Operating humidity 20 to 80% non-condensing Body dimensions (L × W × H) 96 × 66 × 53.3 mm Mass 372 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet), IEEE 802.3af (PoE) Interface standard GigE Vision®...

  • Page 93: Roi Frame Rate

    Specifications ROI frame rate 3100 2790 2480 2170 1860 1550 1240 1230 1640 2050 2460 2870 3280 3690 4100 ROI height [pixels] Figure 45: Frame rate as a function of ROI height [width=4096 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate...

  • Page 94: Prosilica Gt4905, Gt4905C

    Specifications Prosilica GT4905, GT4905C Specification Feature Prosilica GT4905 Prosilica GT4905C Resolution 4896 (H) × 3264 (V) 16 MP Sensor ON Semi KAI-16050 TRUESENSE Gen 2 Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type APS-H 32.36 mm diagonal Pixel size 5.5 μm ×...
  • Page 95 EF lens mount (order option -18). GigE host controller card with jumbo packets is required. See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 96: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semiconductor KAI 16050 absolute QE ON Semiconductor Gen 2 CFA material for color sensors Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 97: Roi Frame Rate

    Specifications ROI frame rate 1200 1500 1800 2100 2400 2700 3000 3300 ROI height [pixels] Figure 47: Frame rate as a function of ROI height [width=4896 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 3264 1800...

  • Page 98: Prosilica Gt4907, Gt4907C

    Specifications Prosilica GT4907, GT4907C Specification Feature Prosilica GT4907 Prosilica GT4907C Resolution 4864 (H) × 3232 (V) 15.7 MP Sensor ON Semi KAI-16070 TRUESENSE Gen 2 Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 35 mm 43.2 mm diagonal Pixel size 7.4 μm ×...
  • Page 99 Specifications Specification Feature Prosilica GT4907 Prosilica GT4907C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 7.7 W @ 12 VDC; 9.5 W PoE Trigger latency 2.5 µs Trigger jitter ±20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 100: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semiconductor KAI 16070 absolute QE ON Semiconductor Gen 2 CFA material for color sensors Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 101: Roi Frame Rate

    Specifications ROI frame rate 1300 1625 1950 2275 2600 2925 3250 ROI height [pixels] Figure 49: Frame rate as a function of ROI height [width=4864 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 3232 1800 10.7...

  • Page 102: Prosilica Gt5120, Gt5120Nir

    Specifications Prosilica GT5120, GT5120NIR Specification Feature Prosilica GT5120 Prosilica GT5120NIR Resolution 5120 (H) × 5120 (V) 26.2 MP Sensor ON Semi PYTHON 25K ON Semi PYTHON 25K (NOIP1SN025KA) (NOIP1FN025KA) Sensor type CMOS Shutter type Global Sensor size Type APS-H 32.6 mm diagonal Pixel size 4.5 μm ×...

  • Page 103: Absolute Qe

    Specifications Specification Feature Prosilica GT5120 Prosilica GT5120NIR Operating humidity 20 to 80% non-condensing Body dimensions (L × W × H) 96 × 66 × 53.3 mm Mass (typical) 372 g Interface IEEE 802.3 1000BASE-T (Gigabit Ethernet), IEEE 802.3af (PoE) Interface standard GigE Vision®...

  • Page 104: Roi Frame Rate

    Specifications ROI frame rate 3000 2700 2400 2100 1800 1500 1200 1040 1560 2080 2600 3120 3640 4160 4680 5200 ROI height [pixels] Figure 51: Frame rate as a function of ROI height [width=5120 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels...

  • Page 105: Prosilica Gt6600, Gt6600C

    Specifications Prosilica GT6600, GT6600C Specification Feature Prosilica GT6600 Prosilica GT6600C Resolution 6576 (H) × 4384 (V) 28.8 MP Sensor ON Semi KAI-29050 TRUESENSE Sensor type Interline CCD, Progressive Scan Shutter type Global Sensor size Type 35 mm 43.47 mm diagonal Pixel size 5.5 μm ×...
  • Page 106 Specifications Specification Feature Prosilica GT6600 Prosilica GT6600C RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 6.6 W @ 12 VDC; 8.1 W PoE Trigger latency 2.5 µs Trigger jitter ±20 ns Propagation delay (t 30 ns for non-isolated I/O;...

  • Page 107: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semiconductor KAI 29050 absolute QE ON Semiconductor Gen 2 CFA material for color sensors Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations.

  • Page 108: Roi Frame Rate

    Specifications ROI frame rate 1200 1600 2000 2400 2800 3200 3600 4000 4400 ROI height [pixels] Figure 53: Frame rate as a function of ROI height [width=6576 pixels] Height in pixels Frame rate Height in pixels Frame rate Height in pixels Frame rate 4384 1500...

  • Page 109: Prosilica Gt Model Comparison

    Type 1/3 1280 × 960 33.3 fps Single-tap GT1290C GT1380, Sony ICX285 Type 2/3 1360 × 1024 30.5 fps Single-tap GT1380C GT1600, Sony ICX274 Type 1/1.8 1620 × 1220 25.8 fps Single-tap GT1600C GT1660, ON Semi Type 2/3 1600 × 1200...
  • Page 110 Specifications Sensor Sensor Frame Model Sensor type format Resolution rate Sensor taps GT4096 ON Semi CMOS Type APS-H 4096 × 4096 7.18 fps PYTHON 16K GT4096NIR ON Semi CMOS Type APS-H 4096 × 4096 7.18 fps PYTHON 16K NIR GT4905, ON Semi Type APS-H 4896 ×...

  • Page 111: Camera Feature Comparison

    Specifications Camera feature comparison Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities and compares the availability of features in Prosilica GT camera models. Camera feature reference A complete listing of camera features including definitions can be found online.
  • Page 112 Specifications ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ P-Iris and DC-Iris lens control ✔ ✔ ✔ ✔ ✔ ✔ ✔ EF lens control ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Event channel ✔...

  • Page 113: Mechanical Dimensions

    Mechanical dimensions This chapter includes: • Mechanical drawings and dimensions of standard, extended, and large format housings, and tripod adapter • Sensor position accuracy • Maximum protrusion and filter diameter for C-Mount Prosilica GT Technical Manual V2.9.0...

  • Page 114: Prosilica Gt Standard Format Housing

    Mechanical dimensions The Prosilica GT family supports a range of sensor formats. To support this sensor variety, three housing formats are used: • Prosilica GT standard format • Prosilica GT extended format • Prosilica GT large format Prosilica GT cameras are available with different lens mount options. For more information, see the Modular Concept document at: https://www.alliedvision.com/en/support/technical-documentation.html Mechanical drawings...
  • Page 115 Mechanical dimensions Model: Prosilica GT1930 Mount: C-Mount (default) Adjustable C-Mount 16x M3×0.5 3.0 65.2 29.9 30.5 11.4 26.7 20.6 19.1 70.5 53.3 65.2 Figure 56: Prosilica GT1930 C-Mount standard format housing dimensions M42-Mount Prosilica GT standard cameras are available with M42-Mount, see Technical Drawing: Prosilica GT Standard Cameras for M42-Mount for dimensions.

  • Page 116: Prosilica Gt Extended Format Housing

    Mechanical dimensions Prosilica GT extended format housing Models: Prosilica GT1660, GT1910, GT1920, GT2300, GT2750, GT3400 Mount: C-Mount (default) *Nominal, precise dimension is sensor dependent M3×4 (4x) 70.9 29.9 31.6 Adjustable C-Mount 11.4 M2×3 (2x) 16 26 33 26.7 20.6 19.1 76.2 M3×4 (8x) 53.3...

  • Page 117: Prosilica Gt Extended Format Housing

    Mechanical dimensions Prosilica GT extended format housing Model: Prosilica GT3300 Mount: F-Mount (default) M3×4 (4x) 70.9 Adjustable Nikon F-Mount 29.9 59.7 11.4 M2×3 (2x) 20.6 19.1 76.2 28.5* *Nominal Precise dimension is sensor dependent 53.3 M3×4 (4x) 70.9 Figure 58: Prosilica GT3300 F-Mount extended format housing dimensions M42-Mount Prosilica GT standard cameras are available with M42-Mount, see Technical...

  • Page 118: Prosilica Gt Large Format Housing

    EF-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with EF-Mount PA option (order code Prosilica GT...-18). Prosilica GT Technical Manual V2.9.0...

  • Page 119: F-Mount (Default)

    Mechanical dimensions F-Mount (default) Models: Prosilica GT1930L, GT4090, GT4096, GT4905, GT4907, GT5120, GT6600 1/4-20 Tripod M3×4 (4x) 2 Sides Mount 2 Sides 27.9 28 26 48.3 12.7 M3×4 (4x) 2 Sides 11.4 48.3 53.3 53.3 26.8 53.3 Legacy-style M2×3 (2x) 59.7 13.5 F-Mount...

  • Page 120: F-Mount Pa (Planarity Adjustable)

    F-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with F-Mount PA option (order code Prosilica GT...-03). Prosilica GT Technical Manual V2.9.0...

  • Page 121: M42-Mount Pa (Planarity Adjustable)

    M42-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M42-Mount PA option (order code Prosilica GT...-25). Prosilica GT Technical Manual V2.9.0...

  • Page 122: M42-Mount

    M42-Mount 59.7 66 28 27.9 Figure 63: M42-Mount large format housing dimensions M42-Mount order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M42-Mount option (order code Prosilica GT...-31). Prosilica GT Technical Manual V2.9.0...

  • Page 123: M58-Mount Pa (Planarity Adjustable)

    M58-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M58-Mount PA option (order code Prosilica GT...-13). Prosilica GT Technical Manual V2.9.0...

  • Page 124: M58-Mount

    27.9 6 (2x) 2 sides Figure 65: M58-Mount large format housing dimensions M58-Mount order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M58-Mount option (order code Prosilica GT...-12). Prosilica GT Technical Manual V2.9.0...

  • Page 125: Tripod Adapter

    Prosilica GT standard and extended cameras can be mounted on a camera tripod by using the Prosilica GT tripod adapter. Prosilica GT tripod adapter Contact the Allied Vision Sales team to purchase the Prosilica GT series tripod adapter (order code 02-5036A). 60.0 0.50 x 45.00...

  • Page 126: Flange Focal Distance

    Mechanical dimensions Prosilica GT large format cameras can be mounted on a camera tripod by using the tripod mount hole integrated into the camera body. Tripod Mount Hole Figure 67: Integrated tripod mount holes for Prosilica GT large format cameras Flange focal distance C-Mount Flange focal distance is the optical distance from the mounting flange to image...

  • Page 127: Adjustment Of C-Mount

    When the locking ring is loose, unthread the ring a few turns from the camera face. Locking wrench Contact the Allied Vision Sales team to purchase the hexagonal lens adjustment wrench for Prosilica GT cameras with C/CS locking ring (order code E9020001). Adjusting the lens to infinity Precondition: Use a C-Mount compatible lens that allows an infinity focus.

  • Page 128: Lens Protrusion

    Lens protrusion [mm] Prosilica GT1290 13.64 Prosilica GT2000 13.64 Prosilica GT1290C 9.32 Prosilica GT2000C 10.31 Prosilica GT1380 13.64 Prosilica GT2050 13.64 Prosilica GT1380C 9.64 Prosilica GT2050C 10.31 Prosilica GT1600 13.64 Prosilica GT2300 13.64 Prosilica GT1600C 9.32 Prosilica GT2300C 9.43 Prosilica GT1660 13.64...

  • Page 129: F-Mount

    Mechanical dimensions Model Lens protrusion [mm] Model Lens protrusion [mm] Prosilica GT1920 13.64 Prosilica GT3400 13.64 Prosilica GT1920C 9.27 Prosilica GT3400C 9.27 Prosilica GT1930 14.52 Prosilica GT1930C 9.44 Table 65: Lens protrusion for Prosilica GT models with C-Mount (continued) F-Mount Flange focal distance is the optical distance from the mounting flange to image sensor die.

  • Page 130: Other Mounts

    Mechanical dimensions Other mounts Flange focal distance is the optical distance from the lens mounting flange to image sensor die. Mount Calibration variation Flange focal distance EF-Mount < 70 µm (0.3°) Z-tilt and ±10 µm 44.00 mm F-Mount 46.50 mm M42-Mount N/A 45.46 mm M58-Mount N/A...

  • Page 131: M42-Mount Flange Focal Distance

    Mechanical dimensions Use a 1.5 mm hex ball head driver to loosen the bolts. Adjust the three tilt adjustment screws, as indicated in figure 71, until all targets are in focus. Bolt Adjustment Screw Figure 71: Back view (left) and exploded view (right) of Prosilica GT1930L camera assembly showing the adjustment screws and bolts in the EF-Mount Tighten the three bolts and recheck the focus.

  • Page 132: M42-Mount

    Mechanical dimensions M42-Mount Flange focal distance = 45.46 mm Image sensor die SECTION A-A Figure 73: M42-Mount flange focal distance M58-Mount flange focal distance M58-Mount Flange focal distance: came [12.3 15.8 came [11. 15.8 Figure 74: M58-Mount flange focal distance Prosilica GT Technical Manual V2.9.0...

  • Page 133: Sensor Position Accuracy

    Mechanical dimensions M58-Mount PA focal distance The M58-Mount PA (planarity adjustable) flange focal distance is 46.50 mm. Sensor position accuracy Camera body Camera body Pixel area Pixel area Sensor case Sensor case Figure 75: Sensor position accuracy The following table defines the manufacturing accuracy of fitting sensors into Prosilica GT cameras.

  • Page 134: Ir Cut Filter

    Mechanical dimensions IR cut filter All Prosilica GT color models are equipped with an infrared block filter (IR cut filter). This filter is employed to prevent infrared light from passing to the sensor. In the absence of an IR cut filter, images are dominated by red and incapable of being properly color balanced.

  • Page 135: Camera Interfaces

    Camera interfaces This chapter includes: • A general description of the inputs and outputs (including trigger features) • I/O connector pin assignments • I/O block diagrams • A general description of trigger rules such as timing diagram and definitions Prosilica GT Technical Manual V2.9.0...

  • Page 136: Back Panel

    Back panel This section provides information on Gigabit Ethernet interface, inputs and outputs, and trigger features. Accessories Contact your Allied Vision Sales representative or your local Allied Vision distribution partner for information on accessories: https://www.alliedvision.com/en/about-us/where-we-are.html Figure 77: Ports, LEDs, and interface...

  • Page 137: Status Leds

    The GigE Installation Manual offers detailed instructions for using Prosilica GT cameras. https://www.alliedvision.com/en/support/technical-documentation/prosilica-gt- documentation.html Hardware Selection See Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html GigE host controllers A standard PCI GigE host controller card is available for purchase from Allied Vision.

  • Page 138: Camera I/O Connector Pin Assignment

    Horizontal locking screw connector Prosilica GT cameras support cables with horizontal locking screw connector for a secured connection (see figure 77). Allied Vision recommends using locking-screw cables from Components Express, Inc. for a perfect fit. Visit the CEI product configurator to customize the cable according to your needs.
  • Page 139 50 µA (SyncOut2) Table 69: Camera I/O connector pin assignment and trigger cable color coding Cable color and pin out For cable color and pin out information, see the Allied Vision I/O cable data sheet: https://www.alliedvision.com/en/support/technical-documentation/accessories- data-sheets.html BLUE PINK...

  • Page 140: I/O Definition

    Camera interfaces I/O definition Camera power The Prosilica GT camera can be powered through the Hirose I/O port, via Pin 1 Camera GND and Pin 2 Camera Power, or through the Gigabit Ethernet interface if using a power over Ethernet (PoE) supported network card, switch, or injector. Cameras powered by both the Hirose I/O port and the Gigabit Ethernet interface will use the power provided by Hirose I/O port only.
  • Page 141 Camera interfaces Camera Internal External 180 R To Camera Logic 1/10 W In 1 5.1 V, 150 mW Camera GND SN74LVC2G34DCKR Figure 79: Internal circuit diagram for non-isolated input trigger In 2 (Opto-isolated) In 2 is optically isolated and can be used in electrically noisy environments to prevent false trigger events.

  • Page 142: Output Signals

    Camera interfaces Output signals Output signals can be assigned to a variety of internal camera signals via software. They can be configured to active high or active low. The internal camera signals are listed as follows: Exposing Corresponds to when camera is integrating light. Trigger Ready Indicates when the camera is ready to accept a trigger signal.
  • Page 143 Camera interfaces Out 3 and 4 (Opto-isolated) Note on 4.75 KΩ resistors Prosilica GT Technical Manual V2.1.1, V2.2.0, and V2.3.0 presented two 4.75 KΩ internal pull-down resistors in the opto-isolated output trigger circuit. In July 2012, these 4.75 KΩ resistors were removed from the printed circuit board assembly. Regardless of whether your Prosilica GT camera has the two 4.75 KΩ...

  • Page 144: Lens Control

    Video-type auto-iris lenses are not supported. Motorized CCTV lenses are not supported. Read lens descriptions carefully before purchasing or contact your Allied Vision Sales representative. For example, a motorized iris lens may be a bipolar single axis motorized lens, and...

  • Page 145: Prosilica Gt Standard And Extended Cameras

    DC-Iris lenses The Prosilica GT cameras with standard and extended housings operate with any standard DC-type auto iris lens. Allied Vision tested lenses include Fujinon DV10x8SA-SA1L, Computar HG2Z0414FC-MP, and Pentax C61227DCPS. DC-type auto iris lenses are continuously driven by a voltage (0 to 3.3 V) from the camera lens control port.
  • Page 146 Camera interfaces Operating DC-Iris lenses Connect a DC-Iris lens to the camera before powering up the camera. Power up the camera, and open the camera control software. ExposureValue GainValue Set the camera to live image with desired attributes. IrisMode DCIris .

  • Page 147: Prosilica Gt Large Format Cameras

    Camera interfaces P-Iris supported lenses For a list of P-Iris supported lenses, along with their LensPIrisFrequency LensPIrisNumSteps specifications, see the P-Iris Lens application note: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html Prosilica GT large format cameras EF lens control is available for the Prosilica GT1930L, GT4090, GT4096, GT4905, GT4907, GT5120, and GT6600 cameras.

  • Page 148: Camera Trigger

    Camera interfaces Camera trigger Trigger timing diagram The following diagram explains the general trigger concept for CCD models. Readout me Trigger latency Registered Exposure exposure me start delay User trigger Note: Ji er at the beginning Logic trigger of an exposure has no e ect on the length of exposure.

  • Page 149: Trigger Timing Diagram

    Camera interfaces Term Definition Exposure start delay Registered exposure time subtracted from the readout time and indicates when the next exposure cycle can begin such that the exposure will end after the current readout. Interline time Time between sensor row readout cycles. Imaging High when the camera image sensor is either exposing and/or reading out data.
  • Page 150 Camera interfaces Prosilica GT Technical Manual V2.9.0...

  • Page 151: Image Data Flow

    Image data flow This chapter presents diagrams that illustrate data flow and bit resolution of the image data. Prosilica GT Technical Manual V2.9.0...

  • Page 152: Prosilica Gt Models With Ccd Sensors

    Image data flow Camera feature reference A complete listing of camera features including definitions can be found online. • Vimba and third-party software users: GigE Features Reference • PvAPI users: GigE Camera and Driver Attributes document https://www.alliedvision.com/en/support/technical-documentation.html Prosilica GT models with CCD sensors Prosilica GT1290, GT1380, GT1600, GT1660, GT1910, GT1920, GT2300, GT2450, GT2750, GT3300, GT3400, GT4905, GT4907, GT6600 Vertical Binning...

  • Page 153: Prosilica Gt Models With Cmos Sensors

    Image data flow Prosilica GT models with CMOS sensors Prosilica GT1930, GT1930L Reverse X|Y Sensor Vertical ROI Gain Offset Analog Analog Analog Analog Internal sensor components Horizontal Vertical Binning Horizontal ROI White balance Binning 12 bit 12 bit 12 bit 12 bit Histogram Calculation...
  • Page 154 Image data flow Prosilica GT2000, GT2050C Calibrated Calibrated Gain Offset Sensor Vertical ROI Offset Analog Analog Analog Analog Internal sensor components White balance Defect Mask Gain Horizontal ROI 12 bit 12 bit 12 bit 12 bit Bayer Hue, Saturation, Gamma Look up Table Interpolation Color transformation...
  • Page 155 Image data flow Prosilica GT4090, GT4096, GT5120 Calibrated Calibrated Sensor Vertical ROI Horizontal ROI Gain Offset Analog Analog Analog Analog Internal sensor components Horizontal Defect Pixel Digital Gain FPNC Processing Binning Correction 10 bit 10 bit 10 bit 10 bit FPNC Memory Histogram Vertical...

  • Page 156: Cleaning Optical Components

    Cleaning optical components This chapter describes safety instructions and cautions for cleaning lenses, optical filters, protection glass, or sensors. Prosilica GT Technical Manual V2.9.0...

  • Page 157: Warranty

    Cleaning optical components Read these instructions before you contact Allied Vision or your Allied Vision distribution partner for assistance. Contact Allied Vision or your Allied Vision distribution partner if you are not familiar with the procedures described below. Warranty For details about camera warranty duration and sensor warranty terms, go to: https://www.alliedvision.com/en/support/warranty...

  • Page 158: Identifying Impurities

    IR cut filter/protection glass, it is probably on the sensor. Removing IR cut filter A pin spanner wrench (Allied Vision order code: E9020001) suitable for IR filter removal is available for purchase from Allied Vision for all Prosilica GT cameras except Prosilica GT large format cameras.

  • Page 159: Materials For Cleaning Optical Components

    Cleaning optical components Materials for cleaning optical components Use only these cleaning materials for optical components • Optic approved lens cotton, cloth, or tissue that is chemically pure and free from silicones and other additives. • Optic approved low residue cleaning liquid. Never use these cleaning materials for optical components •...

  • Page 160: Cleaning With Compressed Air

    Allied Vision distribution partner. Cleaning with compressed air Allied Vision does not recommend cleaning Prosilica GT cameras with compressed air. • Compressed air at high pressure and/or shorter operating distances may push dust into the camera/lens and physically damage the camera, sensor, or optical components.
  • Page 161 Cleaning optical components If you want to clean your camera with compressed air despite of all the warnings: • Use an optic approved compressed air product or compressor. • Use an anti-static ionizer attachment to reduce the risk of static-caused damage.

  • Page 162: Firmware Update

    Firmware update This chapter includes instructions on updating the firmware on your Allied Vision Prosilica GT camera. Prosilica GT Technical Manual V2.9.0...
  • Page 163 Firmware update Download the latest GigE firmware loader from the Allied Vision website: https://www.alliedvision.com/en/support/firmware Saved camera user sets If new firmware contains a new feature/control, saved camera UserSets/Config- Files will be invalidated and erased! Before loading new firmware, backup your current camera settings.
  • Page 164 Firmware update Click Next. The Firmware Loader displays a list of firmware included in the package. Click Next. Select your camera model on this page. Recovery Mode Select the Use recovery mode check box if the connected GigE camera is not found by the firmware loader, or if the GigE camera is listed as unavailable.
  • Page 165 Firmware update Click Next. Click Upload to start the update. The existing firmware will be erased and the new firmware will be updated to the camera. Prosilica GT Technical Manual V2.9.0...
  • Page 166 Firmware update The Firmware Loader displays a success status upon completion. Click Quit to exit the loader. Power cycle after upgrade or downgrade You should always power cycle the camera after a firmware upgrade or downgrade. Prosilica GT Technical Manual V2.9.0...

  • Page 167: Index
