Transducer angle

We recommend installing the transducer vertical to the waterline.
In cases where that is not possible, the Transducer Angle setting
helps offset the difference between the transducer angle and the
waterline.
If the transducer is angled toward the front of the vessel, a
positive value (0 to +15°) is entered in the Transducer angle
dialog. If the transducer is angled toward the rear of the vessel,
a negative value (0 to -15°) is entered in the Transducer angle
dialog.
Warning:
Adjustments to the transducer angle value should
be done with caution. Large variations in the transducer angle
value can distort depth data, increasing the risk of striking
underwater obstructions.

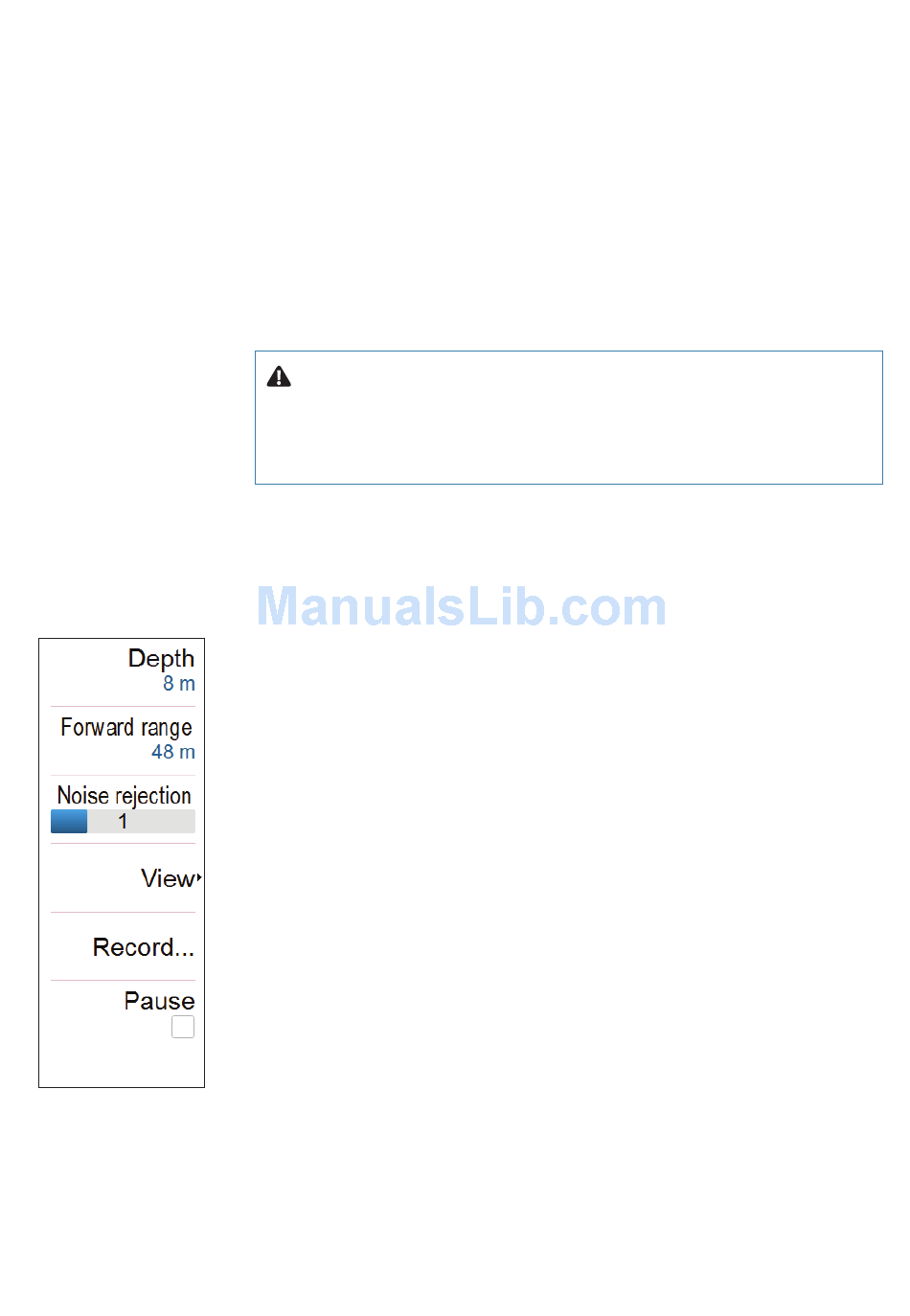

ForwardScan options and settings

Depth
Controls depth range. Depth range is set to auto mode by
default.
Forward range
Controls the forward looking range. Maximum Forward range is
300' (91 m).
Noise Rejection
Filters out signal interference and reduces on-screen clutter.
Record
Used to record ForwardScan sonar logs.
Pause
Pauses ForwardScan sonar transmissions.
