ForwardScan | User Guide

Operation

ForwardScan™ forward-looking sonar is a navigational aid that
helps you monitor the depth in front of your vessel.
ForwardScan features are available in the latest software update
for your multi-function display. Refer to your display's brand
website to download the latest update.
¼ Note: Screen captures in this document are from a NSS evo 2 unit.
The look of your unit may differ slightly, but it will operate in a
similar manner.
4
5

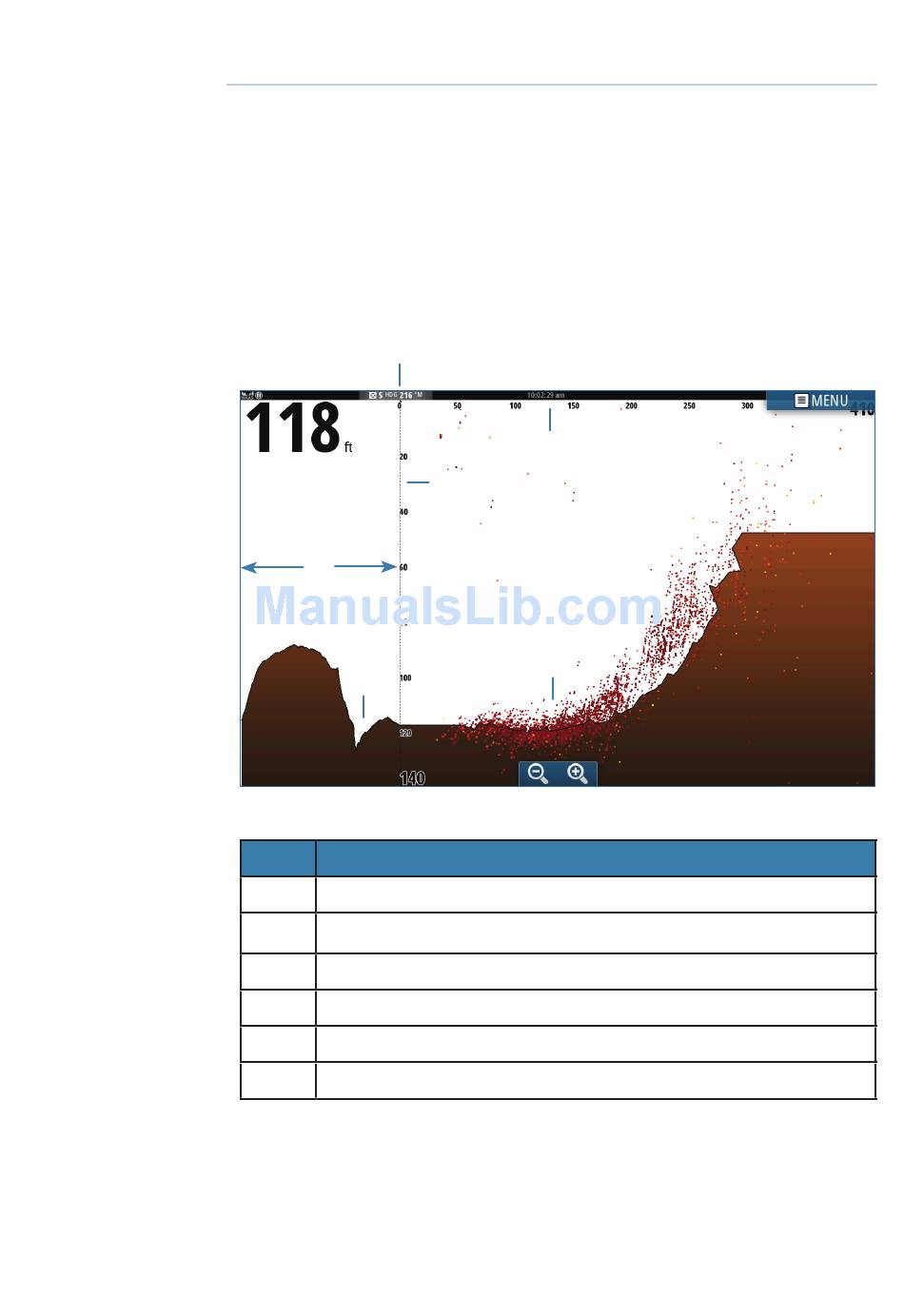

Key Description
1 Transducer location shown as the origin on the screen
2
Depth range scale/Boat position
3
Point data
4
Depth history
5
Bottom
6
Forward range scale
1
6
2
3
