This product requires assembly by an adult because of the small parts. Care should be
taken in unpacking and assembling this item to keep the small parts away from children.
WARNING
Young children can be seriously injured or killed, if furniture tips over.
Don't use this item for a TV stand.
Use angle-braces or anchors to secure furniture to the wall.
ASSEMBLY INSTRUCTIONS
RiverRidge®
ITEM #: 06-040 XS WHITE
ADULT ASSEMBLY REQUIRED

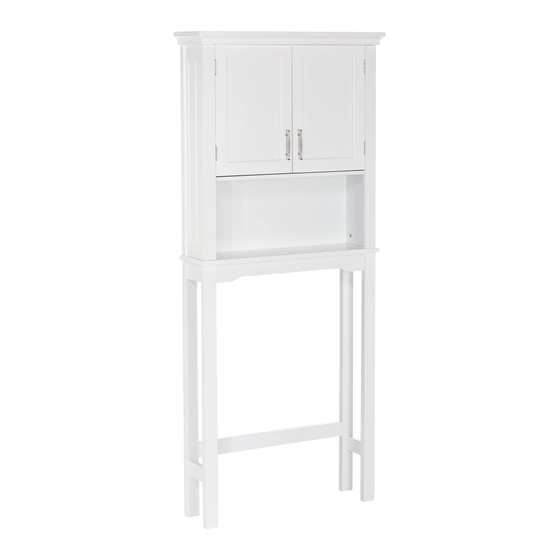

SOMERSET SPACESAVER
Advertisement
Related Manuals for RiverRidge SOMERSET SPACESAVER06-040 XS
Summary of Contents for RiverRidge SOMERSET SPACESAVER06-040 XS

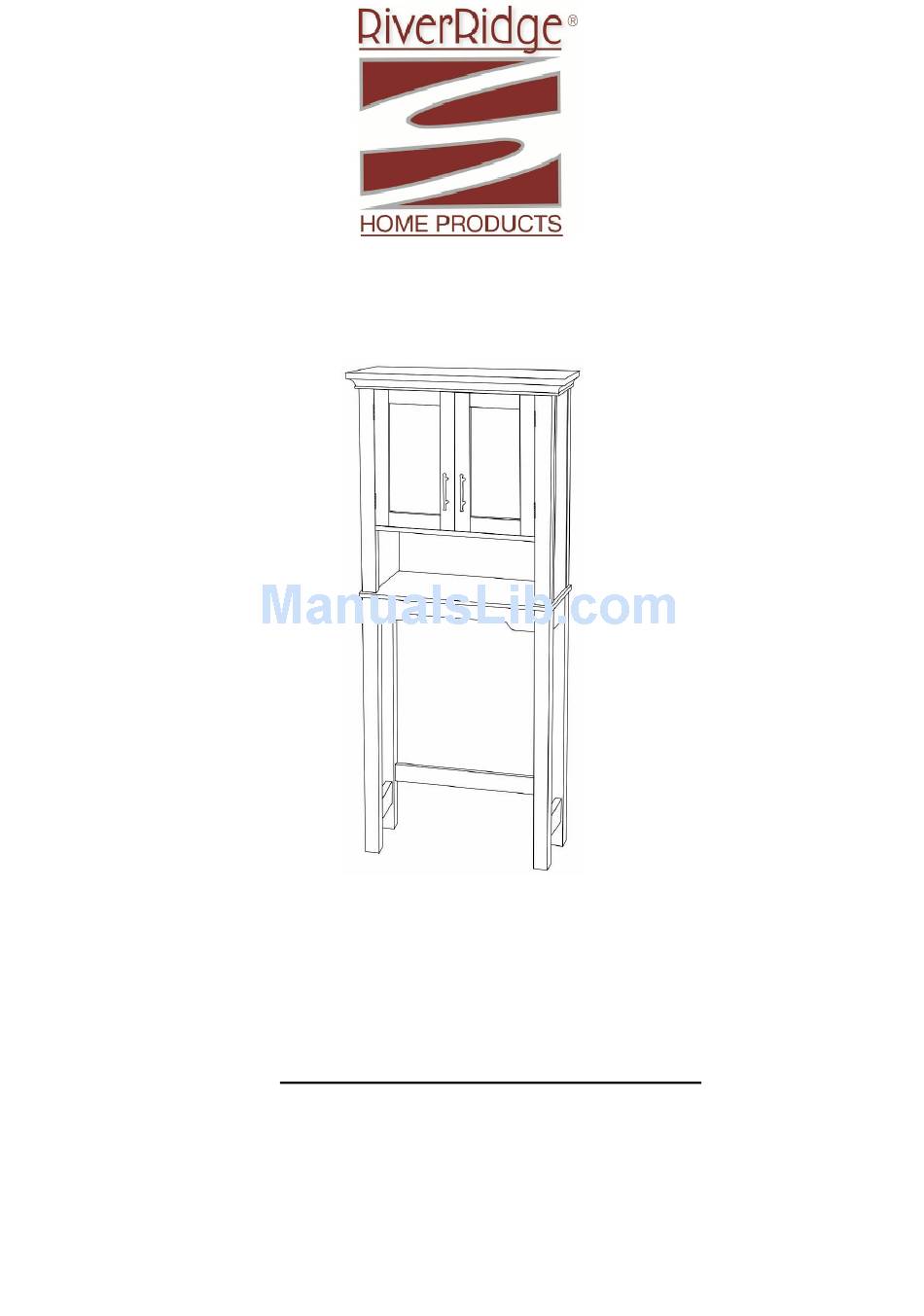

- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® SOMERSET SPACESAVER ITEM #: 06-040 XS WHITE ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of the small parts. Care should be taken in unpacking and assembling this item to keep the small parts away from children.
- Page 2 Send requests for missing or damaged parts replacements by email to : customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS.
-
Page 3: Parts List
PARTS LIST... - Page 4 TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILIPS SCREWDRIVER (NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENDED.
- Page 5 STEP 1 STEP 1 1.Attach 1 magnet plate (F) to left door (1) by inserting 1 wood screw (D) through hole on magnet plate(F) then tighten to left door (1) by using a Philips screwdriver. 2.Attach 1 Handle (K) to left door (1) by inserting 2 Machine screw (J) through the holes on left door (1) then tighten to Handle (K) by using a Philips screwdriver.
- Page 6 STEP 3 STEP 3 1.Attach right support board (13) to upper right side panel (3) by inserting 2 wood dowels (A) into dowel holes and inserting 3 cam bolts (B) into cam lock holes in the upper right side panel (3). 2.
- Page 7 STEP 5 STEP 5 1. Attach the Magnet (H) to the bottom of top board (7) by inserting 2pc wood screw through the holes on the Magnet (H) and tighten to the top board (7). 2. Screw in 4pc cam bolt (B) into the pre-threaded holes on the top board (7). 3.
- Page 8 STEP 7 STEP 7 1. Screw in 2pc cam bolt (B) into the pre-threaded holes on the middle connection board (8). 2. Insert 8pc wooden dowels (A) into the holes on the lower left side panel (18), lower right side panel (17) and lower section top cross bars (15).
- Page 9 STEP 8 STEP 8 Screw in 4pc cam bolt (B) into the pre-threaded holes on the middle connection board (8). STEP 9 STEP 9 1. Attach the upper assembled section to lower assembled section by insert 4 cam bolt (B) into the cam lock holes on the upper left side panel (4) and upper right side panel (3).
- Page 10 STEP 10 STEP 10 1.Attach upper back board (9) & middle back board (10) together sliding into plastic connection strip (N). 2.Attach upper back board (9) and middle back board (10) to the cabinet by inserting 8 wood screws (G) through holes on upper back board (9) then tighten into the cabinet, and inserting 4 wood screws (G) through holes on the middle back board (10) then tighten into the cabinet by using a Philips screwdriver.
- Page 11 STEP 12 STEP 12 Place the drawing with hole position on the wall that you desire to fix the spacesaver, drill 2 holes on the wall. Insert 2 plastic anchor (L) into the holes on the wall 3. Attach the pre-assembled Spacesaver in place w/holes, then insert 2 long wood screws (M) through holes on the upper section cross bar (5) and tighten into 2 plastic anchors (L) in the wall.
- Page 12 Take appropriate action necessary to correct the hazard such as tightening of screws and taking any damaged parts away from the children. Thank you for purchasing this RiverRidge® Home Products item. We hope you enjoy it, and consider purchasing other RiverRidge® items.
