ASSEMBLY INSTRUCTIONS
RiverRidge

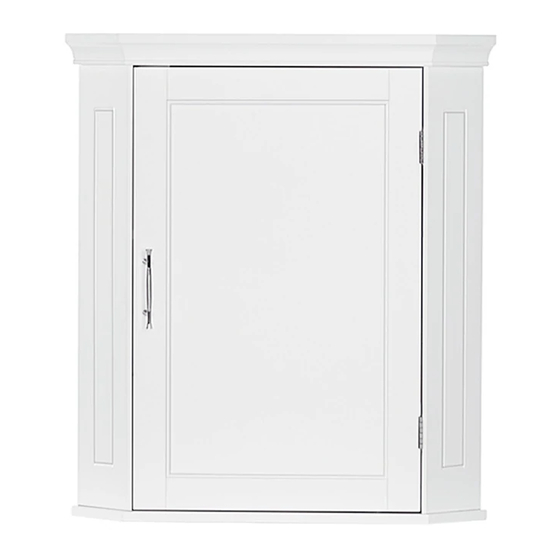

Somerset Corner Wall Cabinet
®
ITEM #: 06-138 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge 06-138
Summary of Contents for RiverRidge 06-138
- Page 1 RiverRidge Somerset Corner Wall Cabinet ® ITEM #: 06-138 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 40 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 40 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 40 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Left Side Panel Right Side Panel Bottom Board Left Side Board Right Side Board Adjustable Shelf Door... - Page 4 PARTS LIST PARTS DESCRIPTION 10PCS Cam Bolt 10PCS Cam Lock 14PCS Wood Dowel 2PCS Hinge 9PCS Screw (3x12mm) 2PCS Machine Screw (4x18mm) Handle 6PCS Shelf Holder 2PCS Plastic Anchor 1 SET Magnet with 2 Screws Magnet Plate 9PCS Screw (4x30mm) 2PCS Screw (4x45mm) TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 Screw 2 cam bolts (A) into pre-threaded holes on left side panel (2). Screw 2 cam bolts (A) into pre-threaded holes on right side panel (3). STEP 2 Insert 2 wood dowels (C) into wood dowel holes on right side board (6). Attach left side board (5) to right side board (6) by inserting wood dowels (C) into wood dowel holes on left side board (5), then insert 3 screws (L) through holes on left side board (5) and tighten to right side board (6).
- Page 6 STEP 3 Insert 2 wood dowels (C) into wood dowel holes on left side panel (2). Attach left side panel (2) to left side board (5) by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on left side board (5). Insert 2 cam locks (B) into cam lock holes on left side board (5), then rotate clockwise to secure cam bolts in place.
- Page 7 STEP 5 Insert 4 wood dowels (C) into wood dowel holes on left side board (5) and right side board (6). Attach bottom board (4) to left side board (5), right side board (6), left side panel (2) and right side panel (3) by inserting wood dowels into wood dowel holes on bottom board (4).
- Page 8 STEP 7 Insert 4 wood dowels (C) into wood dowel holes on top board (1). Attach top board (1) to left side board (5), right side board (6), left side panel (2) and right side panel (3) by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on left side board (5), right side board (6), left side panel (2) and right side panel (3).
- Page 9 STEP 9 Attach door (8) to right side panel (3) by inserting 4 screws (E) through the holes on hinges (D), then tighten to right side panel (3). STEP 10 Insert 6 shelf holders (H) into holes on left side board (5), right side board (6), left side panel (2) and right side panel (3).
- Page 10 STEP 11 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil make 2 small marks on wall through holes on left side board (5) and right side board (6). Move cabinet away from wall and screw 2 plastic anchors (I) into wall on pencil marks.
- Page 11 ® Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
