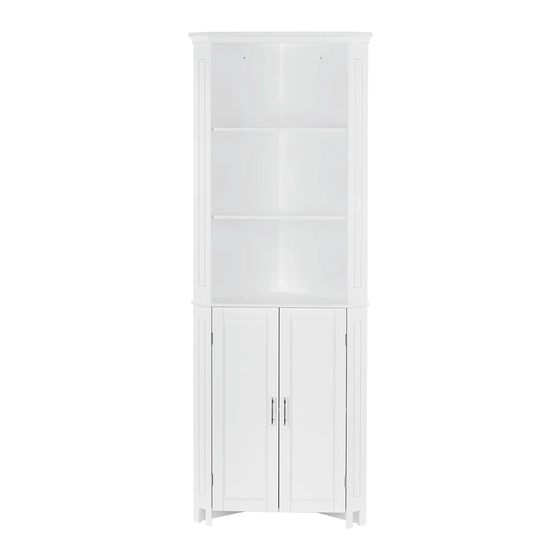

Tall corner cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
Somerset Tall Corner Cabinet
®
ITEM #: 06-136 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Somerset 06-136 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Somerset 06-136

Summary of Contents for RiverRidge Somerset 06-136

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Somerset Tall Corner Cabinet ® ITEM #: 06-136 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 100 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 100 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 100 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board Upper Left Side Panel Upper Right Side Panel 3PCS Fixed Shelf Middle Connection Board Upper Left Side Board Upper Right Side Board Lower Left Side Panel Lower Right Side Panel Lower Left Side Board Lower Right Side Board Adjustable Shelf Left Door Right Door...
  • Page 4 PARTS LIST PARTS DESCRIPTION 30PCS Cam Bolt 30PCS Cam Lock 24PCS Wood Dowel 4PCS Hinge 18PCS Screw (3x12mm) 4PCS Machine Screw (4x18mm) 2PCS Handle 6PCS Shelf Holder 4PCS Plastic Anchor 1 SET Magnet with 2 Screws 2PCS Magnet Plate 18PCS Screw (4x30mm) 4PCS Screw (4x45mm)
  • Page 5 STEP 1 Screw 5 cam bolts (A) into pre-threaded holes on upper left side panel (2). Screw 5 cam bolts (A) into pre-threaded holes on upper right side panel (3). STEP 2 Insert 2 wood dowels (C) into wood dowel holes in 2 fixed shelves (4). Attach 2 fixed shelves (4) to upper right side board (7) by inserting wood dowels (C) into wood dowel holes on upper right side board (7).
  • Page 6 STEP 3 Insert 4 wood dowels (C) into wood dowel holes on upper left side board (6). Attach upper left side board (6) to fixed shelves (4) and upper right side board (7) by inserting wood dowels (C) into wood dowel holes on upper right side board (7) and fixed shelves (4). Insert 5 screws (L) through holes on upper left side board (6), then tighten to upper right side board (7) and fixed shelves (4).
  • Page 7 STEP 5 Insert 2 wood dowels (C) into wood dowel holes on upper left side board (6). Attach upper left side panel (2) to upper left side board (6) and fixed shelves (4) by inserting wood dowels (C) into wood dowel holes on upper left side panel (2) and inserting cam bolts (A) into cam lock holes on upper left side board (6) and fixed shelves (4).
  • Page 8 STEP 7 B C C Insert 2 wood dowels (C) into wood dowel holes on upper left side board (6) and 2 wood dowels (C) into wood dowel holes on upper right side board (7). Attach top board (1) to upper left side board (6), upper right side board (7), upper left side panel (2) and upper right side panel (3) by inserting wood dowels (C) into wood dowel holes on top board (1) and inserting cam bolts (A) into cam lock holes on upper left side board (6), upper right side board (7), upper left side panel (2) and upper right side panel (3).
  • Page 9 STEP 9 Screw 4 cam bolts (A) into pre-threaded holes on lower left side panel (8). Screw 4 cam bolts (A) into pre-threaded holes on lower right side panel (9). STEP 10 Insert 1 wood dowel (C) into wood dowel hole on fixed shelf (4). Attach fixed shelf (4) to lower right side board (11) by inserting wood dowel (C) into wood dowel hole on lower right side board (11).
  • Page 10 STEP 11 Insert 2 wood dowels (C) into wood dowel holes on lower right side board (11) and 1 wood dowel (C) into wood dowel hole on fixed shelf (4). Attach lower left side board (10) to lower right side board (11) and fixed shelf (4) by inserting wood dowels (C) into wood dowel holes on lower left side board (10).
  • Page 11 STEP 13 Insert 2 wood dowels (C) into wood dowel holes on lower left side panel (8). Attach lower left side panel (8) to lower left side board (10) and fixed shelf (4) by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on lower left side board (10) and fixed shelf (4).
  • Page 12 STEP 15 Attach 2 hinges (D) to left door (13) by inserting 4 screws (E) through holes on hinges (D), then tighten to left door (13). Attach magnet plate (K) to left door (13) by inserting 1 screw (E) through hole on magnet plate (K), then tighten to left door (13).
  • Page 13 STEP 17 Attach right door (14) to cabinet by inserting 4 screws (E) through holes on hinges (D), then tighten to lower right side panel (9). STEP 18 Insert 6 shelf holders (H) into holes on lower left side panel (8), lower right side panel (9), lower left side board (10) and lower right side board (11).

  • Page 14: Care Instructions

    STEP 19 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make 4 small marks on wall through holes on upper left side board (6), upper right side board (7), lower left side board (10) and lower right side board (11).
  • Page 15 ® Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
