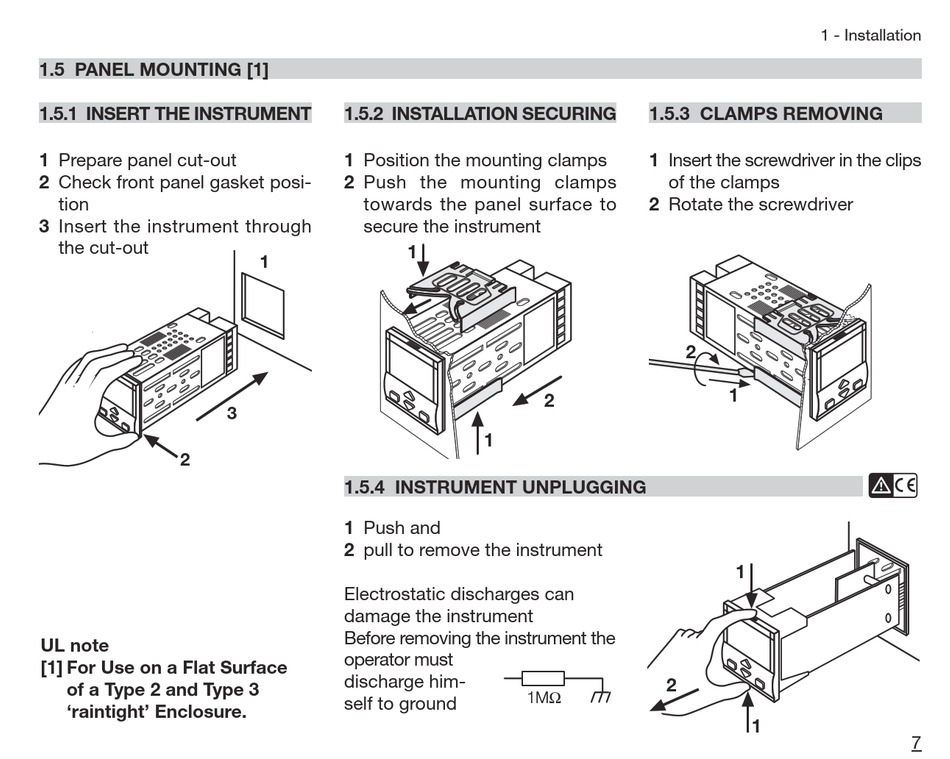

1.5 PANEL MOUNTING [1]

1.5.1 INSERT THE INSTRUMENT

1 Prepare panel cut-out
2 Check front panel gasket posi-
tion
3 Insert the instrument through
the cut-out
2
UL note
[1] For Use on a Flat Surface
of a Type 2 and Type 3
'raintight' Enclosure.

1.5.2 INSTALLATION SECURING

1 Position the mounting clamps
2 Push the mounting clamps
towards the panel surface to
secure the instrument
1
3
1.5.4 INSTRUMENT UNPLUGGING
1 Push and
2 pull to remove the instrument
Electrostatic discharges can
damage the instrument
Before removing the instrument the
operator must
discharge him-
self to ground
1
2
1
1MΩ
1 - Installation

1.5.3 CLAMPS REMOVING

1 Insert the screwdriver in the clips
of the clamps
2 Rotate the screwdriver
2
1
1
2
1
B
1
7
