A

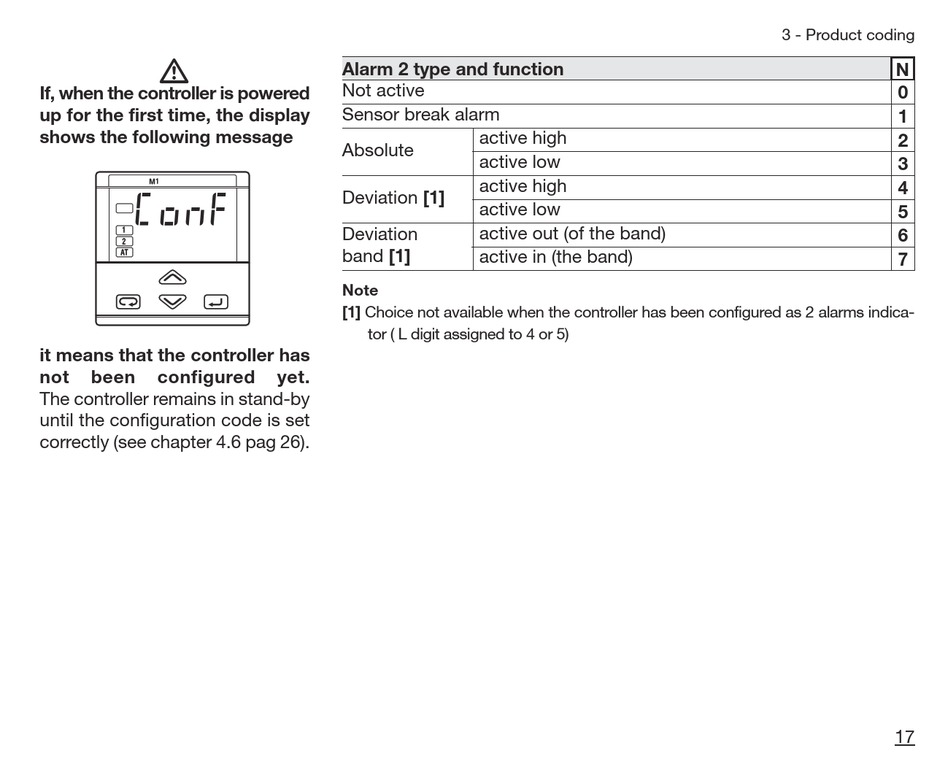

If, when the controller is powered
up for the first time, the display
shows the following message
Conf
1
2
AT
it means that the controller has
not been configured
The controller remains in stand-by
until the configuration code is set
correctly (see chapter 4.6 pag 26).
Alarm 2 type and function
Not active
Sensor break alarm
Absolute
Deviation [1]
Deviation
band [1]
Note
[1] Choice not available when the controller has been configured as 2 alarms indica-
tor ( L digit assigned to 4 or 5)
yet.
active high
active low
active high
active low
active out (of the band)
active in (the band)
3 - Product coding
N
0
1
2
3
4
5
6
7
