Parameter; 1St Group - ascon M1 line Manual

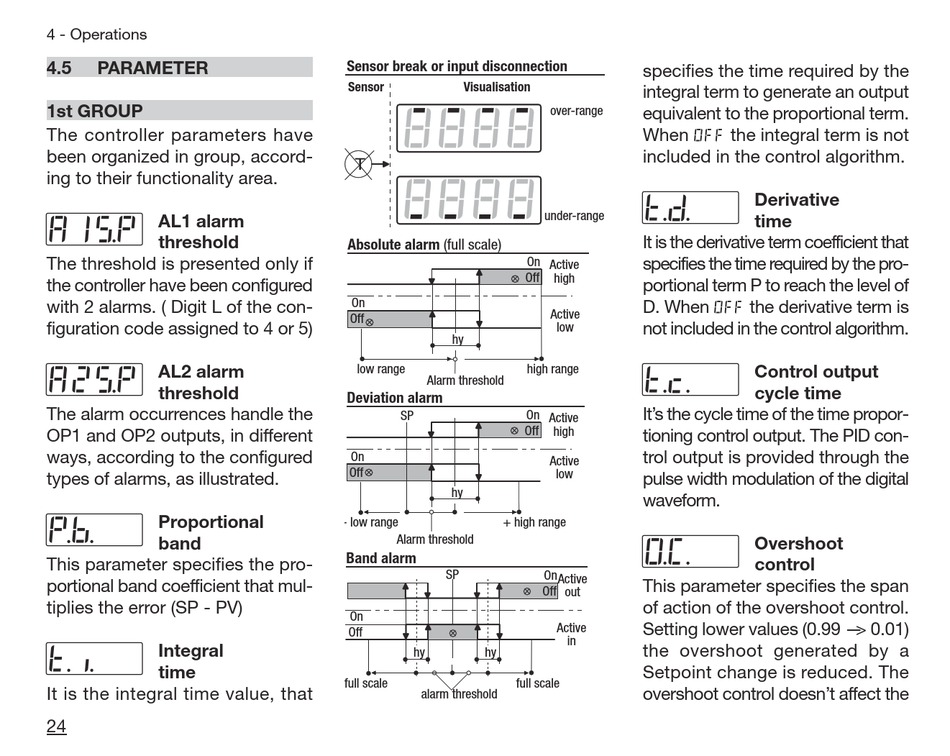

4 - Operations
4.5

PARAMETER

1st GROUP

The controller parameters have
been organized in group, accord-
ing to their functionality area.
# A Is. p
AL1 alarm
threshold
The threshold is presented only if
the controller have been configured
with 2 alarms. ( Digit L of the con-
figuration code assigned to 4 or 5)
# A 2s. p
AL2 alarm
threshold
The alarm occurrences handle the
OP1 and OP2 outputs, in different
ways, according to the configured
types of alarms, as illustrated.
# p . b .
Proportional
band
This parameter specifies the pro-
portional band coefficient that mul-
tiplies the error (SP - PV)
# t . i .
Integral
time
It is the integral time value, that
24
Sensor break or input disconnection
Sensor Visualisation
T
Absolute alarm (full scale)
On
Off
hy
low range
Alarm threshold
Deviation alarm
SP
On
Off
hy
- low range + high range
Alarm threshold
Band alarm
SP
On
Off
hy hy
full scale full scale
alarm threshold
specifies the time required by the
integral term to generate an output
over-range
equivalent to the proportional term.
When Off the integral term is not
included in the control algorithm.
# t . d .
under-range
It is the derivative term coefficient that
On specifies the time required by the pro-
Active
Off
high
portional term P to reach the level of
D. When Off the derivative term is
Active
not included in the control algorithm.
low
# t . c .
high range
It's the cycle time of the time propor-
On
Active
Off
high
tioning control output. The PID con-
trol output is provided through the
Active
low
pulse width modulation of the digital
waveform.
# O . C .
On
Active
This parameter specifies the span
Off
out
of action of the overshoot control.
Setting lower values (0.99 — > 0.01)
Active
in
the overshoot generated by a
Setpoint change is reduced. The
overshoot control doesn't affect the
Derivative
time
Control output
cycle time
Overshoot
control
