1 - Installation

1 INSTALLATION
Installation must only be carried
out by qualified personnel.
Before proceeding with the instal-
lation of this controller, follow the
instructions illustrated in this man-
ual and, particularly the installation
precautions marked with the B
symbol, related to the European
Community directive on electrical
protection and electromagnetic
compatibility.
B
To prevent hands or metal touch-
ing parts that may be electrically
live, the controllers must be
installed in an enclosure and/or in
a cubicle.
4

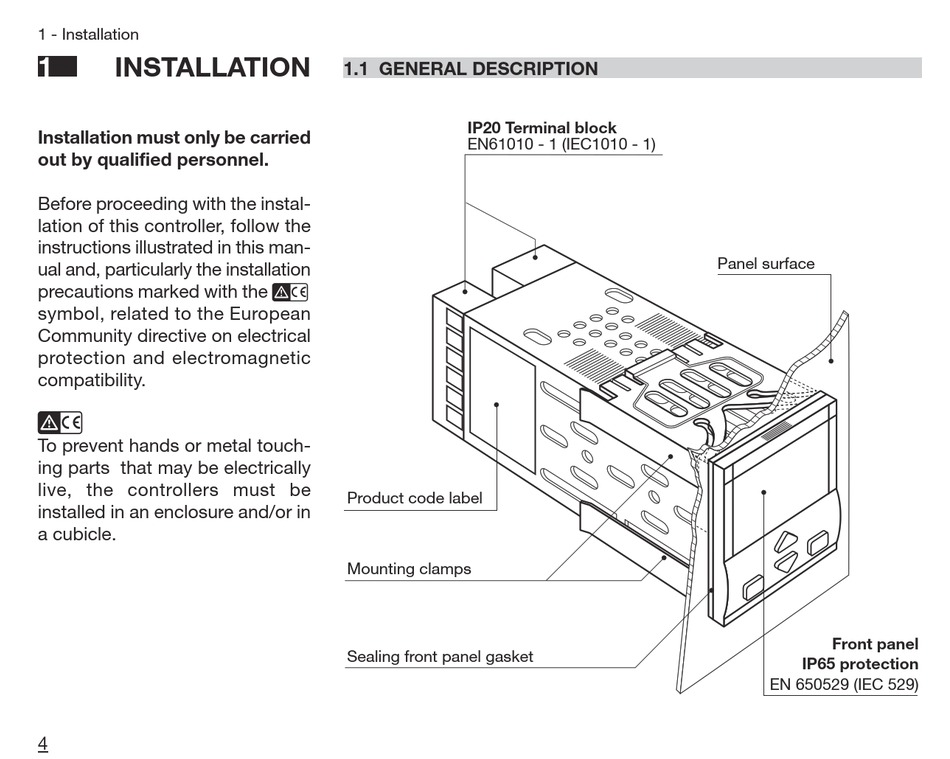

1.1 GENERAL DESCRIPTION

IP20 Terminal block
EN61010 - 1 (IEC1010 - 1)
Product code label
Mounting clamps
Sealing front panel gasket
Panel surface
Front panel
IP65 protection
EN 650529 (IEC 529)
