ascon M4 Series User Manual

1/16 din-48x48
Hide thumbs Also See for M4 Series:

Advertisement

Quick Links

Download this manual
ASCON spa
ISO 9001
C e r t i f i e d
ASCON spa
20021 Bollate
(Milano) Italy
via Falzarego, 9/11
Tel. +39 02 333 371
Fax +39 02 350 4243
http://www.ascon.it
e-mail sales@ascon.it

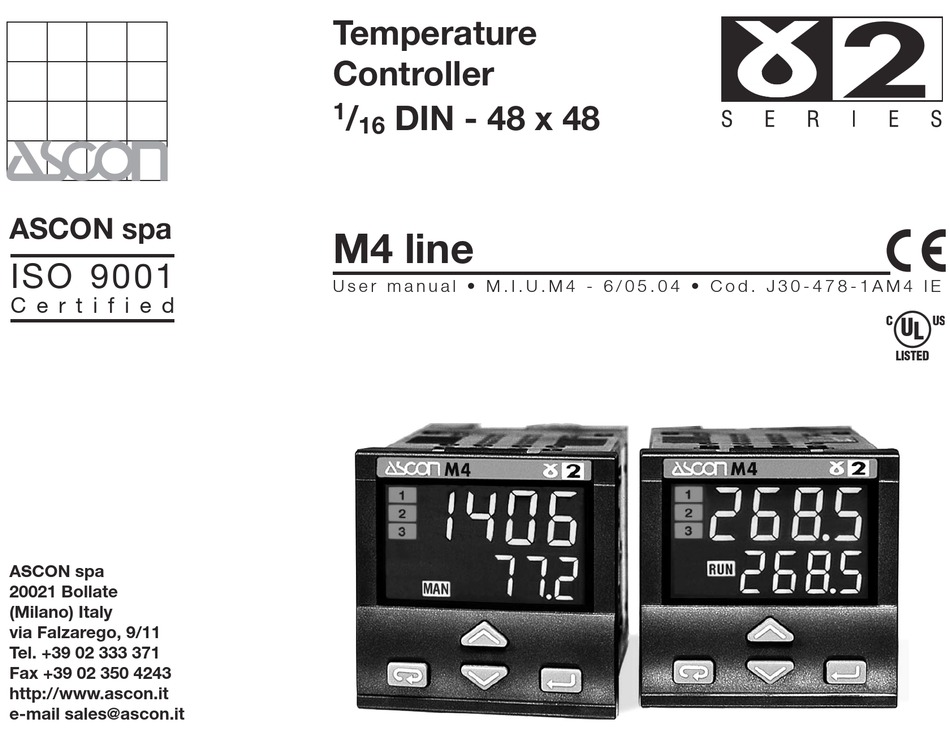

Temperature
Controller
1
/
DIN - 48 x 48
16
M4 line
U s e r m a n u a l • M . I . U . M 4 - 6 / 0 5 . 0 4 • C o d . J 3 0 - 4 7 8 - 1 A M 4 I E
c
c
C
US
U L
LISTED
