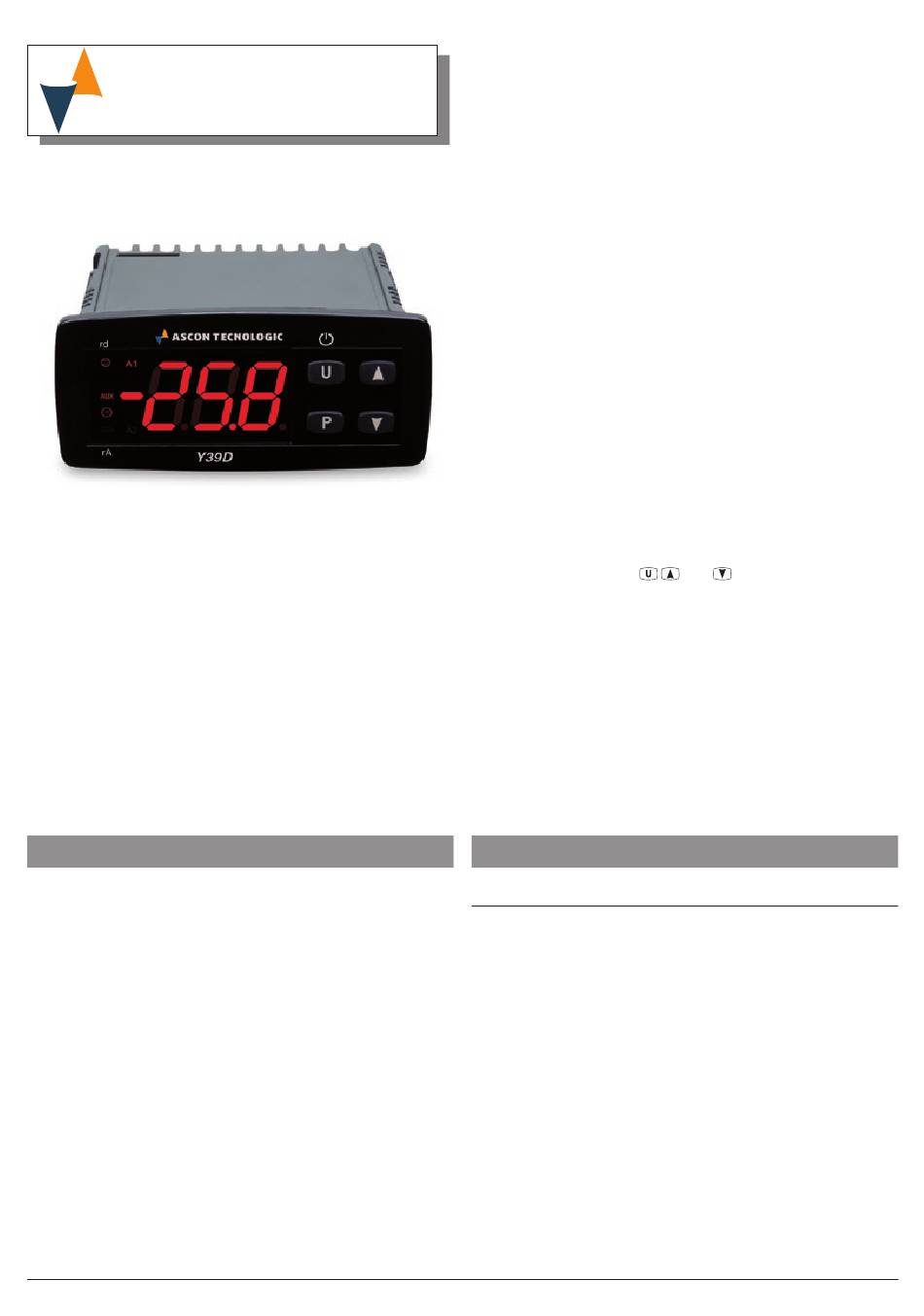

Y39D - Y39SD
DIFFERENTIAL TEMPERATURE
CONTROLLER
OPERATING INSTRUCTIONS
24/09 - code: ISTR_M_Y39D-_E_02_--
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871 - Fax: +39 0381 698730
Sito: http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com
PREFACE
This manual contains the information necessary for
m
the product to be installed correctly and also instruc-
tions for its maintenance and use; we therefore
recommend that the utmost attention is paid to the
following instructions and to save it.
This document is the exclusive property of Ascon Tecnologic
S.r.l. which forbids any reproduction and divulgation, even
partially, of the document, unless expressly authorized.
Ascon Tecnologic S.r.l. reserves the right to make any formal
or functional changes at any moment and without any notice.
Ascon Tecnologic S.r.l. and its legal representatives do not
assume any responsibility for any damage to people, things
or animals deriving from violation, wrong or improper use or
in any case not in compliance with the instrument features.
Whenever a failure or a malfunction of the device
m
may cause dangerous situations for persons, thing
or animals, please remember that the plant has to be
equipped with additional electromechanical devices
which will guarantee safety.
Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 1
1
Instrument description ............................................. 1
1.1
General Description ........................................................... 1
1.2
Front Panel Description ..................................................... 2
2
Programming ............................................................ 2
2.1
Fast Set Point Programming ............................................. 2
2.2
Standard Mode Parameters Programming ...................... 2
2.3
Parameter Protection Using a Password ......................... 3
2.4
Customized Mode Parameters Programming
(parameters programming level) .................................... 3
2.5
Reset Parameters to Default Value .................................. 3
2.6
Keyboard Lock Function .................................................... 3
2.7
Setting the Current Time and Date ................................... 3
2.8
Programming events at set times .................................... 4
3
Usage Warnings ....................................................... 4
3.1
Admitted Usage ................................................................. 4
4
Installation warnings ................................................ 4
4.1
Mechanical Mounting ........................................................ 4
4.2
Dimensions [mm] ........................................................... 4
4.3
Electrical Connections....................................................... 5
5
Functions ................................................................. 6
5.1
ON/STAND-BY Function .................................................... 6
5.2
Measure and Display configuration .................................. 6
5.3
Digital Input Configuration ................................................ 6
5.4
Outputs and Buzzer Configuration ................................... 7
5.5
Differential and Auxiliary temperature controller............. 7
5.6
Control outputs delay function and Power ON delay ...... 7
5.7
Temperature Alarm Functions .......................................... 8
5.8
General description of some typical applications
of differential thermal control ........................................... 9
5.9
Alarm conditions ............................................................... 11
5.10 Operation of keys
5.11 Clock programmable events ............................................. 12
6.1
Parameters Configuration by A01 .................................... 13
7
Programmable parameters table ............................... 14
8
Problems and Maintenance ...................................... 18
8.1
Error messages .................................................................. 18
8.2
Other messages ................................................................. 18
8.3
Cleaning ............................................................................. 18
8.4
Disposal .............................................................................. 18
9
Warranty and Repairs ................................................ 18
10 Technical Data .......................................................... 18
10.1 Electrical Data .................................................................... 18
10.2 Mechanical Data ................................................................ 18
10.3 Functional Features ........................................................... 19
11 How to order ............................................................. 19
1 INSTRUMENT DESCRIPTION
1.1
General Description
The Y39D model is an electronic microprocessor differential
temperature controller that can typically be used to control
systems equipped with solar thermal panels, but also for
those applications that require a control based on the temper-
ature difference between two different environments such as
Fluid coolers (chillers), nNatural air conditioning systems for
environments through air recirculation or other applications.
The instrument can have up to 3 relay outputs, 3 inputs for
PTC/NTC or Pt1000 temperature probes and a digital input
(alternative to Pr3 probe), fully configurable.
It can also be equipped with an internal buzzer to signal the
alarms and an internal clock that allows the programming of
various events at set times.
The 3 outputs can be used to:
 Control temperature control devices based on the dif-
ferential value;
 Control temperature control devices based on an abso-
lute value (auxiliary temperature control);
Index
and
................................. 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the Y39D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ascon Y39D

  • Page 1  Control temperature control devices based on the dif- equipped with additional electromechanical devices ferential value; which will guarantee safety.  Control temperature control devices based on an abso- lute value (auxiliary temperature control); Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 1...
  • Page 2 2 s until the controller returns been enabled, the power had an interruption and therefore in normal mode. the current time may also be incorrect. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 2...
  • Page 3 + the minutes (e.g. n. 5 2); parameter (through which will be possible to access the d. + the day of the week (e.g. d. 1). “protected” parameters). Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 3...
  • Page 4 D. 1 0 Monday, Tuesday, Wednesday, Thursday, Friday, Saturday; Y39D D. 1 1 Saturday and Sunday; D. o F No day (event disabled). For the types of programmable events, see the relevant paragraph. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 4...
  • Page 5 Out2: 8A-AC1 (3A-AC3)/250V); 1/2HP 250VAC,1/3HP 125VAC. Out3: 5A-AC1 (2A-AC3)/250V); 1/8HP 250/125 VAC. 16 A max. for relays common terminal (C) (12 A max. for those with removable terminal block). Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 5...
  • Page 6 The current hour; The current minutes; The current day; The instrument automatically exits the variables display mode about 15 seconds after the last pressure on the key. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 6...
  • Page 7 P. d 2 has not elapsed and a similar delay to activate rA output according to the parameter P. P 2 setting (delay after power-OFF or minimum power-OFF time). Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 7...
  • Page 8 Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 8...
  • Page 9 (1. A r = 3); coming from the solar collector is not enough. 2. Disconnect the circulation pump independently of the dif- ferential controller (because it is believed that the liquid Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 9...
  • Page 10 Pr3 temperature will not be lowered below the [3. H A - 3. A d] value. (3. A r = 1; 3. A L = 1). Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 10...
  • Page 11 1. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 11...
  • Page 12 9 = Monday, Tuesday, Wednesday, Thursday, Friday; D. 1 0 = Monday, Tuesday, Wednesday, Thursday, Friday, Saturday; D. 1 1 = Saturday and Sunday; D. o F = No one. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 12...
  • Page 13 To use the A01 device it is necessary that the device or instru- ment are being correctly supplied. Power supply Supply adapter 12 VDC AC supply For additional info, please look at the A01 instruction manual. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 13...
  • Page 14 (rA) 0.01 ÷ 9.59 (min.s) ÷ 99.5 (min.s x 10). Disabled; P. o d Outputs delay at power ON 0.01 ÷ 9.59 (min.s) ÷ 99.5 (min.s x 10). Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 14...
  • Page 15 Switches both AL1 and AL2 outputs No action; Switches only AL1 output; 2.LA alarm action on the alarm outputs 2. A L Switches only AL2 output; Switches both AL1 and AL2 outputs. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 15...
  • Page 16 Output 1 Function Au Auxiliary alarm; o. o 3 Acknowledgeable Alarm; Disable; Active alarms only; Buzzer Function o. b u Key pressed only; Active for alarms and key pressed. Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 16...
  • Page 17 Hour (0 ÷ 23); Minutes (0 ÷ 50); Time and current day of the week C. C L Day of the week (d.1 = Monday... d.7 = Sunday); D.oF Clock disabled; Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 17...
  • Page 18 The faulty product must be shipped to Ascon Tecnologic with a detailed description of the faults found, without any fees or charge for Ascon Tecnologic, except in the event of alternative agreements. Ascon Tecnologic - Y39 Line - Operating Instructions - Pag. 18...
  • Page 19 Special codes Note: To order the Optional Screw type Bracket necessary to obtain the IP65 Front protection degree, please, contact your Ascon Tecnologic supplier Ascon Tecnologic - Y39 Line - Operating Instructions - Pag. 19...
  • Page 20 Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 20...
  • Page 21 Ascon Tecnologic S.r.l. - Y39D Line - Operating Instructions - Pag. 21...
