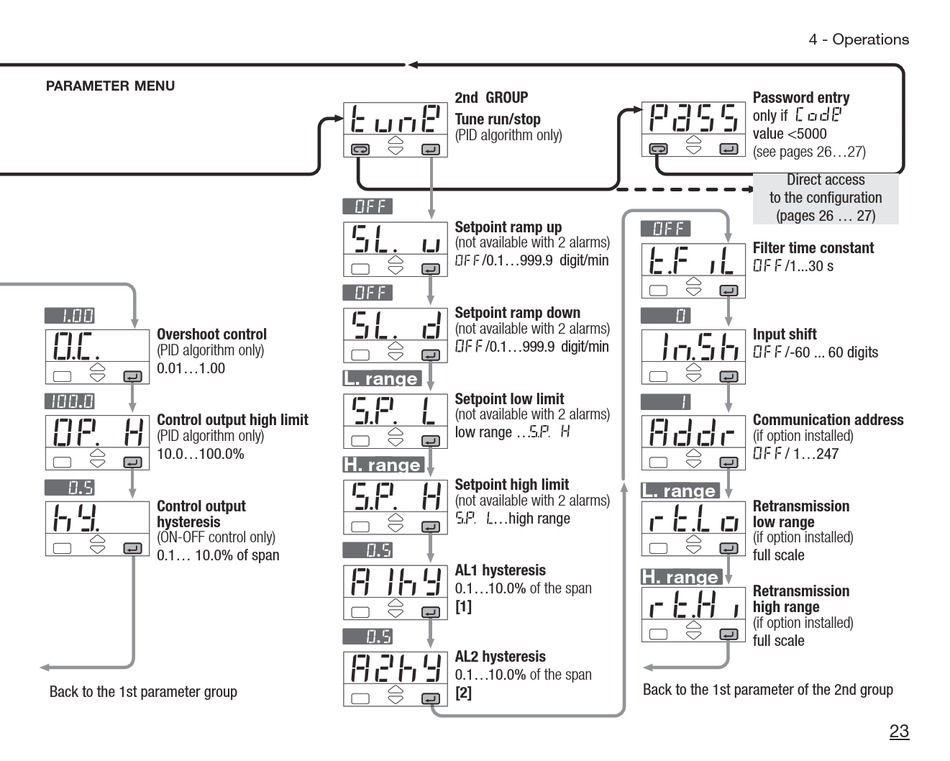

PARAMETER MENU

P 1:00
Overshoot control
O. C .
(PID algorithm only)
0.01...1.00
1 00:0 P
Control output high limit
Op. H
(PID algorithm only)
10.0...100.0%
P 0:5
Control output
hy.
hysteresis
(ON-OFF control only)
0.1... 10.0% of span
Back to the 1st parameter group
2nd GROUP
tune
Tune run/stop
(PID algorithm only)
P Off
Setpoint ramp up
sl. u
(not available with 2 alarms)
0ff/0.1...999.9 digit/min
P Off
Setpoint ramp down
sl. d
(not available with 2 alarms)
0ff
/0.1...999.9 digit/min
P
L . rP a nge
Setpoint low limit
s. p . l
(not available with 2 alarms)
low range ...
P
H . rP a nge
Setpoint high limit
s. p . H
(not available with 2 alarms)
s. p . l
...high range
P 0:5
AL1 hysteresis
AIhy
0.1...10.0% of the span
[1]
P 0:5
AL2 hysteresis
A2hy
0.1...10.0% of the span
[2]
pass
P Off
t. f il
P 0
In. s h
P 1
Addr
s. p . H
P
L . rP a nge
rt. l o
P
H . rP a nge
rt. H i
Back to the 1st parameter of the 2nd group
4 - Operations
Password entry
Code
only if
value <5000
(see pages 26...27)
Direct access
to the configuration
(pages 26 ... 27)
Filter time constant
Off
/1...30 s
Input shift
Off
/-60 ... 60 digits
Communication address
(if option installed)
0ff
/ 1...247
Retransmission
low range
(if option installed)
full scale
Retransmission
high range
(if option installed)
full scale
