ZyPer4K
Analog Option

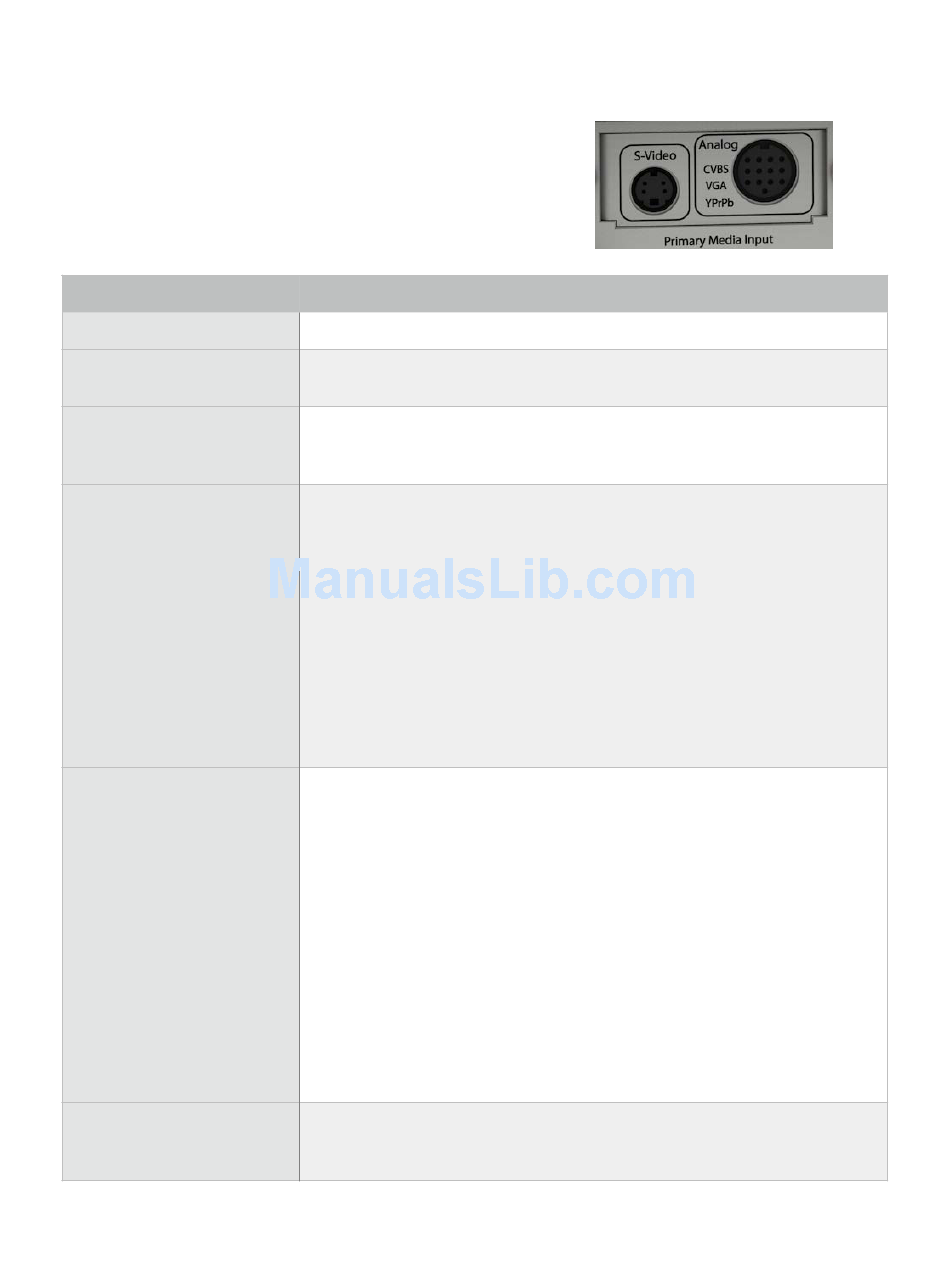

The ZyPer4K Encoder can be purchased with the "Analog
Input Option". This provides for four different types of
possible video input (only one input active at a given time).
Type Type
Analog Input Option
S-Video Standard 4-pin mini-DIN S-Video input
YPrPb Standard Component Video input provided through Red, Green and Blue
Analog Audio (RCA-type
DIN cable)
User Manual
Parameter
4 different types of Analog video input supported.
Supports 480i and 576i resolutions (NTSC and PAL)
CVBS Composite Video. Standard RCA plug spawned from ZeeVee Hydra
cable connected to 13-pin DIN connector.
Supports 480i and 576i resolutions (NTSC and PAL)
RCA connectors spawned by the ZeeVee Hydra Cable connected to the
13-Pin DIN connector.
640x480 (p/i)
720x576 (25Hz/50Hz)(p/i)
1280x720 (p/i)
1280x1024 (p)
1920x1080 (p/i)
all at 24/25/29.97/30/50/59.94/60Hz refresh rates except where
noted
VGA A standard 15-Pin HD DSUB male VGA connector is provided
through the use of the appropriate ZeeVee Hydra cable connected
to the13-PIN DIN connection on the rear pos the unit.
640x480 (p)
720x576 (p)
800x600 (p)
1024x768 (p)
1280x720 (p)
1280x1024 (p)
1366x768 (p)
1440x1080 (p)
1600x1200 (p)
1920x1080 (p)
2-channels of line-level L/R analog stereo input through the Red/White
plug spawned by the appropriate ZeeVee Hydra cable connected to the
13-pin DIN jack.
