ZeeVee ZYPER4K User Manual page 10

ZyPer4K
Port Name Index

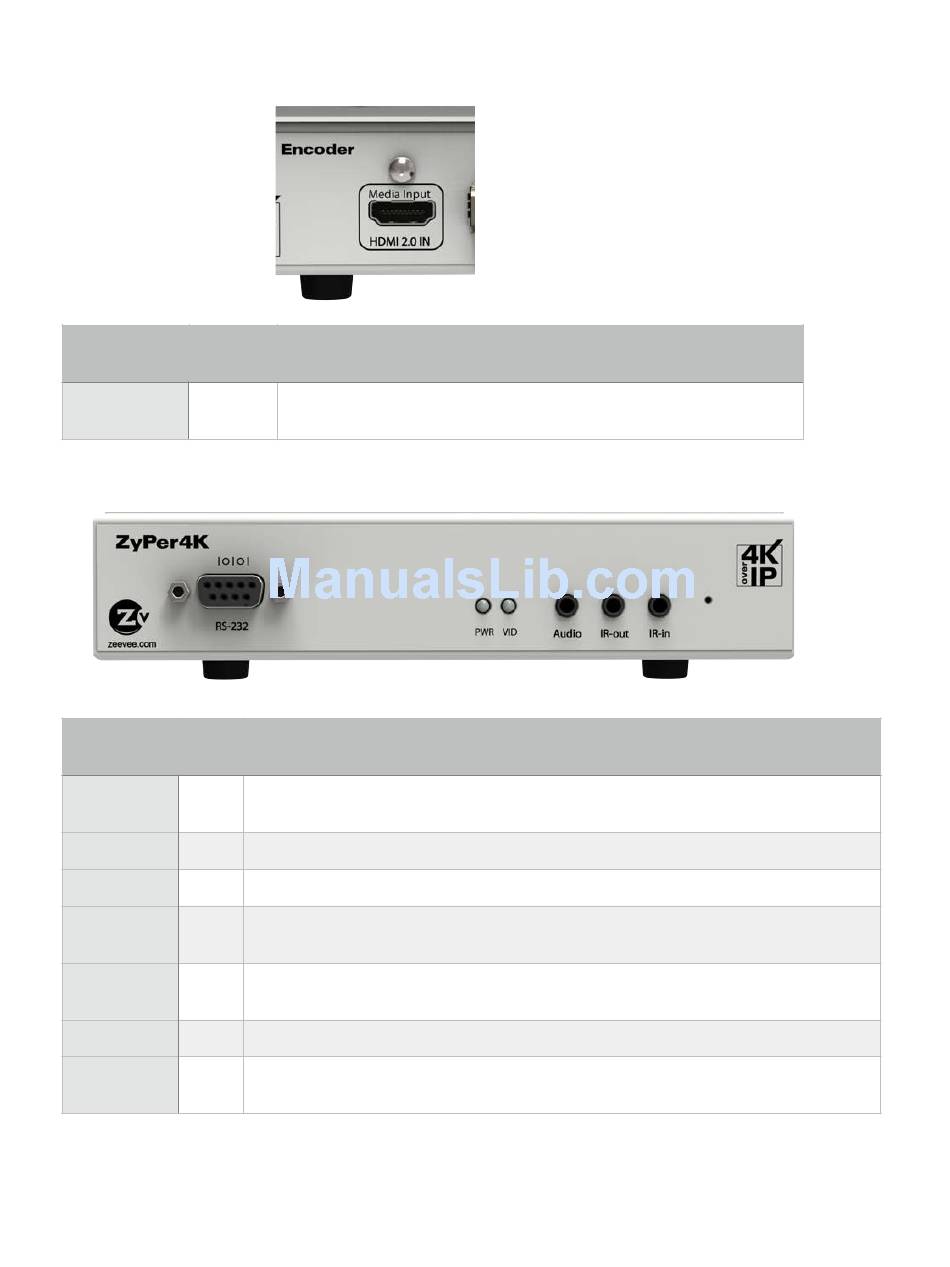

HDMI Input A
Port Name Index Definition
RS 232 Port A
LED PWR B
LED VID C
Audio D
IR-OUT E
IR-IN F
RESET G
User Manual
A
Definition
HDMI 2.0 Input port. Capable of up to 4K60 with HDCP2.2
encryption.
A
RS232 Control Port for sending and receiving side-band serial traffic to/from
decoders as directed by Maestro-Z management
LED illuminated when unit is powered
LED Illuminated when active video is being processed
Audio Input/Output Jack. Input or Output of line-level stereo audio on 3.5mm
jack. Direction of port configured by Maestro-Z.
Infrared Commands information passed back FROM decoders as configured by
Maestro-Z.
Infrared Commands to be passed TO decoders as configured by Maestro-Z.
Reset to defaults. Using a wire or paper clip, lightly press into this hole while
unit is powered to activate a button that resets the unit to factory defaults.
Page
B C D E
6 of 40
F
G
