ZyPer4K

Extended Input Options

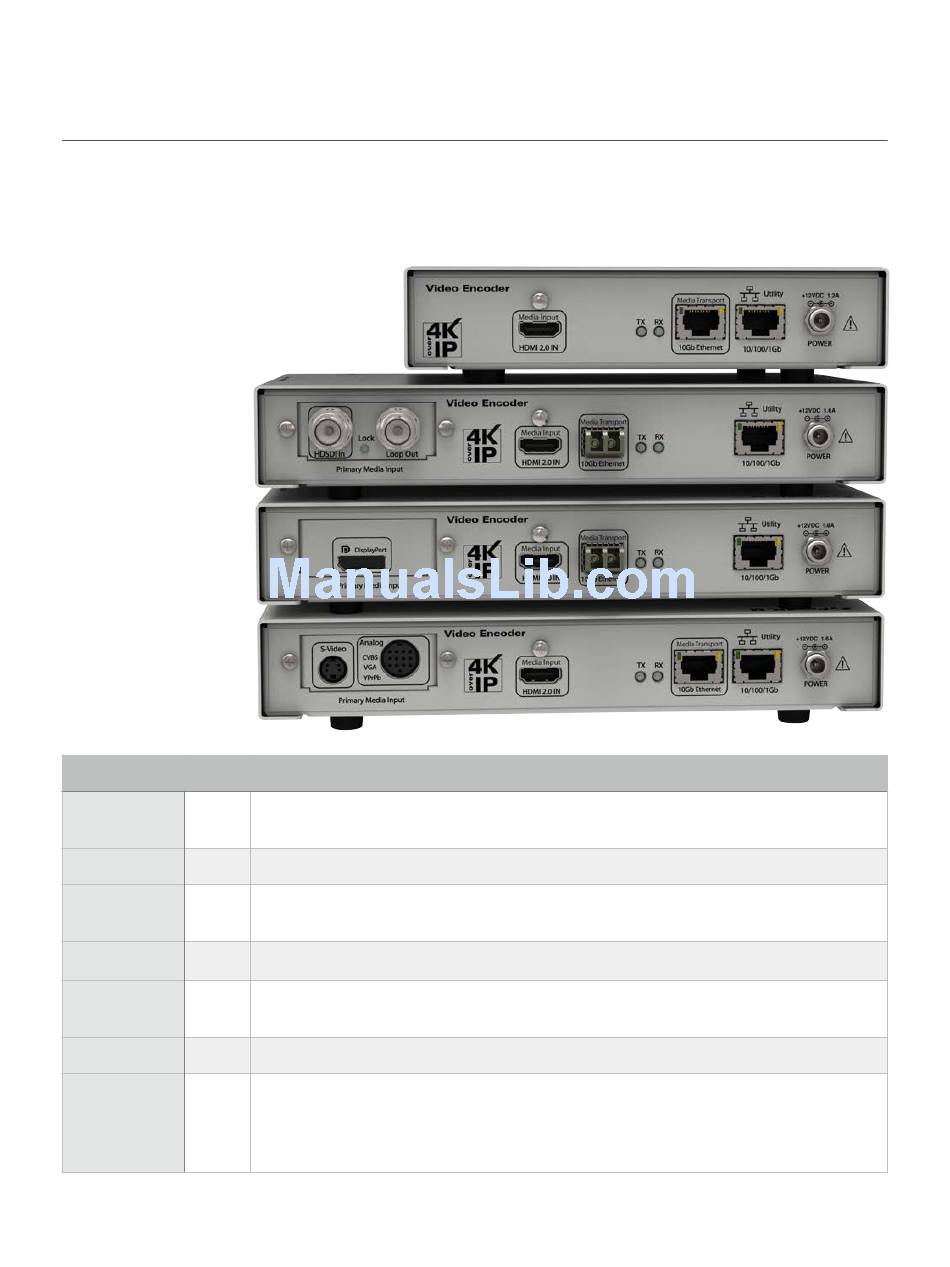

All Encoder units contain a single HDMI 2.0 input port. Optionally, units may be ordered with an
"extended" input. Units so ordered will reside in a somewhat larger enclosure.
Available interface types are shown:
(note: All input types are available
with either 10G Fiber or
10G Copper
Ethernet ports)
Port Name Index Definition
HDMI 2.0 A
HDSDI Input B
HDSDI Loop C
LOCK LED D
DisplayPort E
S-Video F
ZeeVee G
Hydra
Connection
User Manual
B C
D
E
F
G
All encoders contain an HDMI 2.0 port capable of up to 4KP60 4:4:4 with
embedded audio and HDCP 2.2 encryption.
HDSDI Input supports up to 1080P60 w/up to 8-channels of embedded audio.
Copy of HDSDI Input port, retimed and reamplified and presented for
downstream devices.
Blue LED illuminated when receiving valid HDSDI input
Standard DisplayPort Input supporting up to 4K60 input rate with embedded
audio.
Standard S-Video video input. NTSC and PAL supported. Use STD cable.
13-Pin High density DIN connector allows for all signals related to Analog Video
to be input. Types of Hydra Cable supported:
•
Analog Video (YPrPb + S/PDIF + CVBS + LR Audio)
•
VGA Video (HD15 VGA input + LR Audio)
Page
A
A
A
A
9 of 40
