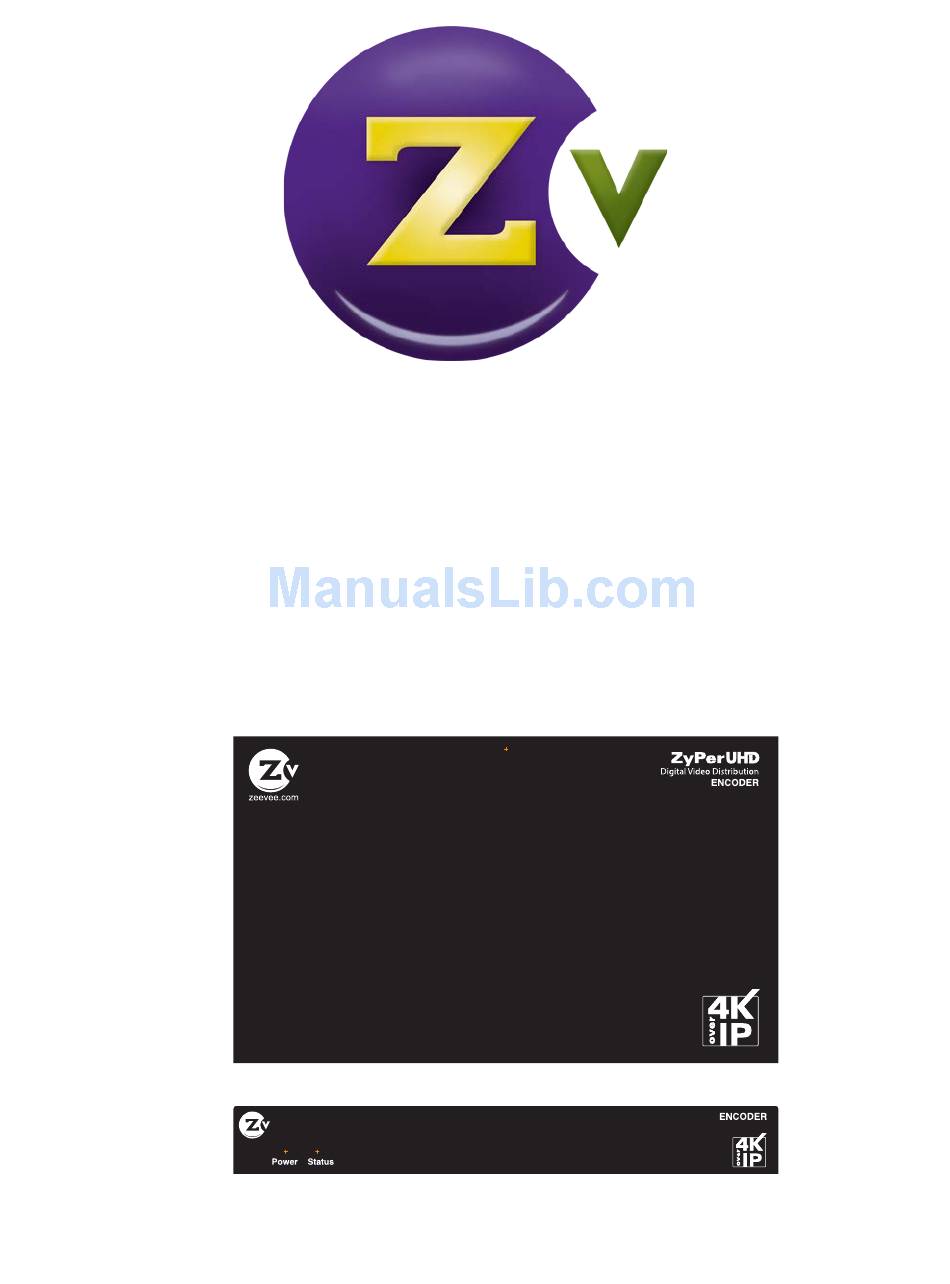

Page 1: User Manual
ZyPerUHD 4K IP VIDEO DISTRIBUTION SYSTEM User Manual Updated July 2017 ... - Page 2 RF coax, fiber, or copper ethernet. Established in 2007, ZeeVee has been manufacturing industry-leading products while operating the company responsibly in compliance with the strictest levels of regulatory and environmental requirements.
-
Page 3: Table Of Contents
......Physical and Environmental ............General Safety and Care Instructions ..........Safety ......................Cleaning ..................... Encoder, Decoder and ZyPerMP Unit Cleaning Procedures ..ZyPerMP Specific Cleaning Procedure ........... Important Siting and Application Considerations ........ ZyPerUHD Equipment Type and Uses ............ - Page 4 Installation Environment ................Mounting Options ................Ventilation ..................Water and moisture ................ AC Mains Connection ................AC Power Cord ................Responsibility and Stewardship ............Reduction of Hazardous Substances (RoHS) ........... Waste Electrical and Electronic Equipment ..........FCC Compliance Statement .............. EMC Information ................
-
Page 5: System Description
ZyPerUHD System Description The ZyPerUHD series of products from ZeeVee provide a means for transmitting and receiving audio-visual information across a standard IP network with outstanding quality at very low latencies. A minimal system consists of: • Video Source • ZyPerUHD Decoder device •... -
Page 6: Zyperuhd Features
ZyPerUHD ZyPerUHD Features • Distributes and switches 4K UHD AV signals via standard gigabit Ethernet networks • Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:2:0, 3840 x 2160@30Hz 4:4:4 • Supports streaming resolutions up to 3840 x 2160@30Hz 4:4:4 •... -
Page 7: Package Contents
ZyPerUHD Package Contents Encoder 1 x ZyPerUHD-E 1 x Power Adapter (12 VDC 1A) 1 x Phoenix Port (Male, 3.5mm, 3 pins) 2 x Phoenix Port (Male, 3.5mm, 5 pins) 1 x IR Emitter (3.9 ft - 1.2m) 1 x IR Wideband Receiver (3.9 ft - 1.2m, 30kHz ~ 50 kHz) -
Page 8: System Elements
System Elements Encoder Function The function of the ZyPerUHD Encoder Device (Encoder) is to accept audio and video data over a variety of interface types, and translate that data to a format suitable for transmission over a standard 1Gb Ethernet network. - Page 9 ZyPerUHD Common Interfaces on all Decoders: • Infrared Input/Output • HDMI Output • 1Gb Ethernet (RJ45 with PoE) • 2 USB Type-A Interfaces • Analog Audio Output • RS232 Input/Output • Power Input (12VDC) User Manual Page...
-
Page 10: Management Platform
Operation of the ZyPerMP, the Maestro-Z application, and the ZyPer-API are beyond the scope of this manual and are documented separately in far greater detail in the ZyPer Management Platform User Manual. Documentation can be downloaded from the ZeeVee website. https://www.zeevee.com/documentation-all-products... -
Page 11: Detailed Interface Descriptions
Encoder The function of the encoder is to accept raw video images, encode, encrypt and format them for transmission. Enclosure There is one size of the ZyPerUHD Encoder unit enclosure. Input Function Box Size HDMI Input Base unit: 200mm Wide x 25mm High x 120mm Deep... -
Page 12: Ports (Encoder Front)
ZyPerUHD Port Name Index Definition HDMI Input HDMI 2.0a input port capable of up to 4KP60 4:2:0 with embedded audio and HDCP 2.2 encryption. HDMI HDMI loop-out of video/audio received on HDMI Input port. Output IR Input Infrared Commands to be passed TO Decoders as configured by Maestro-Z. -
Page 13: Decoder
ZyPerUHD Decoder The function of the ZyPerUHD Decoder is to accept a 1Gb IP feed containing the video information to be displayed. It decodes and formats the video and audio information for display on the attached viewing device. Enclosure There is one size of the ZyPerUHD Decoder unit enclosure. -
Page 14: Ports (Decoder Front)
ZyPerUHD Port Name Index Definition HDMI Out HDMI 2.0a output port capable of up to 4KP30 4:4:4 with embedded audio and HDCP 2.2 encryption. IR Input Infrared Commands to be passed TO Encoders as configured by Maestro-Z. IR Output Infrared Commands information passed FROM Encoders to Decoders as configured by Maestro-Z. -
Page 15: Switch Requirements
ZyPerUHD Switch Requirements When the ZyPerUHD series deliver 4K video, momentary transfer rates may reach as high as 850 Mbps, which requires a gigabit Ethernet switch. (Date rates and compression depend on the resolution, color space and refresh rate of the input video stream.) Switches must support the following features: •... -
Page 16: Setting Up Zyperuhd
A many to many, or switched environment involves connecting many sources to many displays. ZyPerUHD allows you a flexible and scalable amount of input-output options without limitations. For example, in a 24-port configuration, you can configure a 1x23, 6x18, or 4x20 (and so on) system. -
Page 17: Usb Details
• Connect the Encoder and Decoder to each other via the network cable USB Details The ZyPerUHD provides for USB-over-LAN communications. The ZyPerUHD Encoder contains a USB Hub while the ZyPerUHD contains a USB Host. This configuration provides support for up to 4 USB devices. Device types include the following:... -
Page 18: Device Technical Specifications
ZyPerUHD Device Technical Specifications Encoder and Decoder HDMI Video Specifications All encoders and decoders have at least one exposed HDMI port. There is an input and output on the encoder and an output on the decoder. All the parameters in terms of the formats of video and audio carried are the same for either. -
Page 19: Physical And Environmental
Type Parameter A/C Adapter 100-1240VAC 50-60Hz 0.7-0.45A draw on AC Mains Output Max: 12VDC 1.0A ZyPerUHD unit power consumption Powered via either PoE or power adapter. Dimensions 200mm Wide x 25mm High x 120mm Deep Weight 740g (1.63 lb) Operating 0°... -
Page 20: General Safety And Care Instructions
ZyPerUHD General Safety and Care Instructions Safety WARNING: When using electronic products, basic precautions should always be followed, including: • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. •... - Page 21 WARNING: Do not open the box or in any way expose the internal circuitry. WARNING: There are no user-serviceable parts inside the unit. Opening or damaging the ZyPerUHD unit in any way voids the warranty and immediately nullifies any assertion of regulatory compliance made by ZeeVee.
-
Page 22: Cleaning
ZyPerUHD Cleaning Encoder, Decoder and ZyPerMP Unit Cleaning Procedures Before cleaning: 1. Switch off or fully disconnect the AC power from the external supply unit connector to the ZyPer unit. 2. If the state of the AC power cannot be established, disconnect the DC input plug from the ZyPer unit before proceeding. -
Page 23: Zypermp Specific Cleaning Procedure
ZyPerUHD Care should be taken to not spray cleaner directly on to the unit or into the vents to avoid liquid ingress and damage to the internal electronics. CAUTION: Do not apply or spray liquid directly on to the unit’s exterior as excess liquid may cause damage to internal electronics. -
Page 24: Important Siting And Application Considerations
• Equipment is intended for the sophisticated display and presentation of decoded information that has been distributed by companion ZyPerUHD equipment. • Equipment is intended to be controlled from a central control node (the ZyPerMP) which ties in to a customer control system for sophisticated presentation and management of the information flow and direction. -
Page 25: Installation Environment
ZyPerUHD Installation Environment The general area where the ZyPerUHD unit is to be installed shall be clean and free of obstructions or clutter. Mounting Options • Unit may be mounted horizontally on the installed rubber feet • Unit may be bolted to a horizontal surface using the provided L-brackets with or without feet installed. -
Page 26: Water And Moisture
Water and moisture Never expose the ZyPerUHD unit to direct rain, moisture, or excessively high humidity. Never use the device near water - e.g. near a bathtub, basin, pool, sink, or in a wet basement. Clean only in accordance with the instructions in this manual. -
Page 27: Ac Mains Connection
The ZyPerUHD system is intended and rated for continuous operation Should the ZyPerUHD equipment be unused for an extended period of time it should be disconnected from the AC mains at the AC inlet to the external AC/DC converter in order to protect the equipment from transient over-voltage conditions. -
Page 28: Ac Power Cord
ZyPerUHD AC Power Cord Connect the external AC/DC supply unit to the AC mains with a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 250 V min., plug 5-15P configuration for 120V application, or 6-15P for 240V application. -
Page 29: Responsibility And Stewardship
Product Lines: ZyPer Products supplied by ZeeVee, Inc. Be advised that based on the information available to ZeeVee from our component and sub- assembly providers, the product lines listed above do not contain as intentional additives, any of the referenced materials at the levels indicated, as referenced in the subject EU directives. To the best of our knowledge, none of these materials are generated during production and the supplied component parts of the ZeeVee products do not contain the listed materials. - Page 30 This information is believed to be accurate and refers to the laws, regulations and products at the date of issue. However, ZeeVee makes no express or implied representations or warranties with respect to the information contained herein. It is the responsibility of our customers to determine that their use of ZeeVee products is safe, lawful, and technically suitable for their applications.
-
Page 31: Fcc Compliance Statement
ZyPerUHD FCC Compliance Statement The ZyPerUHD family of devices has been tested and found to comply with the limits for Class A Digital Devices pursuant to Part 15 of the FCC Rules. Operation is subject to the following conditions: 1) these devices may not cause harmful interference, and 2) these devices must accept any interference received including interference that may cause undesired operation. -
Page 32: Emc Information
The supplied Power Supply (AC/DC Conversion unit) should be used. Any other AC/DC supply has not been tested or verified to perform at the levels indicated in this manual. Media cables are not provided and the ZyPerUHD devices are generally fairly tolerant of different types and manufacture styles. -
Page 33: Disclaimers
ZeeVee hardware designs are property of ZeeVee. Components, sub-assemblies, and methods utilized in the designs are free of any encumbrances or appropriate licenses and rights have been obtained by ZeeVee for the use in the described products in the intended manner.
