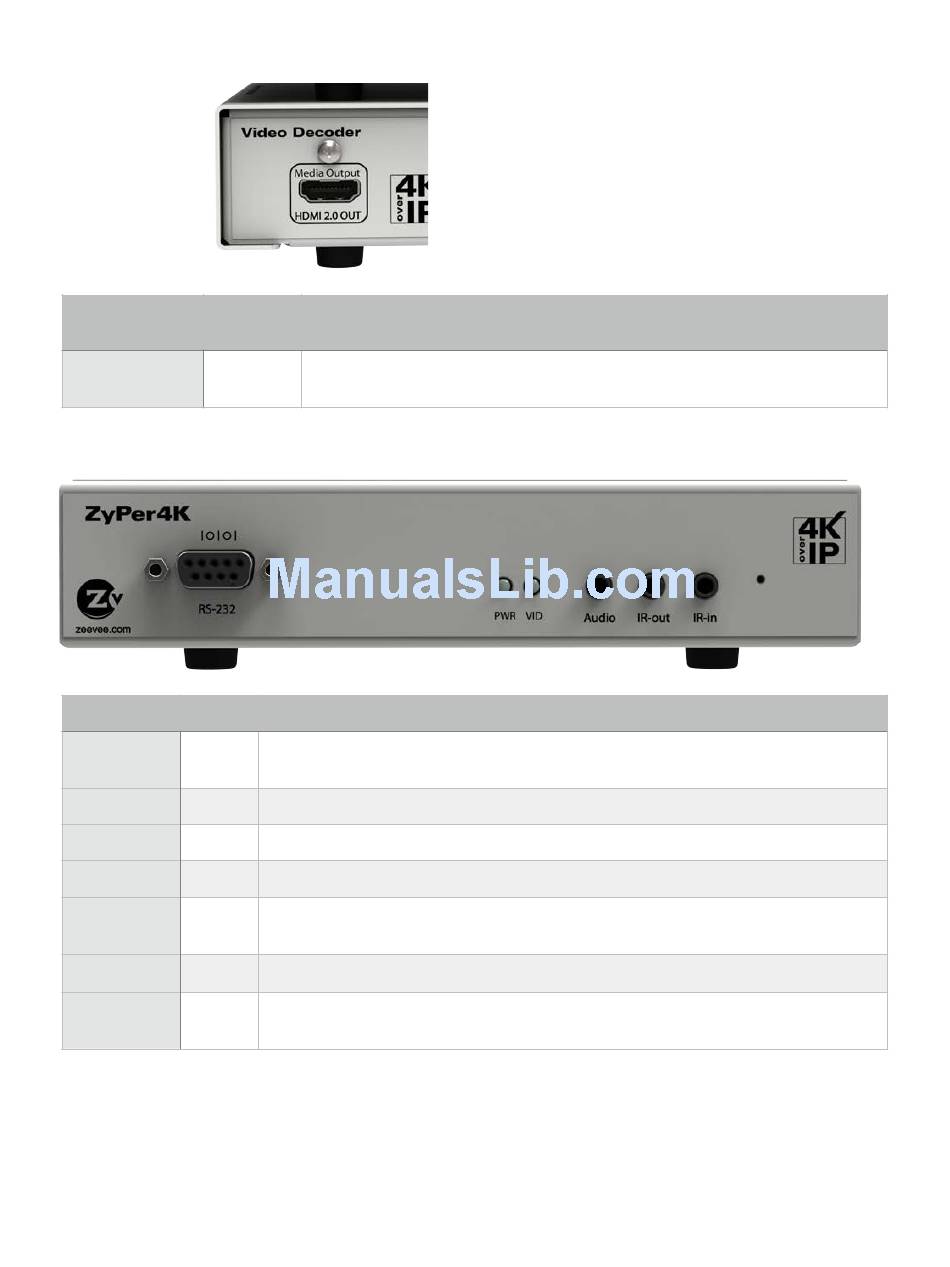

ZyPer4K
Port Name
Index
HDMI Output
A
Port Name
Index
RS 232 Port
A
LED PWR
B
LED VID
C
Audio
D
IR-OUT
E
IR-IN
F
RESET
G
User Manual
A
Definition
A
HDMI 2.0 Output port. Capable of up to 4K60 4:4:4 with embedded
audio and HDCP2.2 encryption.
Definition
RS232 Control Port for sending and receiving side-band serial traffic to/from
encoders as directed by Maestro-Z management
LED illuminated when unit is powered
LED Illuminated when active video is being processed
Audio Output Jack. Drives line-level stereo audio on 3.5mm jack.
Infrared Commands information passed FROM Encoders to Decoders as
configured by Maestro-Z
Infrared Commands to be passed TO Encoders as configured by Maestro-Z.
Reset to defaults. Using a wire or paper clip, lightly press into this hole while
unit is powered to activate a button that resets unit to factory defaults.
Page
D
E
B
C
12
of
40
F
G
