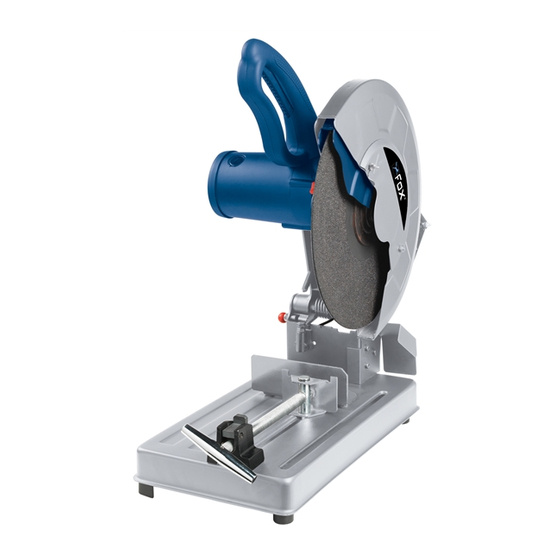

CUT-OFF SAW
(Fox model F20-140A)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F20-140A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fox F20-140A

Summary of Contents for Fox F20-140A

  • Page 1 CUT-OFF SAW (Fox model F20-140A)
  • Page 2 Cut-off saw (FOX model F20-140A) INDEX  Safety instructions  General safety instructions  Specific safety instructions for cut-off saw  Environment protection  Symbols  Electrical connections  Recommended use  Technical specifications  Noise conditions  Cut off photos ...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS CAUTION: Besides following the instructions mentioned in this manual, when using electric equipment you must always observe all safety precautions to prevent risk of fire, electric shock and personal injury. Read this instruction manual before use and keep it carefully. Working with an electric machine can be dangerous if you do not follow suitable safety measures.

  • Page 4: General Safety Instructions

    16. Do not force the machine. You can obtain better and safer results if you use the machine at the cutting pressure for which it has been designed. 17. Use the suitable tool. Do not use a small tool for an intensive job. Fox example, do not use a circular saw to cut branches or stumps.
  • Page 5 18. Block the piece. If possible, use C-clamps or a holder to fix the piece. It is safer than using only your hands. 19. Keep the tools in perfect conditions. Keep the tools sharp and clean to obtain better and safer results.
  • Page 6 SPECIFIC SAFETY INSTRUCTIONS FOR CUT-OFF SAWS ALWAYS disconnect the cut-off saw from the socket before any repair, maintenance work, cleaning, replacement of the saw blade or any kind of intervention. DO NOT START the cut-off saw until it is completely assembled and installed according to the instructions of this manual, the protection devices are assembled and working, and the various lock handles are firmly tightened.
  • Page 7 ENVIRONMET PROETCTION INFORMATION FOR USERS In accordance with art. 13 of Legislative Decree 25th July 2005, no. 151 “Implementation of Directives 2002/95/EEC, 2002/96/EEC and 2003/108/EEC, relative to reducing the use of hazardous substances in electric and electronic appliances and the disposal of waste”, please take note of the following: ...

  • Page 8: Electrical Connections

    Serial number / year of production ELECTRICAL CONNECTIONS ELECTRICAL CONNECTIONS Use 230 V 50 Hz alternate voltage equipped with a earthing conductor to supply your machine. Ensure that the power supply corresponds to this voltage, that it is protected by a differential and magnetothermal switch, and that the earthing system is efficient.

  • Page 9: Recommended Use

    Extension lead length: up to 15 m Cable dimensions: 3 x 2,5 mm² Before using any kind of extension lead, check there are not bare wires and that the insulation is not cut or worn. Repair and change immediately it if it is damaged or worn. WARNING: Extension lead must be arranged away from the working area in order that they do not get in touch with the workpieces, the tool or other parts of the machine, thus creating possible risks.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS Engine power: 2000 W 230 V – 50 Hz Voltage and frequency: Speed without cutting: 3000 RPM Abrasive disc: External diameter: 355 mm Bore diameter: 30 mm Capacity at 90° (with clamp) Circle: 127 mm Rectangle: 127 x 152 mm Square: 127 x 127 mm Paking dimensions...
  • Page 11 CUT OFF SAW PHOTOS Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6...
  • Page 12 Fig.7 Fig.8 Fig.9 Fig.10...

  • Page 13: Removal Of Package

    MACHINE DESCRIPTION The cut-off saw F20-140A cuts all ferrous materials. The 2000 W powerful engine allows you to cut rapidly. The fixed metal protective cap and the metal-sheet moving ones constitute the protective devices for the user. The lock clamp can turn from 0 to 45°...
  • Page 14 CONTROLS AND ADJUSTMENTS ON/OFF SWITCH (Fig.3) The cut-off saw is provided with an ON/OFF switch that is located on the handle of the machine. To start the saw, push button A first, then push button B. To stop it, release button B. VICE (Fig.4) You can rapidly and easily block the piece through the vice as explained below: 1.
  • Page 15 FUNCTIONING After correctly blocking the piece to be cut in the vice, start the machine and let the motor run at its maximum speed. Slowly lower the disc (A), until it comes into contact with the piece to be cut (B). Exert a constant pressure on the disc to avoid any skipping that could make the disc oval and thus compromise cutting quality and also break the disc.

  • Page 16: Maintenance

    REPLACEMENT OF THE DISC (Fig.9) CAUTION: Switch off the cut-off saw and disconnect it from the current, by removing the plug from the socket before any adjustment, repair, maintenance work, cleansing and before replacing the disc. DISCONNECT THE TOOL FROM THE POWER SUPPLY. On the exterior of the fixed protective cap, loosen the screw that fix the circular cover in the central area of the disc, in order to access to the disc lock crew.
  • Page 17 The warranty period for the FOX branded products is one year for parts and labour and three years for parts only. The guarantee does not include repair, labour or parts requiring replacement because of misuse, abuse, or normal wear and tear.
  • Page 18 CE DECLARATION OF CONFORMITY OF THE MANUFACTURER SERRACON WHEATFIELD ROAD DUNNIKIER BUINESS PARK KIRKCALDY, UK, KY1 3PD Tel. +44 (0) 1592 652946 Fax: +44 (0) 1592 654854 Declares that the: CUT-OFF SAW (F20/140A) is in compliance with the regulations included in the Directives: CEE 2006/42-2004/108-2006/95 Person authorized to create the technical file: Robert Paterson 06.05.2011 The Director...
  • Page 19 F20-140A CUT-OFF SAW...
  • Page 20 F20-140A CUT-OFF SAW REF NO REF NO F20140A-1 F20140A-54 F20140A-2 F20140A-55 F20140A-3 F20140A-56 F20140A-4 F20140A-57 F20140A-5 F20140A-58 F20140A-6 F20140A-59 F20140A-7 F20140A-60 F20140A-8 F20140A-61 F20140A-9 F20140A-62 F20140A-10 F20140A-63 F20140A-11 F20140A-64 F20140A-12 F20140A-65 F20140A-13 F20140A-66 F20140A-14 F20140A-67 F20140A-15 F20140A-68 F20140A-16 F20140A-69 F20140A-17...
  • Page 21 WIRING DIAGRAM...
