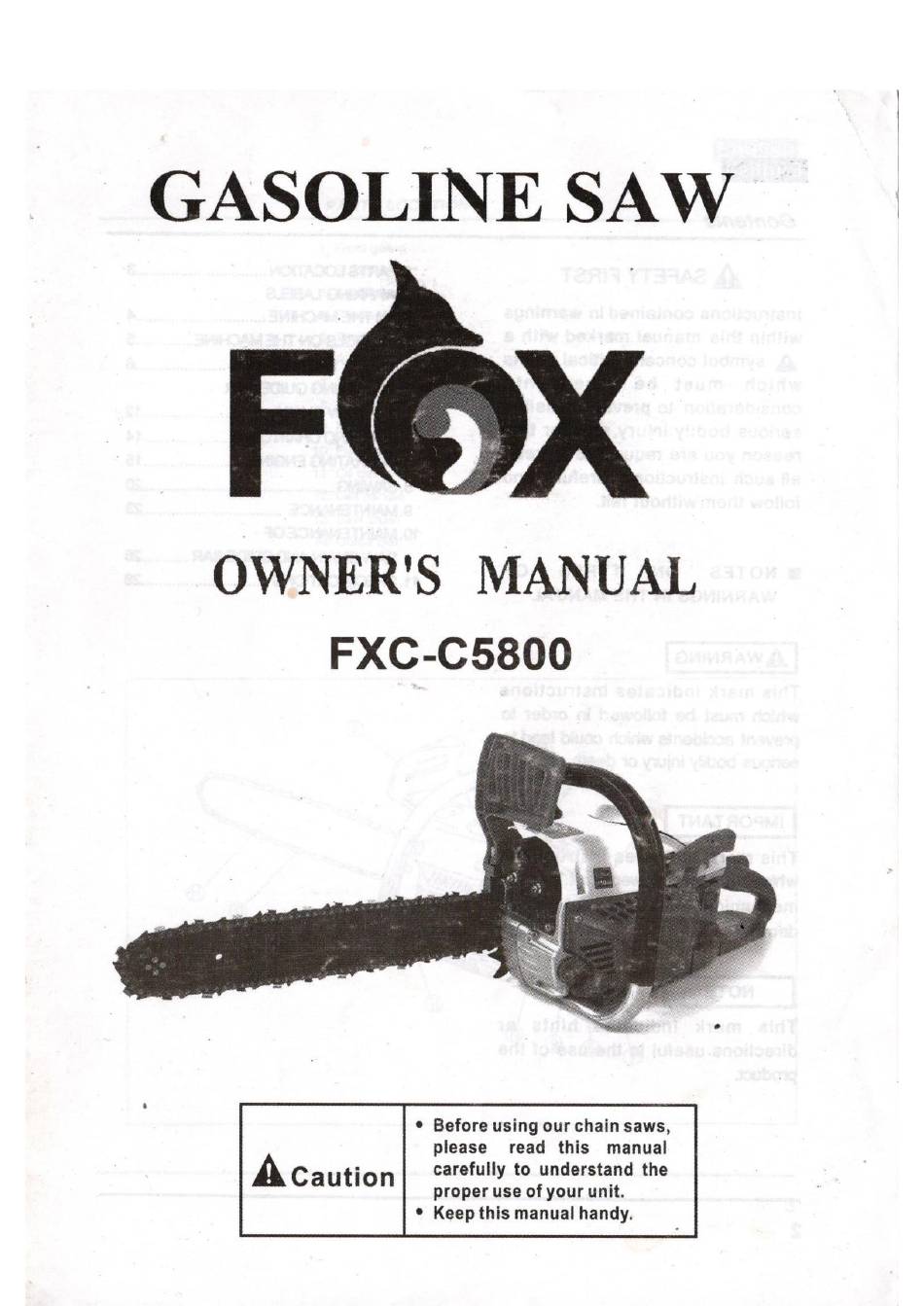

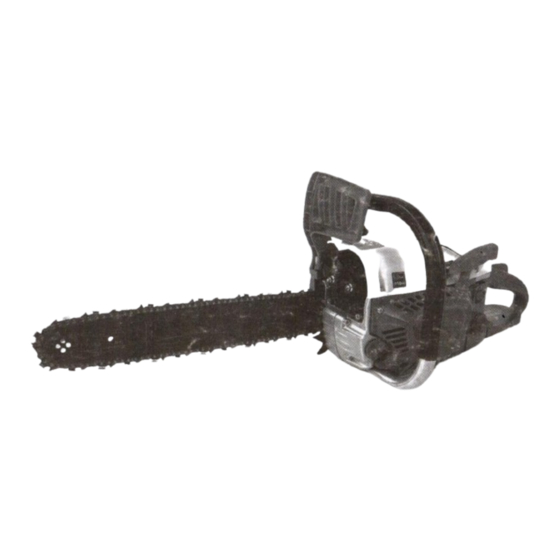

  • Page 1 OWNERS MANUAL FXC- C5800 www.Farahanico.ir GAZOLINE SAW FOX...

  • Page 2: Table Of Contents

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir Contents A SAFETY FIRST Instructions contained in warnings within this manual marked with a symbol concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail. 1.

  • Page 3: Parts Location

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 1. PARTS LOCATION 1.front guard 2.starter knob 3.Air cleaner 4.Choke knob 5.Throttle lock button 6.Right handle 7.Throttle lever 8. throttle lock button 9. Engine switch 10. Fuel tank 11. O il tank 12. left handle 13.

  • Page 4: Warning Labels On The Machine

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 2 .WARNING LABELS ON THE MACHINE (1) Read owner's manual before operating this machine. (2) Wear head, eye and protection. (3) Use the chain saw with two hands (4) Warning! Kickback it's danger (5) Warning/Attention IMPORTANT If warning seals peel off or become soiled and impossible to read, you should contact the dealer from which you purchased the product to order new seals and affix the new seal(s) in the required location(s) .

  • Page 5: Symbols On The Machine

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 3 .SYMBOLS ON THE MACHINE For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please be careful not to take a mistake. (a). The port to refuel the "MIX GASOLINE Position: fuel tank cap (b).

  • Page 6: Safety Precautions

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 4 .SAFETY PRECAUTIONS BEFORE USING THE MACHINE a. Read this owner's manual carefully to understand how to operate this unit properly . b. You should never use the product when under the influence of alcohol, when suffering from exhaustion or lack of sleep, when suffering from drowsiness as a result of having taken cold medicine, or at any other time when a possibility exists that your judgment might be impaired or that you might not be able to operate the...
  • Page 7 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 4.SAFETY PRECAUTIONS f. Lack of sleep, tiredness, or physical exhaustion results in lower attention spans, and this in turn leads to accidents and injury. Limit the amount of time of using the machine continuously to somewhere around 10 minutes per session, and take 10-20 minutes of rest between work sessions.

  • Page 8: Before Starting Engine

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 4 .SAFETY PRECAUTIONS WARNING CONSIDERING HANDLING OF FUELS a. The engine of this product is designed to run BEFORE STARTING ENGINE on a mixed fuel which contains highly flammable gasoline. Never store cans of fuel or .Check working place, the cutting object and refill the fuel tank in any place where there is a cutting direction.

  • Page 9: When Starting The Engine

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir WHEN STARTING THE ENGINE . Always hold the machine firmly with both hands when the engine is running. Use a firm grip with thumb and fingers encircling the handles. . Keep all parts of your body away from the machine when the engine is running .
  • Page 10 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 4 .SAFETY PRECAUTIONS KICKBACK SAFETY PRECAUTIONS FOR CHAIN SAW WARNING .Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
  • Page 11 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 4. SAFETY PRECAUTIONS MAINTENANCE . In order to maintain your product in proper working order, perform the maintenance and checking operations described in the manual at regular intervals . . Always be sure to turn off the engine before performing any maintenance or checking procedures.

  • Page 12: Installing Guide Bar And Saw Chain

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 5. INSTALLING GUIDE BAR AND SAW CHAIN A standard saw unit package contains the items as illustrated. (F1) (1) Power unit (2) Bar protector (3) Guide bar (4) Saw chain (5) Plug wrench (6) Screwdriver for carburetor adjustment (7) Spike and mounting screws Open the box and install the guide bar and the saw chain on the power unit as follows:...

  • Page 13: Fuel And Chain Oil

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 6 .FUEL AND CHAIN OIL FUEL Mix a regular grade gasoline (leaded or unleaded, alcohol-free) and a quality-proven motor oil for air cooled 2 cycle engines. Recommended mixing ratio: Condition Gasoline : oil Up to 20 hours use 20: 1 After 20 hours use 25: 1...

  • Page 14: Operating Engine

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 7 .OPERATING ENGINE STARTING ENGINE 1 .Fill fuel and chain oil tanks respectively, and tighten the caps securely, (F7) 2 .Put the switch to "ON" position. (F8) 3 .While holding the throttle lever together with the throttle interlock, push in the side throttle lock button and release the throttle lever to hold it at the starting position.
  • Page 15 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 7 .OPERATING ENGINE CHECKING OIL SUPPLY After starting the engine, run the chain at medium speed and see if chain oil is scattered off as shown in the figure. (F12) (1)Chain oil The chain oil flow can be changed by inserting a screwdriver in the hole on bottom of the clutch side.
  • Page 16 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 7.OPERATING ENGINE OUT HOW TO SWITCH BETWEEN OPERATING MODES (F15) 1. Flip the engine switch to turn off the engine. 2. Remove the air cleaner cover from the cylinder cover 3.Loosen a screw and remove the screen on the back of the air cleaner cover.

  • Page 17: Stopping Engine

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 7 .OPERATING ENGINE CHAIN BRAKE This machine is equipped with an automatic brake to stop saw chain rotation upon occurrence of kickback while in saw cutting operation. The brake is automatically operated by inertial force which acts on the weight fitted inside the front guard .

  • Page 18: Sawing

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 8 .SAWING WARNING Before proceeding to your job. read "For Safe Operation" section It is recommended to first practice sawing easy logs. This also helps you get accustomed to your unit. Always follow the safety regulations. The chain saw must only be used for cutting wood.
  • Page 19 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 8 .SAWING Removal of the safety devices, inadequate maintenance, or incorrect replacement of the bar or chain may increase the risk of serious personal injury due to kickback . FELLING A TREE (F22) 1 .Decide the felling direction considering the wind, lean of the tree, location of heavy branches, ease of job after felling and other factors.
  • Page 20 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 8 .SAWING A Log lying on the ground (F23) Saw down halfway, then roll the log over and cut from the opposite side. A Log hanging off the ground (F24) In area A. saw up from the bottom one-third and finish by sawing down from the top.

  • Page 21: Maintenance After Each Use

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 8 .MAINTENANCE found, make sure to have them repaired before WARNING Before cleaning, inspecting or repairing your unit, make sure that engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting . MAINTENANCE AFTER EACH USE 1 .Air filter Dust on the cleaner surface can be removed by...
  • Page 22 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 9. MAINTENANCE PERIODICAL SERVICE POINTS 1.Cylinder fins Dust clogging between the cylinder fins will cause overheating of the engine. Periodically check and clean the cylinder fins after removing the air cleaner and the cylinder cover. When installing the cylinder cover.

  • Page 23: Maintenance

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 9 .MAINTENANCE 4 .Spark plug (F34) Clean the electrodes with a wire brush and reset the gap to 0.65 mm as necessary. Champion NGK G455AVS CJ-7Y BPM7A G500AVS CJ-6Y BPM8Y 5 .Sprocket (F35) Check for cracks and for excessive wear interfering with the chain drive.

  • Page 24: Maintenance Of Saw Chain And Guide Bar

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir 10. MAINTENANCE OF SAW CHAIN AND Make sure every cutter has the same length and GUIDE BAR edge angles as illustrated. (F38) SAW CHAIN (4) Cutter Lerngth (5) Filling angle WARNING (6) Side plate angle It is very important for smooth and safe operation to keep the cutters always sharp.

  • Page 25: Specifications

    OWNERS MANUAL FXC- C5800 www.Farahanico.ir Dimensions (L x W x H) (mm):410 x 235 x 265 10 .MAINTENANCE OF SAW CHAIN AND Dry weight(kg):.5.4 GUIDE BAR GUIDE BAR Without guide bar and chain Empty tanks Reverse the bar occasionally to prevent partial Cutting head : wear .
  • Page 26 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫فاکس‬ ‫ی بنزینی‬ ‫موتور‬ ‫اره‬ ‫مالکان‬ ‫ی‬ ‫راهنما‬ FXC- C5800 ‫اط‬ ‫ی‬ ‫احت‬ ‫. د ی‬ ‫از دستگاه خود را درک کن‬ ‫ح ی‬ ‫تا نحوه استفاده صح‬ ‫د ی‬ ‫راهنما را به دقت بخوان‬ ‫ن...
  • Page 27 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫فهرست‬ ‫ی‬ ‫من‬ ‫ی ا‬ ‫اول‬ ‫است که‬ ‫ی‬ ‫دفترچه راهنما که با عالمت .. مشخص شده اند مربوط به نکات مهم‬ ‫ن ی‬ ‫موجود در ا‬ ‫ی‬ ‫موجود در هشدارها‬ ‫ی‬ ‫ها‬ ‫دستورالعمل‬ ‫دستورالعمل‬ ‫ن...
  • Page 28 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫. مکان قطعات‬ ‫. گارد جلو‬ ‫استارت‬ ‫ره ی‬ ‫. دستگ‬ ‫. پاک کننده هوا‬ ‫چوک‬ ‫ره ی‬ ‫. دستگ‬ ‫گاز‬ ‫چه‬ ‫ی‬ ‫.دکمه قفل در‬ ‫دسته راست‬ ‫گاز‬ ‫چه‬ ‫ی‬ ‫اهرم در‬ ‫گاز‬ ‫چه‬ ‫ی‬...
  • Page 29 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫دستگاه‬ ‫ی‬ ‫هشدار دهنده رو‬ ‫ی‬ ‫. برچسب ها‬ ‫. د ی‬ ‫مالک را بخوان‬ ‫ی‬ ‫دستگاه، دفترچه راهنما‬ ‫ن ی ا‬ ‫) قبل از کار با‬ ‫. د ی‬ ‫) از سر، چشم و محافظ استفاده کن‬ ‫د...
  • Page 30 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫سوزن ال‬ ‫ت‬ ‫ی‬ ‫موقع‬ ‫ن ی‬ ‫ماش‬ ‫ی‬ ‫رو‬ ‫ی‬ ‫. نمادها‬ ‫کار‬ ‫ی ب‬ ‫م ی‬ ‫تنظ‬ ‫چ‬ ‫ی پ‬ ‫ت‬ ‫ی‬ ‫موقع‬ ‫ی‬ ‫به صورت برجسته رو‬ ‫یی‬ ‫نمادها‬ ،‫من‬ ‫ی‬ ‫ا ی‬ ‫کارکرد...
  • Page 31 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫که ممکن است‬ ‫ی‬ ‫گر ی‬ ‫در هر زمان د‬ ‫ا ی‬ ‫د ی‬ ‫. در شب، در مواقع مه شد‬ ‫از منطقه‬ ‫ی‬ ‫واضح‬ ‫د ی‬ ‫بتوان د‬ ‫ی‬ ‫شما محدود باشد و به سخت‬ ‫د‬...
  • Page 32 OWNERS MANUAL FXC- C5800 www.Farahanico.ir )‫برداشتن موانع‬ ‫ی‬ ‫اره (برا‬ ‫ا ی‬ ‫هچت‬ ‫ی‬ ‫من ی‬ ‫ا ی‬ ‫اط ی‬ ‫. اقدامات احت‬ ‫دن‬ ‫ی‬ ‫گشاد، هنگام پوش‬ ‫پاچه های‬ ‫شلوار با‬ ‫دن‬ ‫ی‬ ‫هرگز هنگام پوش‬ ‫. ج‬ ‫منجر به کاهش تمرکز‬ ‫ی‬...
  • Page 33 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ه ی‬ ‫منطقه کار روشن، پا‬ ‫ک‬ ‫ی‬ ‫که‬ ‫ی‬ ‫تا زمان‬ ‫د ی‬ ‫. هرگز شروع به برش نکن‬ ‫ی‬ ‫من ی‬ ‫ا ی‬ ‫اط ی‬ ‫. اقدامات احت‬ ‫از درخت‬ ‫ی‬ ‫ن ی‬ ‫عقب...
  • Page 34 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫که تحت کشش است، مراقب برگشت فنر‬ ‫ی‬ ‫اندام‬ ‫دن‬ ‫ی بر‬ ‫هنگام‬ ‫هنگام استارت زدن موتور‬ ‫. د ی‬ ‫چوب ضربه نخور‬ ‫اف‬ ‫ی‬ ‫تا با رها شدن کشش ال‬ ‫د ی‬ ‫باش‬ ‫را با دو دست‬ ‫ن...
  • Page 35 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫من ی‬ ‫ا ی‬ ‫اط ی‬ ‫. اقدامات احت‬ ‫ی‬ ‫ر ی‬ ‫اره زنج‬ ‫ی‬ ‫پس زدن برا‬ ‫ی‬ ‫من ی‬ ‫ا ی‬ ‫اط ی‬ ‫احت‬ ‫اقدامات‬ ‫هشدار‬ ‫شود و‬ ‫ی‬ ‫که چوب بسته م‬ ‫ی‬...
  • Page 36 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫من‬ ‫ی ا‬ ‫ی‬ ‫اط‬ ‫ی‬ ‫. اقدامات احت‬ ‫ی‬ ‫نگهدار‬ ،‫د‬ ‫ی کن‬ ‫ی‬ ‫مناسب نگهدار‬ ‫ی‬ ‫کار‬ ‫ط ی‬ ‫محصول خود را در شرا‬ ‫نکه‬ ‫ی ا‬ ‫ی‬ ‫. برا‬ ‫شرح داده شده در دفترچه راهنما را‬ ‫ی‬...
  • Page 37 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫اره‬ ‫ر ی‬ ‫. نصب نوار راهنما و زنج‬ ‫ر ی‬ ‫است که در تصو‬ ‫ی‬ ‫واحد اره استاندارد شامل موارد‬ ‫ی‬ ‫بند‬ ‫بسته‬ ( .‫نشان داده شده است‬ ‫) واحد قدرت‬ ‫) محافظ نوار‬ ‫نوار...
  • Page 38 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ر ی‬ ‫. روغن سوخت و زنج‬ ‫سوخت‬ ‫روغن‬ ‫ک‬ ‫ی‬ ‫بدون سرب، بدون الکل) و‬ ‫ا ی‬ ‫(سرب‬ ‫ی‬ ‫معمول‬ ‫ن ی‬ ‫بنز‬ ‫ک‬ ‫ی‬ ‫هوا خنک را‬ ‫کل‬ ‫ی س‬ ‫ی‬ ‫موتورها‬ ‫ی‬ ‫اثبات...
  • Page 39 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫ات ی‬ ‫. موتور عمل‬ ‫راه اندازی موتور‬ ‫و درپوش ها‬ ‫د ی‬ ‫پر کن‬ ‫ب ی‬ ‫را به ترت‬ ‫ر ی‬ ‫. مخازن روغن سوخت و زنج‬ ‫د ی‬ ‫را محکم ببند‬ ‫د ی‬ ‫"روشن"...
  • Page 40 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫ت ی‬ ‫تا موقع‬ ‫د ی‬ ‫ساعت بچرخان‬ ‫ی‬ ‫در جهت عقربه ها‬ ‫ی‬ ‫را به آرام‬ ‫. سوزن‬ ‫ی‬ ‫ات ی‬ ‫. موتور عمل‬ ‫ک‬ ‫ی‬ ‫حداکثر است، سپس سوزن را‬ ‫کار‬ ‫ی‬ ‫که...
  • Page 41 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫ات ی‬ ‫. موتور عمل‬ ‫ی‬ ‫ات ی‬ ‫عمل‬ ‫ی‬ ‫ها‬ ‫حالت‬ ‫ن‬ ‫ی ب‬ ‫یی‬ ‫جا‬ ‫جابه‬ ‫نحوه‬ .‫تا موتور خاموش شود‬ ‫د ی‬ ‫موتور را بچرخان‬ ‫چ ی‬ ‫. سوئ‬ ‫د ی‬ ‫جدا...
  • Page 42 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫ات ی‬ ‫. موتور عمل‬ ‫ر ی‬ ‫زنج‬ ‫ترمز‬ ‫اره در‬ ‫ر ی‬ ‫توقف چرخش زنج‬ ‫ی‬ ‫برا‬ ‫ک‬ ‫ی‬ ‫دستگاه مجهز به ترمز اتومات‬ ‫ن ی ا‬ ‫باشد. ترمز به طور‬ ‫ی‬ ‫برش اره م‬ ‫ات‬...
  • Page 43 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫. اره کردن‬ ‫هشدار‬ " " ‫را‬ ‫من‬ ‫ی ا‬ ‫ات‬ ‫ی‬ ‫عمل‬ ‫ی‬ ‫برا‬ ‫. بخش‬ ‫د ی‬ ‫به کار خود ادامه ده‬ ‫نکه‬ ‫ی‬ ‫قبل از ا‬ ‫. د‬ ‫ی کن‬ ‫ن ی‬ ‫را...
  • Page 44 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫. اره کردن‬ ‫نادرست‬ ‫ی ن‬ ‫ی گز‬ ‫ی جا‬ ‫ا ی‬ ‫، ی‬ ‫ناکاف‬ ‫ی‬ ‫و نگهدار‬ ‫ر ی‬ ‫تعم‬ ‫، ی‬ ‫من‬ ‫ی ا‬ ‫ل ی‬ ‫برداشتن وسا‬ ‫را در اثر لگد زدن‬ ‫ی‬...
  • Page 45 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫. اره کردن‬ ‫سپس کنده‬ ‫د، ی‬ ‫اره کن‬ ‫مه‬ ‫ی‬ ‫) تا ن‬ ( ‫افتاده است‬ ‫ن‬ ‫ی زم‬ ‫ی‬ ‫که رو‬ ‫ی‬ ‫کنده ا‬ ‫. د ی‬ ‫و از طرف مقابل ببر‬ ‫د ی‬ ‫آن...
  • Page 46 OWNERS MANUAL FXC- C5800 www.Farahanico.ir 9. MAINTENANCE ‫هشدار‬ ‫که موتور‬ ‫د ی‬ ‫دستگاه، مطمئن شو‬ ‫ر ی‬ ‫تعم‬ ‫ا ی‬ ‫ی‬ ‫کردن، بازرس‬ ‫ز ی‬ ‫از تم‬ ‫قبل‬ ‫شمع را‬ ‫ی‬ ‫تصادف‬ ‫استارت‬ ‫از‬ ‫ی‬ ‫ر ی‬ ‫جلوگ‬ ‫ی‬ ‫خاموش است و خنک است. برا‬ ‫.
  • Page 47 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫. نگهدار‬ ‫ی‬ ‫خدمات دوره ا‬ ‫نقاط‬ ‫لندر‬ ‫ی س‬ ‫ی‬ ‫. پره ها‬ ‫از حد‬ ‫ش‬ ‫ی‬ ‫باعث گرم شدن ب‬ ‫لندر‬ ‫ی س‬ ‫ی‬ ‫پره ها‬ ‫ن ی‬ ‫گرد و غبار ب‬ ‫ی‬...
  • Page 48 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫ی‬ ‫. نگهدار‬ ( ‫. شمع‬ ‫و در صورت لزوم شکاف را‬ ‫د‬ ‫ی کن‬ ‫ز‬ ‫ی تم‬ ‫ی‬ ‫م ی‬ ‫برس س‬ ‫ک‬ ‫ی‬ ‫را با‬ ‫الکترودها‬ ‫. د‬ ‫ی کن‬ ‫م ی‬ ‫متر تنظ‬ ‫ی‬...
  • Page 49 OWNERS MANUAL FXC- C5800 www.Farahanico.ir ‫سوهان‬ ‫ه ی‬ ‫) زاو‬ ‫راهنما‬ ‫له ی‬ ‫اره و م‬ ‫ر ی‬ ‫زنج‬ ‫ی‬ ‫. نگهدار‬ ‫ی‬ ‫صفحه جانب‬ ‫ه ی‬ ‫) زاو‬ ‫اره‬ ‫ر ی‬ ‫زنج‬ ‫یی‬ ‫برش صفحه باال‬ ‫ه ی‬ ‫) زاو‬ ‫هشدار‬...
  • Page 50 OWNERS MANUAL FXC- C5800 www.Farahanico.ir :‫برش‬ ‫سر‬ ‫راهنما‬ ‫له ی‬ ‫اره و م‬ ‫ر ی‬ ‫زنج‬ ‫ی‬ ‫. نگهدار‬ ‫راهنما‬ ‫نوار‬ ‫راهنما‬ ‫نوار‬ 188PXBK 095 ‫نوع‬ ‫. د ی‬ ‫را گهگاه معکوس کن‬ ‫له‬ ‫ی م‬ ‫، ی‬ ‫جزئ‬ ‫ش‬ ‫ی‬...
