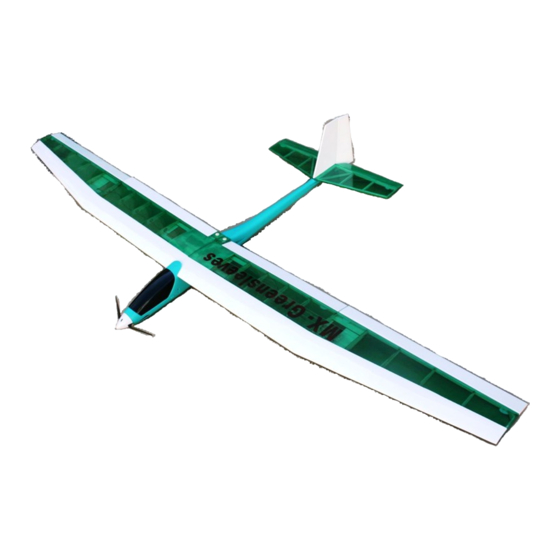

Congratulations on your purchase of this classic 4-channel
or 5-channel radio-controlled almost-ready-to fly electric-powered
sports-aerobatic glider! This model includes ailerons, rudder, elevator and throttle
controls plus flaps (the flaps may also be setup as spoilers). With its smoothly contoured
spinner, folding propeller, rugged fuselage and built-up, Mylar covered removable 2-piece wing, it is rugged
enough for use as a trainer or to be enjoyed as an everyday flyer, and it is large enough to gracefully deal with
most of the effects of wind or turbulence.
We invite you to enjoy the pride of ownership and
the joy of flying this graceful ARF EP Glider.
Safety precautions and assembly tips ...
I.
II. Warranty, liability waiver & return policy
III. Specifications .................................
IV. Parts list ......................................
I. SAFETY PRECAUTIONS & ASSEMBLY TIPS
(IMPORTANT – PLEASE READ THIS SECTION BEFORE YOU BEGIN ASSEMBLY)
1. This product should not be considered a toy, but rather a sophisticated, working model aircraft that functions
much like a full-scale airplane. Because of its performance capabilities, this product, if not assembled and
operated correctly, could cause injury to you or spectators and damage to property. Maxford USA provides
you with a high-quality, thoroughly tested model airplane kit with assembly instructions. However, the quality
