Maxford USA Mentor-G V2 Instruction Manual

M E N T O R - G V 2 A R F

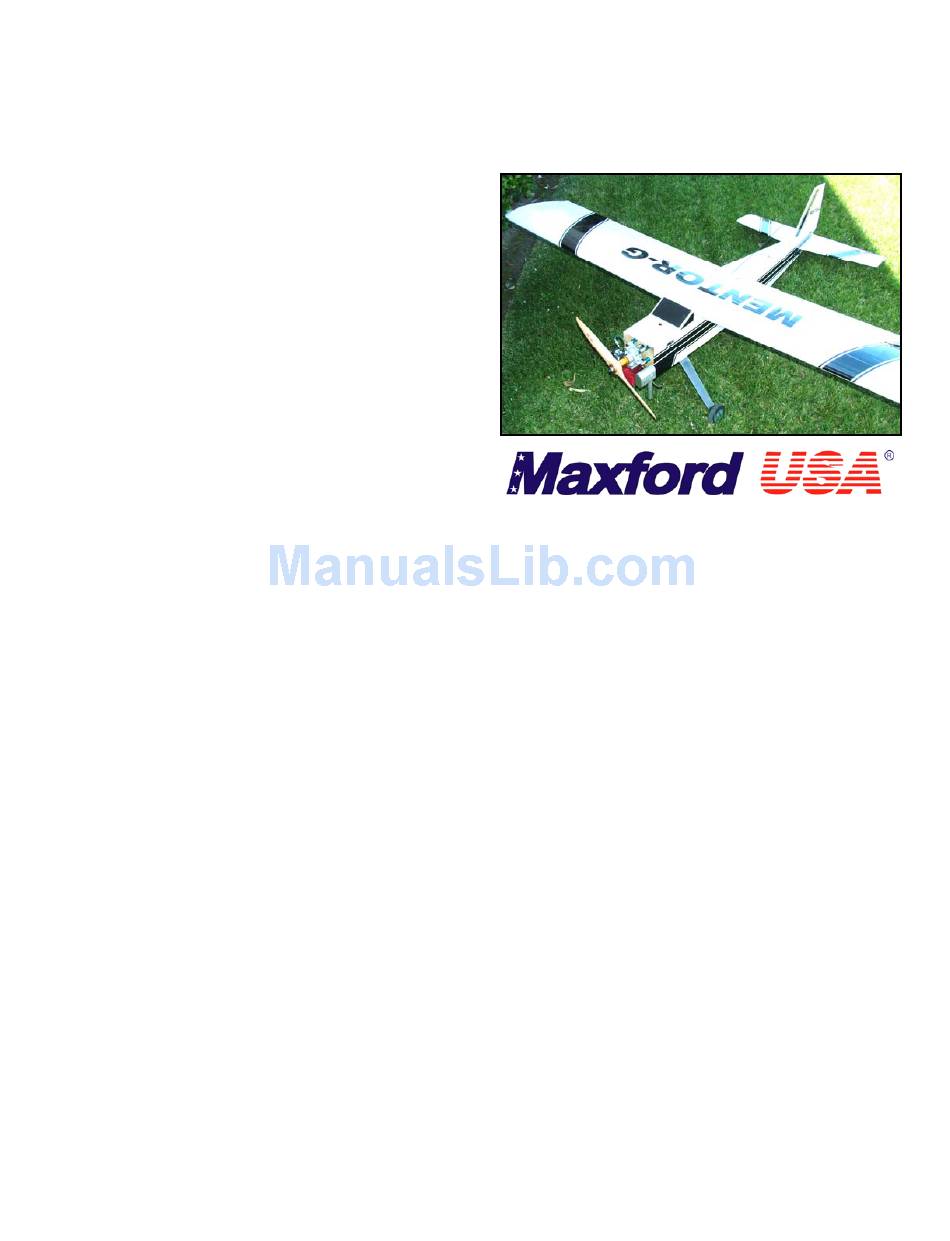

The M -G V2 is a multi-functional RC trainer
ENTOR
suited for RC pilots who want to use a fuel-efficient gas-
powered engine. Some of the setup options include:
• Basic trainer.
• Aerobatic trainer.
• Large-size float-plane trainer.
• Glider or banner tow-plane.
• Load-carrying platform for video camera(s)
or for dropping candy at fun-flys, etc..
We invite you to enjoy the joy of flying this
balsa and light-ply almost-ready-to-fly aircraft.

TABLE OF CONTENTS

I. Important Safety Precautions .............................. 1
II. Warranty, Liability Waiver, and Return Policy .. 2
III. Specifications ...................................................... 3
IV. Special features of the M
V. Parts List ............................................................. 3
I. IMPORTANT SAFETY PRECAUTIONS TO PROTECT YOUR MODEL, YOURSELF & OTHERS:
1. This product should not be considered a toy, but rather a sophisticated, working model that functions much like a
full-scale airplane. Because of its performance capabilities, this product, if not assembled and operated correctly,
could cause injury to you or spectators and damage to property. Maxford USA provides you with a high-quality,
thoroughly tested model airplane kit with assembly instructions. However, the quality and capabilities of your
finished model airplane depend on how you build it, and your safety depends on how you use and fly it. Any
testing or flying of this model airplane is done entirely at your own risk.
2. Assemble the model airplane according to these instructions. We recommend that you do not alter or modify the
model beyond the assembly options covered in these instructions, as doing so may result in an unsafe or
unworkable model. In a few cases the instructions may differ slightly from the photos; in those instances the
written instructions should be considered as correct. If you have any question or concern about these instructions,
before you proceed with assembly of this product, contact us at (562) 529-3988, Monday through Friday, except
national holidays, between 9 AM to 5 PM Pacific Time.
3. It is your responsibility to install the R/C system and other components in such a way that this model airplane
passes all applicable safety/range tests and that the power system and controls operate smoothly and correctly.
4. Recheck the operation of this model airplane before every flight to ensure that all equipment is still operating
correctly and that the model has remained structurally sound. Also, before every flight check all clevises and
other connectors; do not fly without replacing any that you find damaged or defective.
5. If you are not an experienced R/C pilot or have not flown this type of model before, we strongly recommend that
you get the assistance of an experienced R/C pilot.
6. Throughout the lifetime of this model, use only the Maxford USA-recommended or same-sized engine and a new
or well-maintained R/C radio system and batteries recommended by the maker of the engine and radio system.
S110908
GAS ENGINE POWERED R/C TRAINER
I N S T R U C T I O N M A N U A L
-G ...................... 3
ENTOR
VI. Assembly Instructions ................................. 4
VII. Setup and Adjustments ................................ 9
VIII. Preparation for transport and field setup ..... 9
IX. Preflight checks ......................................... 10
Mentor-G V2
Page 1 of 10
