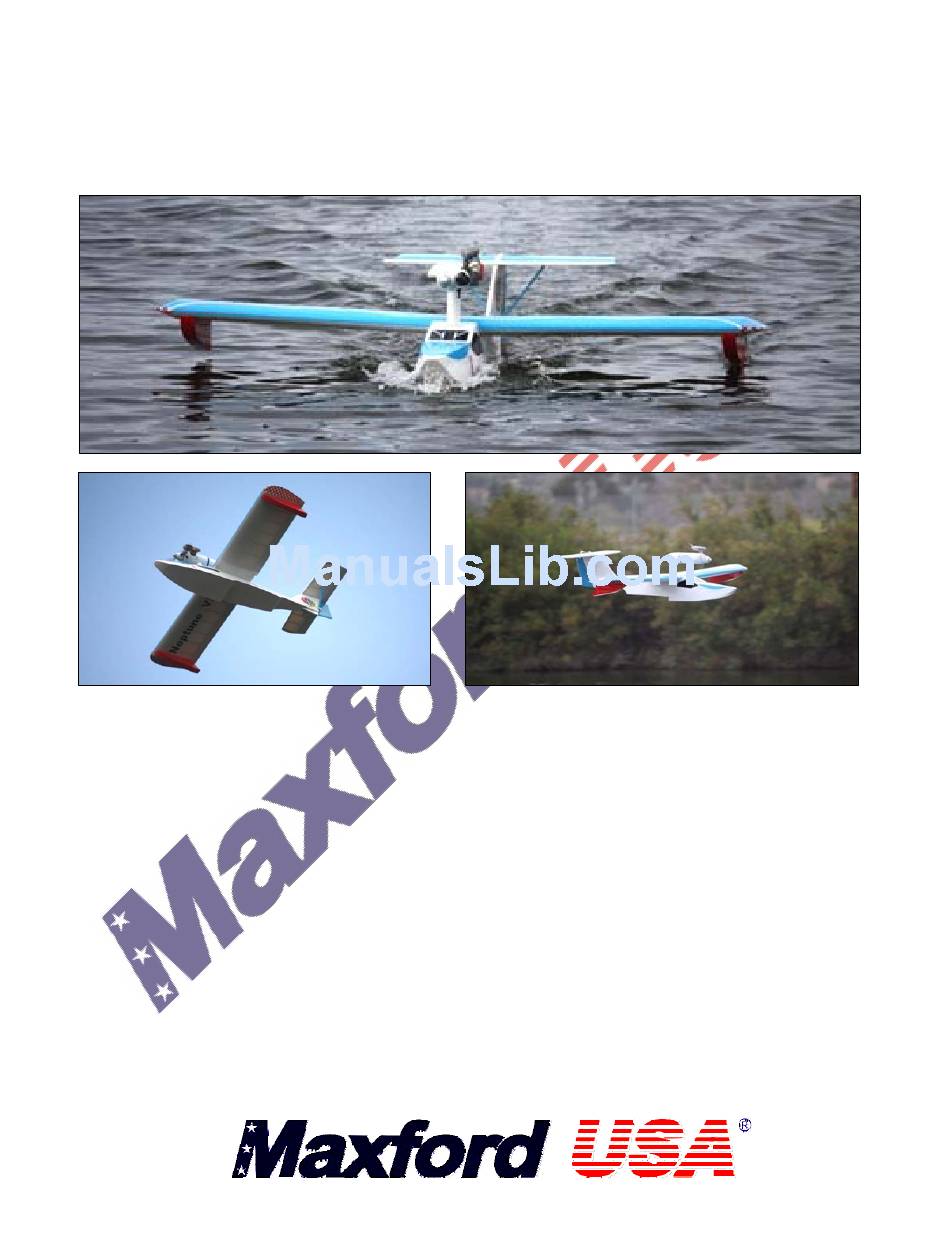

GLOW/ELECTRIC 60-INCH WINGSPAN
NEPTUNE
I N S T RU C T I O N M A N UA L
C o n g r a t u l a t i o n s o n y o u r a c q u i s i t i o n o f M axford USA's Neptune Version 2 boat plane
This Neptune V2 ARF boat plane is the improved version of our previous Neptune. Its new color scheme is
much brighter and more visible in the air and the wingtip floats are now a bright red color. The engine pod now
sits atop a carbon-fiber tube, and all the wiring that needs to go between the engine pod and fuselage now easily
fits through this tube. The engine pod is redesigned and now consists of three pieces: the cowl, the bottom piece
(to hold the supplied fuel tank and your throttle servo), and the pod's magnetic hatch/top cover.
The V2 wing has a carbon-fiber wing rod in place of the V1's wooden wing joiner. The V2's two aileron
servos are now located safely inside the fuselage (mounted near the center of the wing). A special new
compartment with an optional hatch has been added to the nose. The hatch arrives out-of-the-box covered-over.
To access the compartment, simply cut the covering material around the edges of the hatch. This makes it easy to
use this compartment for your radio's battery or to add any necessary weight to adjust your Neptune's CG. It is
also the perfect location if you plan to install an onboard glow plug driver and battery in your Neptune.
These improvements contribute to the V2's lighter weight (the ARF-weight of the V1 was 6 lbs 8 oz,
whereas the dry flying weight of the complete new V2 is only 6 lbs 2 oz).
We invite you to enjoy the pride of ownership and the joy of flying this high
quality balsa, carbon-fiber, fiberglass and light-ply almost-ready-to-fly aircraft.
Neptune V2
V
—
E R S I O N
Page 1 of 9 pages
2
!
Entire Contents © Copyright 2010
Advertisement
Table of Contents
Related Manuals for Maxford USA Neptune V2
Summary of Contents for Maxford USA Neptune V2
- Page 1 C o n g r a t u l a t i o n s o n y o u r a c q u i s i t i o n o f M axford USA’s Neptune Version 2 boat plane This Neptune V2 ARF boat plane is the improved version of our previous Neptune. Its new color scheme is much brighter and more visible in the air and the wingtip floats are now a bright red color.
-
Page 2: Table Of Contents
Because of its performance capabilities, this product, if not assembled and operated correctly, could cause injury to you or spectators and damage to property. Maxford USA provides you with a high-quality, thoroughly tested model airplane kit with assembly instructions. However, the quality and capabilities of your finished model airplane depend on how you build it, and your safety depends on how you use and fly it. -
Page 3: Special Features Of This Neptune V2 Arf
Return shipping and insurance charges must be prepaid by you, the buyer. 3. Returned merchandise that is accepted by Maxford USA for credit is subject to a 10% to 20% restocking fee (the final amount will be determined by Maxford USA upon receipt and examination of the returned merchandise). -
Page 4: Parts List
PARTS LIST 1. Items you must supply to complete this Neptune V2: • 5- and 30-minute epoxy glue, thin and thick Cyanoacrylate (CA) adhesives, and a few common hand tools (such as long-nosed and diagonal or side-cutter pliers, etc.). •... - Page 5 (NOTE: Adhesive-backed hook and loop materials are generally most popular, but some flying-boat fans report they prefer to permanently attach their tip floats with Shoe Goo, ZAP A-DAP-A GOO II, or with some double-sided foam tape.) Neptune V2 Page 5 of 9 pages...
- Page 6 33. Using the supplied wood screws, attach one end of each tail-section strut near the top-rear corner of each side of the fuselage (at the base of vertical stabilizer). Attach the upper end of the struts to the wooden ‘hardpoints’ in the horiztonal stabilizer. Neptune V2 Page 6 of 9 pages...
- Page 7 (NOTE: To help ensure the security of your servo wire to Y-cable connections, we recommend that during flight you use an optional “servo extension safety clip” at each of the servo wire to Y-cable connections.) Neptune V2 Page 7 of 9 pages...
-
Page 8: Setup And Adjustments
4. Get into the habit of moving your transmitter’s throttle to minimum before turning ON your transmitter, and carefully break-in and operate your engine or electric power system according to the manufacturer’s instructions. Neptune V2 Page 8 of 9 pages... - Page 9 RC hobby items online at • Maxford USA RC Model Mfg., Inc. is a rapidly growing importer and distributor of radio-control model airplanes. • Our mission is to provide better RC products and services for our customers.
