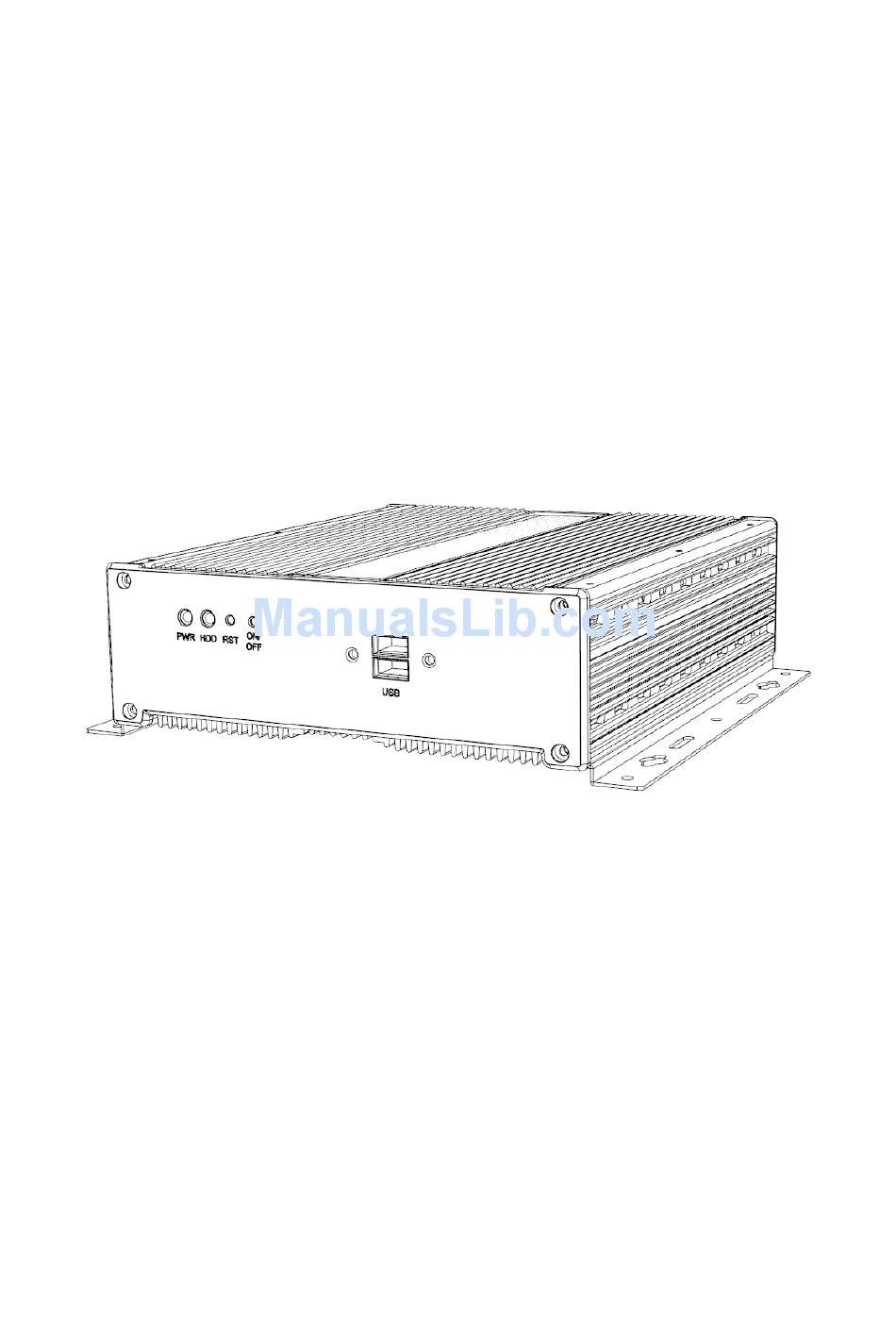

Page 1: User Manual
AMI200 Series User Manual 2012 August V4.0... - Page 2 Copyright © 2010 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
-
Page 3: Table Of Contents
Mounting AMI200 to the Wall ................20 Wall mounting requirements ..................20 Selecting the location ....................21 Exploded view of the AMI200 assembly – AMI200-9 ..........22 Parts description ......................23 Exploded view of the AMI200 assembly – AMI200-8 ..........24 Parts Description ...................... -
Page 4: Safety Information
Safety Information Your AMI200 series is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system. - Page 5 The system was dropped or the cabinet is damaged. Lithium-Ion Battery Warning CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users Federal Communications Commission Statement...
- Page 6 This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
-
Page 7: Accessories
Accessories Power Cord x 1 M/B Manual x 1 Driver CD x 1 Power Brick x 1 Mounting Rail Screw x 6 Mounting Rail x 2... -
Page 8: Components
Components Front View Refer to the diagram below to identify the components on this side of the system. The power LED illuminated when system been power on. The hard disk LED blinks when data is being written into or read from the hard disk drive. -
Page 9: Rear View (Ami200-9)
Rear View (AMI200-9) Refer to the diagram below to identify the components on this side of the system. The PS/2 mouse port is use to connect PS/2 mouse. The PS/2 keyboard port is use to connect PS/2 compatible devices such as keyboard, MSR and scanner. - Page 10 The Digital Visual Interface (DVI) port supports a high quality VGA-compatible device such as a monitor or projector to allow viewing on a larger external display. SPDIF Plug a standard SPDIF optical audio cable into this connector for digital audio transfer.
-
Page 11: Rear View (Ami200-8)
Rear View (AMI200-8) Refer to the diagram below to identify the components on this side of the system. The PS/2 mouse port is use to connect PS/2 mouse. The PS/2 keyboard port is use to connect PS/2 compatible devices such as keyboard, MSR and scanner. - Page 12 The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network. The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.
-
Page 13: Rear View (Ami200-945F)
Rear View (AMI200-945F) Refer to the diagram below to identify the components on this side of the system. The PS/2 mouse port is use to connect PS/2 mouse. The PS/2 keyboard port is use to connect PS/2 compatible devices such as keyboard, MSR and scanner. - Page 14 The Digital Visual Interface (DVI) port supports a high quality VGA-compatible device such as a monitor or projector to allow viewing on a larger external display. BASS/REAR/SIDE/LINE IN/FRONT/MIC Analog audio output connector. Please refer M/B manual to connect analog audio signal out to get stereo or 5.1 channels signal.
-
Page 15: Rear View (Ami200-953)
Rear View (AMI200-953) Refer to the diagram below to identify the components on this side of the system. COM1, Communication or serial port one is compatible with RS-232 interface. Video Graphic Array (VGA) port supports a VGA-compatible device such as a monitor or projector. - Page 16 DVI-D / DVI-I The Digital Visual Interface (DVI) port supports a high quality VGA-compatible device such as a monitor or projector to allow viewing on a larger external display. DVI-D only contain digital TMDS signal without analog VGA compatible single in The stereo headphone jack (3.5mm) is used to connect the audio signal into system to record or bypass it to storage or LINE OUT.
-
Page 17: Rear View (Ami200-970Vf)
Rear View (AMI200-970VF) Refer to the diagram below to identify the components on this side of the system. COM1 & 2, Communication or serial port one is compatible with RS-232 interface. DVI-D / DVI-I The Digital Visual Interface (DVI) port supports a high quality VGA-compatible device such as a monitor or projector to allow viewing on a larger external display. - Page 18 The USB (Universal Serial Bus) port (High-speed) is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. The stereo headphone jack (3.5mm) is used to connect the audio signal into system to record or bypass it to storage or LINE OUT.
-
Page 19: Specification
Specification System Mainboard MI910E / MB899EF / MI945F / MI953AF / MI970VF Construction Aluminum Chassis Color Silver Storage 2.5” SATA HDD/SSD x 1 Mounting Desktop or wall mount Dimensions 199(W) x 63.4(H) x 232(D)mm (7.83” x 2.57” x 9.13”) Power Supply 84W DC adapter Operating 0°C ~ 45°C (32°F ~ 113°F) -
Page 20: Mounting Ami200 To The Wall
Mounting AMI200 to the Wall Using attached mounting rail, you can install AMI200 on wood, drywall surface over studs, or a solid concrete or metal plane. Ensure the installer uses at least four M4 length 8mm screws to secure the system on wall. Six M4 length 8mm screws are recommended to secure the system on wall. -
Page 21: Selecting The Location
routing. And have good ventilation for power adapter. The method of mounting must be able to support weight of the AMI200 plus the suspend weight of all the cables to be attached to the system. Use the following methods for mounting your system: Mounting to hollow walls ... -
Page 22: Exploded View Of The Ami200 Assembly - Ami200-9
Exploded view of the AMI200 assembly – AMI200-9... -
Page 23: Parts Description
Parts description Part NO. Description Part NO. Description 1 HDD 2 HDD bracket rubber foot 3 Screws for SB heat sink 4 ID392 DVI board 5 MI910E 6 CPU FAN bracket 7 Bottom chassis 8 Rear panel 9 DC extension cable 10 Name panel 11 Top chassis 12 SATA signal cable... -
Page 24: Exploded View Of The Ami200 Assembly - Ami200-8
Exploded view of the AMI200 assembly – AMI200-8... -
Page 25: Parts Description
Parts Description Part NO. Description Part NO. Description 1 HDD 2 HDD bracket rubber foot 3 MB899EF 4 CPU FAN bracket 5 Bottom chassis 6 Rear panel 7 DC extension cable 8 Name panel 9 Top chassis 10 SATA signal cable 11 SATA power cable 12 HDD bracket 13 Anti-Vibrate grommet... -
Page 26: Exploded View Of The Ami200 Assembly - Ami200-945F
Exploded view of the AMI200 assembly – AMI200-945F... -
Page 27: Parts Description
Parts description Part NO. Description Part NO. Description 1 HDD 2 HDD bracket rubber foot 3 Screws for SB heat sink 4 ID392 DVI board 5 MI945F 6 CPU FAN bracket 7 Bottom chassis 8 Rear panel 9 DC extension cable 10 Name panel 11 Top chassis 12 SATA signal cable... -
Page 28: Exploded View Of The Ami200 Assembly - Ami200-953
Exploded view of the AMI200 assembly – AMI200-953... -
Page 29: Parts Description
Parts description Part NO. Description Part NO. Description 1 HDD 2 HDD bracket rubber foot 3 MI953AF 4 CPU heatsink bracket 5 Bottom chassis 6 Rear panel 7 DC extension cable 8 Name panel 9 Top chassis 10 SATA signal cable 11 SATA power cable 12 HDD bracket 13 Anti-Vibrate grommet... -
Page 30: Exploded View Of The Ami200 Assembly - Ami200-970
Exploded view of the AMI200 assembly – AMI200-970... -
Page 31: Parts Description
Parts description Part NO. Description Part NO. Description 1 Name panel 2 Top chassis 3 HDD / SSD 4 SATA signal/PWR cable 5 HDD bracket supporter 6 IB881-SW Board 7 Control panel cable 8 USB extension cable 9 Front panel 10 ID452 Heat-spreader 11 ID452 12 Bottom chassis... -
Page 32: Driver Installation
Driver Installation Please refer correspond mainboard user manual to install the driver properly. BIOS Setup Please refer correspond mainboard user manual to configure BIOS setting.
