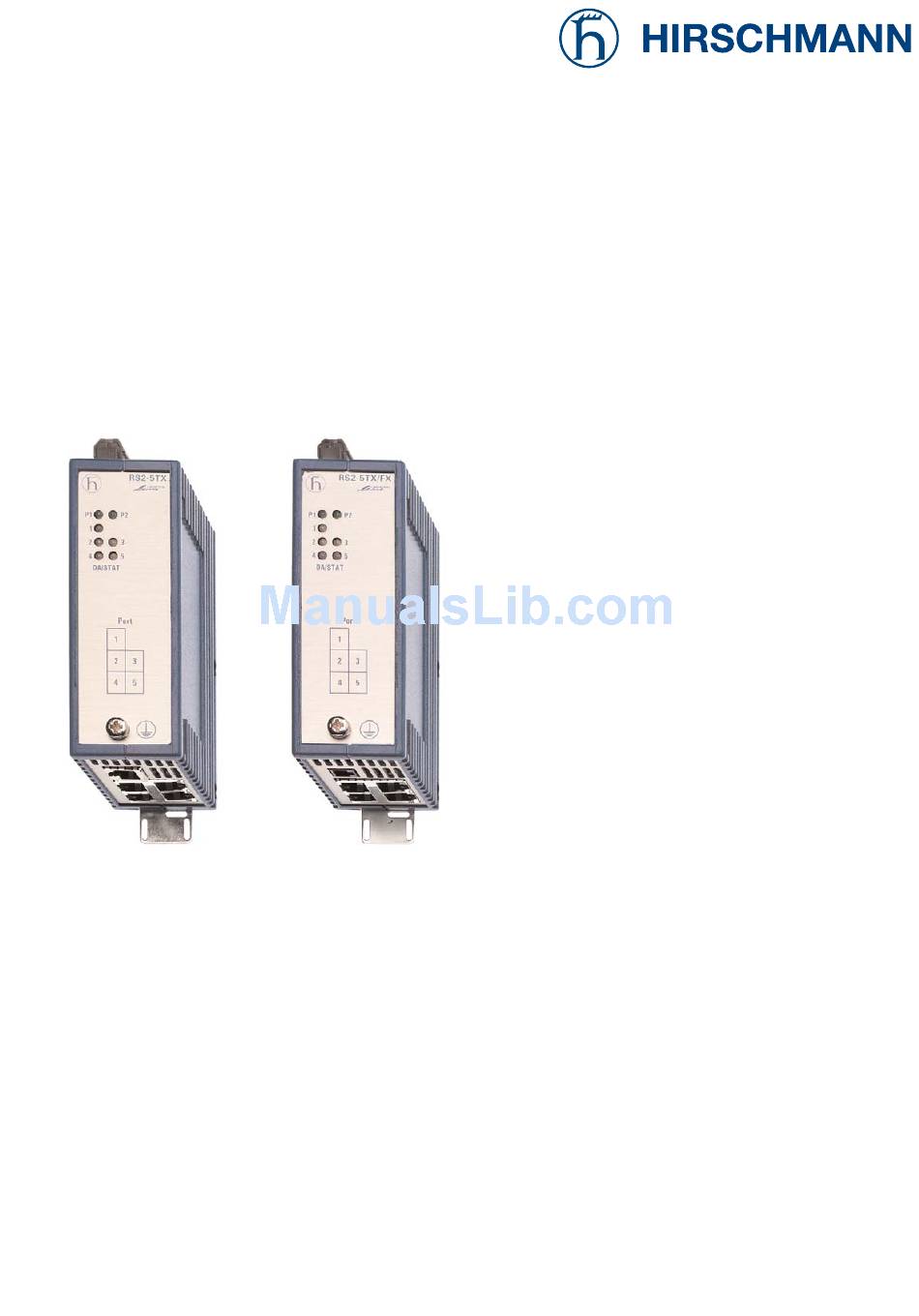

Description and operating instructions
Industrial ETHERNET Rail Switch
Hirschmann. Simply a good Connection.
RS2-5TX
Order No.
943 732-002
RS2-5TX/FX
Order No.
943 732-102

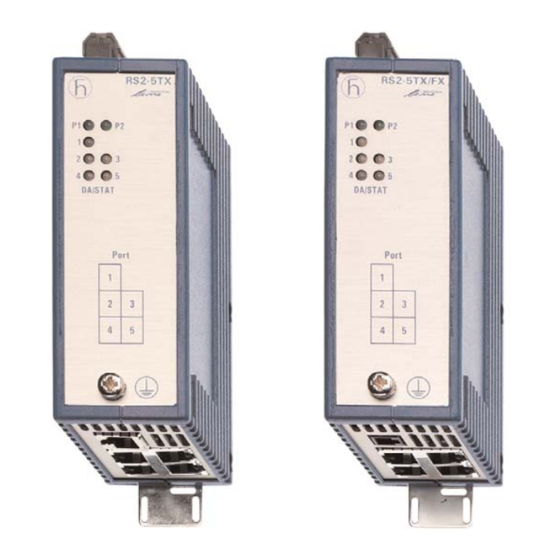

The Rail Switches RS2-5TX and RS2-5TX/FX
have been especially designed for use in
industrial environments. They support
ETHERNET 10 MBit/s and Fast ETHERNET
100 MBit/s.
The Rail Switch modules support switched
ETHERNET networks in accordance with
IEEE standard 802.3 or 802.3u using copper
and fiber optic technology. The switch
modules are plugged onto the standard DIN
rail. Because of their compact design the
modules can be mounted in a terminal box.
The RS2-5TX modules have five
10/100 MBit/s twisted pair ports
(10/100BASE-TX, RJ45 connectors).
It is possible to connect up to five DTEs
(data terminal equipment) or other TP/TX
network segments to these ports using
twisted pair cabling.
The RS2-5TX/FX modules have four
10/100 MBit/s twisted pair ports
(10/100BASE-TX, RJ45 connectors) and one
100 MBit/s fiber optic port (100BASE-FX,
MTRJ connector).
It is possible to connect up to four DTEs or
other TP/TX network segments to the TP/TX
ports using twisted pair cabling. One further
DTE or an optical network component can
be connected to the fiber port.
The TP ports support auto negotiation and
autopolarity.
The operating mode of the FX port is full
duplex.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hirschmann RS2-5TX/FX
Summary of Contents for Hirschmann RS2-5TX/FX
- Page 1 Order No. 943 732-002 RS2-5TX/FX Order No. 943 732-102 The Rail Switches RS2-5TX and RS2-5TX/FX have been especially designed for use in industrial environments. They support ETHERNET 10 MBit/s and Fast ETHERNET 100 MBit/s. The Rail Switch modules support switched ETHERNET networks in accordance with IEEE standard 802.3 or 802.3u using copper...
- Page 2 Switch the basic devices on only when sting agreement, permit or legal relation- Warning! the case is closed. ship. All obligations on Hirschmann arise The ventilation slits must not be from the respective purchasing agreement covered so as to ensure free air cir-...
- Page 3 (ports 2 to 5), RJ45 connectors fied technicians only. autonegotiaton + autopolarity DA/STAT Warning! RS2-5TX/FX LED- or LASER components accor- ding to IEC 60825-1 (2001): Port CLASS 1 LASER PRODUCT. LIGHT EMITTING DIODE - CLASS 1 LED PRODUCT.
- Page 4 IEEE standard 802.3 100BASE-FX. The All data received by the RS2-5TX(/FX) from supports the IEEE 802.3 100BASE-FX FDX RS2-5TX/FX transmits no data to an F/O line the system bus or at the ports is stored and standard (full duplex). It uses an MTRJ from which it is receiving no idle signal.
- Page 5 5TX/FX I/O - Block Fig. 4: Configuration with RS2-5TX (RS2-5TX/FX): Connection of up to 5 (4) data termi- nal equipments or further segments via TP/TX as well as connection via fiber optic cable with one optical port on the RS2-5TX/FX Fig.
- Page 6 P2 – power 2, supply voltage 2 present Port status 5 x green LED DAT/STAT 1 to 5 – data, link status Scope of delivery Rail Switch RS2-5TX or RS2-5TX/FX incl. terminal block for supply voltage, description and operating instructions Order number Rail Switch RS2-5TX 943 732-002...
