Summary of Contents for Hirschmann RS20 Series
- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
-
Page 2: User Manual
FAULT FAULT Stand by Stand by Stand by Stand by V.24 V.24 RS30 with 26 ports RS30 with 10 ports RS20/RS30 Technical support Release 2.0 03/06 HAC-Support@hirschmann.de Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 3 This publication has been created by Hirschmann Automation and Control GmbH according to the best of our knowledge. Hirschmann reserves the right to change the contents of this manual without prior notice. Hirschmann can give no guarantee in respect of the correctness or accuracy of the details in this publication.
-
Page 4: Table Of Contents
Content Safety instructions About this manual Legend Device description Description of the device variants 1.1.1 RS20/RS30 combination options 1.1.2 RS20-... number of ports and media 1.1.3 RS30-... number of ports and media Assembly and startup procedure Device installation 2.1.1 Unpacking and checking 2.1.2 Filling out the labeling field 2.1.3 Adjusting the DIP switch settings 2.1.4 Connecting the terminal block for supply voltage and... -
Page 5: Safety Instructions
Hirschmann. The product can only be operated correctly and safely if it is transported, stored, installed and assembled properly and correctly. -
Page 6: General Safety Instructions
Housing Only technicians authorized by Hirschmann are permitted to open the housing. The device is grounded via the separated ground screw. It is located on the left under the front panel. V Make sure that the electrical installation meets local or nationally ap- plicable safety regulations. - Page 7 V Only personnel that have received appropriate training should operate this device or work in its immediate vicinity. The personnel must be ful- ly familiar with all of the warnings and maintenance measures in these operating instructions. V Correct transport, storage, and assembly as well as careful operation and maintenance are essential in ensuring safe and reliable operation of this device.
- Page 8 Hirschmann Automation and Control GmbH Stuttgarter Straße 45-51 D-72654 Neckartenzlingen Germany Phone ++49 7127 14 1480 The product can be used in living areas (living area, place of business, small business) and in industrial areas. Interference immunity: EN 61000-6-2:2001 Emitted interference: EN 55022:1998 + A1 2000 + A2 2003, Class A Warning! This is a class A device.
-
Page 9: About This Manual
About this manual The following manuals are included as PDF files on the enclosed CD ROM: User manual „Installation“ User manual „Basic configuration“ User manual „Redundancy configuration“ Reference manual „Web-based Interface“ and Reference manual „Command Line Interface“ If you use Network Management Software HiVision you have further opportunities to: have an event logbook. -
Page 10: Device Description

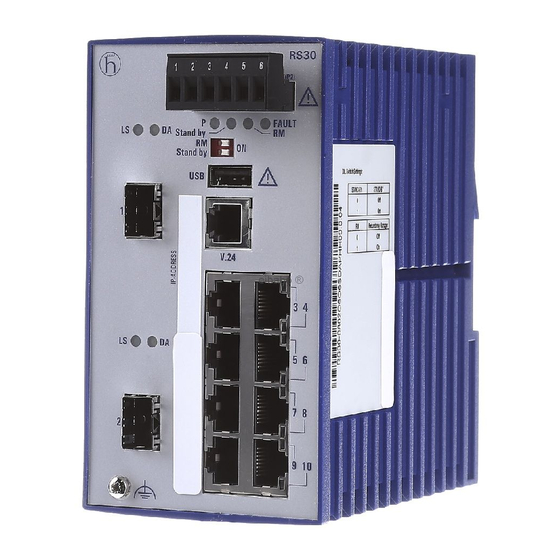

Device description The Open Rail Family RS20/RS30 offers you a variety of more than 450 switch models. You set up your own switch according to your requirements regarding the number of ports, transmission speed, media type, connector type, temperature range, certifications and software variant. The RS20/RS30 devices are designed for the special requirements of industrial automation. -
Page 11: Description Of The Device Variants
802.1x port authentication Real Time Clock (Professional software variant) The addition, to the RS20/RS30 Open Rail range, of the MICE range of switches, the MACH range of backbone switches, the BAT wireless transmission system, the EAGLE security system, and products for the LION control room, provides continuous communication across all levels of the company. -
Page 12: Rs20/Rs30 Combination Options
1.1.1 RS20/RS30 combination options The product designation of your device is made from combining the desired product characteristics in accordance with the following table. The short designation is in column 3. Position Attribute Ident. Feature 1 to 4 Product RS20 Rail switch without gigabit ports RS30 Rail Switch with gigabit ports... -
Page 13: Rs20
Example: RS30-0802O6T1SDAE RS30-: Rail Switch with gigabit ports 08: 8 x 100 Mbit Ethernet ports 02: 2 x 1000 Mbit Ethernet ports O6: Port 1 = SFP slot, 1000 Mbit T1: Port 2 = twisted pair TX, RJ45 connector, 1000 Mbit S: Temperature range standard (0°C to 60°C) D: Voltage range 9,6 VDC to 60 VDC or 18 VAC to 30 VAC A: Specifications CE and UL... - Page 14 RS20 FAULT Port 1 + Port 2, Anschluß nach Wahl +24V(P1) +24V(P2) T1: Twisted Pair TX, RJ45, 10/100 Mbit steckbarer M2: Multimode FX, DSC, 100 Mbit Klemmblock 6polig M4: Multimode FX, ST, 100 Mbit FAULT Stand by S2: Singlemode FX, DSC, 100 Mbit L2: SM Longhaul, FX, DSC, 100 Mbit Stand by LED Anzeigeelemente...
-
Page 15: Rs30
Port 1 + port 2, RS20 FAULT connection (at your own option) +24V(P1) 0V 0V +24V(P2) 6-pin pluggable T1: twisted pair TX, RJ45, 10/100 Mbit terminal block M2: multimode FX, DSC, 100 Mbit M4: multimode FX, ST, 100 Mbit FAULT Stand by S2: singlemode FX, DSC, 100 Mbit L2: SM longhaul, FX, DSC, 100 Mbit... - Page 16 Port 1 + port 2, RS30 FAULT connection (at your own option) +24V(P1) 0V 0V +24V(P2) T1: twisted pair TX, RJ45, 10/100/1000 Mbit 6-pin pluggable O6: FX, SFP slot, 1000 Mbit terminal block FAULT Stand by Stand by LED display elements 2-pin DIP switch USB interface V.24...
-
Page 17: Assembly And Startup Procedure
Assembly and startup procedure The device has been developed for practical application in a harsh industrial environment. Accordingly, the installation process has been kept simple. On delivery, the device is ready for operation. The following procedure is appropriate for assembly: Unpacking and checking Filling out the labeling field Adjusting the DIP switch settings... -
Page 18: Adjusting The Dip Switch Settings
2.1.3 Adjusting the DIP switch settings The 2-pin DIP switch on the front panel of the device offers you the following possibilities: Ring Redun- Stand by Ring Control Coupling redun- dancy Ring port switch switch coupling port port dancy Manager 1 + 2 1 + 2 1 + 2... - Page 19 Note: With non-redundant supply of the mains voltage, the device reports a power failure. You can prevent this message by applying the supply voltage over the two inputs or by changing the configuration via manage- ment. Signal contact The signal contact ("FAULT", pin assignment of the terminal block see Fig.“Connection of the supply voltage on the 6-pin terminal block”...
-
Page 20: Fitting The Device On The Iso/Din Rail, Grounding
2.1.5 Fitting the device on the ISO/DIN rail, grounding V You mount the device on a 35 mm hat rail according to DIN EN 60175. Attach the upper snap-in guide of the device into the hat rail and press it down against the hat rail until it snaps into place. - Page 21 100 Mbit/s half duplex mode, 100 Mbit/s full duplex mode 10 Mbit/s half duplex mode, 10 Mbit/s full duplex mode State on delivery: autonegotiation is activated with exception of the HIPER-Ring ports: 100 Mbit/s full duplex. The socket housings are electrically connected to the lower covering. n.c.
-
Page 22: Displays
1 Gbit/s F/O connection 1 Gbit/s F/O ports (DSC sockets) enable the connection of terminal devices or independent network segments in compliance with the IEEE 802.3-2000 (ISO/IEC 8802-3:2000) 1000BASE-SX or 1000BASE-LX standard. These ports support: autonegotiation, full duplex mode State on delivery: autonegotiation. Note: Make sure, that you conncet LH ports only to LH ports, SX ports only to SX ports and LX ports only to LX ports. -
Page 23: Carrying Out Basic Settings
RM - Redundancy Manager Meaning (green/yellow LED) lit green RM function active, redundant port not active lit yellow RM function active, redundant port active not lit RM function not active flashes green Incorrect configuration of HIPER-Ring (e.g. ring not connected to ring port Stand by Meaning lit green... -
Page 24: Usb Interface
State of delivery IP address: The device looks for the IP address using DHCP Password for management: user, password: public (read only) admin, password: private (read and write) V.24 data rate: 9.600 baud Ring redundancy: on Ring ports on 100 Mbit full duplex or 1000 Mbit autonegotiation Ethernet ports: Link status is not evaluated (signal contact) Optical 100 Mbit ports: 100 Mbit full duplex All other ports: autonegotiation... -
Page 25: Disassembling The Device
RJ11 n.c. Pin 5 Pin 6 Pin 8 Pin 1 Pin 1 Fig. 14: Pin assignment of the V24 interface Note: You will find the order number for the terminal cable, which is ordered separately, in the chapter “Technical data” on page You will find a detailed description of the configuration in the “Basic Configuration User Manual”... -
Page 26: Technical Data
Technical data General data Dimensions RS20-0400... 47 mm x 131 mm x 111 mm W x H x D RS20-0800-... / 74 mm x 131 mm x 111 mm RS30-0802-... RS20-1600-... / 110 mm x 131 mm x 111 mm RS30-1602-... -
Page 27: Emv And Stability
EMV and stability EMV interference proof EN 61000-4-2 Discharge of static electricity Contact discharge: test level 3 4 kV 8 kV Air discharge: test level 3 8 KV 15 kV EN 61000-4-3 Electromagnetic fields Test level 3 (80 - 2000 MHz) 10 V/m 20 V/m EN 61000-4-4 Fast transients (burst), test level 3, x... -
Page 28: Network Size
Network size Length of a twisted pair segment 100 m approx. cat5e cable with 1000BASE-TX Table 2: TP port 10BASE-T / 100BASE-TX / 1000BASE-T Product Wave Fiber System Expansion Fiber data code length attenuation -M2, -M4 MM 1300 nm 50/125 µm 0-8 dB 0-5 km 1,0 dB/km, 800 MHz*km... -
Page 29: Power Consumption/Power Output
Power consumption/power output Name Power consumption Power output RS20-0400..., 2xTX port 5.3 W 18.1 Btu (IT)/h RS20-0400..., 1xFX port. 1xTX port 6.5 W 22.2 Btu (IT)/h RS20-0400..., 2xFX port 7.7 W 26.3 Btu (IT)/h RS20-0800..., 2xTX port 5.3 W 18.1 Btu (IT)/h RS20-0800..., 1xFX port, 1xTX port 6.5 W 22.2 Btu (IT)/h... -
Page 30: Accessories
Accessories Name Order no. Manual Basics Industrial ETHERNET and TCP/IP 280 720-834 AutoConfiguration Adapter ACA 11 943 751-001 AutoConfiguration Adapter ACA 21-USB 943 271-001 Terminal access cable 943 301-001 6-pin terminal block (50 units) 943 845-002 Rail Power Supply RPS 30 943 662-003 Rail Power Supply RPS 60 943 662-001... -
Page 31: Certifications
508 / CSA C22.2 No.142 pending cUL 1604 / CSA C22.2 No.213 pending Germanischer Lloyd pending Table 8: Certifications, actual state see www.hirschmann.com RS20/RS30 Release 2.0 03/06 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 32: Further Support
Further support Technical questions and training courses In the event of technical queries, please talk to the Hirschmann contract partner responsible for looking after your account or directly to the Hirschmann office. You can find the addresses of our contract partners on the Internet: http://www.hirschmann.com... - Page 33 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
