Description and operating instructions

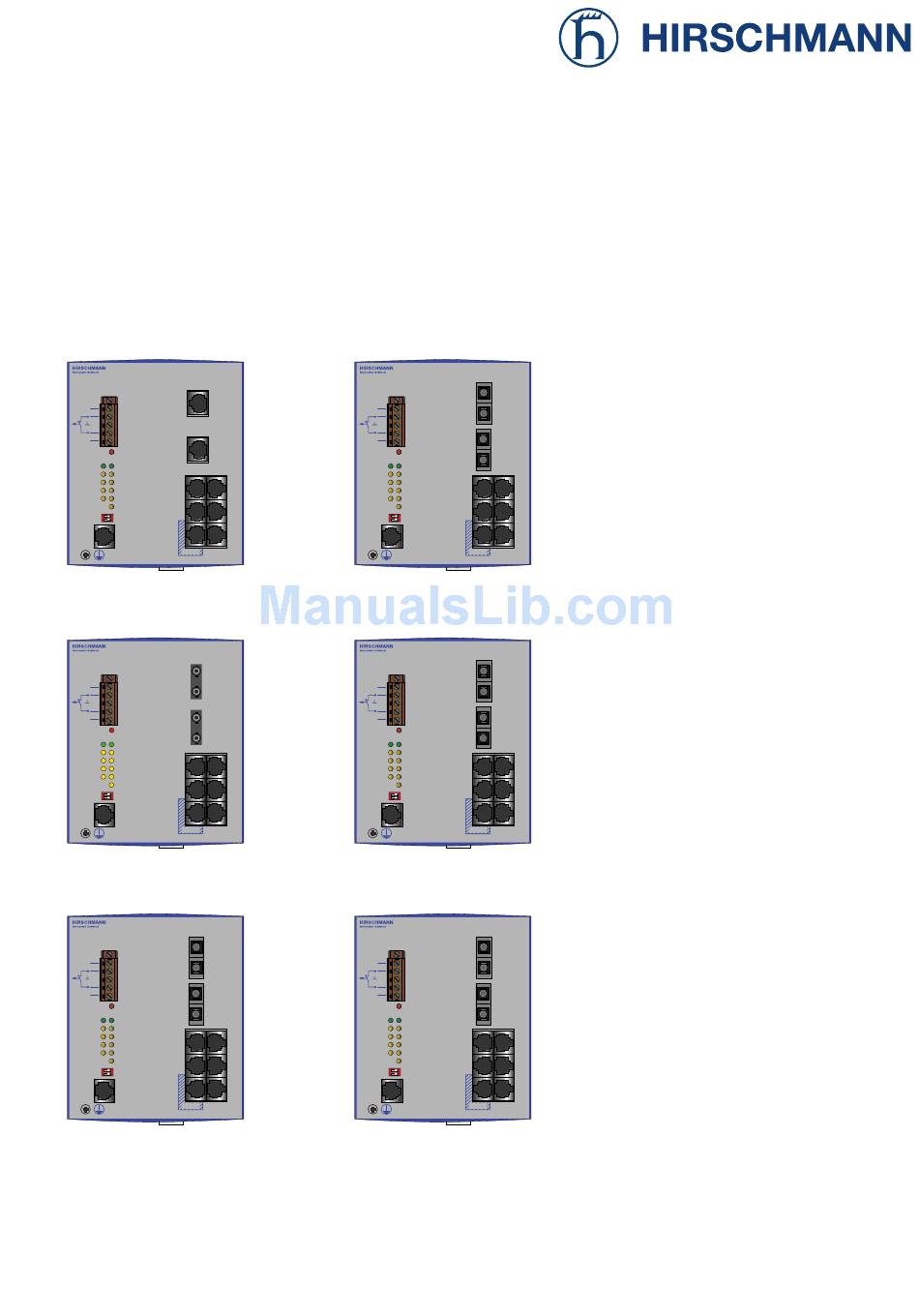

Industrial ETHERNET Rail Switch 2 Family
RS2-TX/TX
i
7
+24V
Fault
+24V*
6
FAULT
P2
P1
Stand by
RM
7
6
5
4
5
4
3
2
2
3
2
1 0
RM
Stand by
1
V.24
Stand by
RS2-TX/TX
RS2-FX/FX ST
i
7
+24V
Fault
+24V*
6
FAULT
P2
P1
Stand by
RM
7
6
5
4
5
4
3
2
1
3
2
1 0
RM
Stand by
1
V.24
Stand by
RS2-FX/FX ST
RS2-FX-SM/FX-LH
i
7 LH
+24V
Fault
+24V*
6 SM
FAULT
P2
P1
Stand by
RM
7
6
5
4
5
4
3
2
2
3
2
1 0
RM
Stand by
1
V.24
Stand by
RS2-FX-SM/FX-LH
Hirschmann. Simply a good Connection.
RS2-FX/FX
i
7
+24V
Fault
+24V*
6
FAULT
P2
P1
Stand by
RM
7
6
5
4
5
4
3
2
2
3
2
1 0
RM
Stand by
1
V.24
Stand by
RS2-FX/FX
RS2-FX-SM/FX-SM
i
7
+24V
Fault
+24V*
6
FAULT
P2
P1
Stand by
RM
7
6
5
4
5
4
3
2
2
3
2
1 0
RM
Stand by
1
V.24
Stand by
RS2-FX-SM/FX-SM
RS2-FX-LH/FX-LH
i
7
+24V
Fault
+24V*
6
FAULT
P2
P1
Stand by
RM
7
6
5
4
5
4
3
2
2
3
2
1 0
RM
Stand by
1
V.24
Stand by
RS2-FX-LH/FX-LH
RS2-.../...
Order No.
943 ...-50.
The Rail Switch RS2 has been especially
designed for use in industrial environments.
It supports ETHERNET 10 MBit/s and Fast
ETHERNET 100 MBit/s.
The RS2.../... modules
– RS2-TX/TX
– RS2-FX/FX
– RS2-FX/FX ST
– RS2-FX/FX NAVY
– RS2-FX-SM/FX-SM)
– RS2-FX-SM/FX-LH
– RS2-FX-LH/FX-LH
are manageable. They support SNMP and
Web based management.
The Rail Switch modules support switched
ETHERNET networks in accordance with
IEEE standard 802.3 using copper
technology, and backbones in accordance
with IEEE standard 802.3u using copper
technology or optical waveguide (F/O), in
both line and ring structures. The switch
modules are plugged onto the standard bar.
The RS2.../... modules have five
10/100 Mbit/s twisted pair (TP/TX) ports
(RJ45 connectors) and two backbone ports
(100 Mbit/s Ports). Depending on the model,
the backbone ports to connect further more
RS2-.../... are available with FX or TX inter-
faces (SC or RJ45 connectors).
It is possible to connect data terminal
equipments or other network segments to
the 10/100 Mbit/s ports using twisted pair
cabling TP/TX. The ports support auto
negotiation and autopolarity.
The RS2.../... modules in addition have one
V.24 interface for external management and
one „Stand by" port (RJ45 connector).
The built-in control intelligence supports
redundant links between networks.
In the„RS2-.../... Management Manual –
Industrial ETHERNET Rail Switch 2" you
find a detailled description on the RS2 Rail
Switch.
F, the Hirschmann network manage-
ment system, is the optimum management
solution for this product. Your sales partner
keeps information ready.
