Zaxcom ZMT3

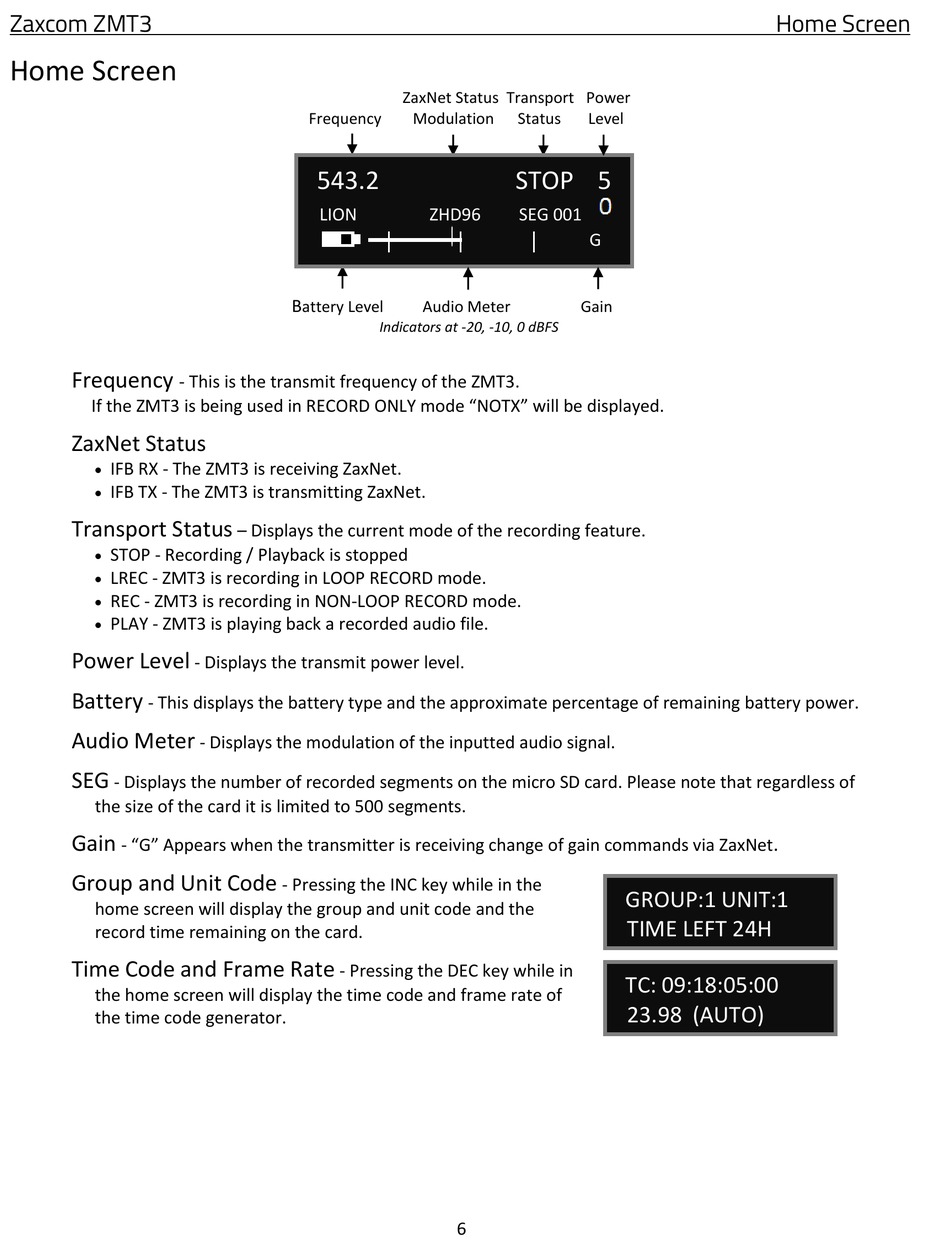

Home Screen

Frequency
- This is the transmit frequency of the ZMT3.
If the ZMT3 is being used in RECORD ONLY mode "NOTX" will be displayed.
ZaxNet Status

IFB RX - The ZMT3 is receiving ZaxNet.

IFB TX - The ZMT3 is transmitting ZaxNet.
Transport Status

STOP - Recording / Playback is stopped

LREC - ZMT3 is recording in LOOP RECORD mode.

REC - ZMT3 is recording in NON-LOOP RECORD mode.

PLAY - ZMT3 is playing back a recorded audio file.
Power Level
Battery
- This displays the battery type and the approximate percentage of remaining battery power.
Audio Meter
SEG
- Displays the number of recorded segments on the micro SD card. Please note that regardless of
the size of the card it is limited to 500 segments.
Gain
- "G" Appears when the transmitter is receiving change of gain commands via ZaxNet
Group and Unit Code
home screen will display the group and unit code and the
record time remaining on the card.
Time Code and Frame Rate
the home screen will display the time code and frame rate of
the time code generator.
Frequency
543.2
LION
B
attery Level
– Displays the current mode of the recording feature.
- Displays the transmit power level.
- Displays the modulation of the inputted audio signal.
- Pressing the INC key while in the
- Pressing the DEC key while in
ZaxNet Status Transport Power
Modulation Status
STOP 5
ZHD96 SEG 001
Audio Meter
Indicators at -20, -10, 0 dBFS
6
Level
G
Gain
GROUP:1 UNIT:1
TIME LEFT 24H
TC: 09:18:05:00
23.98 (AUTO)
Home Screen
.
