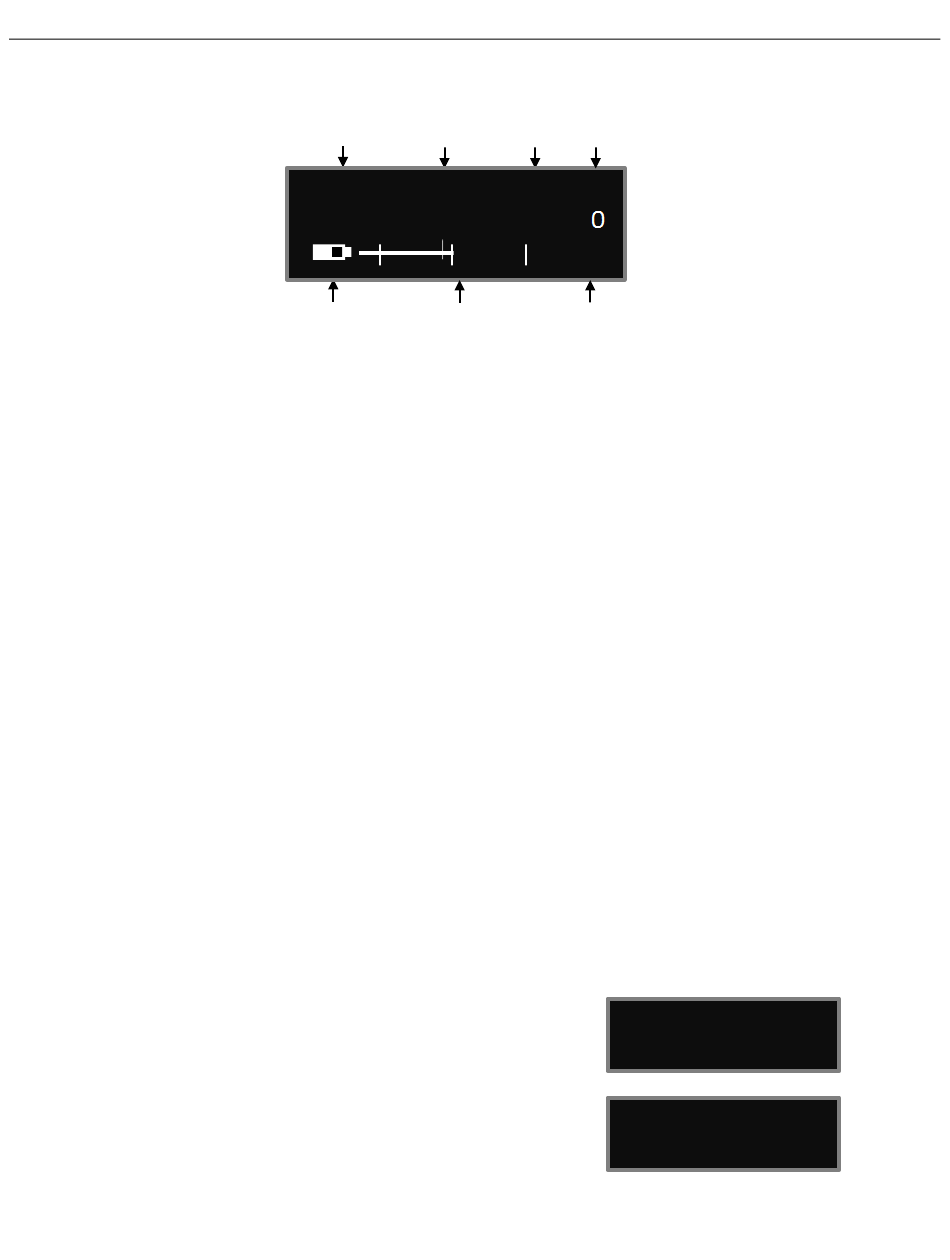

Home Screen

Frequency
- This is the transmit frequency of the TRX745.
If the TRX745 is being used in RECORD ONLY mode "NOTX" will be displayed.
ZaxNet Status
IFB RX - The TRX745 is receiving ZaxNet.
•
IFB TX - The TRX745 is transmitting ZaxNet.
•
Transport Status
STOP - Recording / Playback is stopped
•
LREC -TRX745 is recording in LOOP RECORD mode.
•
REC - TRX745 is recording in NON-LOOP RECORD mode.
•
PLAY - TRX745 is playing back a recorded audio file.
•
Power Level
Battery
- This displays the selected battery chemistry type as well as a battery meter which shows an
approximate percentage of remaining power.
Audio Meter
If using a stereo transmitter in stereo mode both the left and right audio levels will be shown.
SEG
- Displays the number of recorded segments on the micro SD card. Please note that regardless of
the size of the card it is limited to 500 segments.
Gain
- "G" Appears when the transmitter is receiving change of gain commands via ZaxNet
Group and Unit Code
home screen will display the group and unit code and the
record time remaining on the card.
Time Code and Frame Rate
the home screen will display the time code and frame rate of
the time code generator.
Frequency
543.2
NIMH
B
attery Level
And Type
– Displays the current mode of the recording feature.
- Displays the transmit power level.
- Displays the modulation of the inputted audio signal.
- Pressing the INC key while in the
- Pressing the DEC key while in
ZaxNet Status Transport Power
Modulation Status
STOP 5
ZHD96 SEG 001
Audio Meter
Indicators at -20, -10, 0 dBFS
7
Level
G
Gain
GROUP:1 UNIT:1
TIME LEFT 24H
TC: 09:18:05:00
23.98 (AUTO)
Home Screen
.
