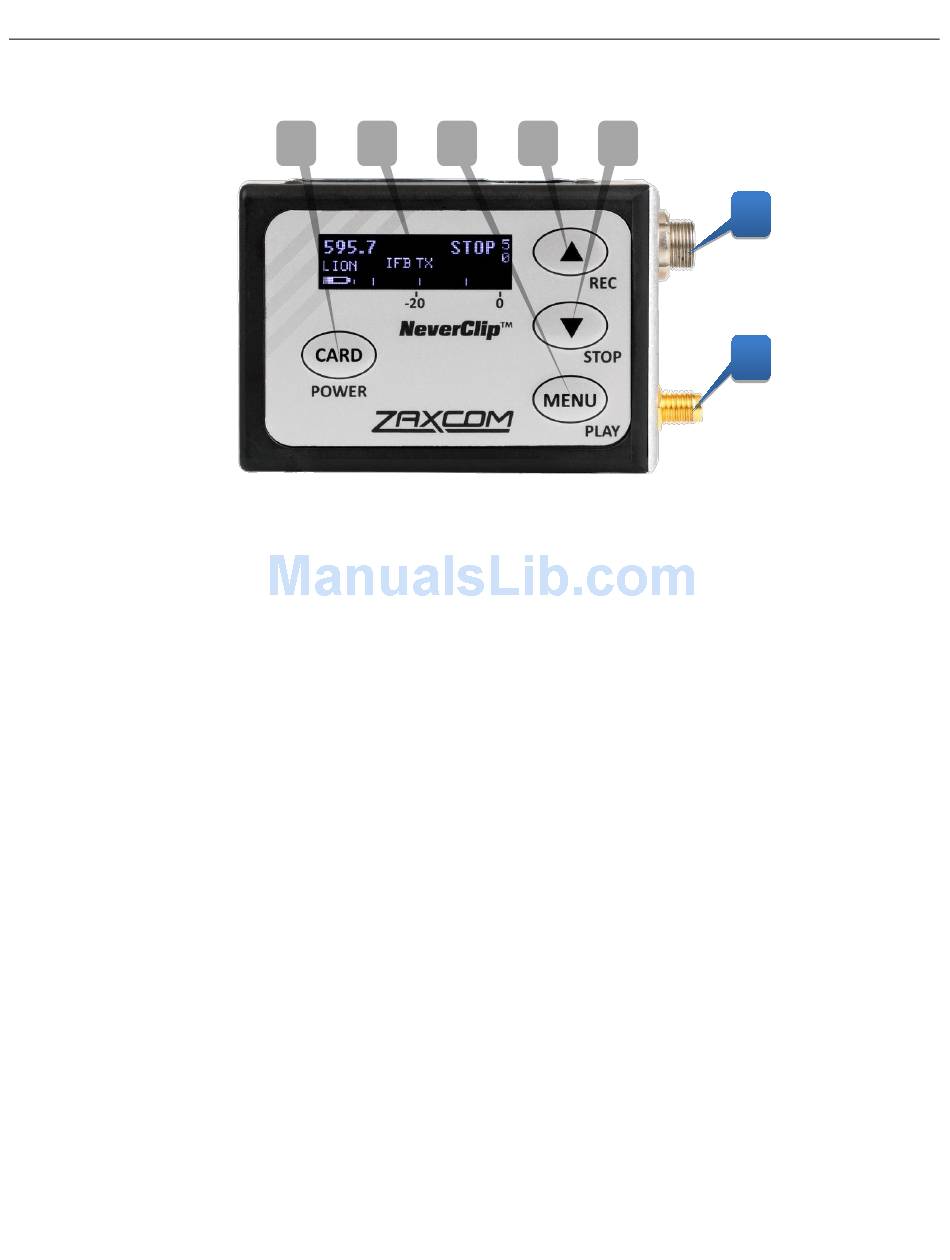

ZMT3 Transmitter

1. Card / Power Key

Push and hold 2 seconds to power on and 4 seconds to power off.

Press 3 times quickly to access the sub menus.
2. OLED Display
3. Menu / Play Key

Press it to access the next menu item.

Press it with the CARD key to playback a segment.
4. INC / Record Key

Increases the parameters of a menu item.

When in the home screen pressing INC with the CARD key will put the transmitter into record.

When in the transport control screen while not recording will cause the transmitter to playback.

Pressing while playing back will advance playback, multiple presses will cause playback to advance in
larger increments.

Press and hold while in the transport control screen will advance to the next segment.

Press it while in the home screen will display the group and unit code and the time left on the card.
5. DEC / Stop Key

Decreases the parameters of the menu items.

When in the home screen pressing DEC with the CARD key will stop the recording.

When playing back in the transport control screen will cause the transmitter to stop playback.

Press and hold while in the transport control screen will jump back to the previous segment.

Pressing it three times quickly while in the home screen will access the sub menu.
6. Microphone Connector (3 pin Lemo)
7. SSMA Antenna Connector
1 2 3 4 5
4
Transmitter
6
7
