Zaxcom ZMT3 Flex

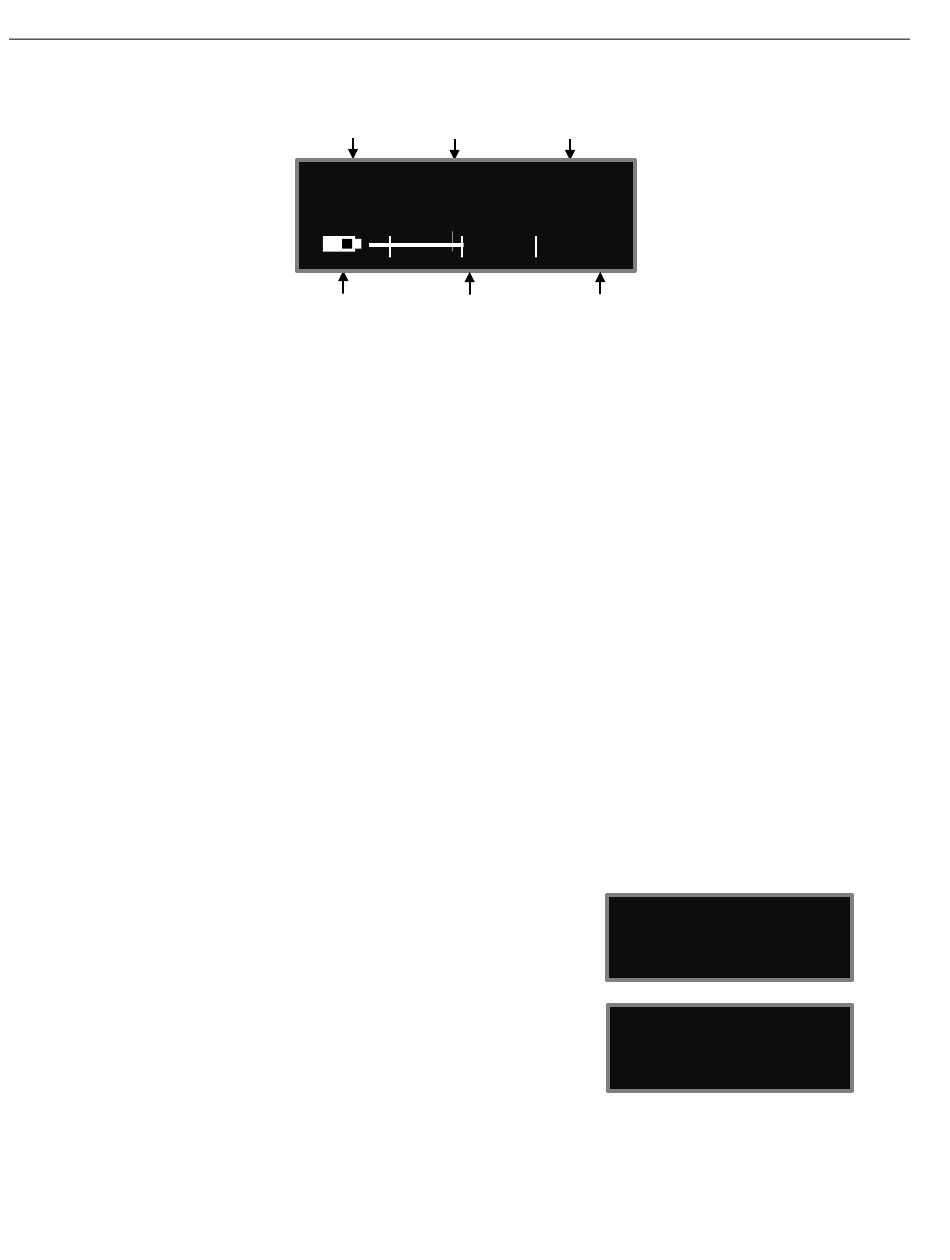

Home Screen

Frequency
- This is the transmit frequency of the ZMT3 Flex.
If the ZMT3 Flex is being used in RECORD ONLY mode "NOTX" will be displayed.
Time Left On Card
Transport Status
STOP - Recording / Playback is stopped
•
REC - ZMT3 Flex is recording.
•
PLAY - ZMT3 Flex is playing back a recorded audio file.
•
Time Code
- Displays the current time code.
Modulation
Segment Number
regardless of the size of the card it is limited to 500 segments.
Battery
- This displays the battery type and the approximate percentage of remaining battery power.
Audio Meter
SEG
-
Gain
- "G" Appears when the transmitter is receiving change of gain commands via ZaxNet
Group and Unit Code
home screen will display the group and unit code and the
ZaxNet IFB status.
Time Code UBITS and Frame Rate
key while in the home screen will display the time code, frame
rate and user bits of the time code generator. The time left on
the record card will also be displayed.
Frequency
543.2
09:18:05:03
B
attery Level
- Displays the record time left on the card.
– Displays the current mode of the recording feature.
- Displays the transmission modulation.
- Displays the number of recorded segments on the micro SD card. Please note that
- Displays the modulation of the inputted audio signal.
- Pressing the INC key while in the
Time Left Transport
on Card Status
24H STOP
ZHD48
Audio Meter
Indicators at -20, -10, 0 dBFS
- Pressing the DEC
4
01
G
Gain
GROUP:1 UNIT:1
IFB RX FREQ: 2.404
PKTS:0000 TC:00 REM:00
TC: 09:18:05:00 23.98
UB: 00:00:00:00 (AUTO)
CARD TIME LEFT : 23H
Home Screen
.
