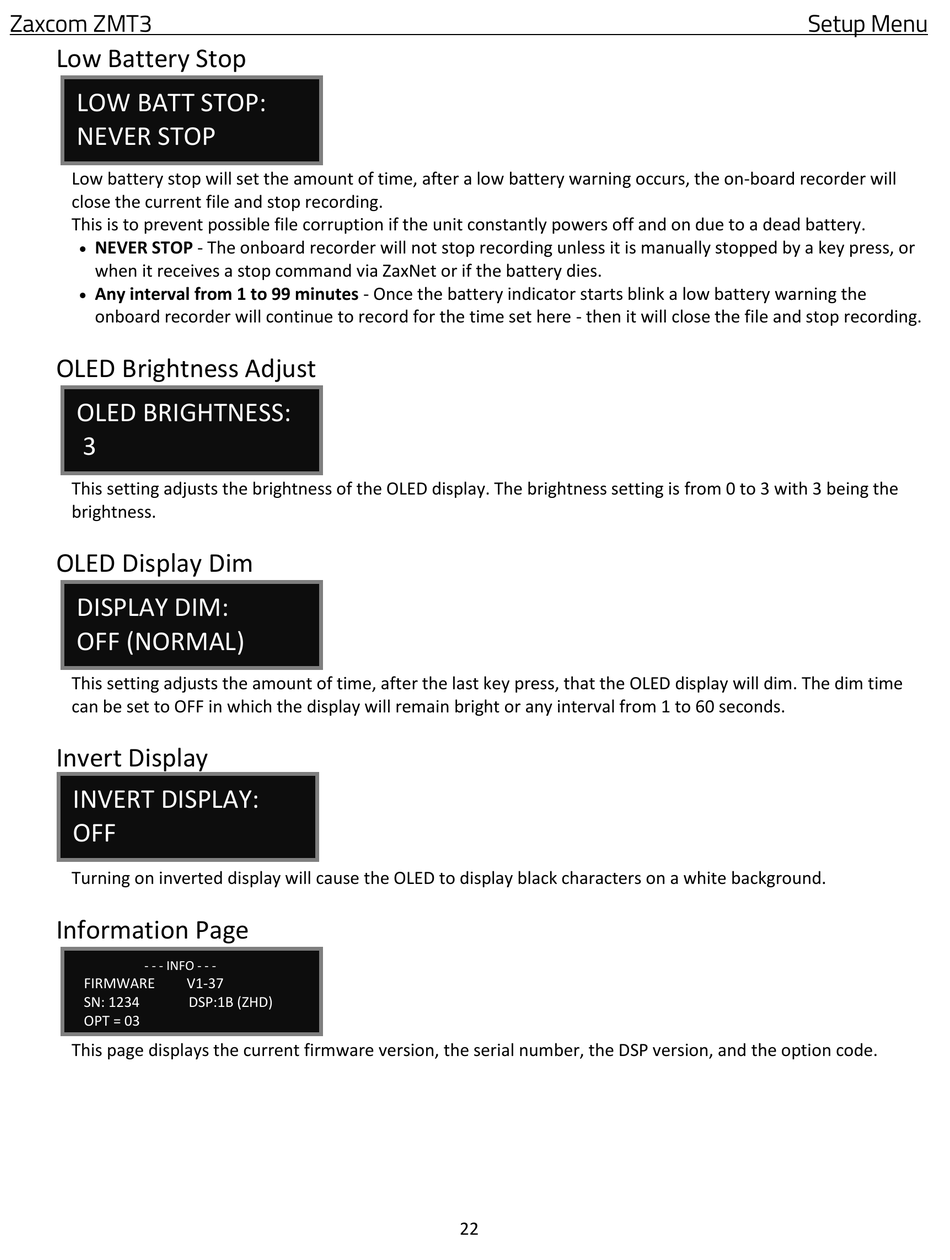

Low Battery Stop; Oled Brightness Adjust; Oled Display Dim; Invert Display - Zaxcom ZMT3 User Manual

Zaxcom ZMT3

Low Battery Stop

LOW BATT STOP:
NEVER STOP
Low battery stop will set the amount of time, after a low battery warning occurs, the on-board recorder will
close the current file and stop recording.
This is to prevent possible file corruption if the unit constantly powers off and on due to a dead battery.

NEVER STOP - The onboard recorder will not stop recording unless it is manually stopped by a key press, or
when it receives a stop command via ZaxNet or if the battery dies.

Any interval from 1 to 99 minutes - Once the battery indicator starts blink a low battery warning the
onboard recorder will continue to record for the time set here - then it will close the file and stop recording.

OLED Brightness Adjust

OLED BRIGHTNESS:
3
This setting adjusts the brightness of the OLED display. The brightness setting is from 0 to 3 with 3 being the
brightness.

OLED Display Dim

DISPLAY DIM:
OFF (NORMAL)
This setting adjusts the amount of time, after the last key press, that the OLED display will dim. The dim time
can be set to OFF in which the display will remain bright or any interval from 1 to 60 seconds.

Invert Display

INVERT DISPLAY:
OFF
Turning on inverted display will cause the OLED to display black characters on a white background.

Information Page

- - - INFO - - -
FIRMWARE V1-37
SN: 1234 DSP:1B (ZHD)
OPT = 03
This page displays the current firmware version, the serial number, the DSP version, and the option code.
22
Setup Menu
