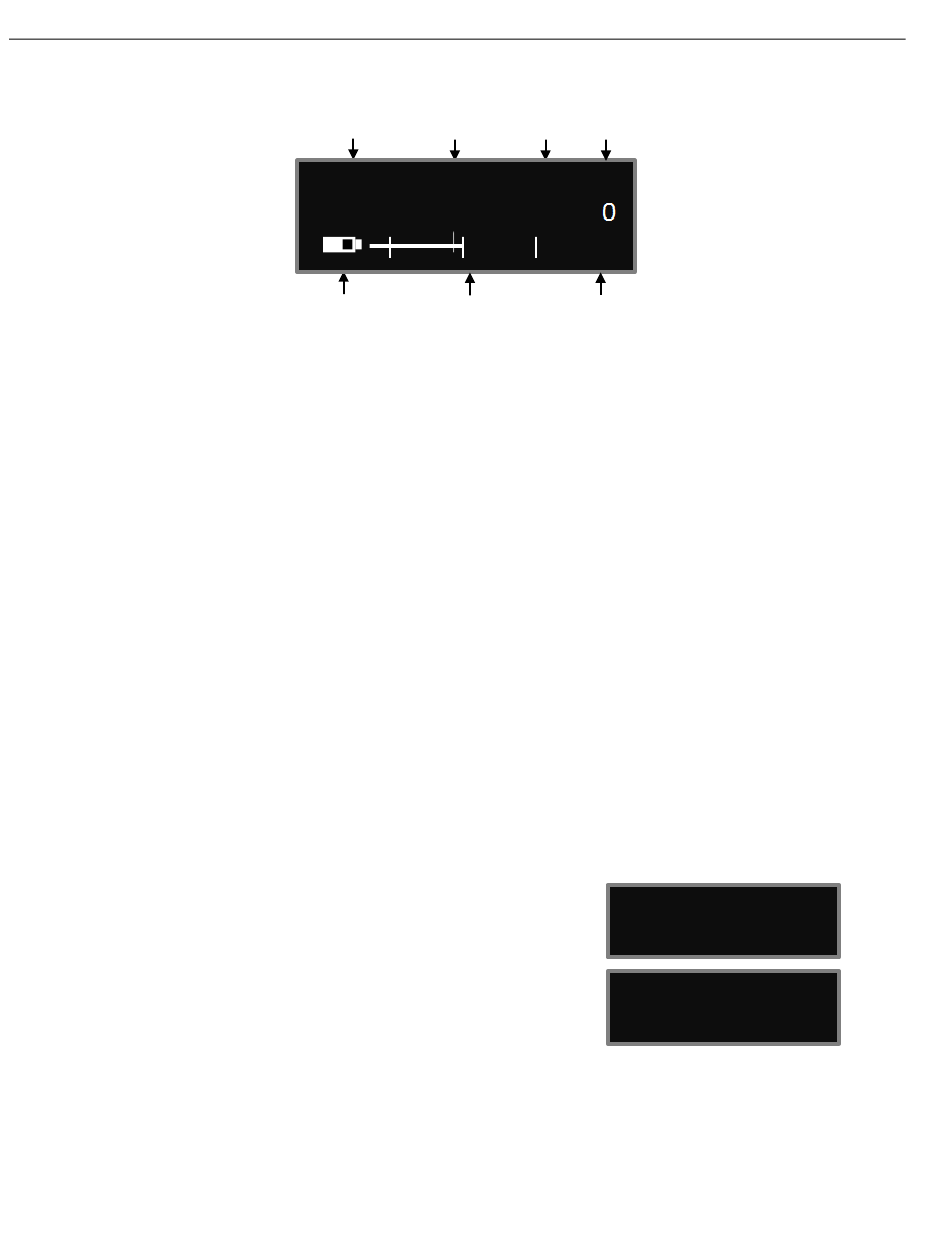

Home Screen

Frequency
- This is the transmit frequency of the ZMT4.
If the ZMT4 is being used in RECORD ONLY mode "NOTX" will be displayed.
ZaxNet Status
IFB RX - The ZMT4 is receiving ZaxNet.
•
IFB TX - The ZMT4 is transmitting ZaxNet.
•
Transport Status
STOP - Recording / Playback is stopped
•
LREC - ZMT4 is recording in LOOP RECORD mode.
•
REC - ZMT4 is recording in NON-LOOP RECORD mode.
•
PLAY - ZMT4 is playing back a recorded audio file.
•
Power Level
Battery
- This displays the battery type and the approximate percentage of remaining battery power.
Audio Meter
SEG
- Displays the number of recorded segments on the micro-SD card. Please note that regardless of
the size of the card it is limited to 500 segments.
Gain
- "G" Appears when the transmitter is receiving change of gain commands via ZaxNet
Group and Unit Code
home screen will display the group and unit code and the
record time remaining on the card.
Time Code and Frame Rate
the home screen will display the time code and frame rate of
the time code generator.
Frequency
543.2
LION
B
attery Level
– Displays the current mode of the recording feature.
- Displays the transmit power level.
- Displays the modulation of the inputted audio signal.
- Pressing the INC key while in the
- Pressing the DEC key while in
ZaxNet Status Transport Power
Modulation Status
STOP 5
ZHD96 SEG 001
Audio Meter
Indicators at -20, -10, 0 dBFS
6
Level
G
Gain
GROUP:1 UNIT:1
TIME LEFT 24H
TC: 09:18:05:00
23.98 (AUTO)
