Zaxcom ZMT3

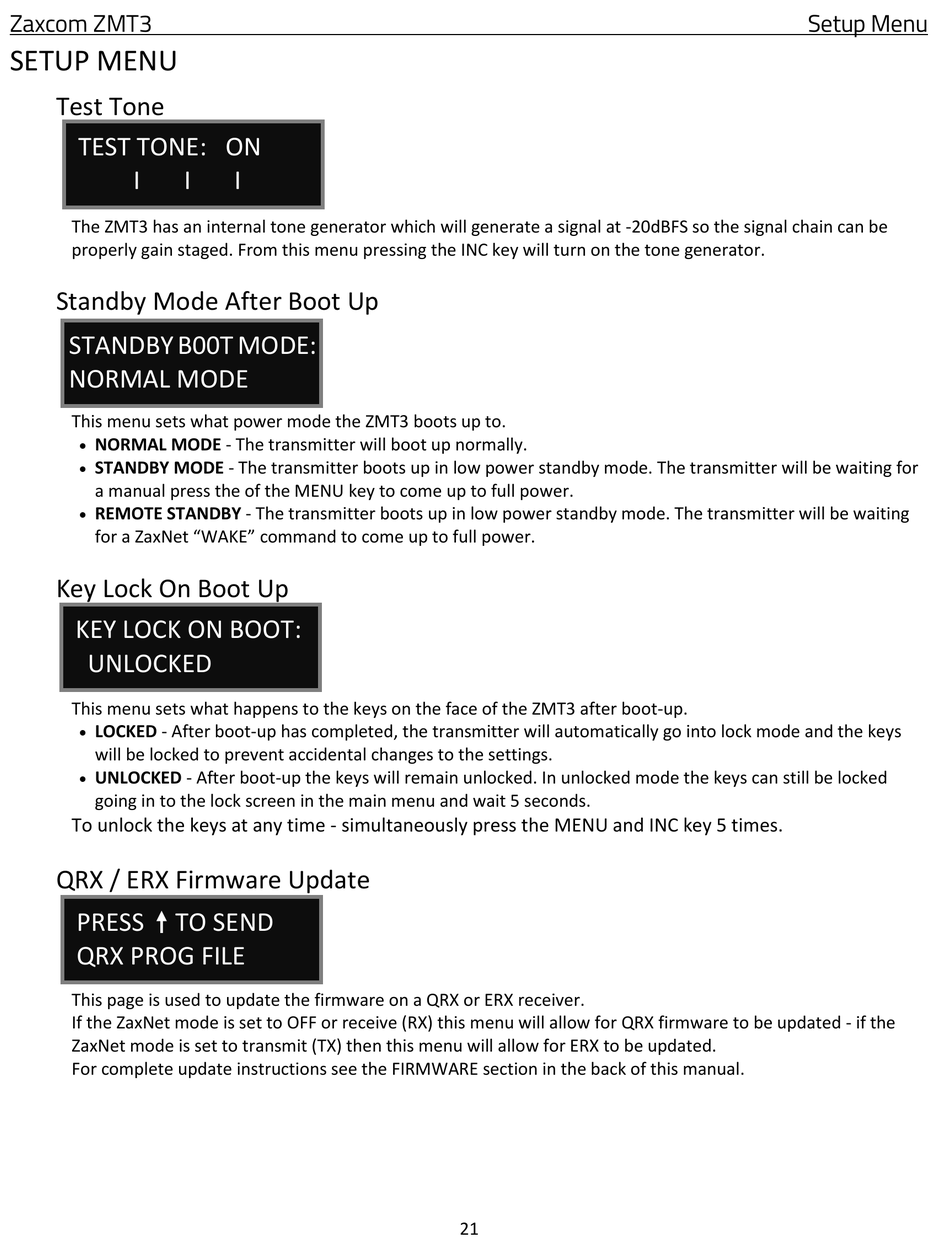

SETUP MENU

Test Tone


TEST TONE: ON

I I


The ZMT3 has an internal tone generator which will generate a signal at -20dBFS so the signal chain can be
properly gain staged. From this menu pressing the INC key will turn on the tone generator.
Standby Mode After Boot Up
STANDBY B00T MODE:
NORMAL MODE
This menu sets what power mode the ZMT3 boots up to.

NORMAL MODE - The transmitter will boot up normally.

STANDBY MODE - The transmitter boots up in low power standby mode. The transmitter will be waiting for
a manual press the of the MENU key to come up to full power.

REMOTE STANDBY - The transmitter boots up in low power standby mode. The transmitter will be waiting
for a ZaxNet "WAKE" command to come up to full power.

Key Lock On Boot Up

KEY LOCK ON BOOT:
UNLOCKED
This menu sets what happens to the keys on the face of the ZMT3 after boot-up.

LOCKED - After boot-up has completed, the transmitter will automatically go into lock mode and the keys
will be locked to prevent accidental changes to the settings.

UNLOCKED - After boot-up the keys will remain unlocked. In unlocked mode the keys can still be locked
going in to the lock screen in the main menu and wait 5 seconds.
To unlock the keys at any time - simultaneously press the MENU and INC key 5 times.

QRX / ERX Firmware Update

PRESS TO SEND
QRX PROG FILE
This page is used to update the firmware on a QRX or ERX receiver.
If the ZaxNet mode is set to OFF or receive (RX) this menu will allow for QRX firmware to be updated - if the
ZaxNet mode is set to transmit (TX) then this menu will allow for ERX to be updated.
For complete update instructions see the FIRMWARE section in the back of this manual.
I
21
Setup Menu
