Repeated assembly

Version 2.3 (01/2017) en-US
Translation of original instruction manual
Interroll MultiControl
Assembly and installation

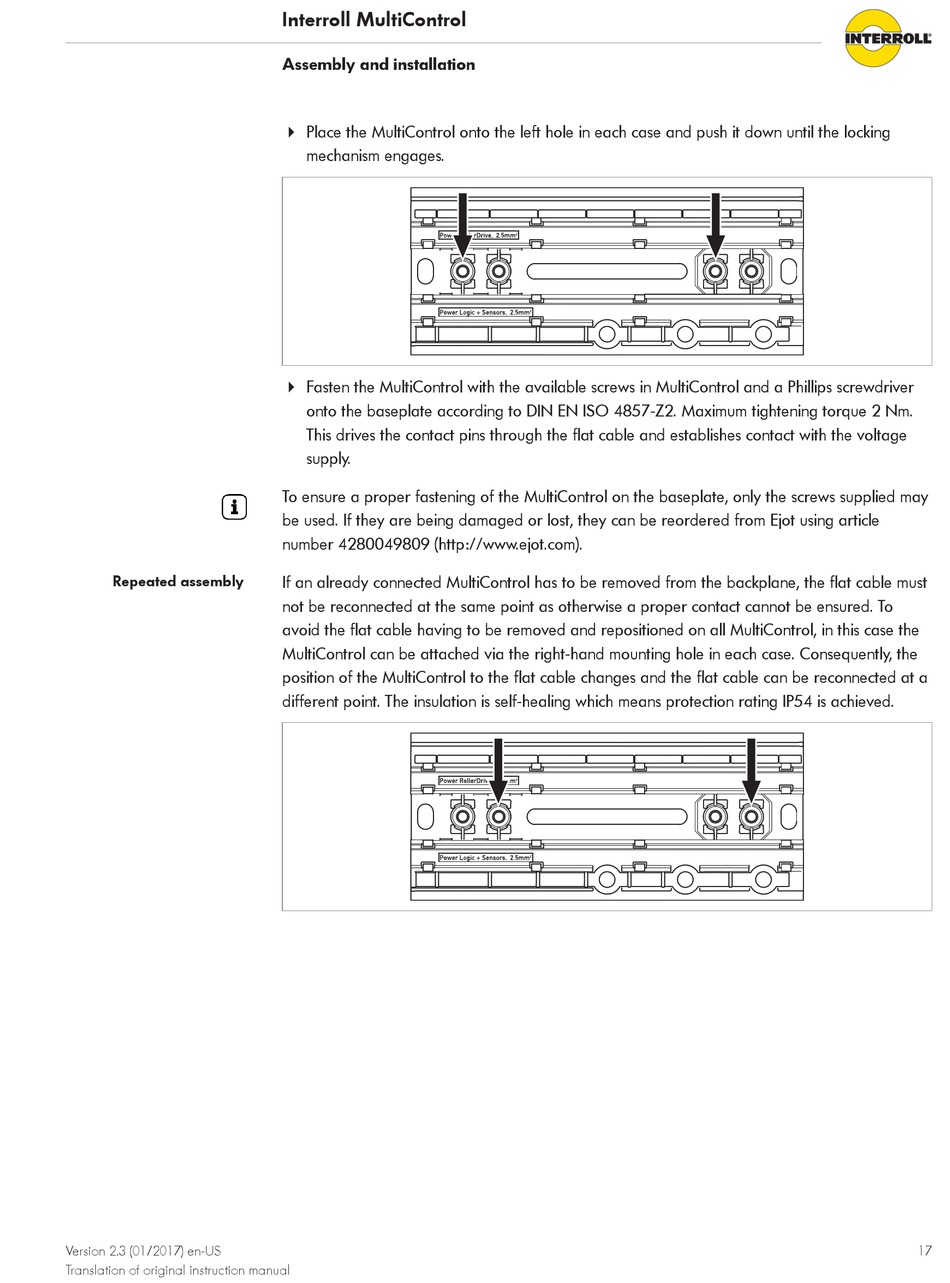

4 Place the MultiControl onto the left hole in each case and push it down until the locking
mechanism engages.
4 Fasten the MultiControl with the available screws in MultiControl and a Phillips screwdriver
onto the baseplate according to DIN EN ISO 4857-Z2. Maximum tightening torque 2 Nm.
This drives the contact pins through the flat cable and establishes contact with the voltage
supply.
To ensure a proper fastening of the MultiControl on the baseplate, only the screws supplied may
be used. If they are being damaged or lost, they can be reordered from Ejot using article
number 4280049809 (http://www.ejot.com).
If an already connected MultiControl has to be removed from the backplane, the flat cable must
not be reconnected at the same point as otherwise a proper contact cannot be ensured. To
avoid the flat cable having to be removed and repositioned on all MultiControl, in this case the
MultiControl can be attached via the right-hand mounting hole in each case. Consequently, the
position of the MultiControl to the flat cable changes and the flat cable can be reconnected at a
different point. The insulation is self-healing which means protection rating IP54 is achieved.
