Initial assembly

16
Interroll MultiControl

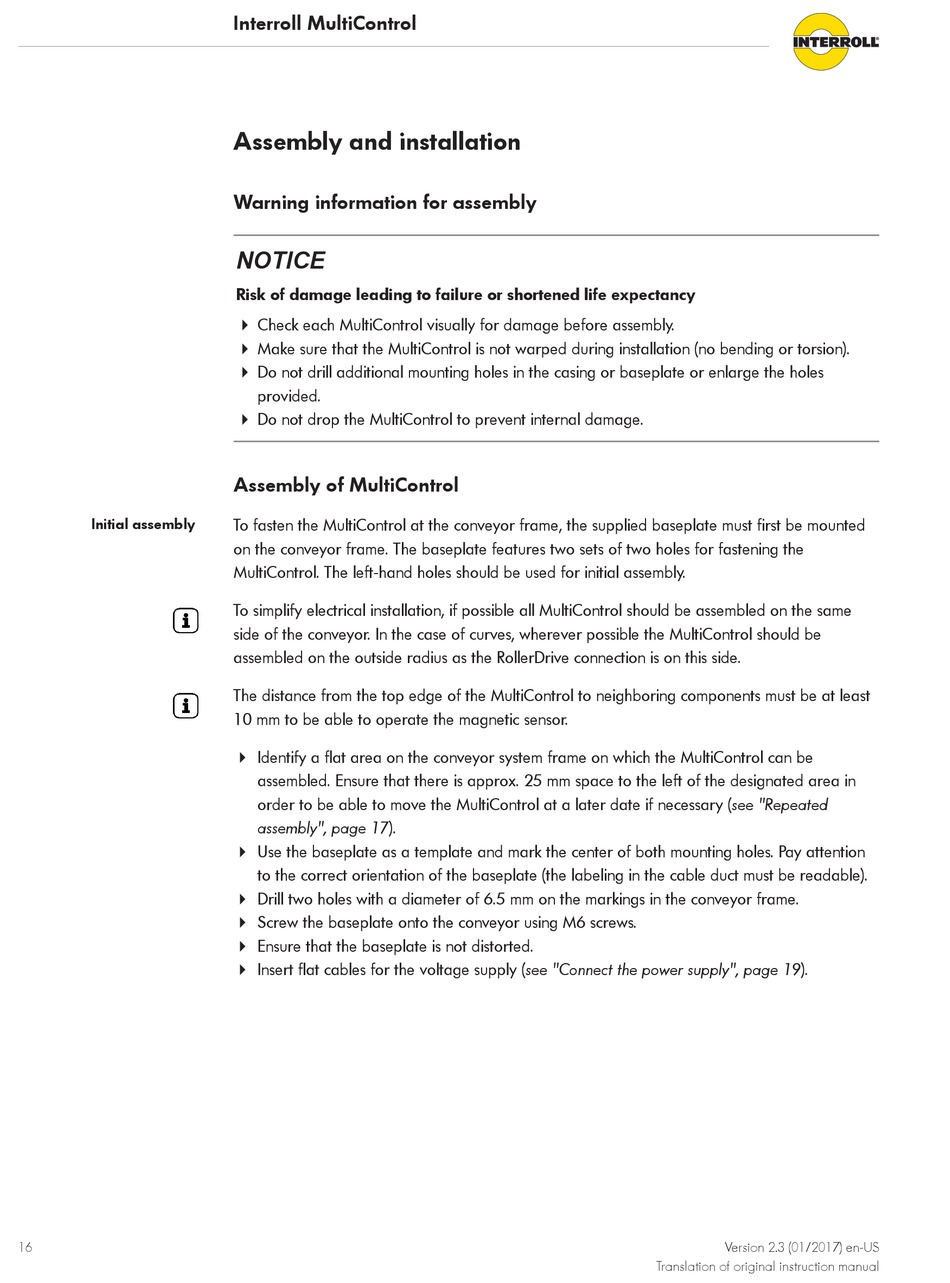

Assembly and installation

Warning information for assembly

NOTICE
Risk of damage leading to failure or shortened life expectancy
4 Check each MultiControl visually for damage before assembly.
4 Make sure that the MultiControl is not warped during installation (no bending or torsion).
4 Do not drill additional mounting holes in the casing or baseplate or enlarge the holes
provided.
4 Do not drop the MultiControl to prevent internal damage.

Assembly of MultiControl

To fasten the MultiControl at the conveyor frame, the supplied baseplate must first be mounted
on the conveyor frame. The baseplate features two sets of two holes for fastening the
MultiControl. The left-hand holes should be used for initial assembly.
To simplify electrical installation, if possible all MultiControl should be assembled on the same
side of the conveyor. In the case of curves, wherever possible the MultiControl should be
assembled on the outside radius as the RollerDrive connection is on this side.
The distance from the top edge of the MultiControl to neighboring components must be at least
10 mm to be able to operate the magnetic sensor.
4 Identify a flat area on the conveyor system frame on which the MultiControl can be
assembled. Ensure that there is approx. 25 mm space to the left of the designated area in
order to be able to move the MultiControl at a later date if necessary (see "Repeated
assembly", page 17).
4 Use the baseplate as a template and mark the center of both mounting holes. Pay attention
to the correct orientation of the baseplate (the labeling in the cable duct must be readable).
4 Drill two holes with a diameter of 6.5 mm on the markings in the conveyor frame.
4 Screw the baseplate onto the conveyor using M6 screws.
4 Ensure that the baseplate is not distorted.
4 Insert flat cables for the voltage supply (see "Connect the power supply", page 19).
