Introduction

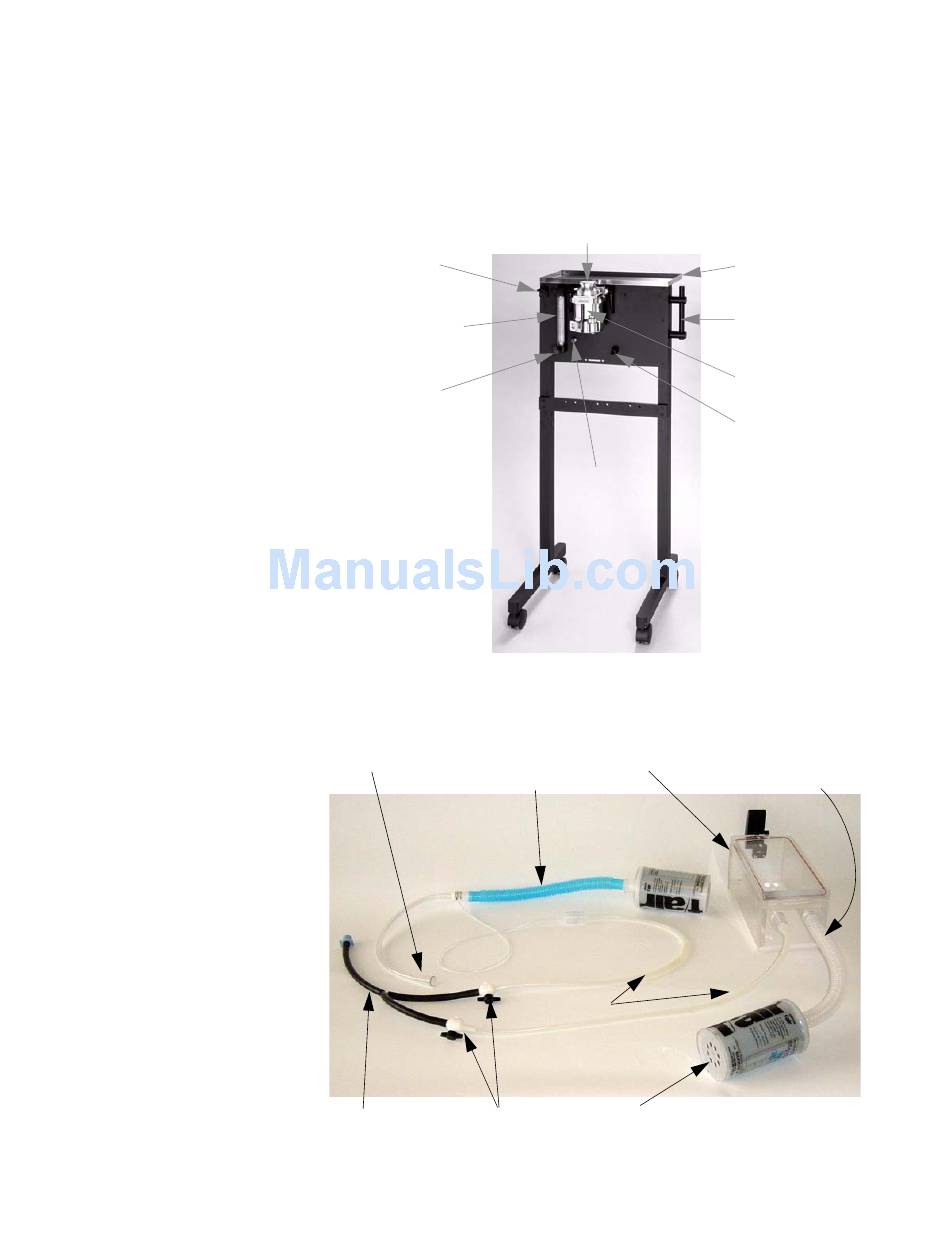

Mobile vaporizer sub-
system configuration
Common delivery sub-
system
2 VisualSonics Vevo Integrated Rail System Operator Manual
Need help? Call us toll-free: 1-866-416-4636 or E-mail us: support@visualsonics.com
The mobile system features sturdy casters, a built-in handle so you can
move it easily to another room or another building, a convenient syringe
holder, and a stainless steel shelf that gives you a handy workspace. All
internal connections are housed in a smooth panel so you can clean the
system easily.
Syringe
holder
Oxygen
flowmeter
Flow
control
knob
The delivery sub-system is a single configuration that functions
identically with each vaporizer sub-system configuration.
Mouse mask
Mouse mask
(waste gas - out)
Y-tube Stopcocks
Vaporizer
dial
Oxygen
flush
Induction chamber
Anesthesia - in
Charcoal filter
Stainless steel
shelf
Handle/
hanger
Vaporizer
Common
outlet
Induction chamber
(waste gas - out)
